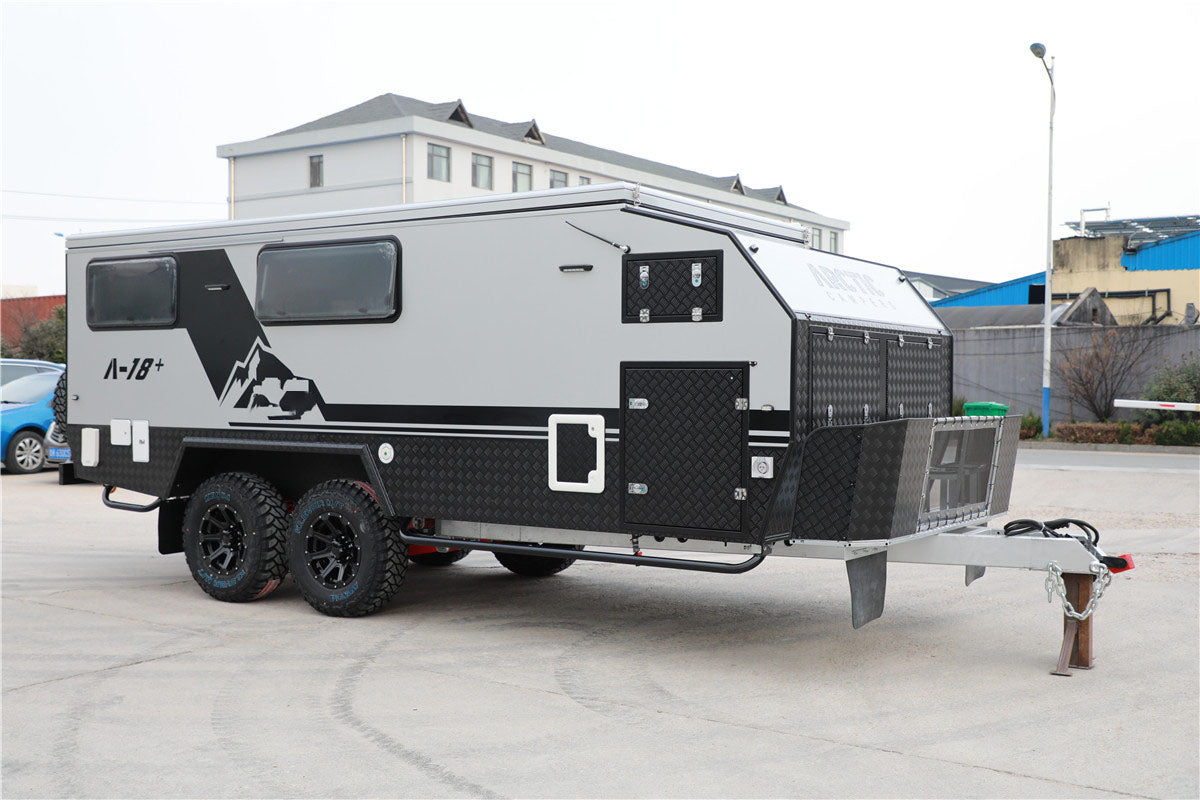

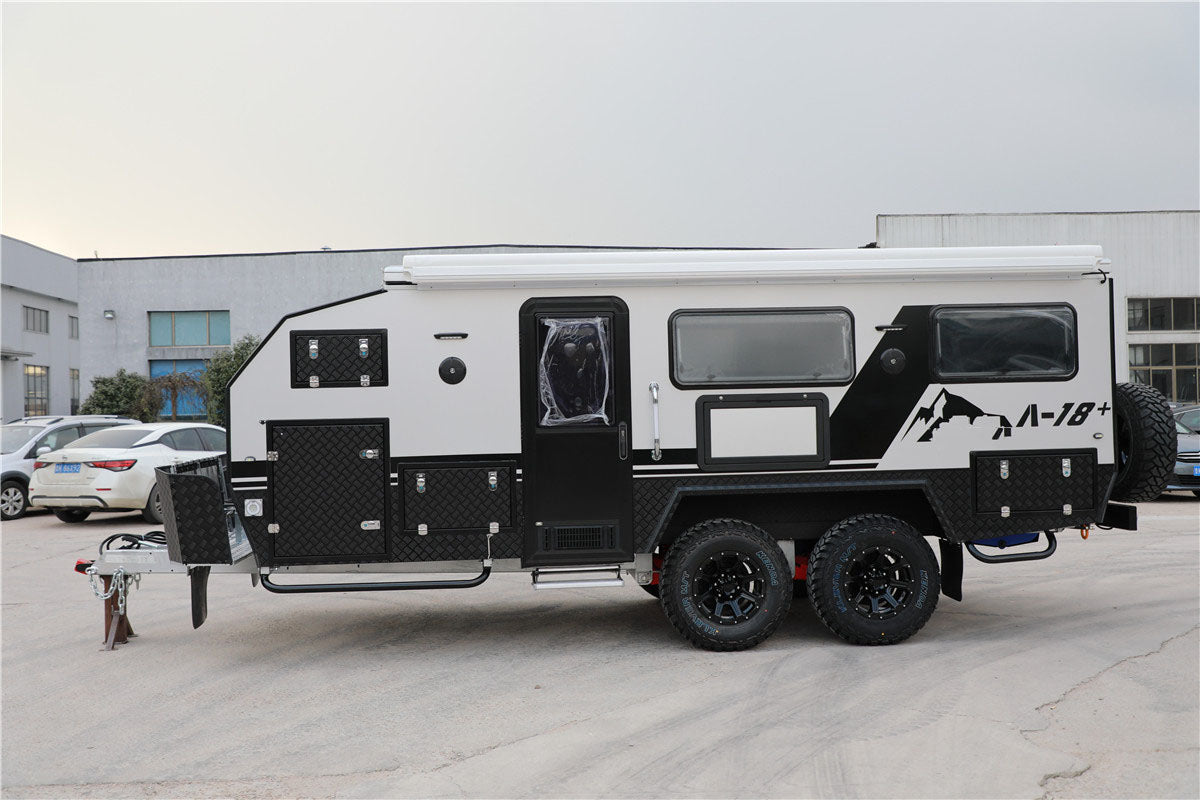

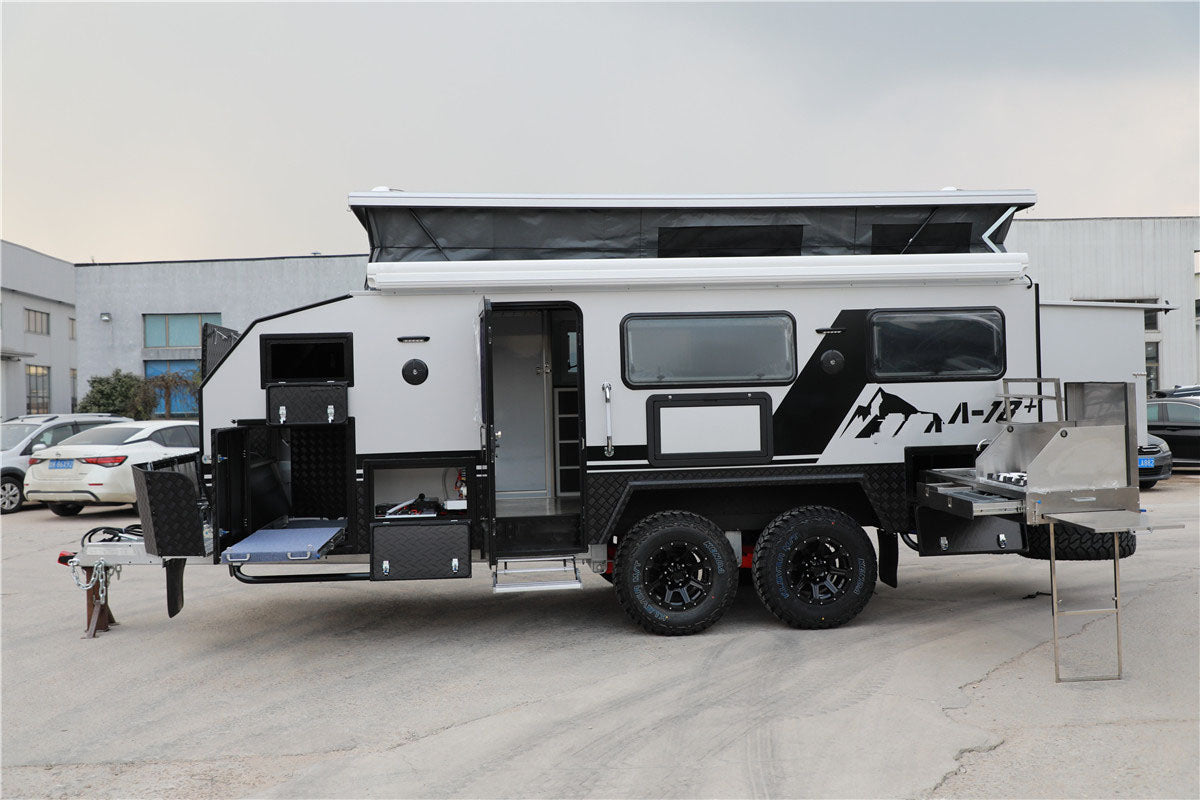

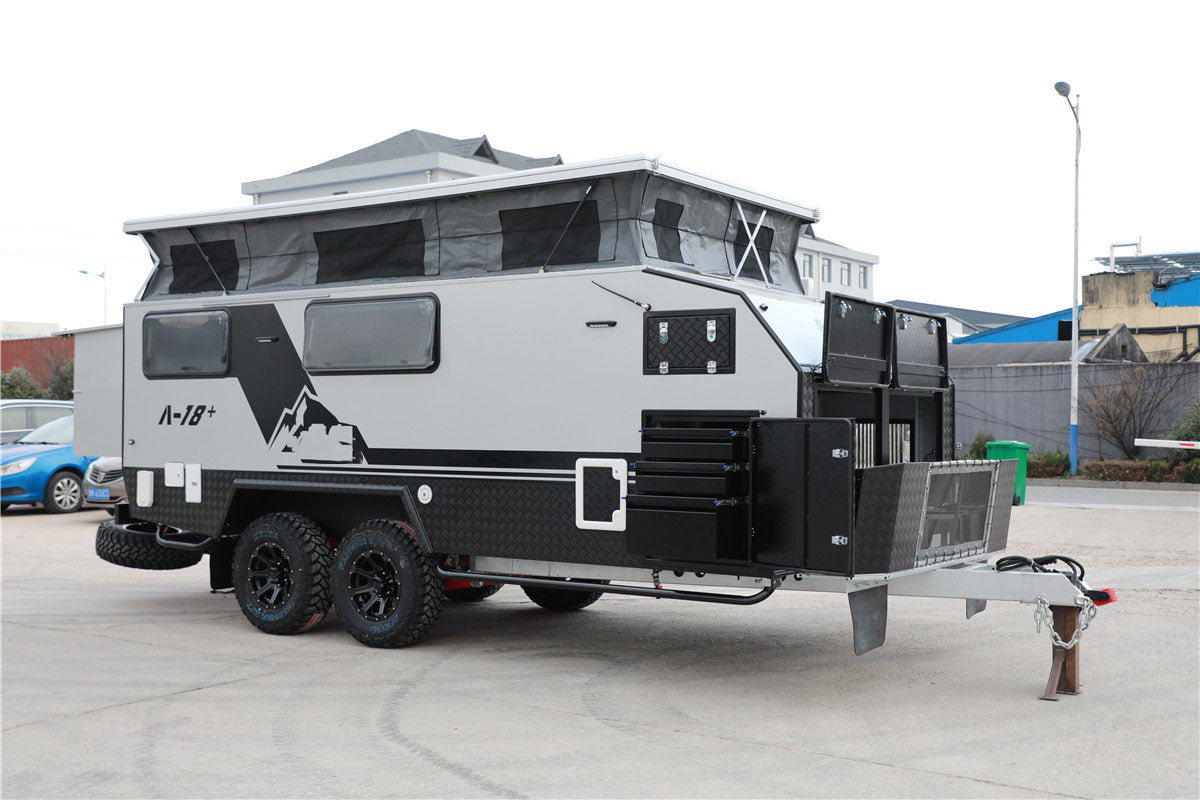

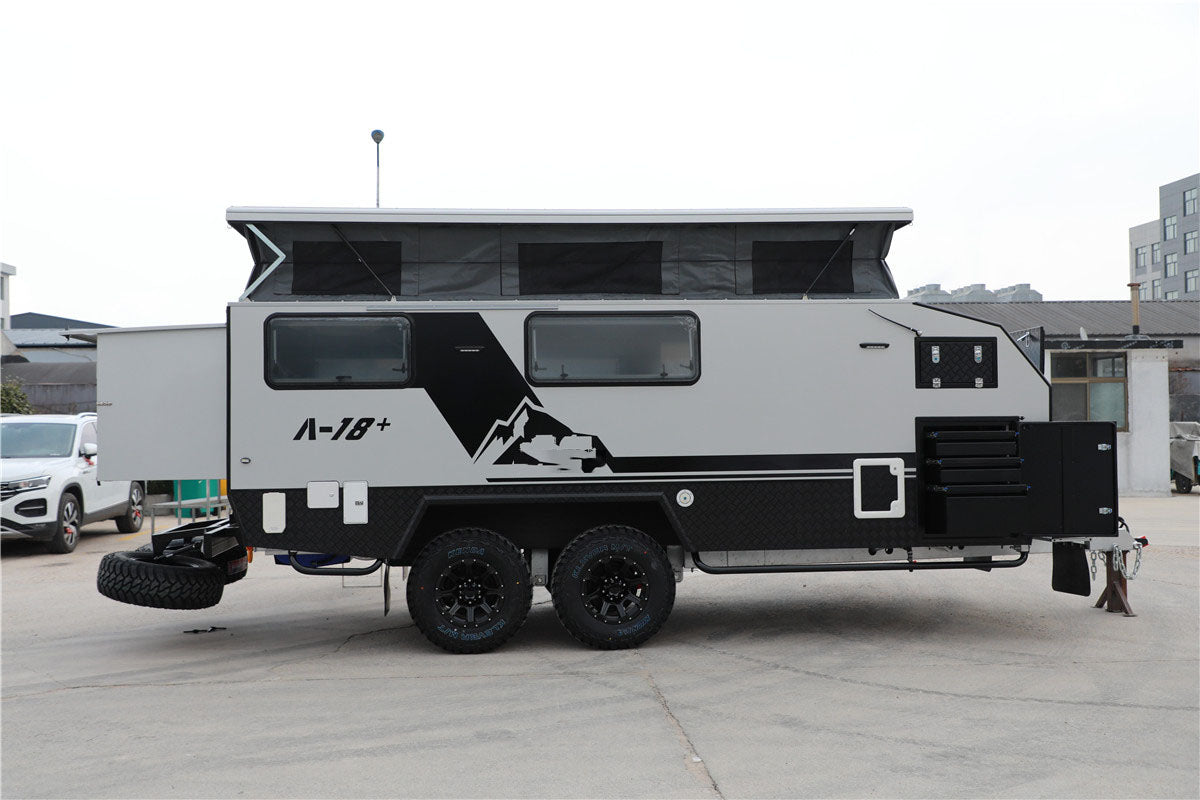

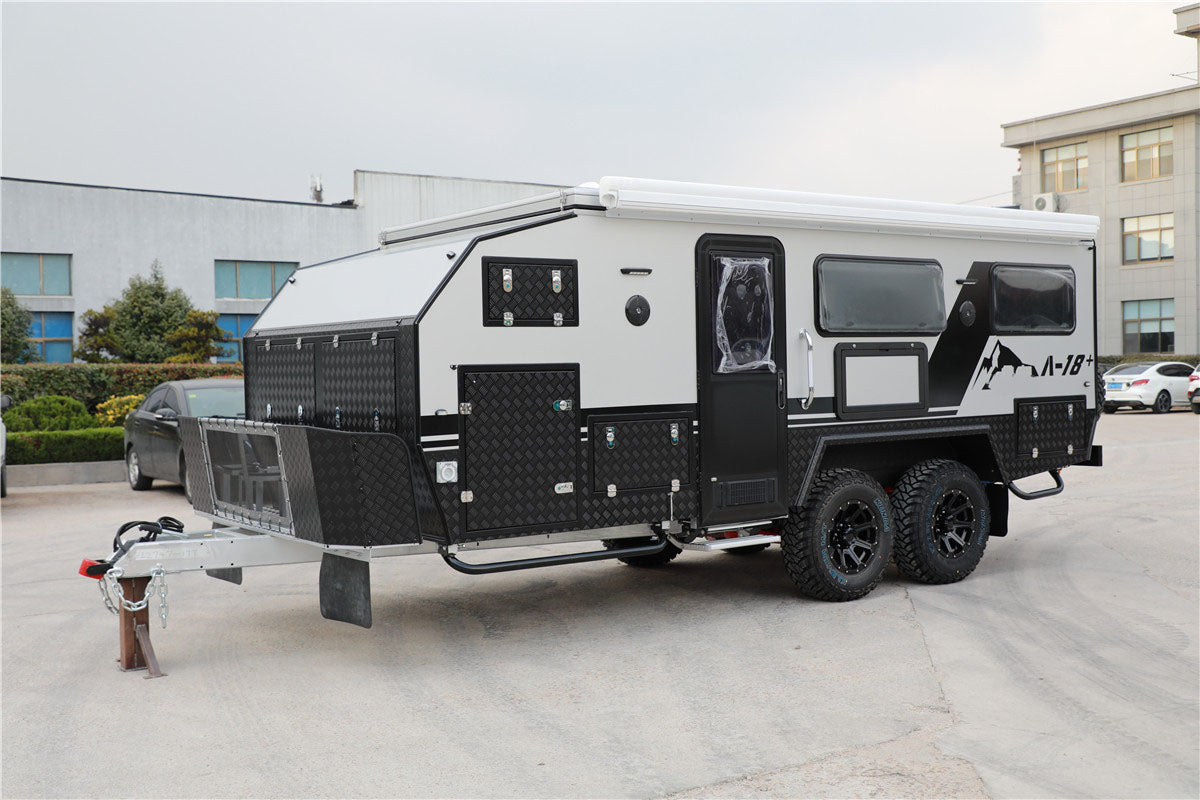

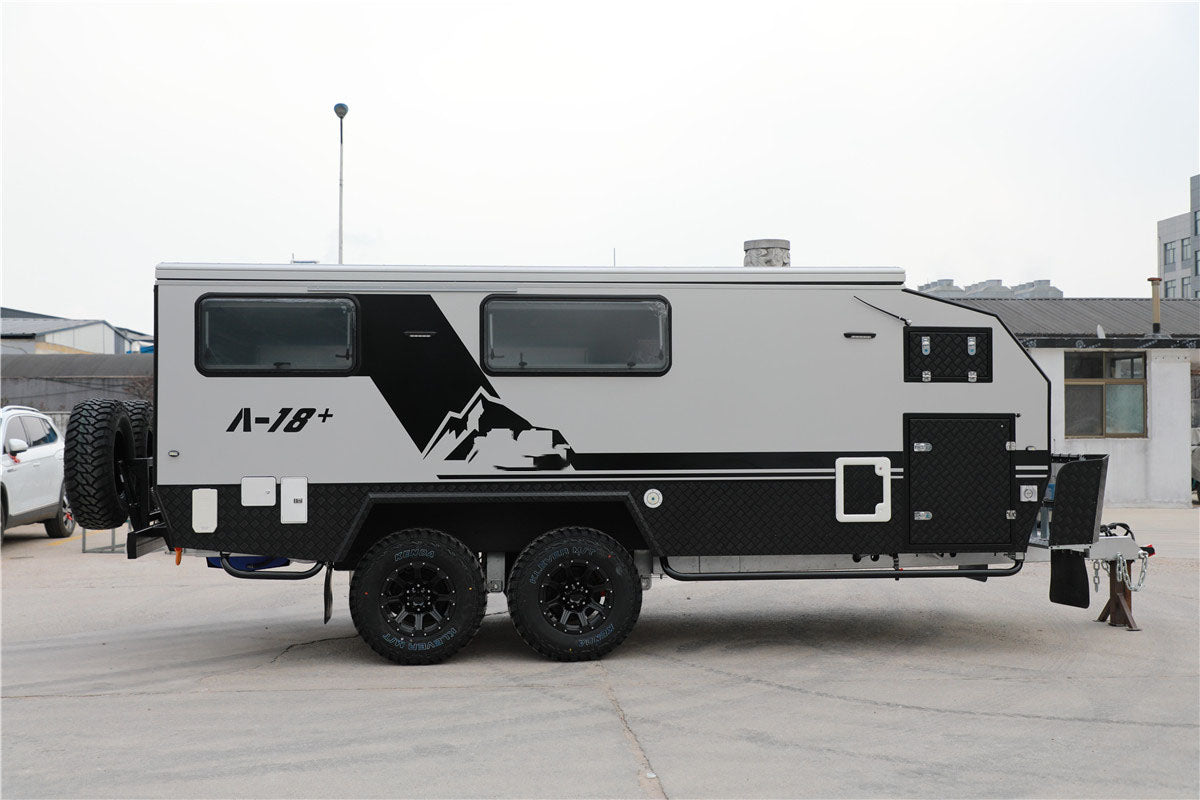

Voyager-17LT

1

Width

2200mm

2

Height (Roof Closed)

2370mm

3

Length (Hitch To spare tyre holder)

6950mm

Length (tail gate folded out)

7450mm

4

Ball Weight

250KG

5

Tare Weight

2560KG

6

GTM

3,000kg

7

Drawbar Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 3mm

8

Chassis Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 3mm

9

Body Construction

Reinforced Aluminium tube

10

Roof Construction

Reinforced fiberglass outside roof with inner aluminium composite wall with aluminium frame

11

Ripple paint Rock guard

Rock guard with ripple paint

12

Surface finish

Royal silver aluminium composite panel + black colour aluminium checker plate

13

Inner finish

Royal white wall with aluminium composite panel

14

Safety Chains

Double Safety Chains

15

Suspension

Independent Arm Suspension With 8x reinforced auto-kick-back Shock Absorbers With high performance coil springs

16

Wheel/Tyre Info/Double axle

6x 1750KG 16-inch reinforced Rims, Kenda brand Mud Terrain 265/75 R16 6 pcs

17

Coupling

Standard NZ coupling

18

Electric Brakes

4WD 12-inch Electric brakes With Hand Brake

19

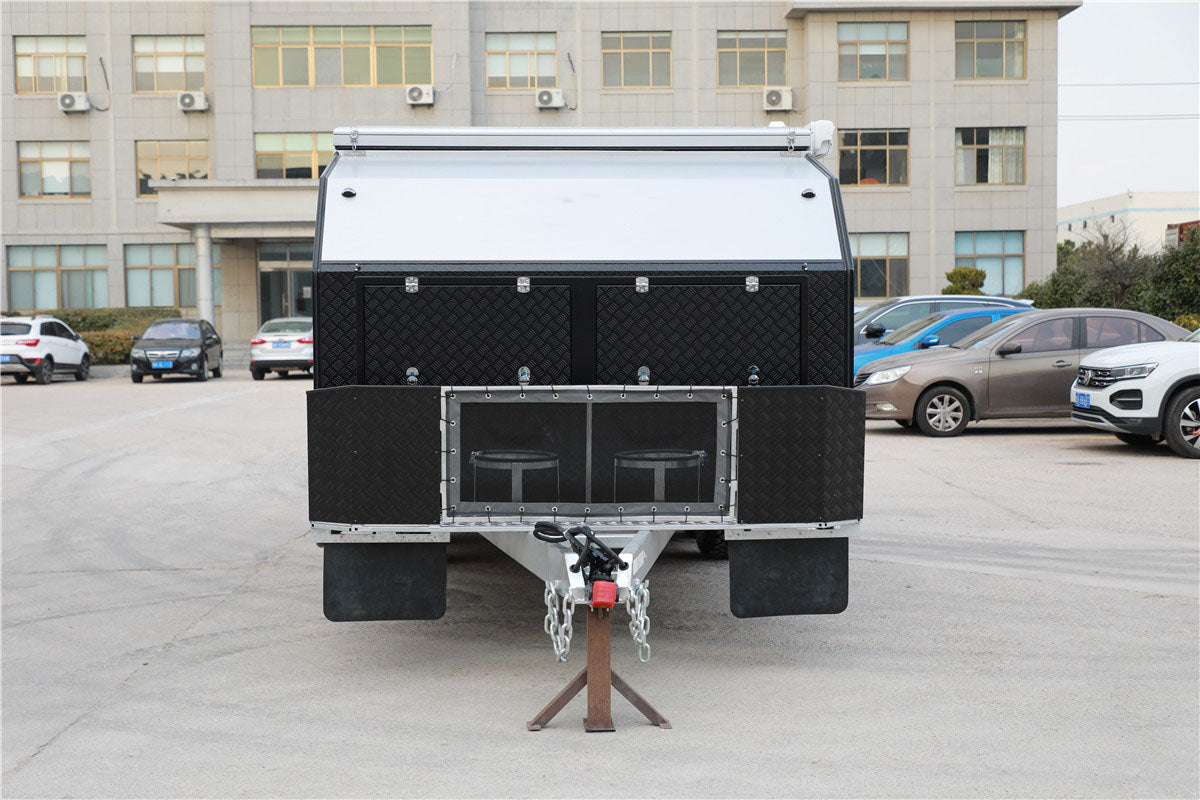

Stone Guard

Hot dipped galvanized frame with High quality Stone guard mesh with black powder coated aluminium checker plate stone guard wings

20

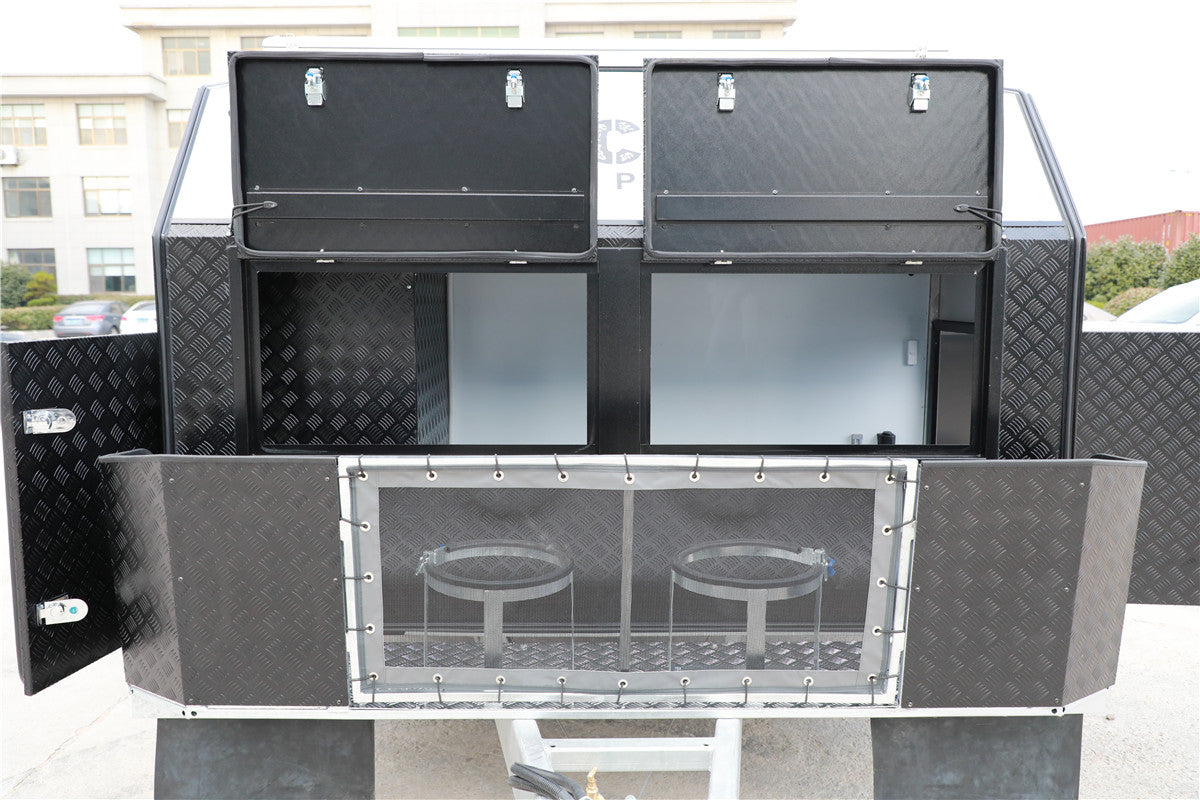

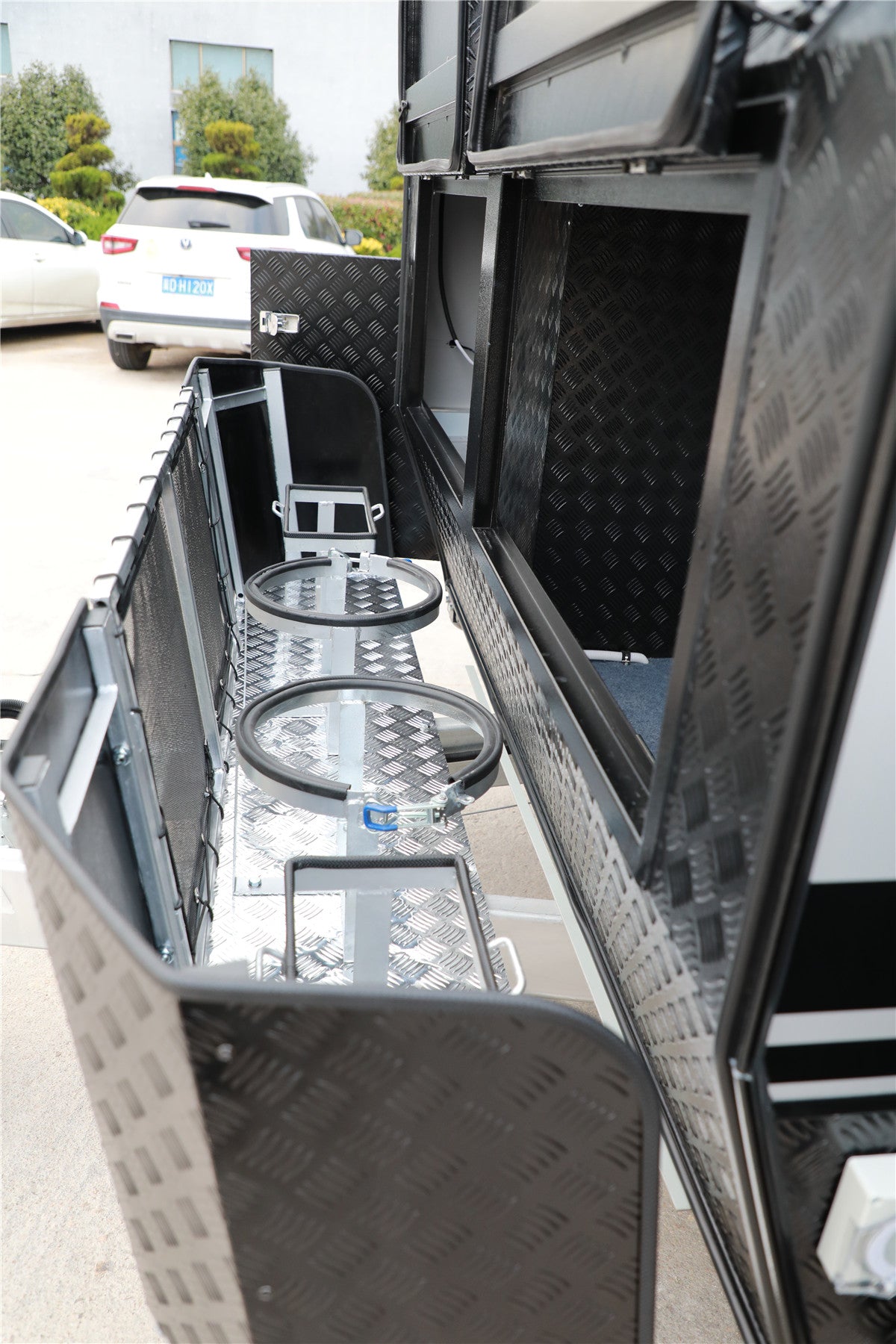

Gas holder

2 x 9kg Gas holder

21

Jerry Cans holder

2 x 20L Jerry Can Holders

22

Kitchen Construction

External 304 Grade Stainless Steel

23

Water Tank

3x 85L  Food grade Poly = 255 Litres Total

24

Water tank protector

Aluminium checker plate water tank protector

25

Water Delivery

Marine grade 12V Electric Pump

26

Shower Outside of caravan (Ensuite)

Hot/Cold shower head with RV Side Mounted Shower Tent

27

Shower room, inner caravan (With Thetford brand toilet and toilet door)

shower room inner caravan. With shower head and soap carrier with Thetford brand toilet and Thetford brand super convenient portable toilet tank door, with RV roof air vent with air vent cover

28

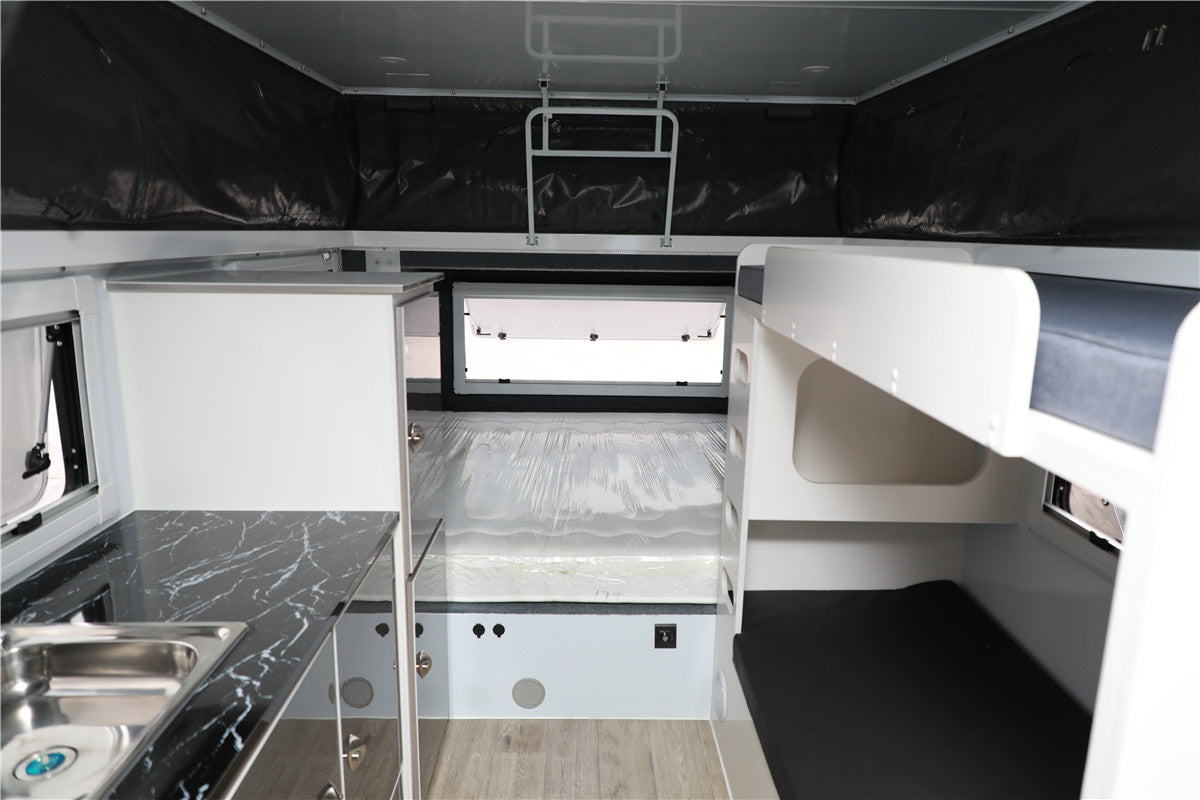

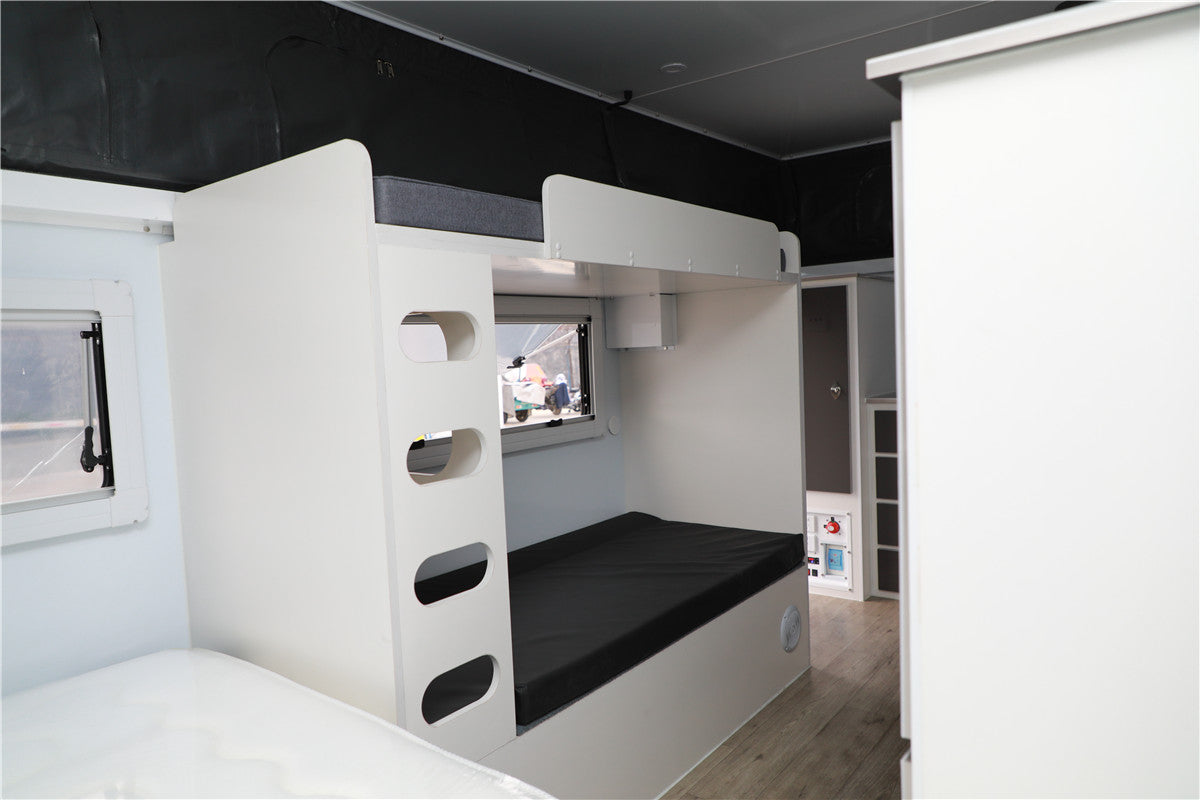

Double bunk bed

With double bunk bed

29

Structure

Fully Welded aluminium Frame + Hot dipped galvanized Chassis

30

Jockey Wheel

10" Swing-Up jockey wheel

31

Storage

2 Large Storage Boxes Offering Drawers and Plenty of Open Space

32

LED Lights

LED Taillights/LED tent lights/Indicators/NO. plate lights.

33

Stabilizer Legs

4 x Heavy Duty Lockable and Adjustable Drop-Down stabilizer legs

34

Bed frame base

Aluminium alloy frame

35

Spring Mattress

150mm top grade Custom Queen foldable Inner spring mattress.

36

Water sink 2pcs

External stainless-steel kitchen with stainless steel water sink

37

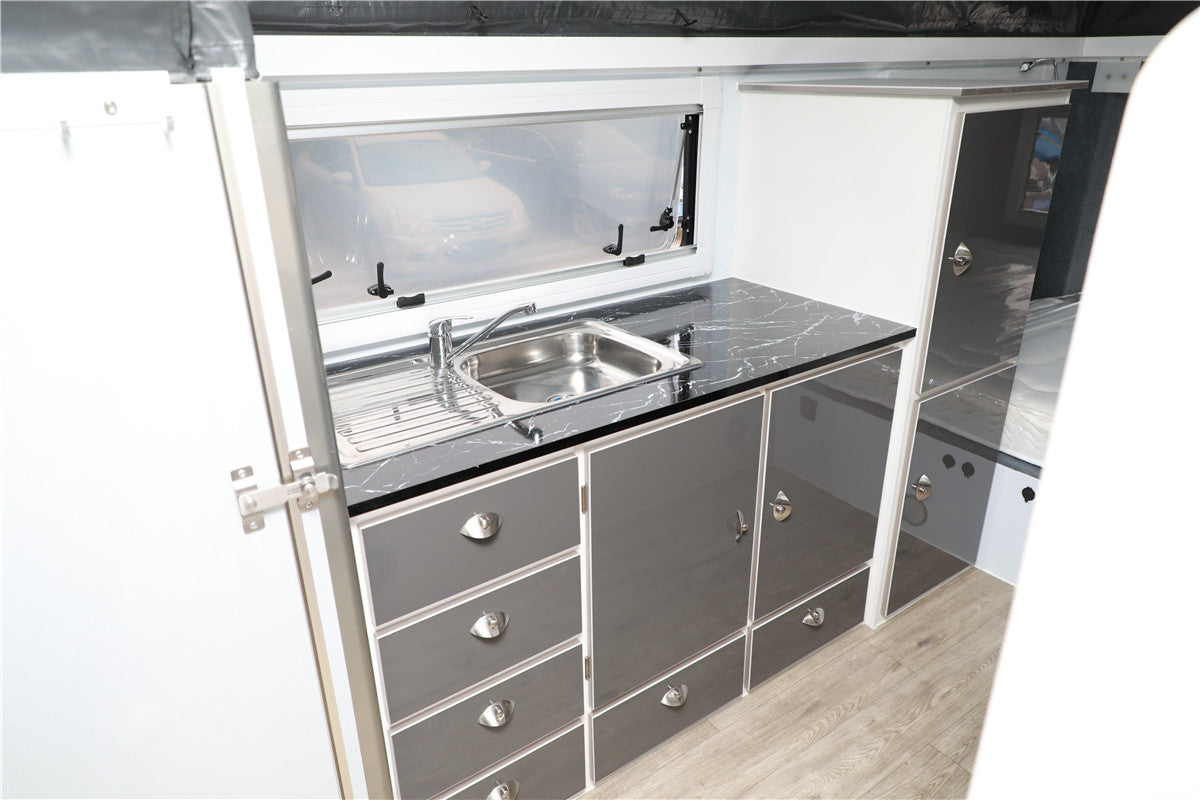

Internal Stainless steel water sink.

38

Taps

Hot and Cold-water taps 2pcs.Inner water sink with 1pc, outer kitchen with 1pc.and drawbar area has wastewater tap 1pc

39

LED handle light

Led handle light 1pc

40

Gas pipe

copper pipe for gas and fully assembled

41

Water pipe

water pipe fully assembled

42

Electric

Electric fully wired

43

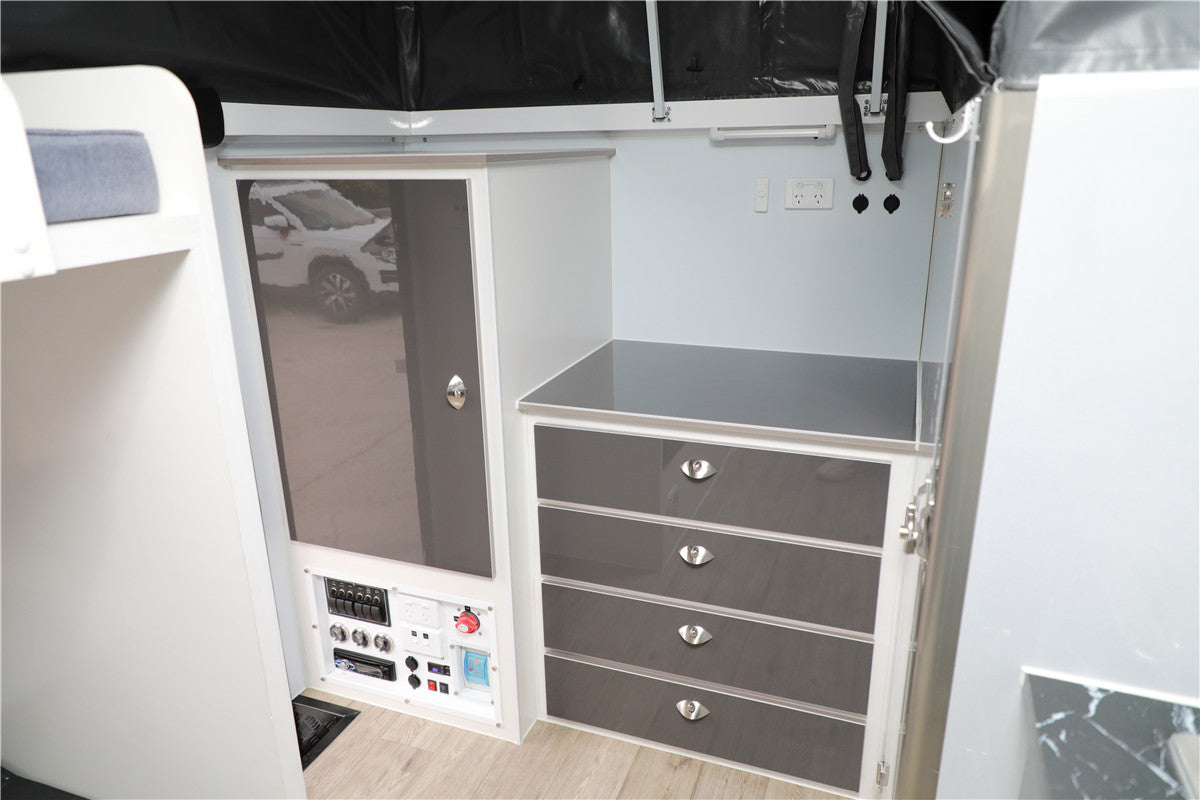

Amp and Voltmeter

Amp and Voltmeter with control panel

44

Water gauge and Water meter

Water tank with water gauge and water meter

45

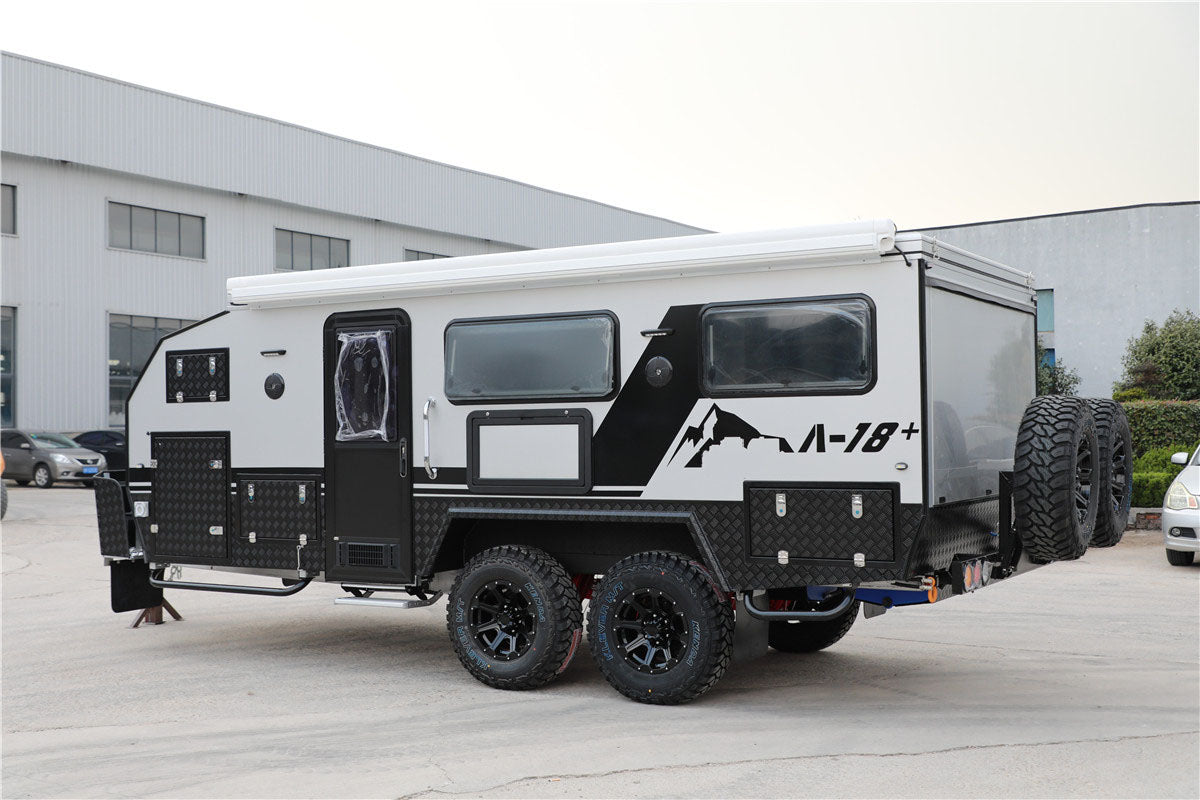

Double tyre holder with tyres

double spare tyre holder with 4 pcs GoodRide Brand 265/75R16 tyres and aluminium alloy rims 4 pcs

46

LED Reading lights

LED reading lights 2pcs around the bed

47

Table

Fold down table

48

Stepper

Aluminium stepper 1pc

49

Door and window

High quality door with mosquito mesh and security mesh and Window with shade curtain

50

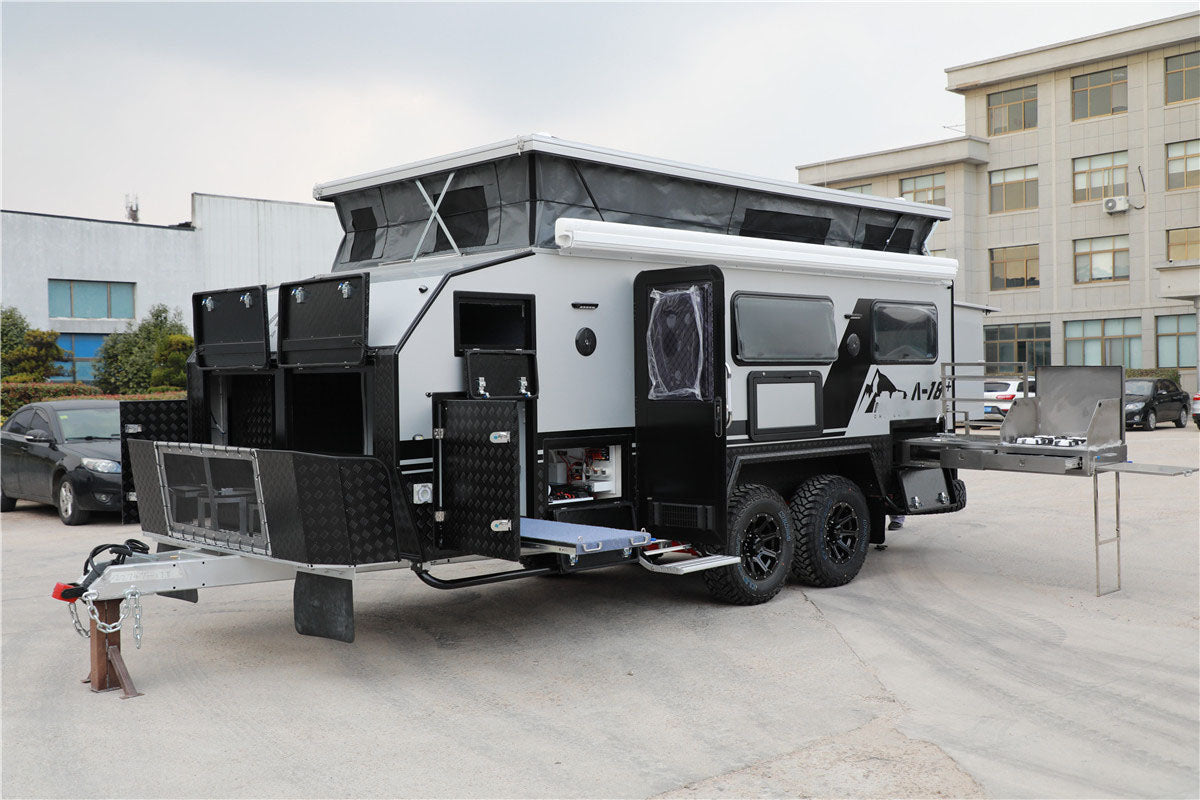

Slide out Tail gate finish

Aluminium panel with enamel car paint finish

51

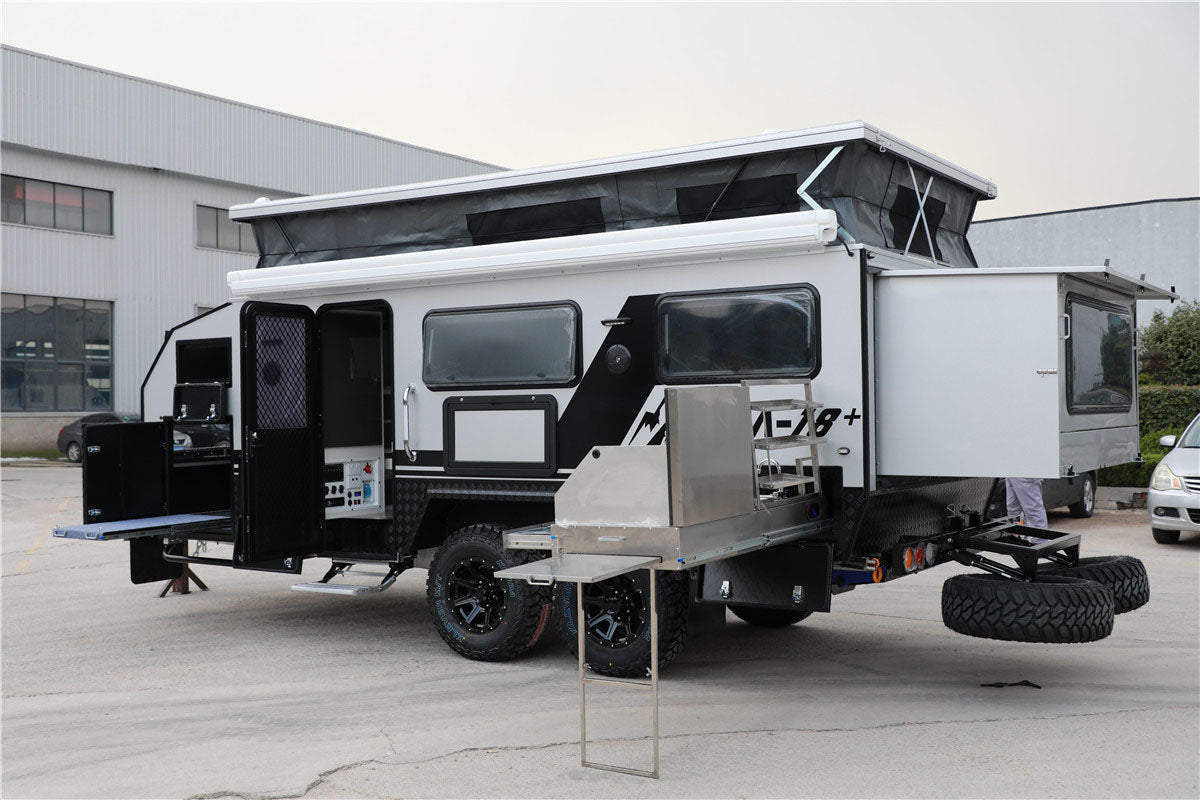

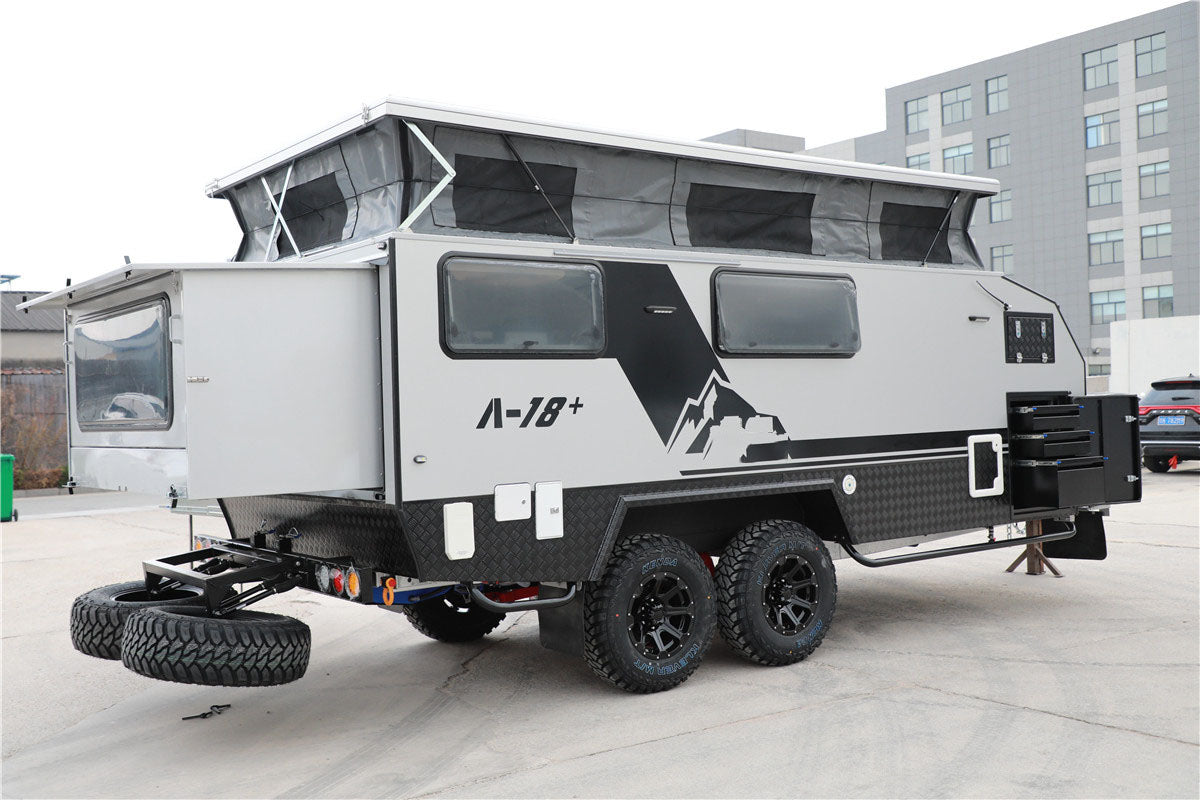

Pop up roof tent

High quality PVC pop up roof tent

52

Shower tent

Shower tent outside caravan

53

Sofa

High quality leather Sofa 1unit

54

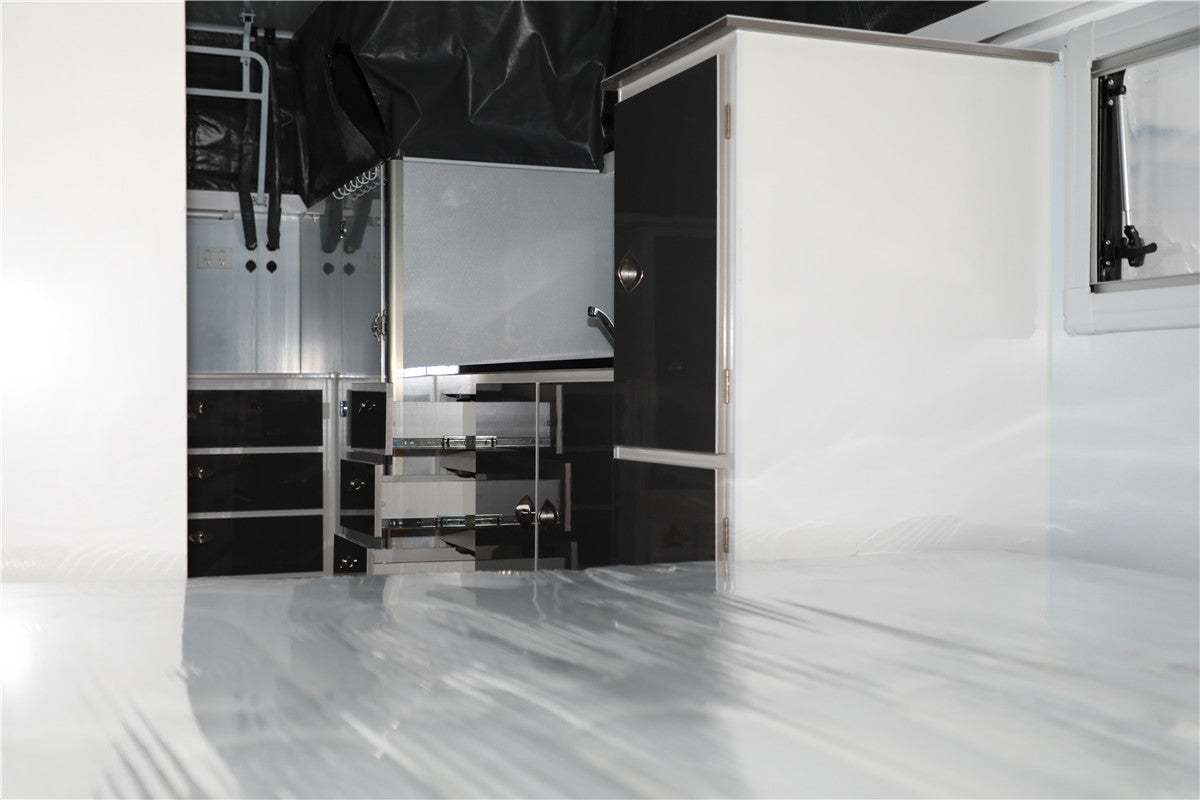

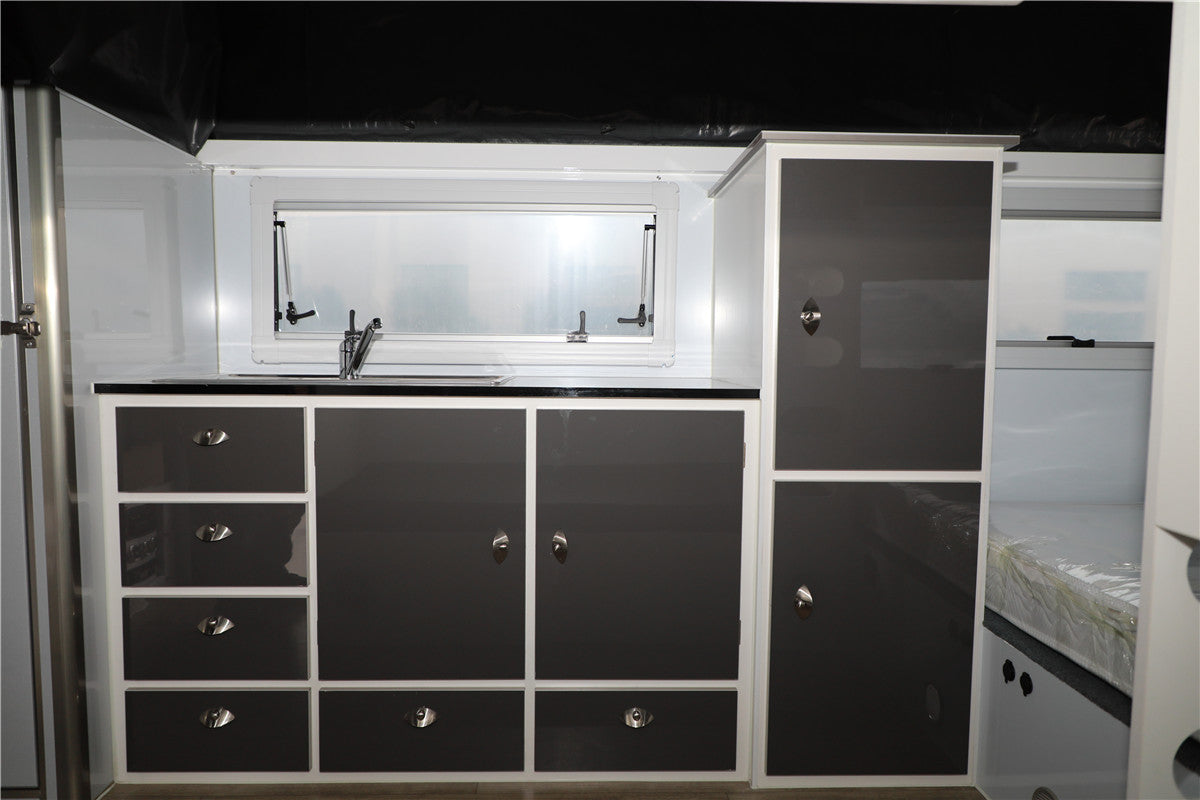

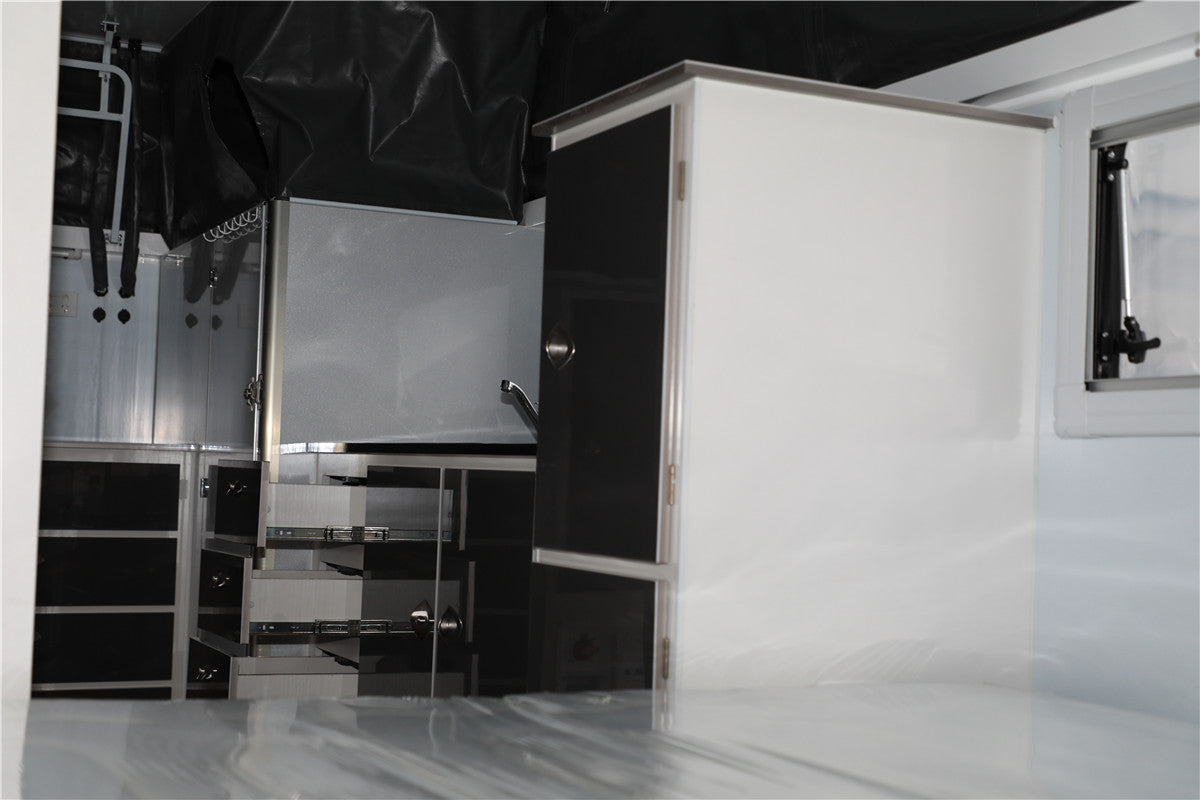

Cabinet construction

Aluminium alloy frame and panel with car paint, Cabinet with top quality acrylic cabinet door

55

Carpet through inner drawer

Carpet fully covered through the drawer inner

56

Cabinet edge sealer

All cabinet's door edge has been sealed by professional edge sealer

57

Hinge

Stainless steel 304 professional custom mould with both side profession sealed

58

Locks

Waterproof locks throughout caravan

59

Cigarette lighter

12V cigarette lighter 7pcs

60

Socket and switch

Multiple socket and switch throughout the caravan

61

Anderson plug

1 pc

62

240V outlet

240V outlet 1pc

63

Battery air vent

Battery area air vent 1pc

64

Flat shape water filler 1pc

Marine grade water filler.

65

Round shape water filler 1pc

Marine grade water filler.

66

7 Pin Plug

7 Pin plug flat shape or round shape

67

Batteries

3pcs.

68

Charger (240V)

battery charger 1pc

69

Inverter

2000W super good quality inverter 1pc

70

Media

Marine grade CD player with radio function and with 4pcs Anti-UV high pitch grade waterproof loudspeaker, inner has 2pcs and out surface has 2pcs

71

Cooktop/AGA stove

4 burner external stove and sink

72

Stove wind deflector

3 side stainless steel wind deflector

73

Solar panel

100W Solar panel flexibility 3pcs with 1pc solar panel controller

74

Awning

3.8X2.5m PVC waterproof electric awning 1pc
