Voyager-15W

Caravan Specifications

Dimensions & Weight

• Width: 2130mm

• Height (Roof Closed): 2350mm

• Length (Hitch to Taillights): 6400mm

• Ball Weight: 155kg

• Tare Weight: 2100kg

• GTM: 3000kg

Construction

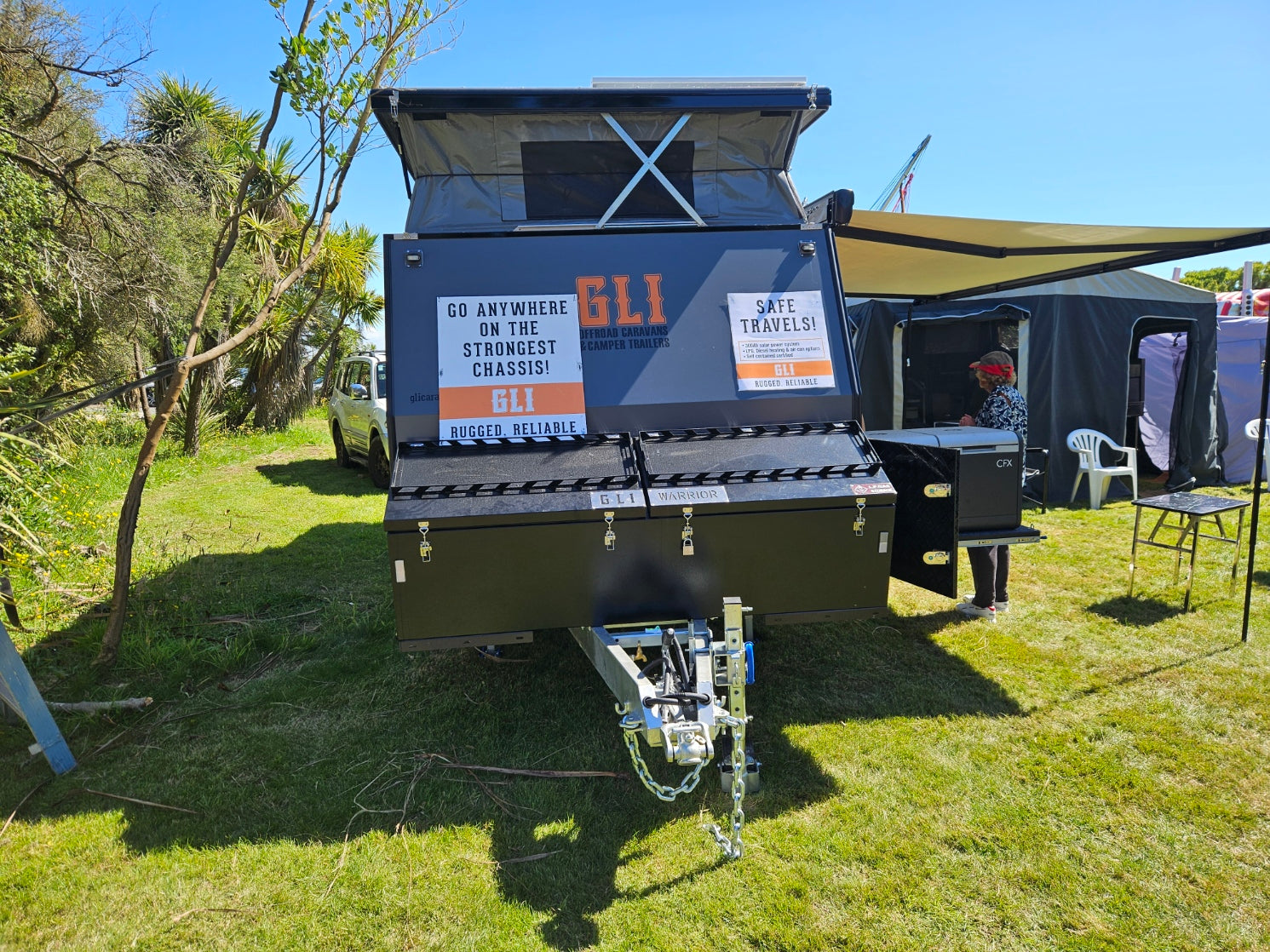

• Drawbar: Hot-dip galvanized inside and outside, 150mm × 50mm × 4mm

• Chassis: Hot-dip galvanized inside and outside, 150mm × 50mm × 4mm

• Body: Reinforced aluminium tube

• Roof: Reinforced fiberglass exterior with inner aluminium composite panel and aluminium frame

• Structure Finish: Composite aluminium panels with powder-coated aluminium chequer plate

• Frame: Fully welded frame and chassis

Suspension & Running Gear

• Suspension: Independent arm suspension with 4 × reinforced auto kick-back shock absorbers and high-performance coil springs

• Wheels & Tyres: 4 × 16" iron rims, Goodride Mud Terrain 265/75 R16 tyres

• Rims: Stainless steel aluminium alloy

• Spare Tyres: Double spare tyre holder with 4 × 265/75 R16 tyres and alloy wheels

Tow & Safety

• Coupling: Standard NZ coupling

• Brakes: 4WD 12" electric brakes with hand brake

• Stone Guard: Included, with stone tamer mudflaps

• Jockey Wheel: 10" swing-up, high-quality jockey wheel

• Stabiliser Legs: 4 × heavy-duty, lockable, adjustable drop-down legs

• Light Connection Plug: 7-pin round or 7-pin flat

Gas & Water System

• Gas Holder: 2 × 9.5kg

• Water Tanks:

  • 85L + 35L fresh water

  • 85L grey water

• Water Delivery: Truma 14L gas/electric hot water system with 12V pump, fully plumbed

• Shower (External): Hot/cold with van-mounted shower tent

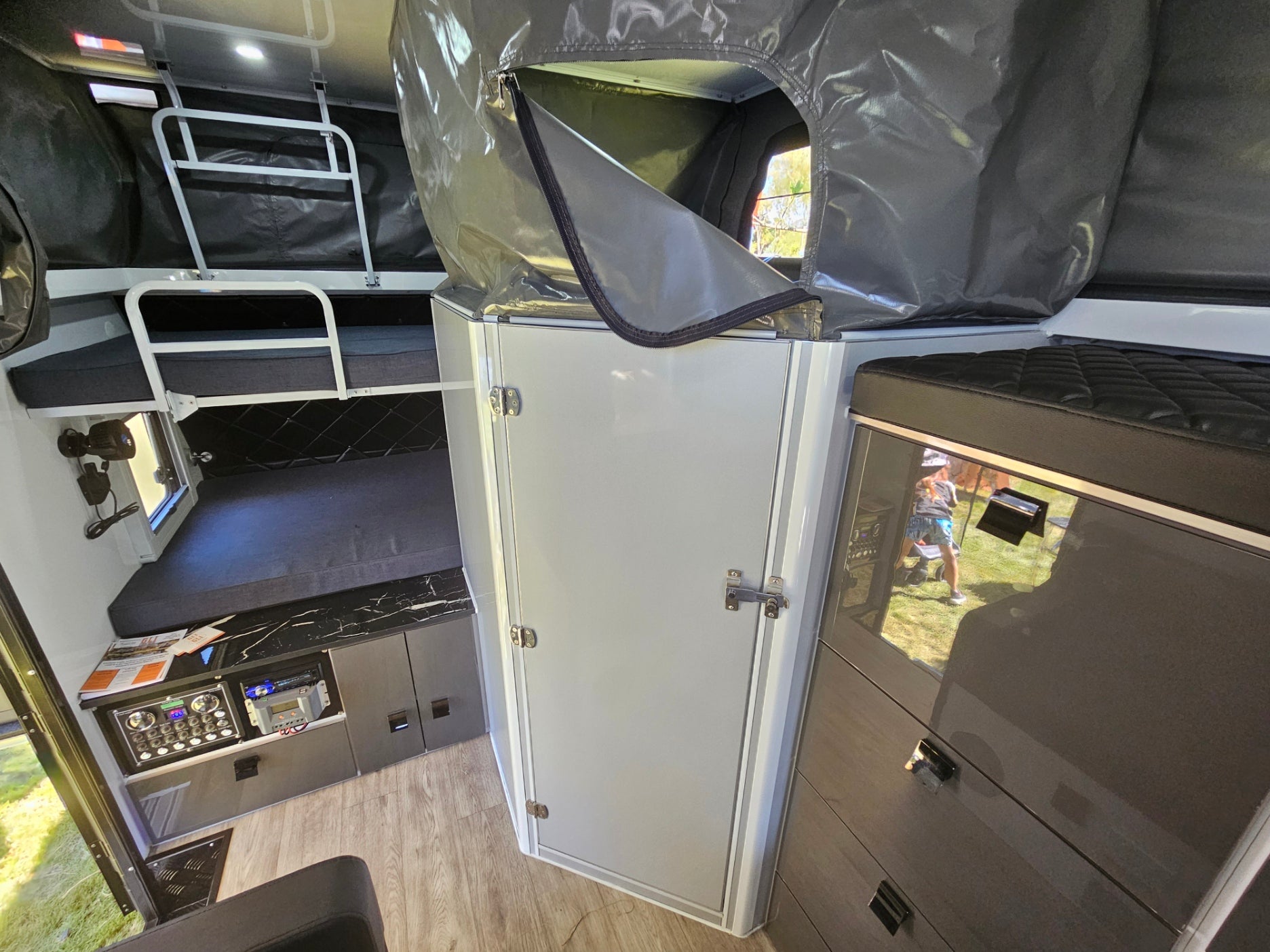

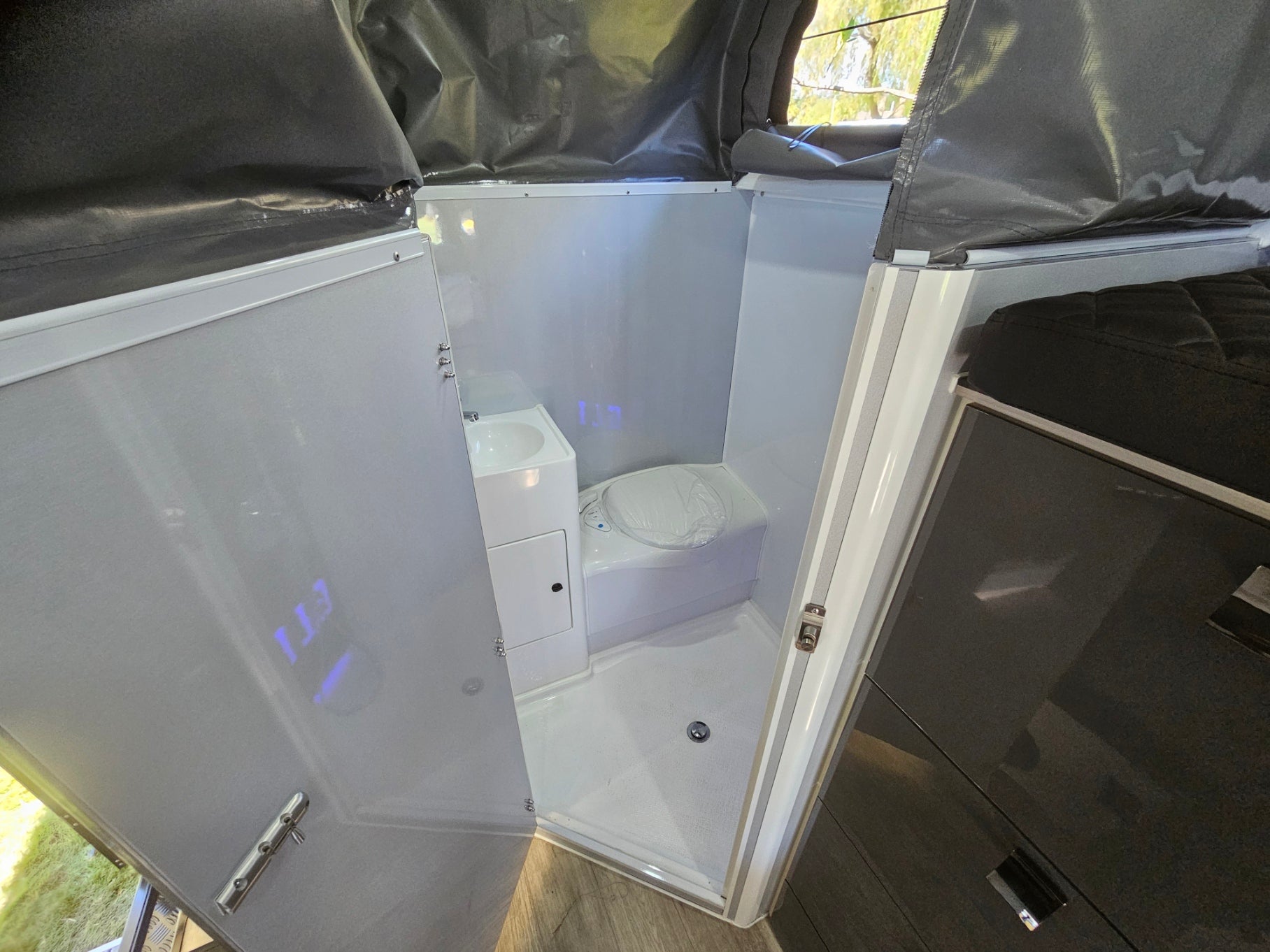

• Shower Room (Internal): Internal shower room with Thetford toilet

Electrical System

• Batteries: 3 × 100Ah lithium

• Charger: 240V battery charger (1pc)

• Inverter: 2000W pure sine wave

• Solar Panels: 3 × 100W

• 240V Outlets: Included

• Interior Lighting: Multiple LED lights

• Exterior Lighting: LED tail lights and LED number plate light

• Bed Lighting: 2 × LED reading lights

• Power Outlets: Internal and external TV antenna plugs

• Media: Marine-grade stereo with 4 speakers + wall-mounted TV

Living & Comfort

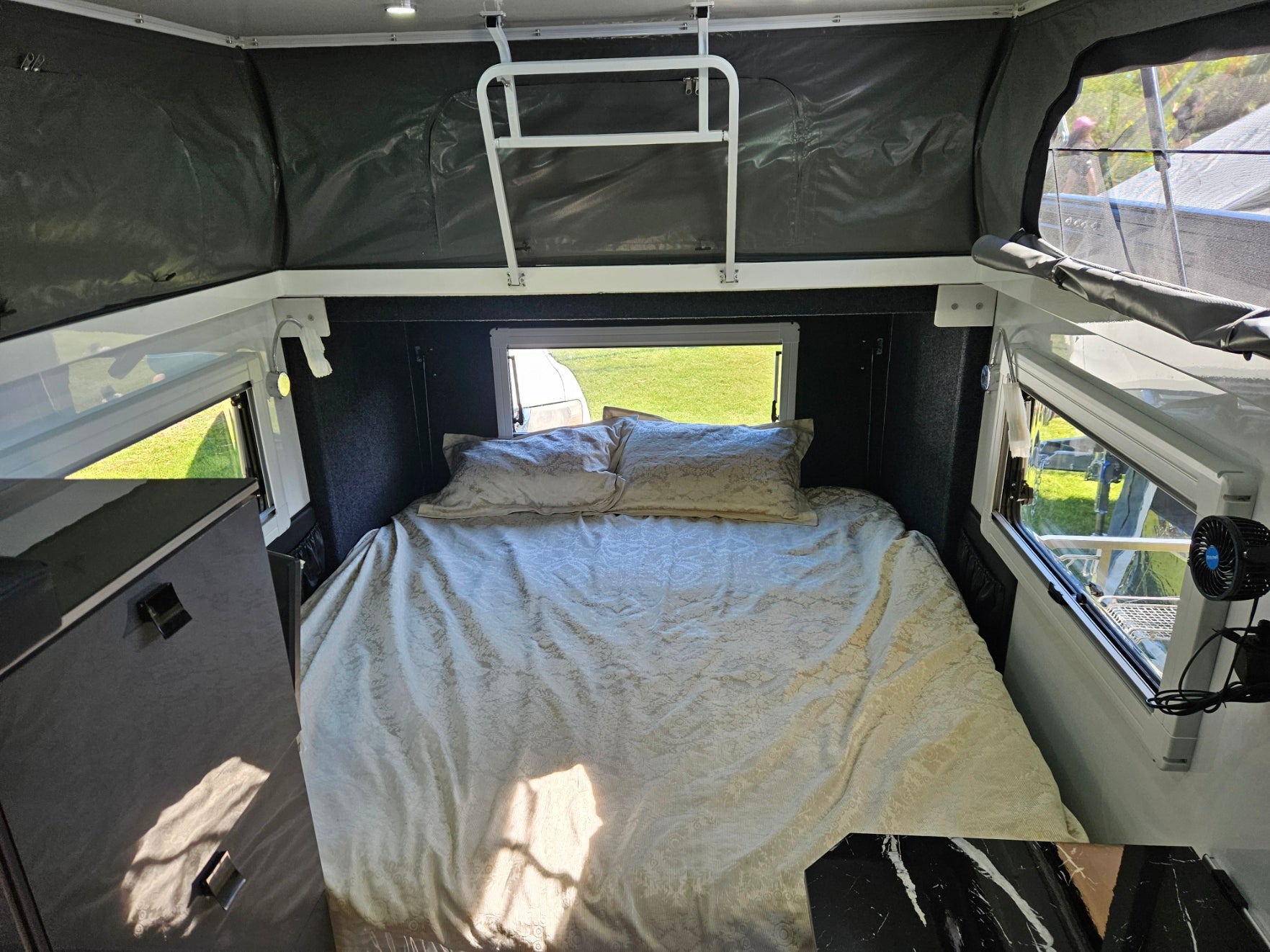

• Mattress: 200mm custom queen-size foldable innerspring mattress

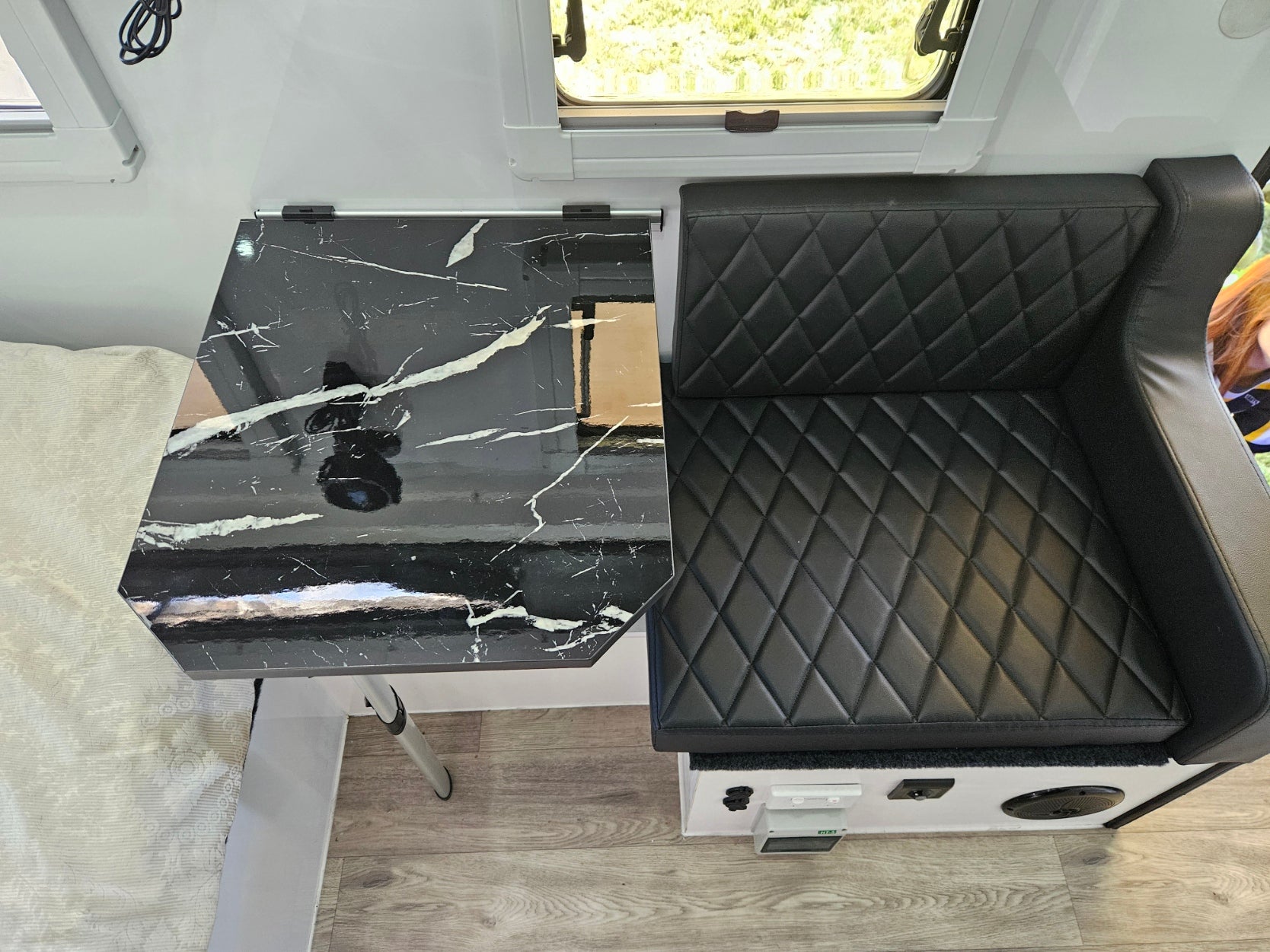

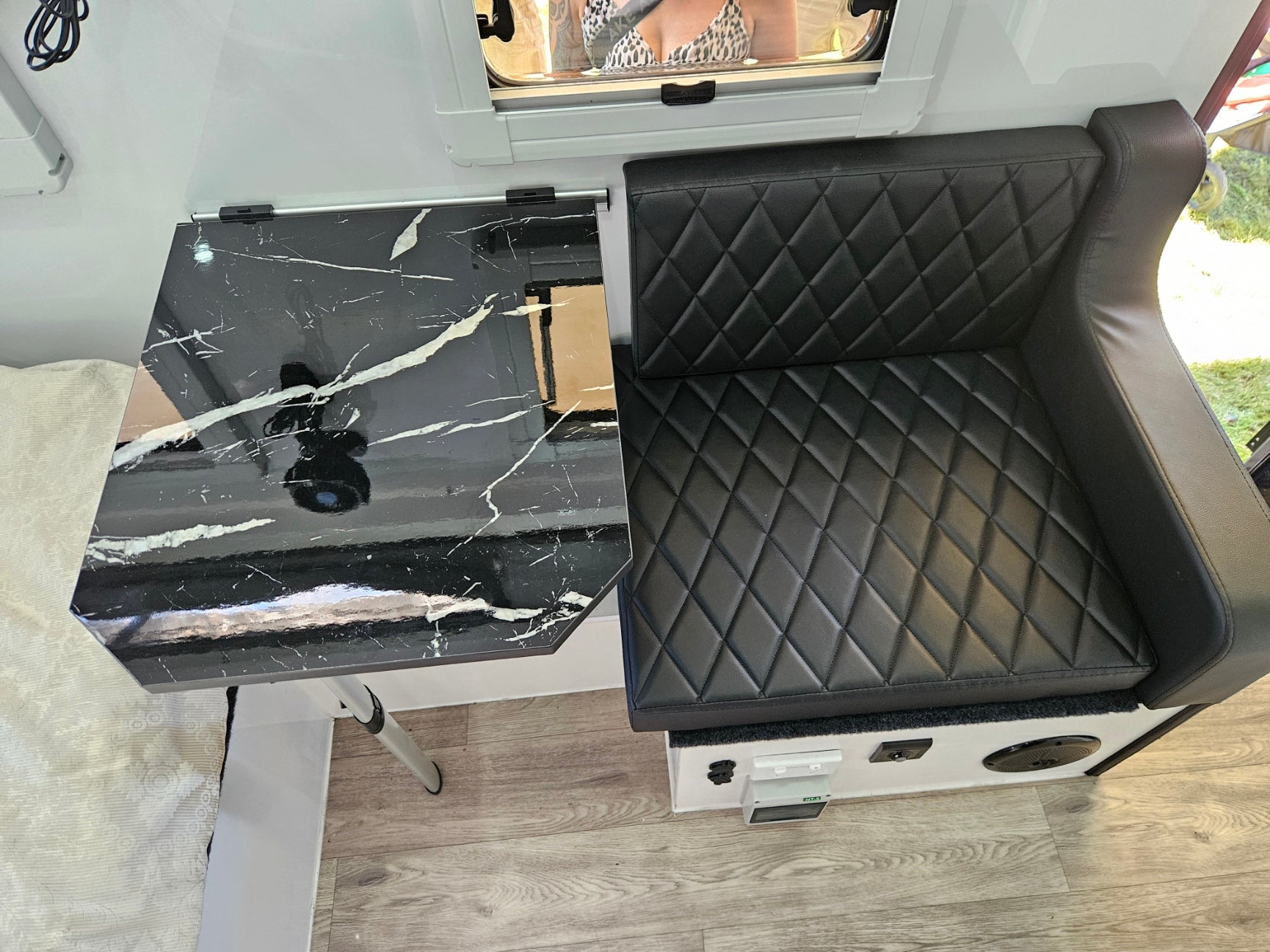

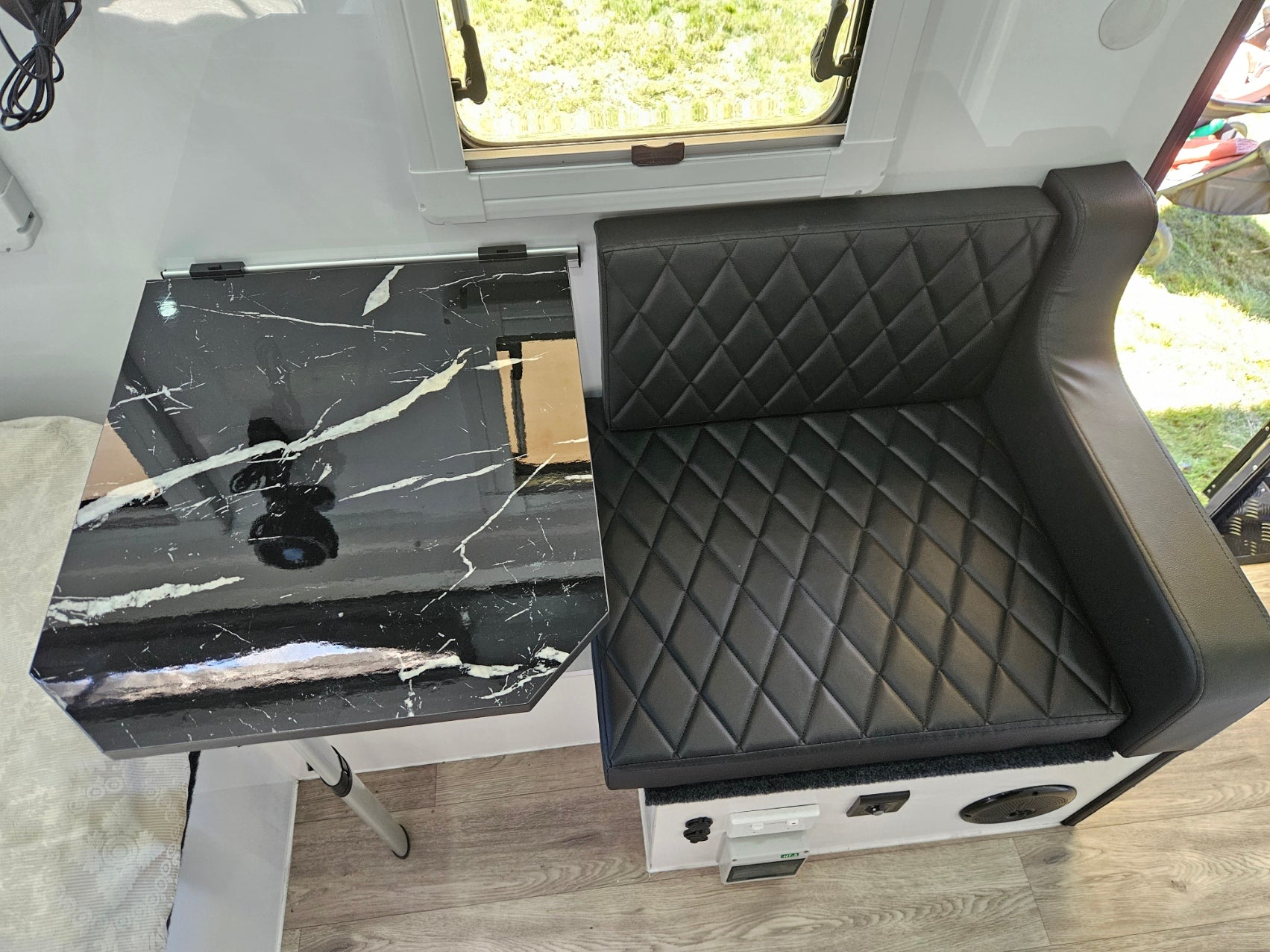

• Table: Portable table

• Awning:

  • Electric awning with manual override

  • Includes full annex walls and floor

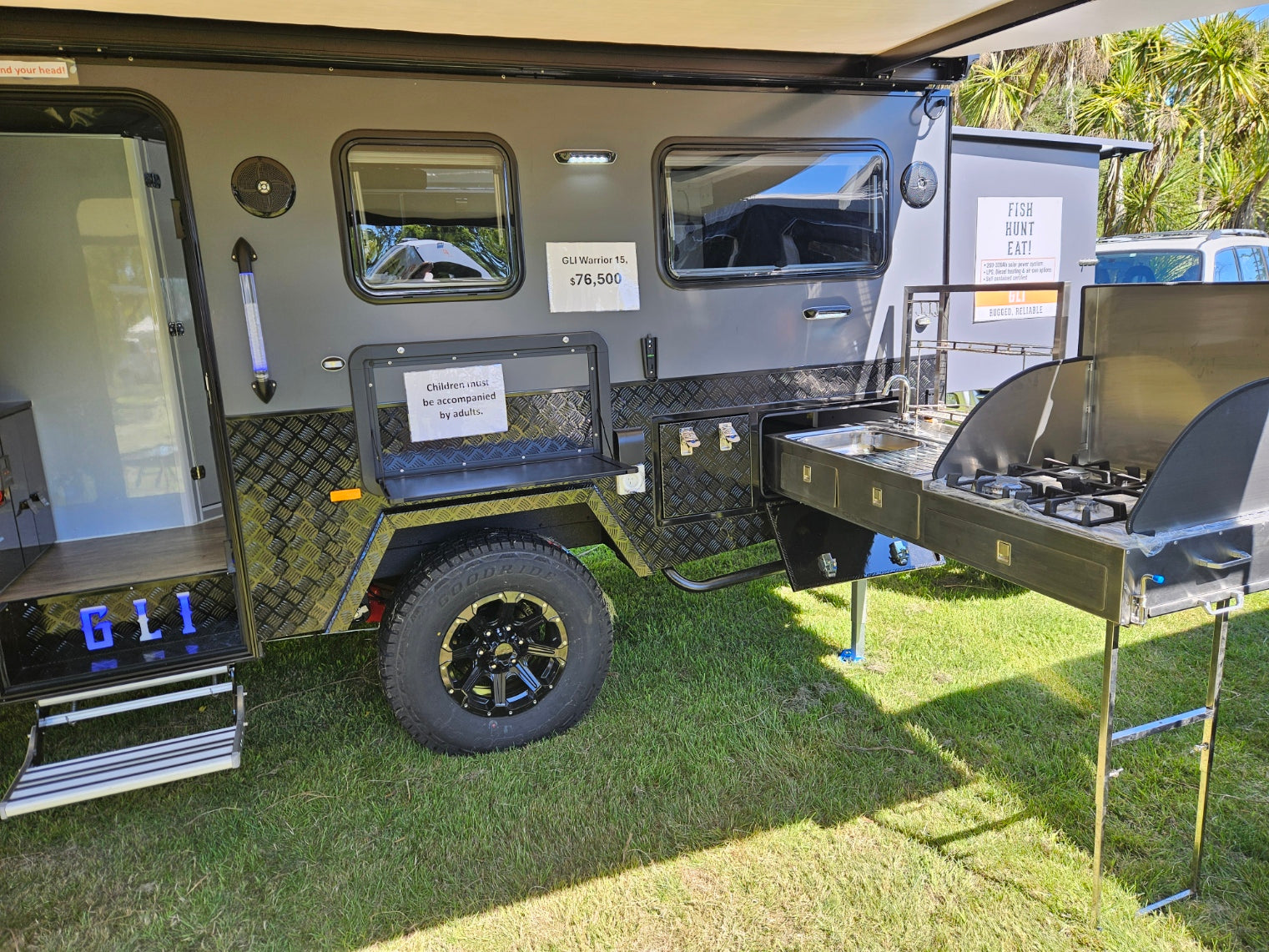

• Kitchen: External 304-grade stainless steel sink with 4-burner stovetop

• Fridge: Not included

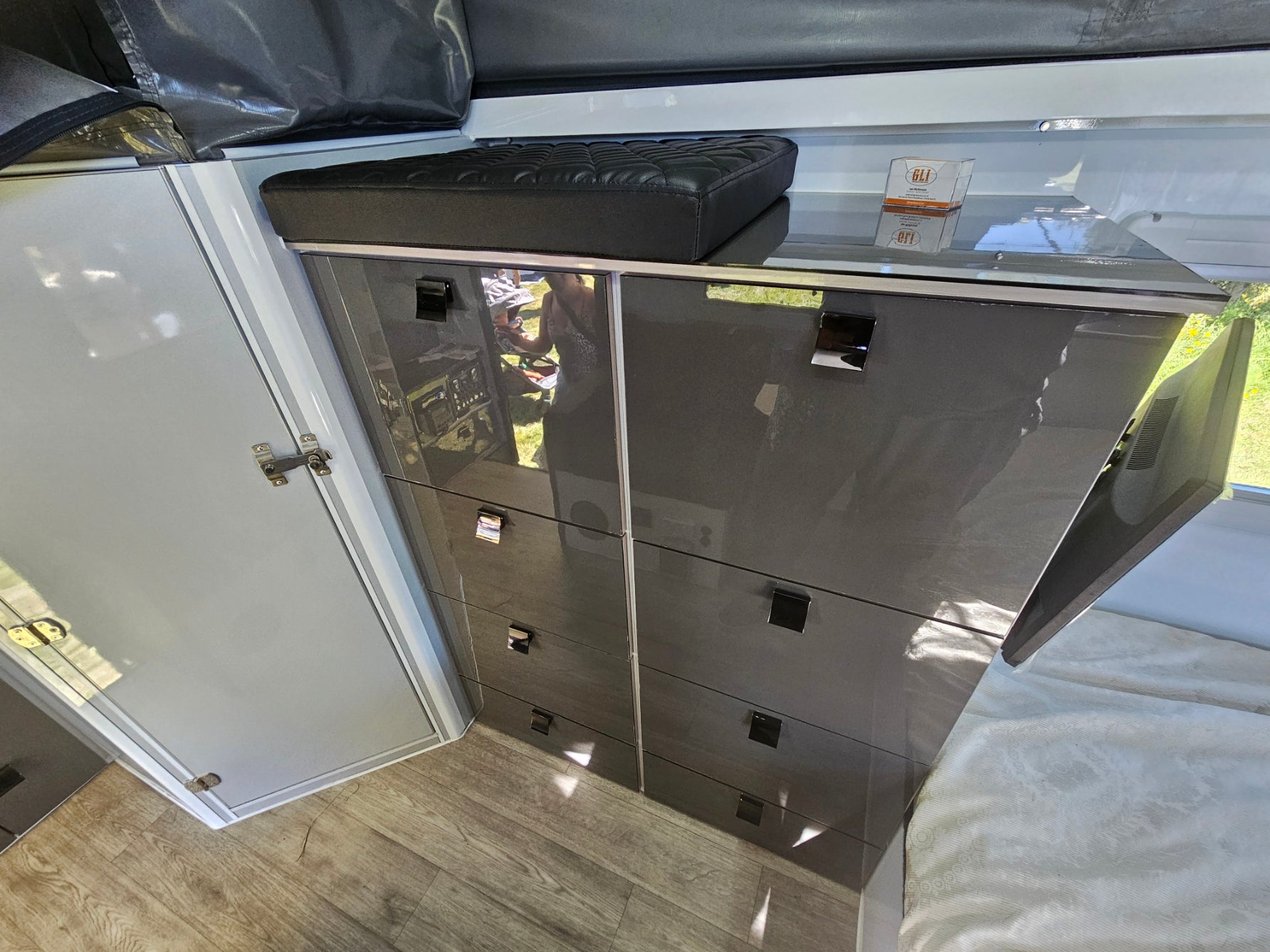

• Storage: 2 large storage boxes with drawers and open space

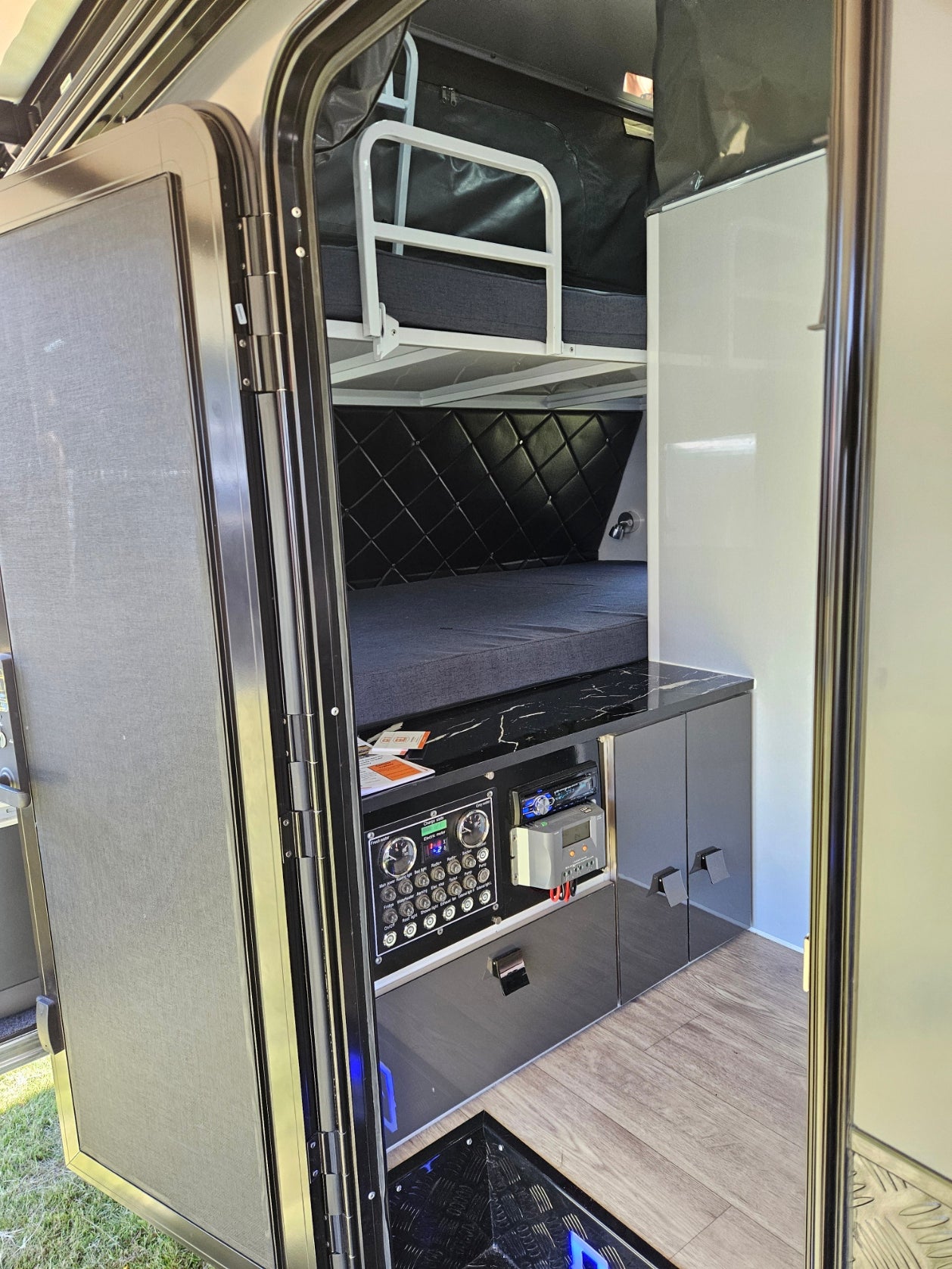

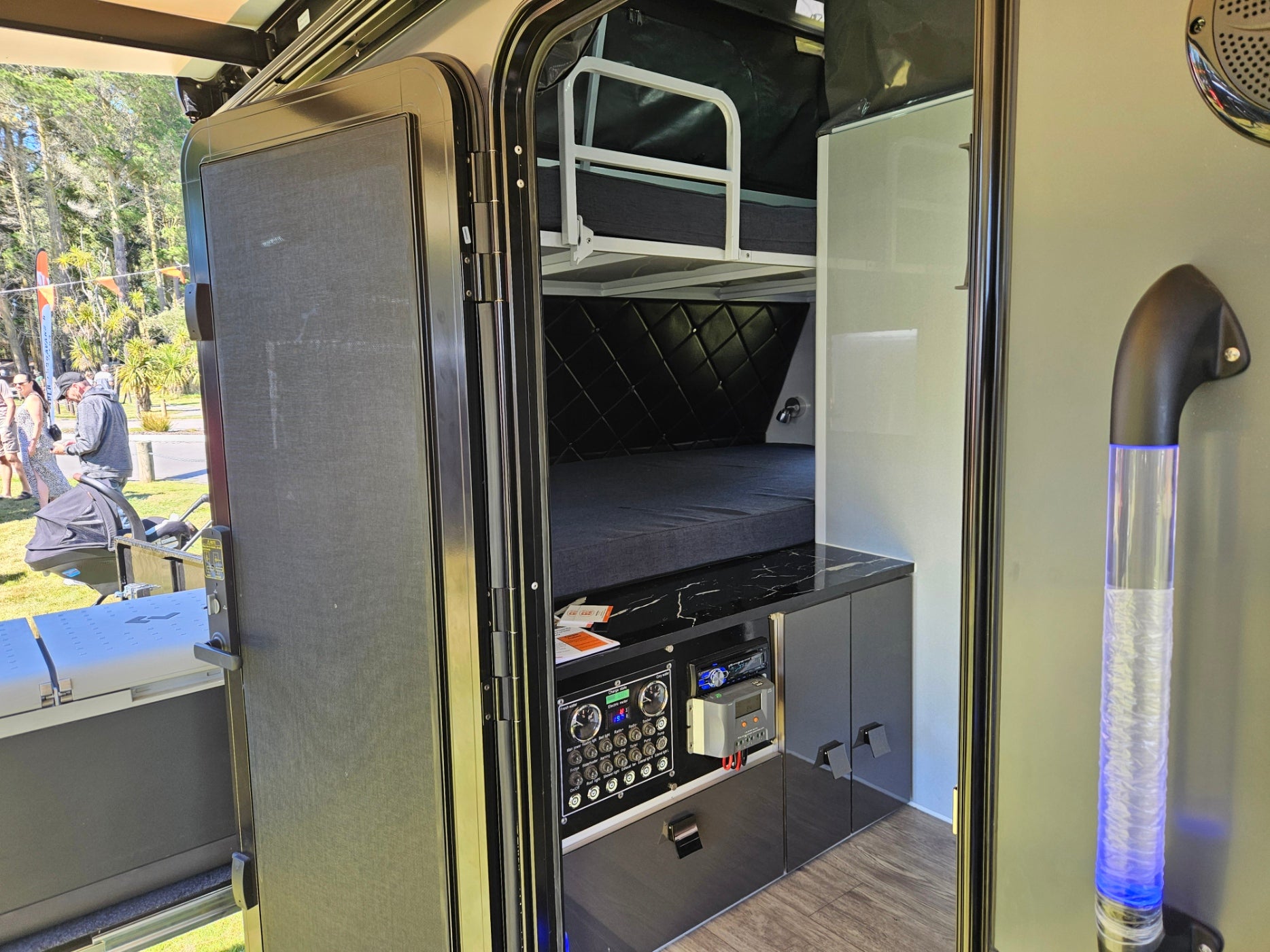

• Door: Lockable door with security screen; caravan windows include anti-mosquito mesh and shade curtain
