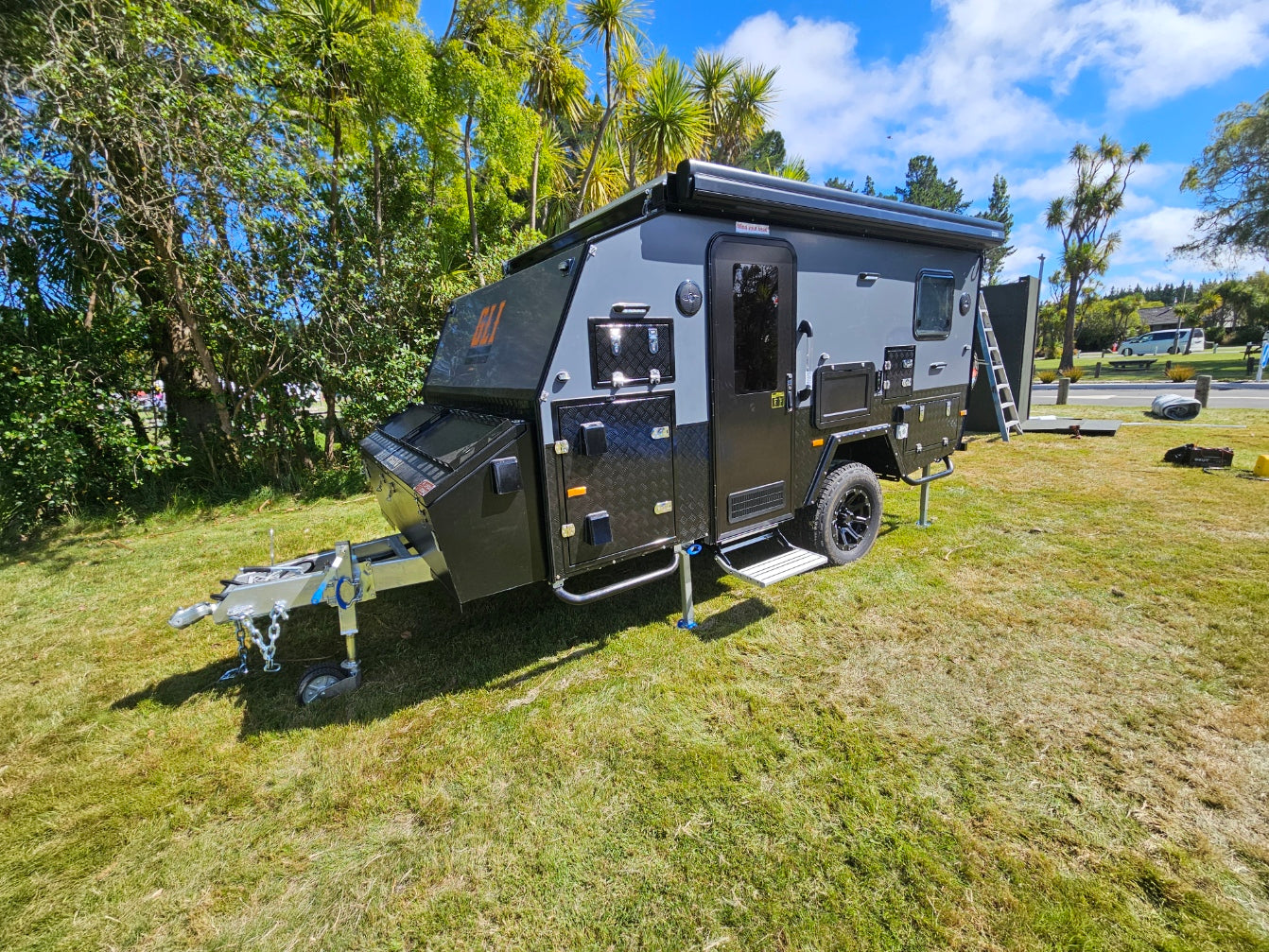

Voyager-12W

Caravan Specifications

Dimensions & Weight

• Width: 2100mm

• Height (Roof Closed): 2350mm

• Length (Hitch to Taillights): 5500mm

• Ball Weight: 130kg

• Tare Weight: 2100kg

• GTM: 3000kg

Construction

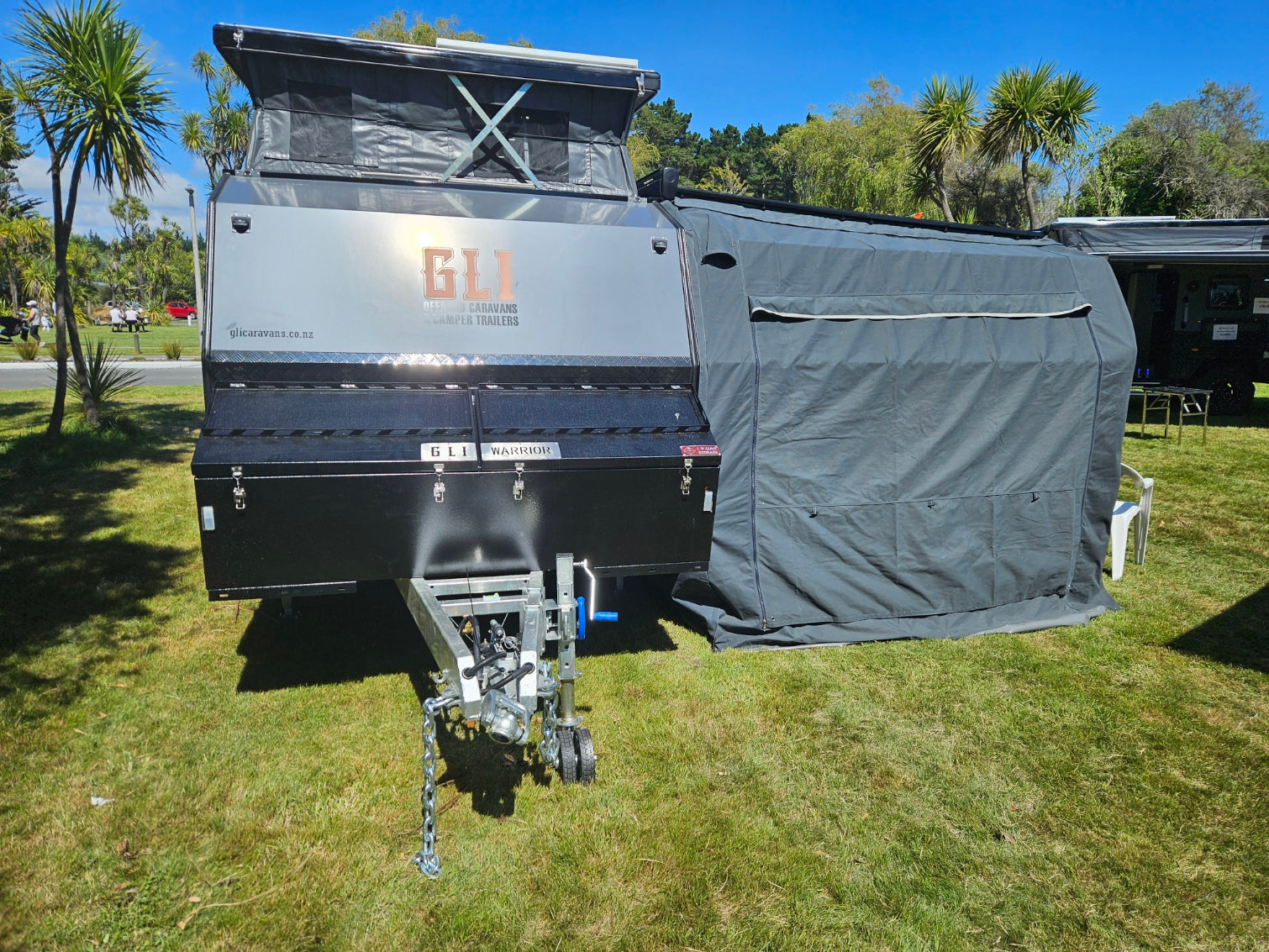

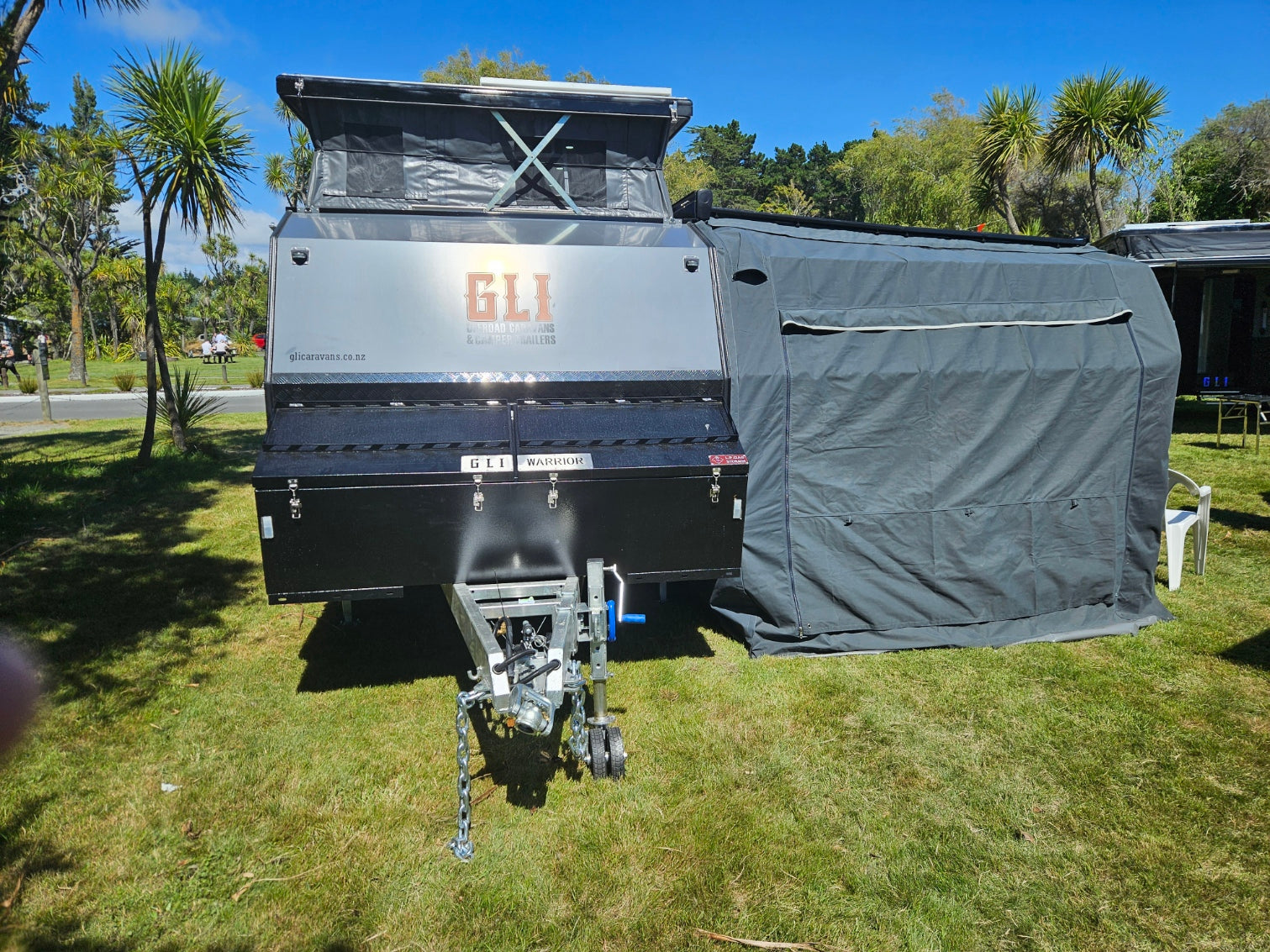

• Drawbar: Hot-dip galvanized (inside & outside), 150mm × 50mm × 4mm Q345

• Chassis: Hot-dip galvanized (inside & outside), 150mm × 50mm × 3mm Q345

• Body: Aluminium composite panel with aluminium checker plate

• Structure: Fully welded frame and chassis

• Finish: Composite aluminium panels with powder-coated aluminium chequer plate

Suspension & Running Gear

• Suspension: Independent arm suspension with 4 × auto kick-back shock absorbers

• Wheels & Tyres: 4 × 1550kg alloy wheels with 265/75 R16 tyres

• Rims: Stainless steel aluminium alloy

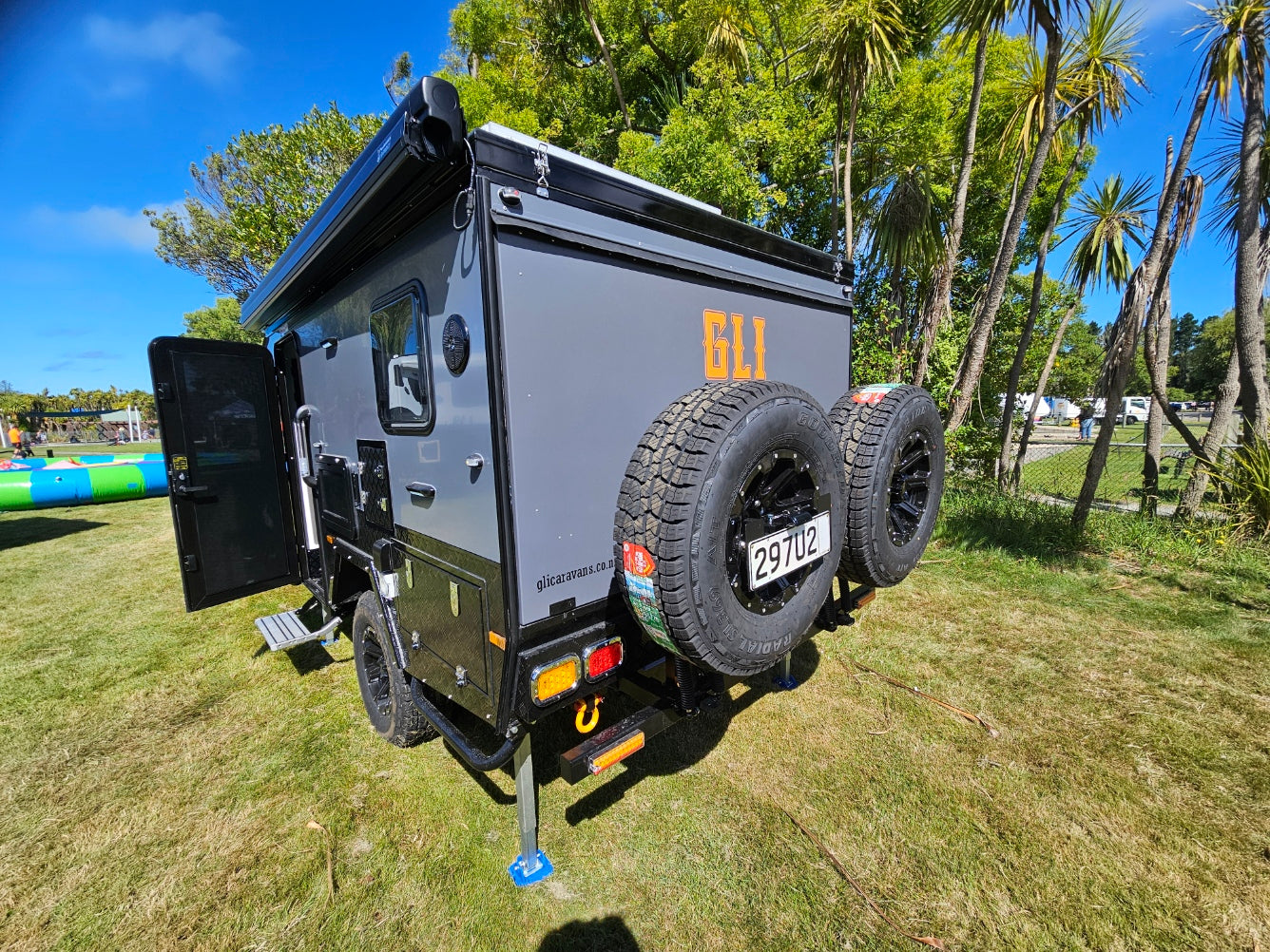

• Spare Tyres: Double spare tyre holder with 265/75 R16 tyres and alloy wheels

Tow & Safety

• Coupling: Standard NZ coupling

• Brakes: 4WD 12" electric brakes with hand brake

• Stone Guard: Included, with stone tamer mudflaps

• Jockey Wheel: 10" swing-up

• Stabiliser Legs: 4 × heavy-duty, lockable, adjustable drop-down legs

• Light Connection Plug: 7-pin round or 7-pin flat

Gas & Water System

• Gas Holder: 2 × 9.5kg

• Water Tanks:

  • 85L + 35L fresh/green water

  • 85L grey water

• Water Delivery: Truma 14L gas/electric hot water service with 12V pump, fully plumbed

• Shower (External): Hot/cold with van-mounted shower tent

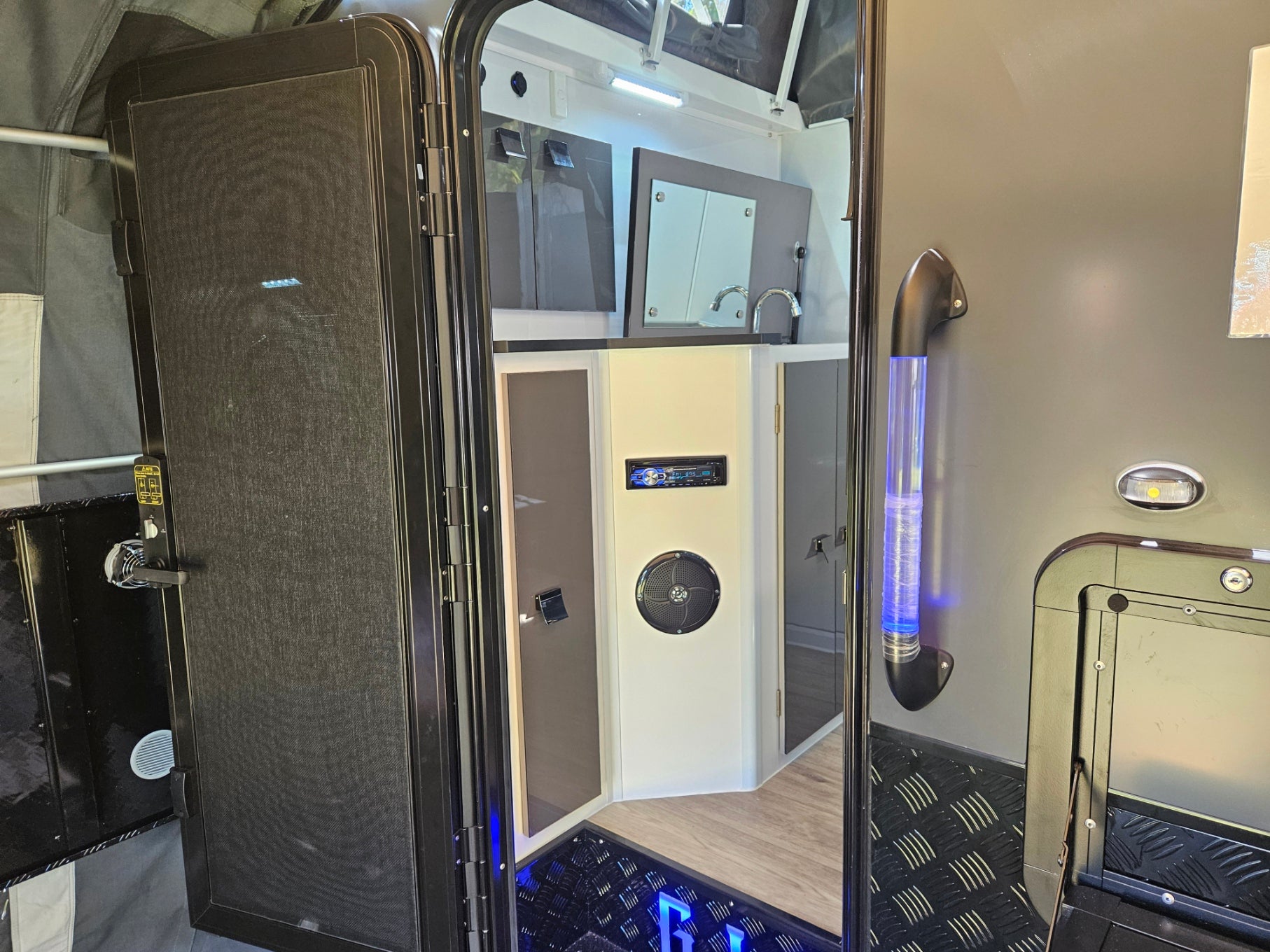

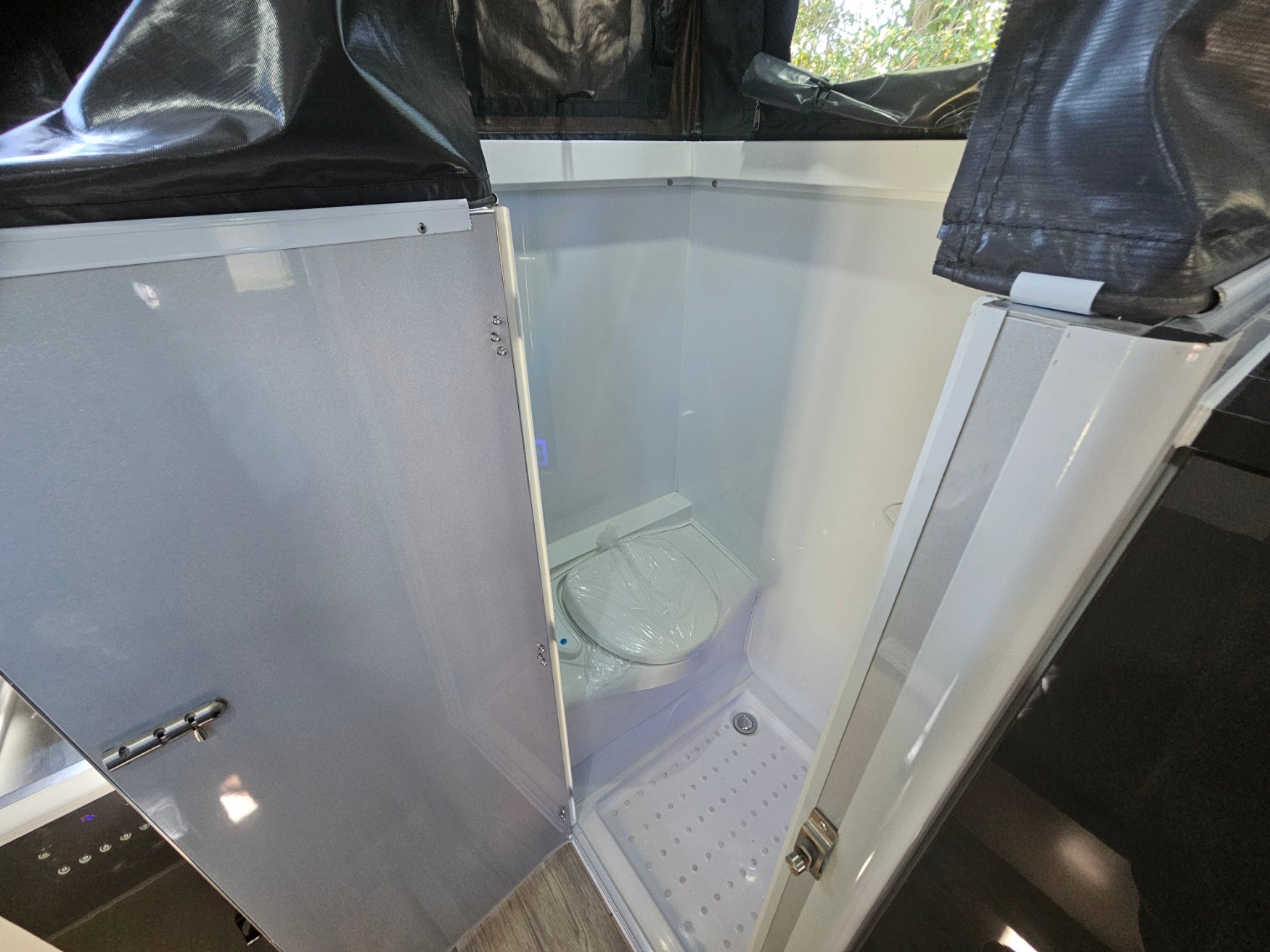

• Shower Room (Internal): Internal shower with Thetford toilet

Electrical System

• Batteries: 3 × 100Ah lithium

• Charger: 240V battery charger (1pc)

• Inverter: 2000W pure sine wave

• Solar Panels: 3 × 100W

• 240V Outlets: Included

• Diesel Heater: 1pc

• Interior Lighting: Multiple LED lights

• Exterior Lighting: LED tail lights and LED number plate light

• Bed Lighting: 2 × LED reading lights

Living & Comfort

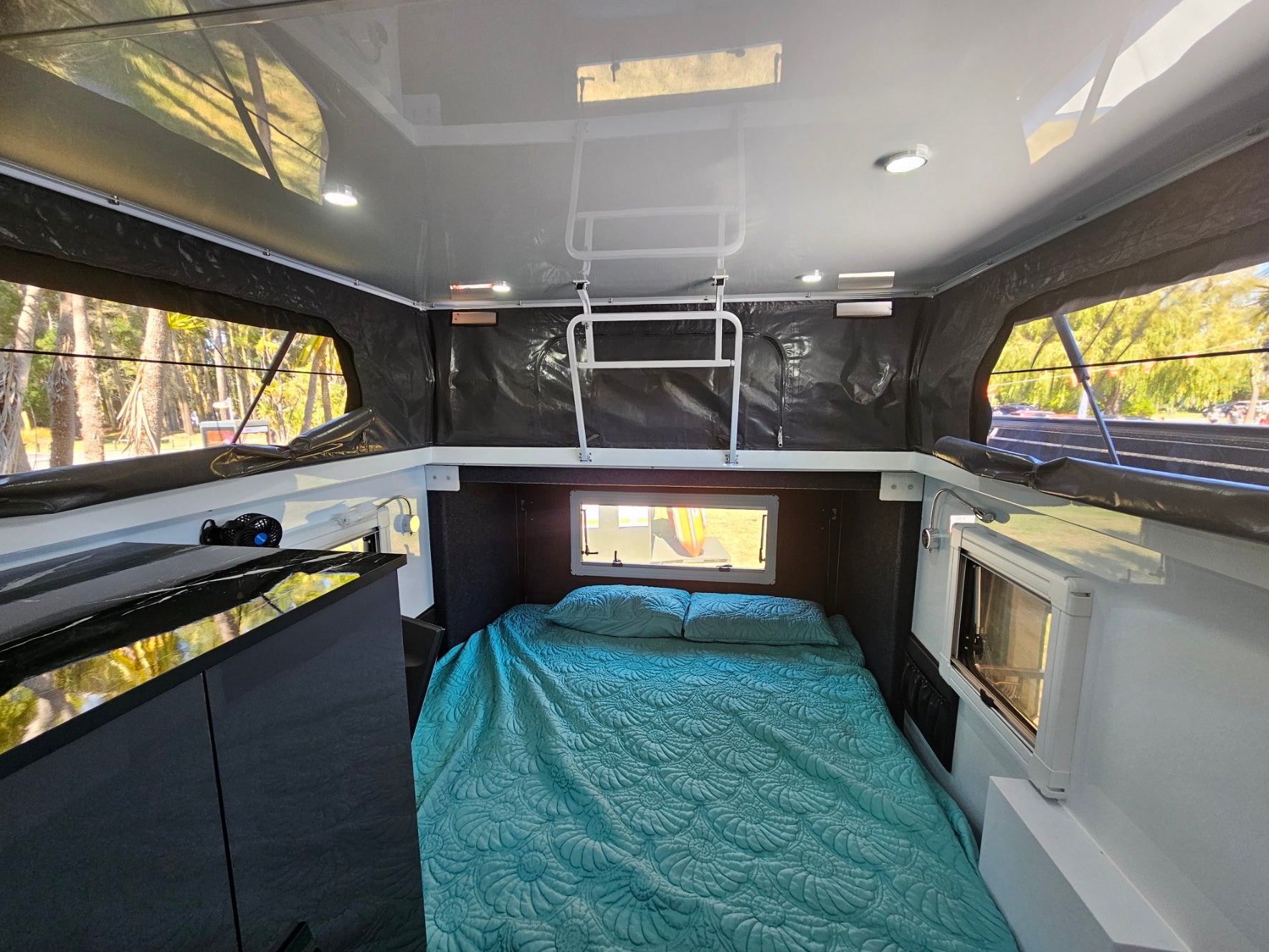

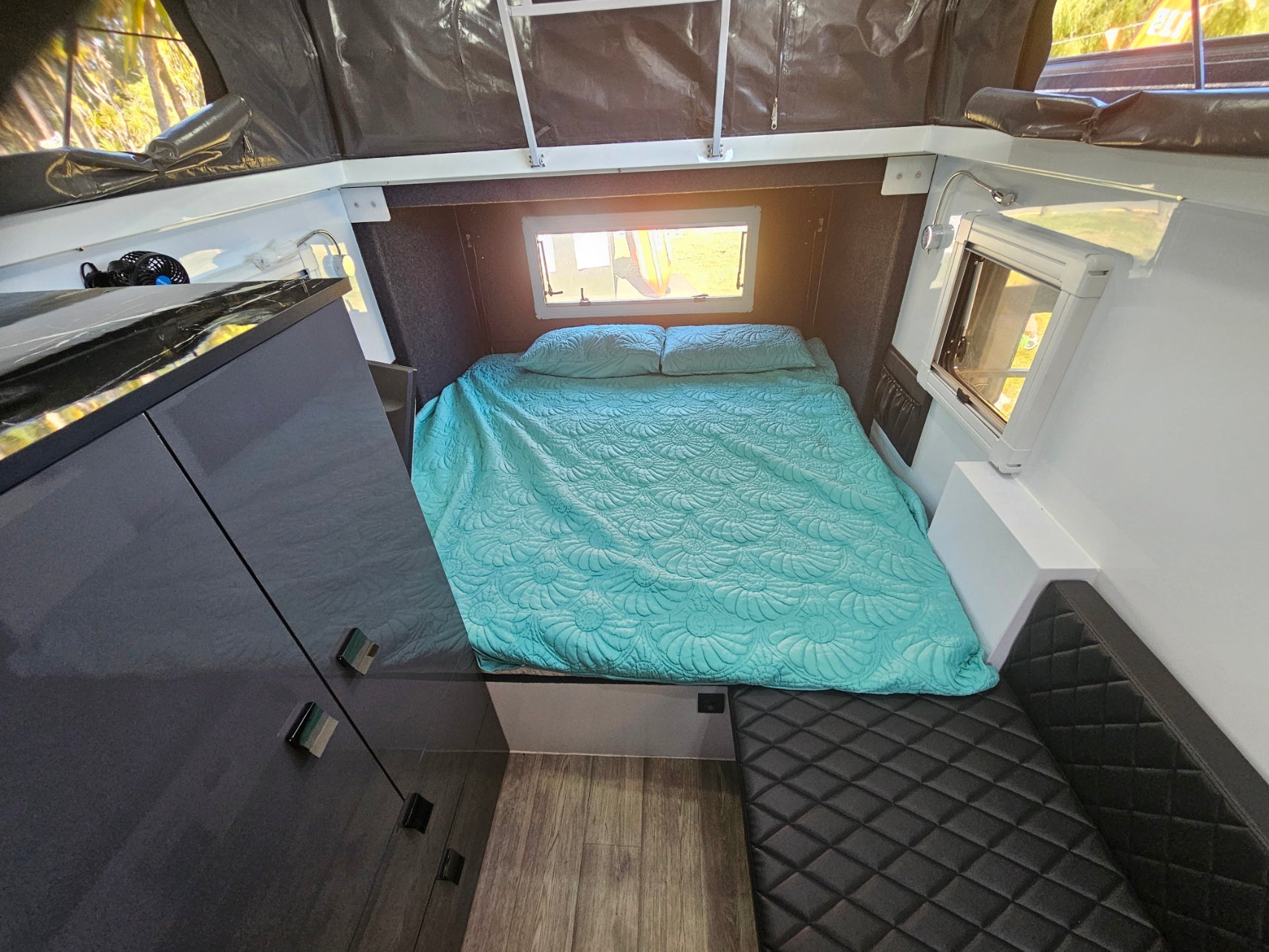

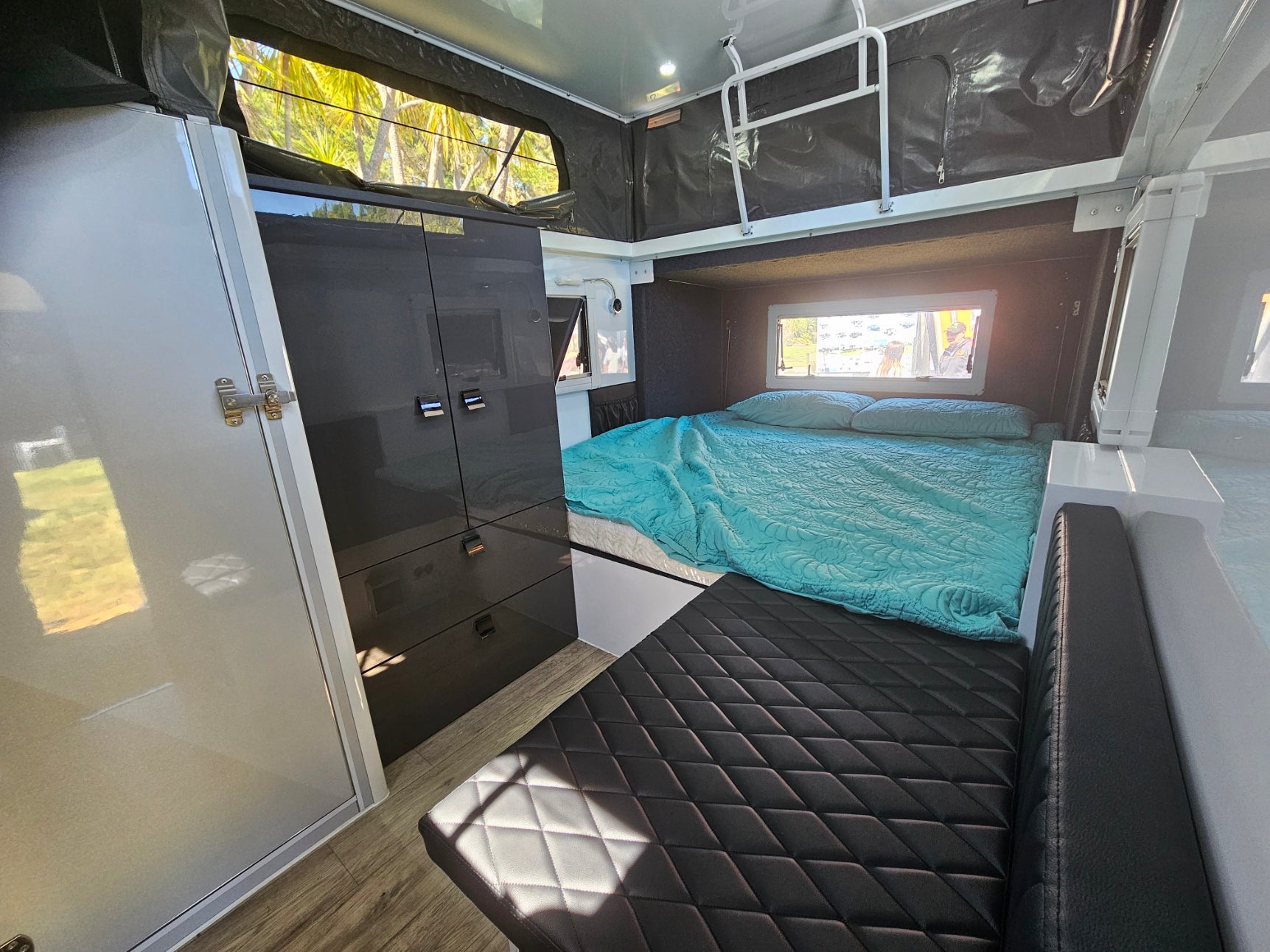

• Mattress: 200mm custom queen-size foldable innerspring

• Table: Portable table

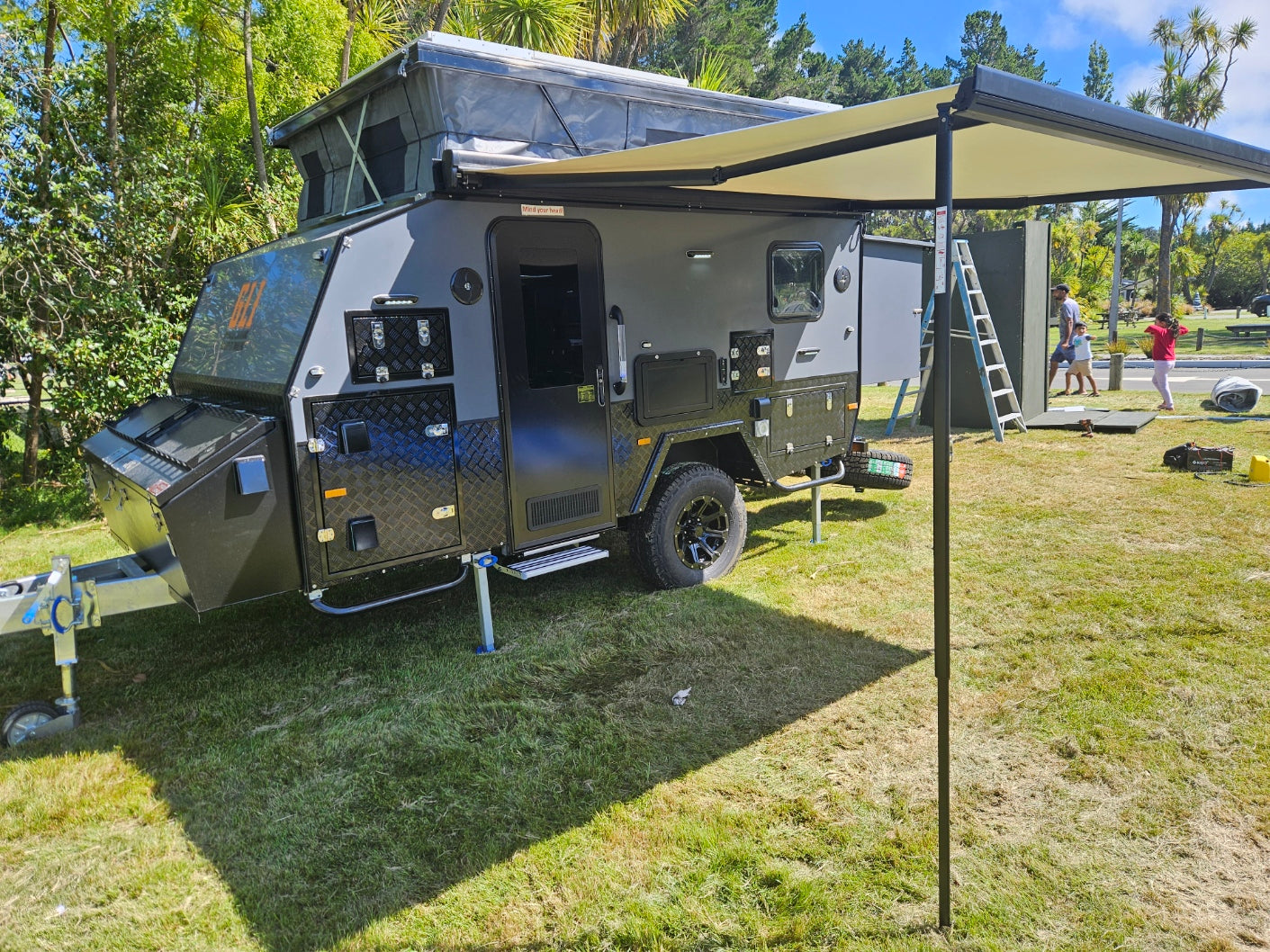

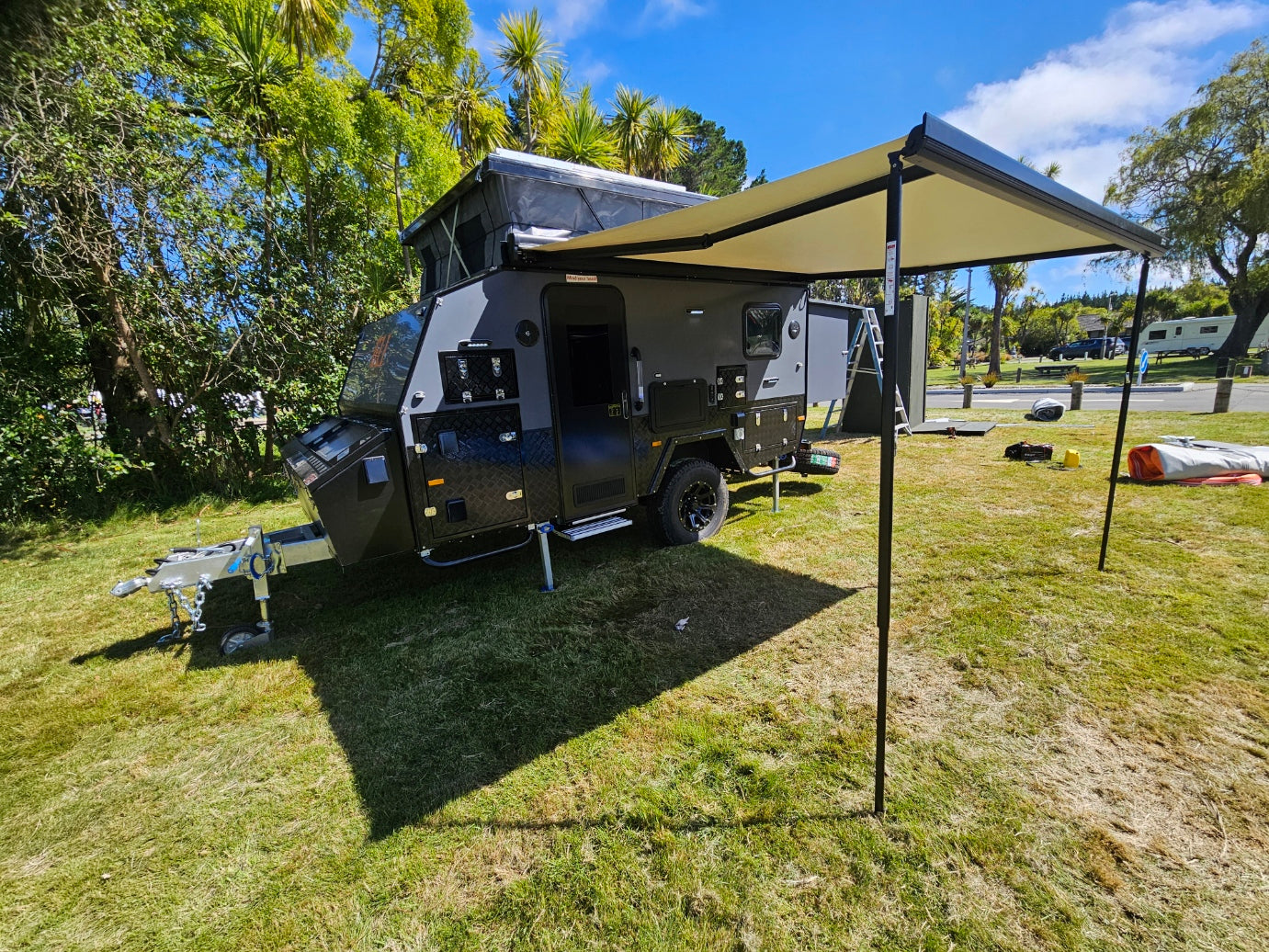

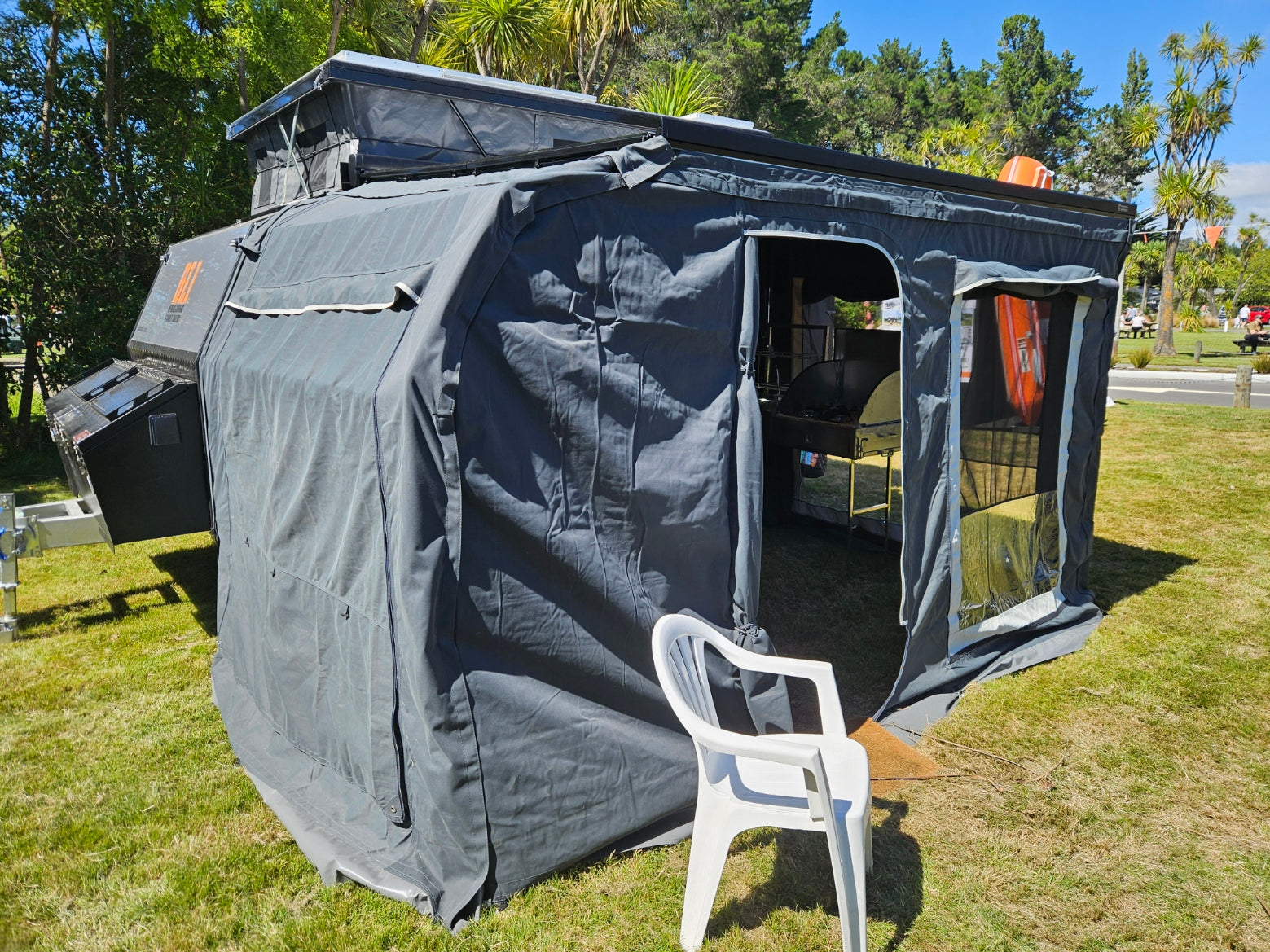

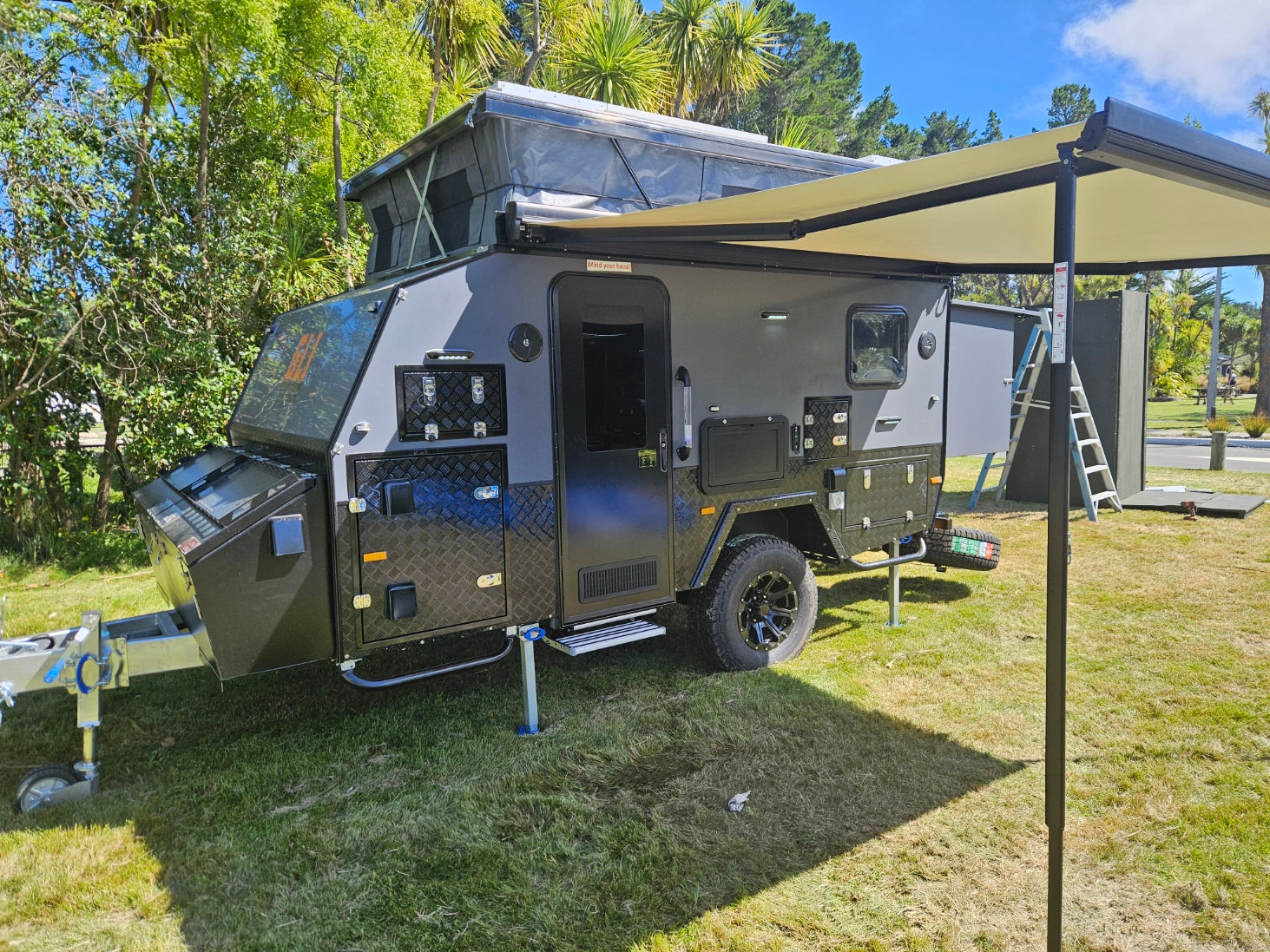

• Awning:

  • Electric awning with manual override

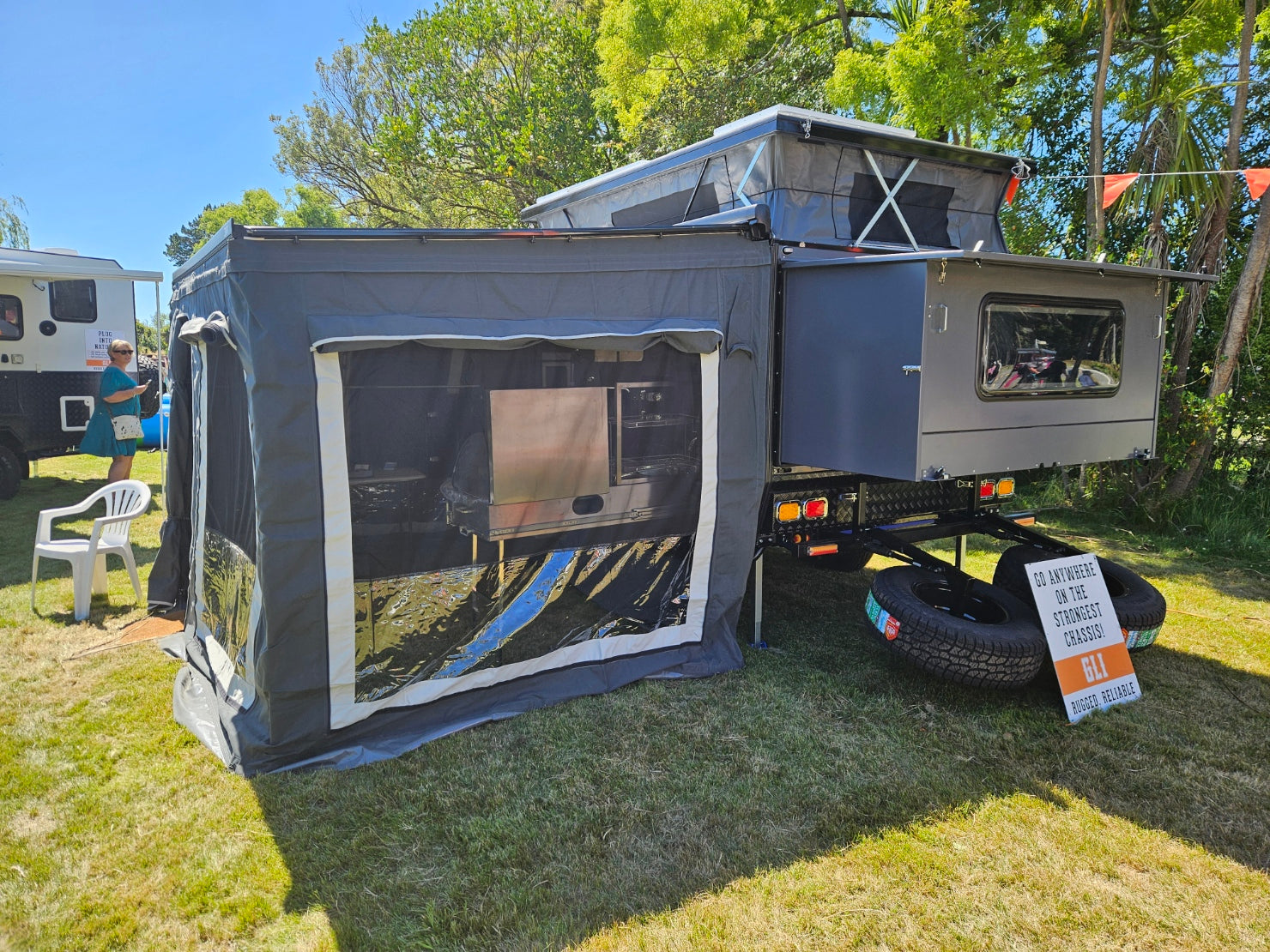

  • Full set annex walls and floor

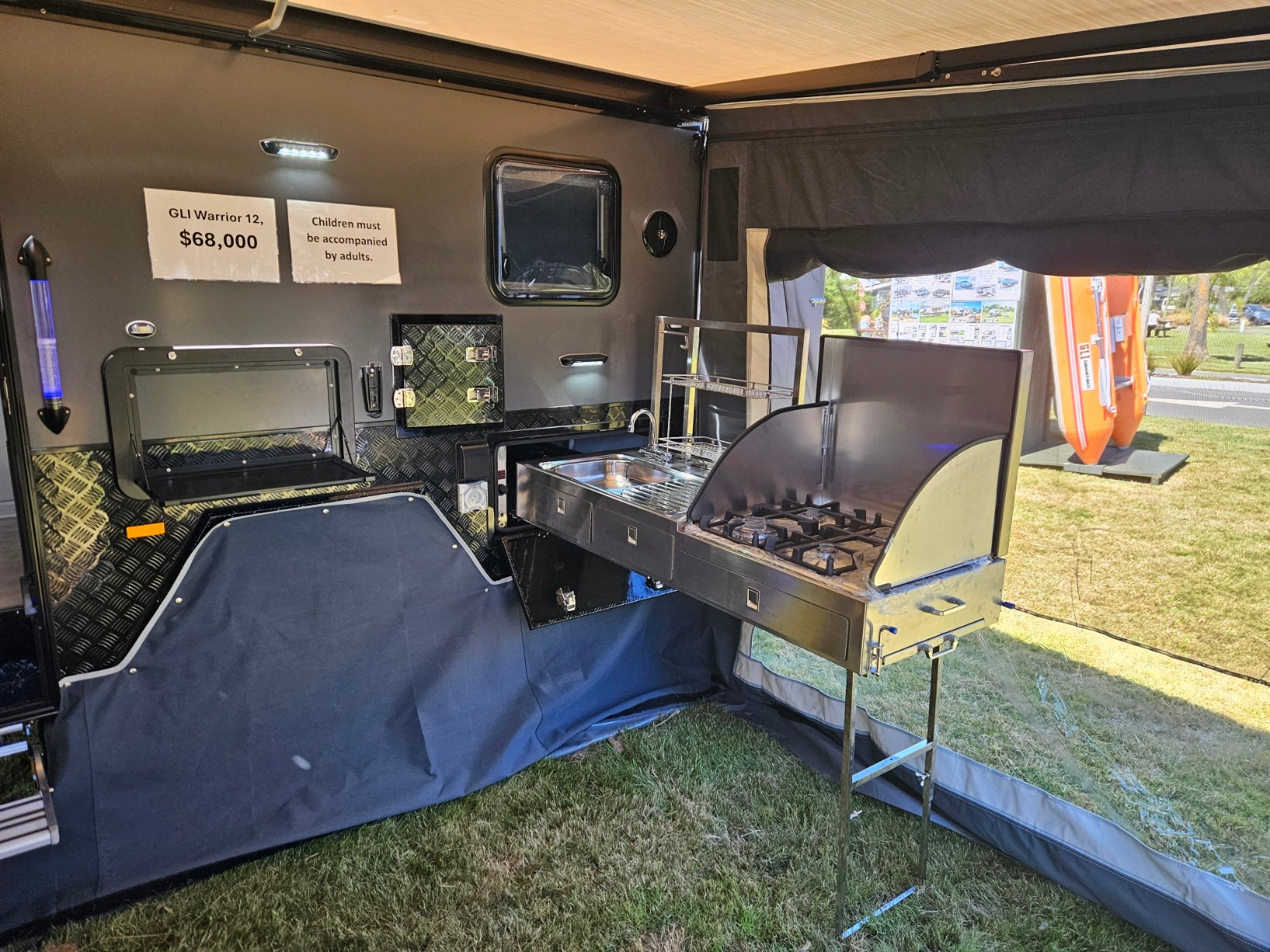

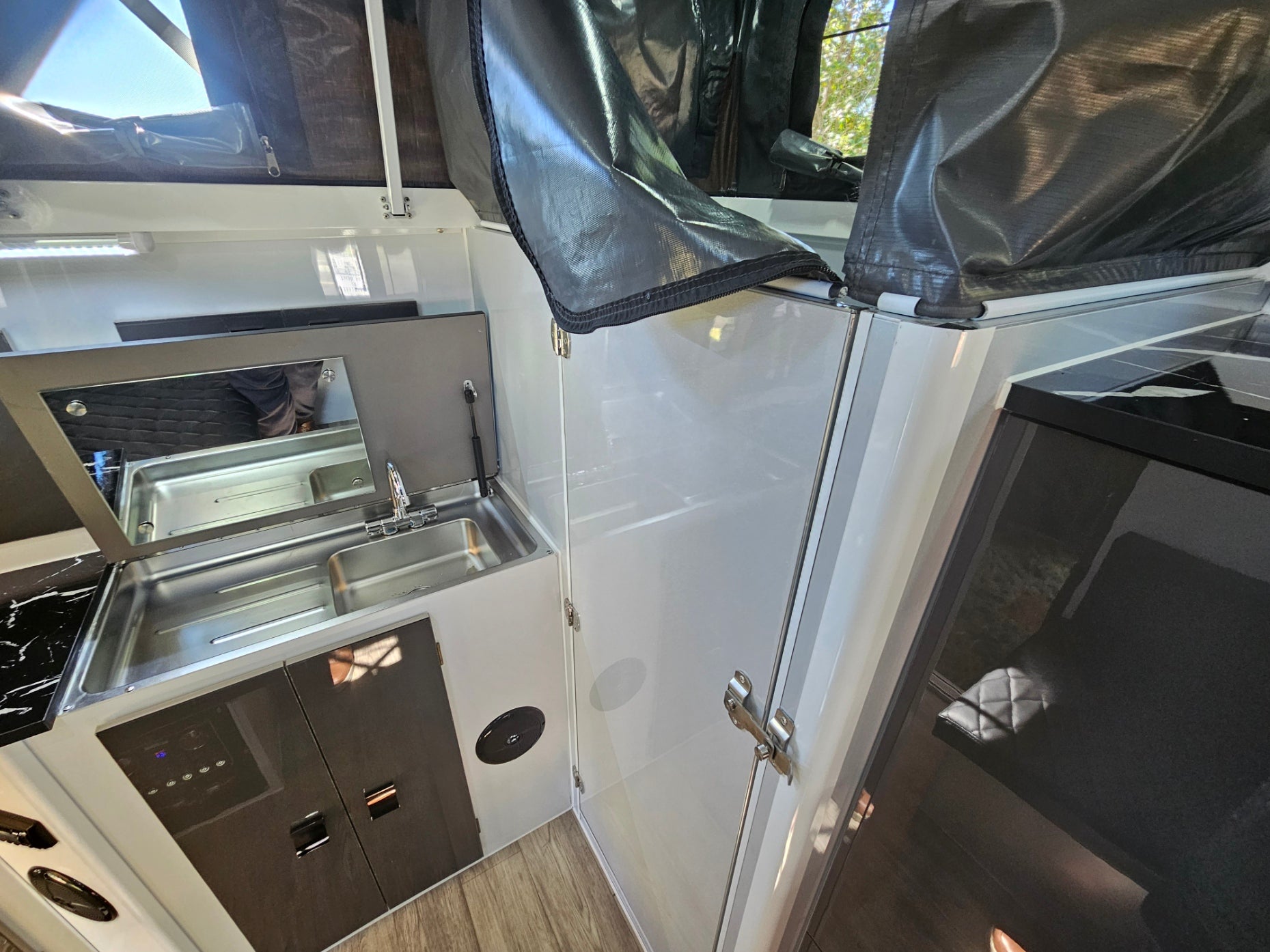

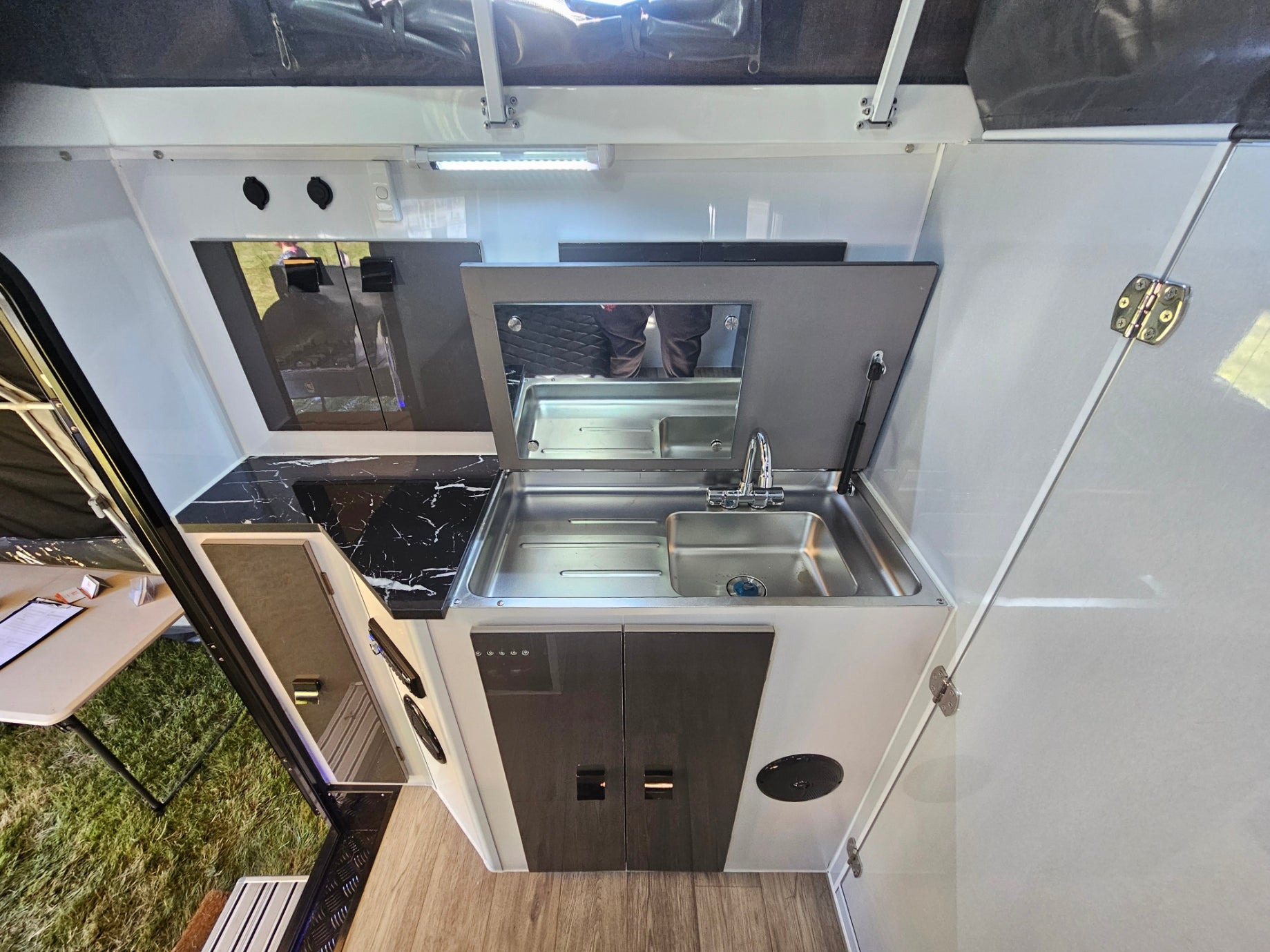

• Kitchen: External 304-grade stainless steel sink with 4-burner stovetop

• Fridge: Not included

• Storage: 2 large storage boxes

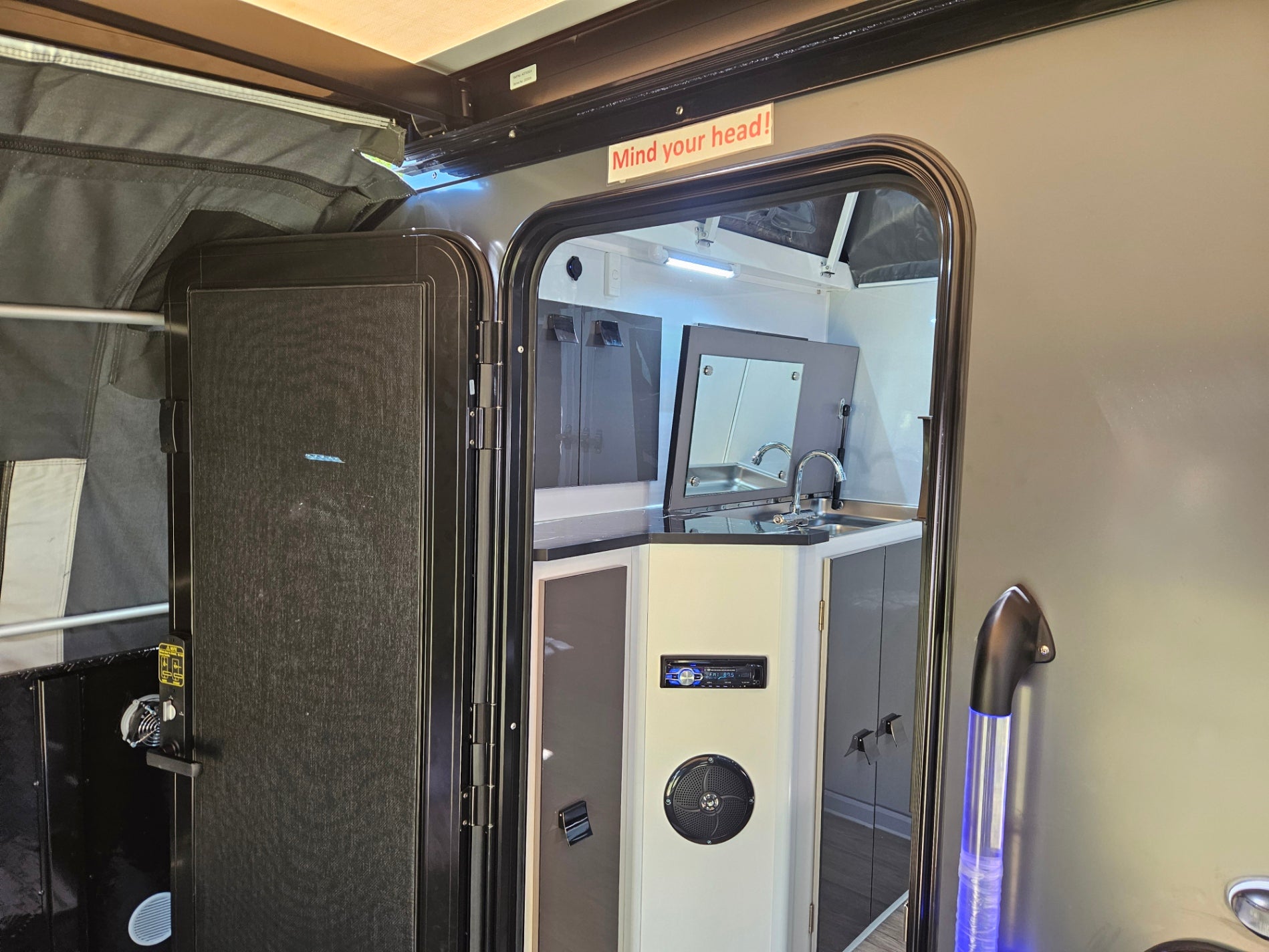

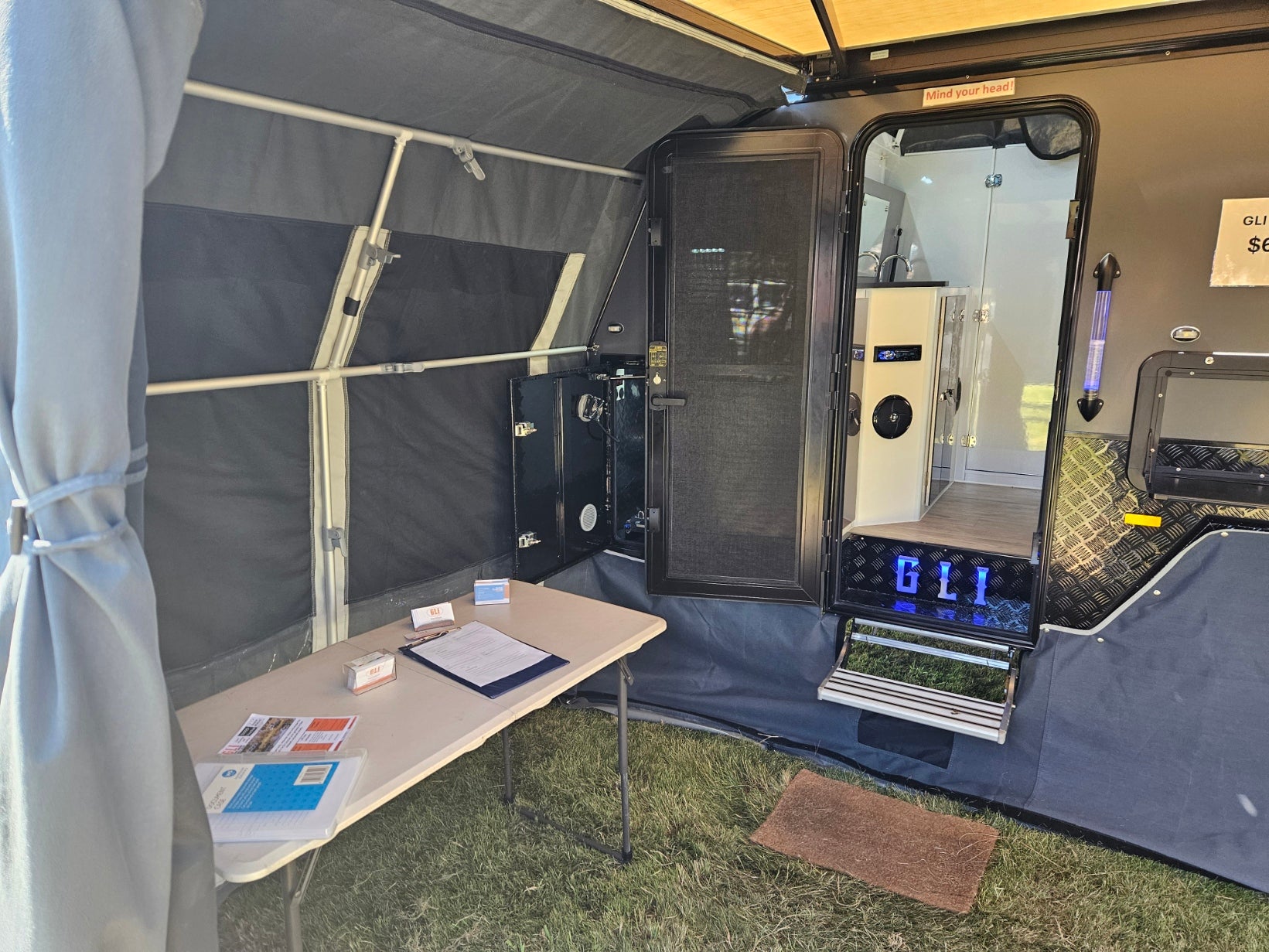

• Door: Lockable security screen door

  • Caravan windows with anti-mosquito mesh and shade curtains

Media & Connectivity

• Stereo: Marine-grade with 4 speakers

• TV: Wall-mounted with antenna plugs (inside & outside)
