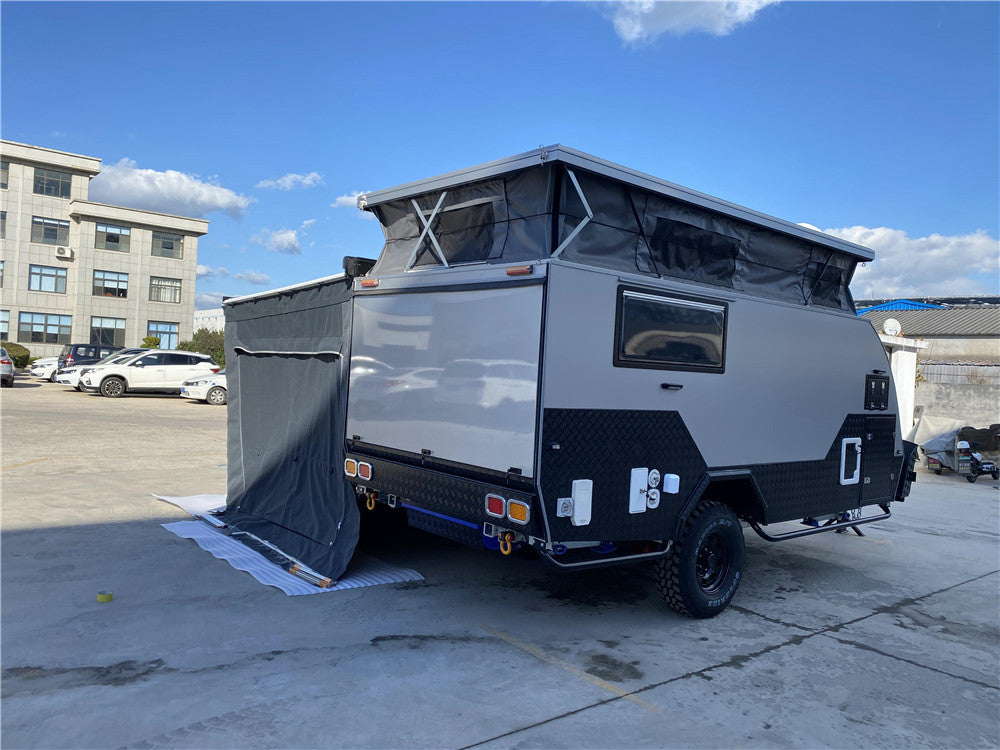

Voyager-12F

1

Width

2100mm

2

Height (Roof Closed)

2350mm

3

Length (Hitch To Taillights)

5500mm

4

Ball Weight

130kg

5

Tare Weight

2100kg

6

GTM

3000kg

7

Inner

Ensuite + bunk bed

8

Drawbar Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 4mm Q345

9

Chassis Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 3mm Q345

10

Body Construction

Aluminium Composite Panel + black color aluminium checker plate

11

Suspension

Independent Arm Suspension With 4x auto-kick-back Shock Absorbers

12

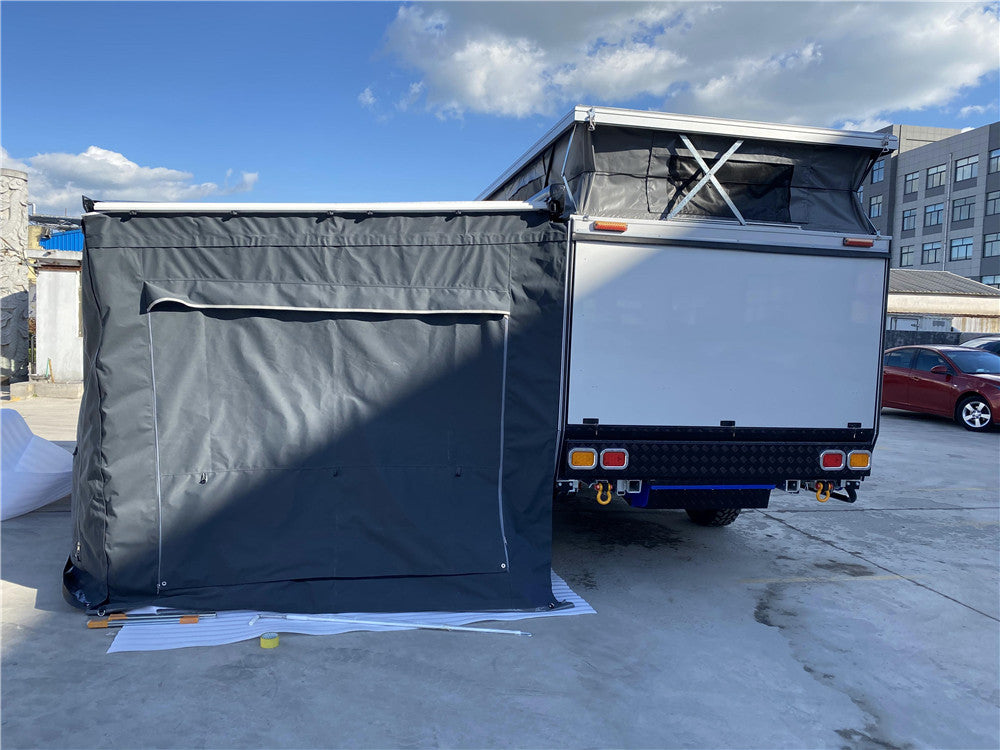

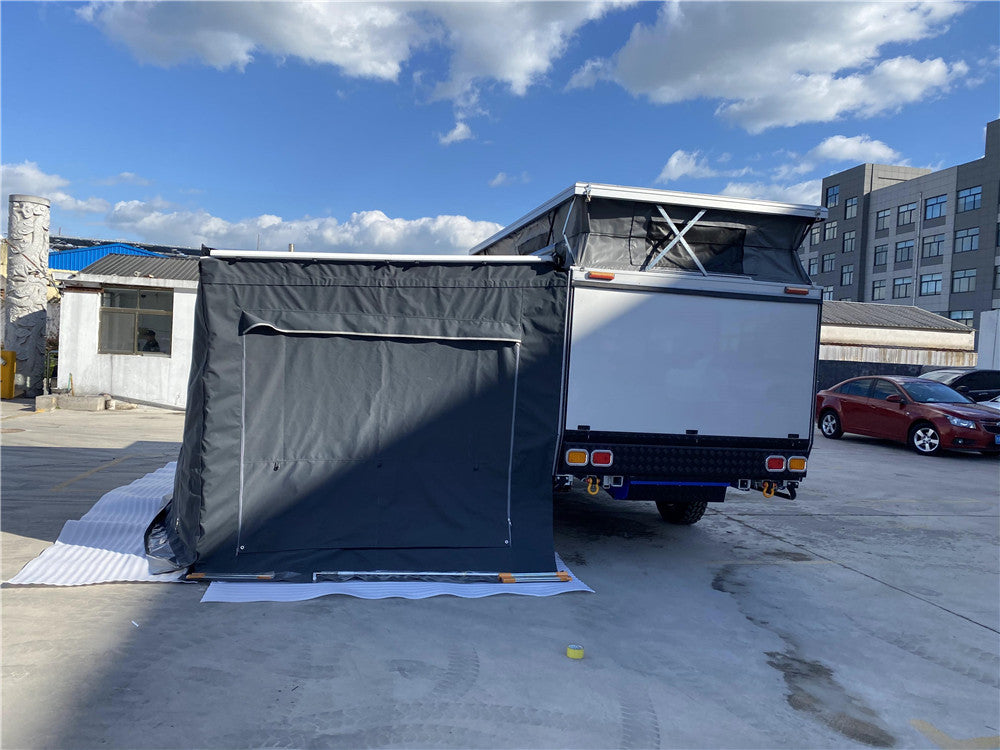

Awning

Electric awning with manual function

13

Wheel/Tyre Info

4 - RATED 1550KG ALLOY WHEELS + DT265/75R16 KENDA TYRES

14

Coupling

Hitch

15

Brakes

4WD 12” Electric with Hand Brake

16

Stone Guard

Included With Stone Tamer Mudflaps

17

Gas holder

2 x 9kg Gas holder

18

Jerry Cans

2 x 20L Jerry Can Holders

19

Cooktop

4 Burner Gas cooktop

20

Fridge

Not included

21

Kitchen Construction

External 304 Grade Stainless Steel

22

Water Tank

1 85L + 35L green water tank and 1 85L grey water tank

23

Water Delivery

                                                                                                              TRUMA 14LT GAS/ELEC HOT WATER SERVICE + 12V PUMP FULLY PLUMBED

24

Shower (Ensuite)

Hot/Cold External Includes Van Side Mounted Shower Tent

25

Shower room

shower room inner caravan. Thetford portable Toilet

26

Batteries

Battery 3pcs - 100amp hr

27

Charger (240V)

battery charger 1pc

28

Inverter

2000WATT PURE SINE INVERTER

29

240V Outlets

240V outlet

30

Structure

Fully Welded Frame + Chassis

31

Finish

Composite Aluminium Panels / Powder coated Aluminium Chequer plate

32

Jockey Wheel

10" Swing-Up good quality jockey wheel

33

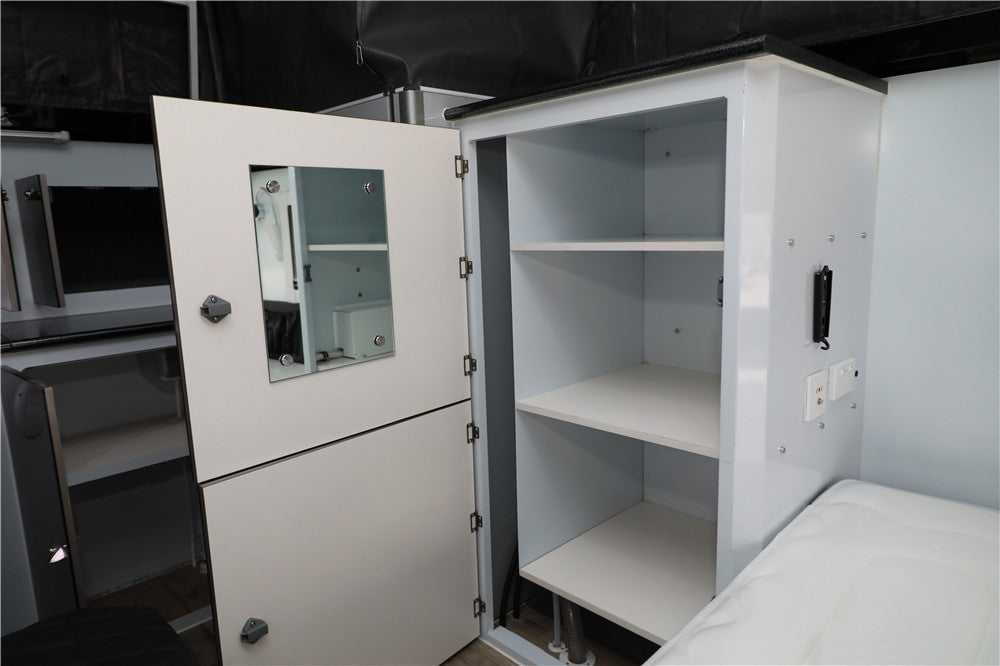

Storage

2 Large Storage Boxes

34

Lights

LED Tail And LED Number Plate

35

Stabiliser Legs

4 x Heavy Duty Lockable and Adjustable Drop-Down

36

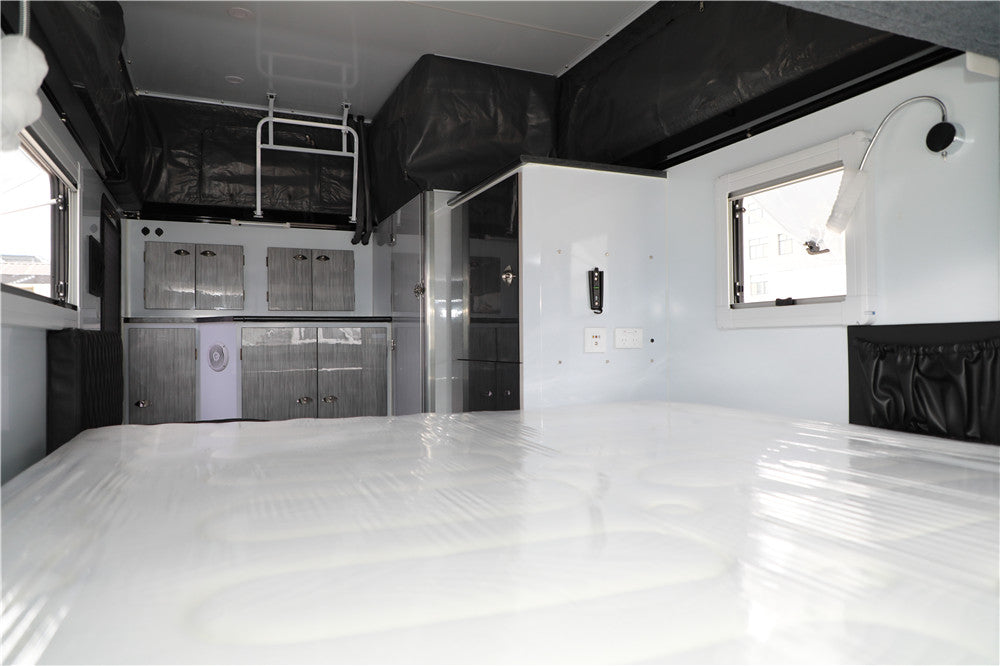

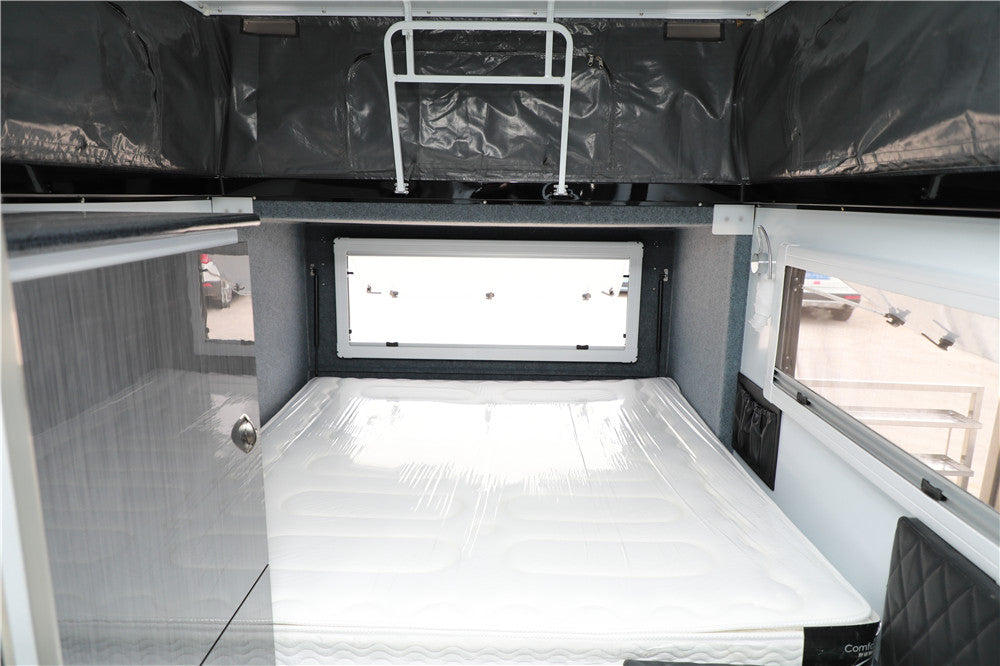

Mattress

200mm Custom Queen foldable Innerspring mattress

37

Interior Lighting

Multiple LED’s

38

Light Connection Plug

7 Pin Round Or 7 Pin Flat Connection Available

39

Media

MARINE GRADE STEREO WITH  4 SPEAKER + WALL MOUNT TV WITH ANTENNA PLUGS INSIDE & OUTSIDE

40

Shower room

Inner shower room

41

stone guard

Stone guard mesh + aluminium checker plate stone guard frame

42

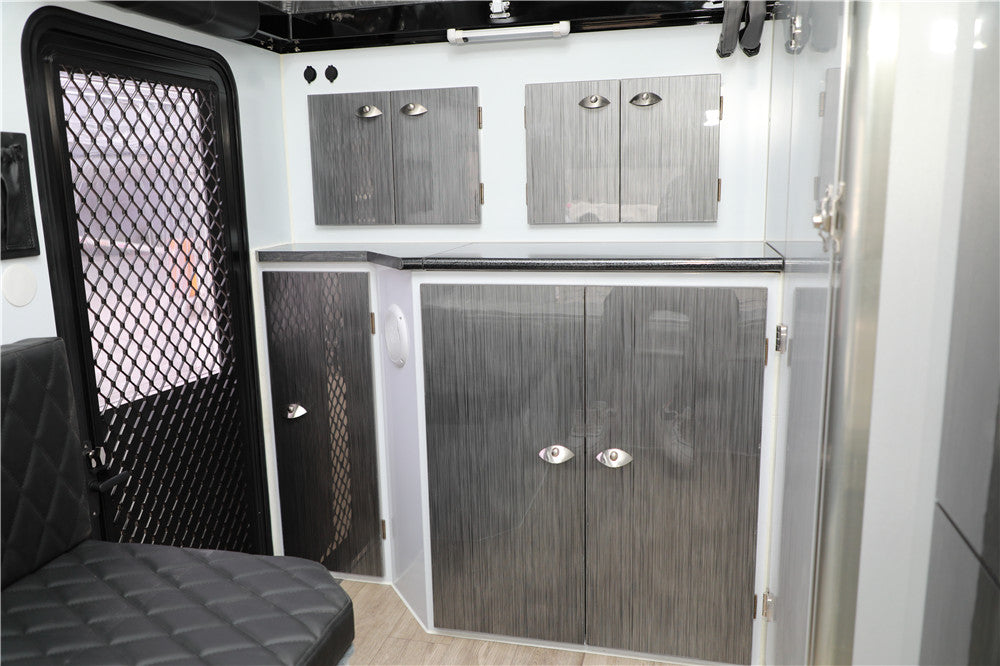

stainless

stainless steel kitchen with stainless steel water sink

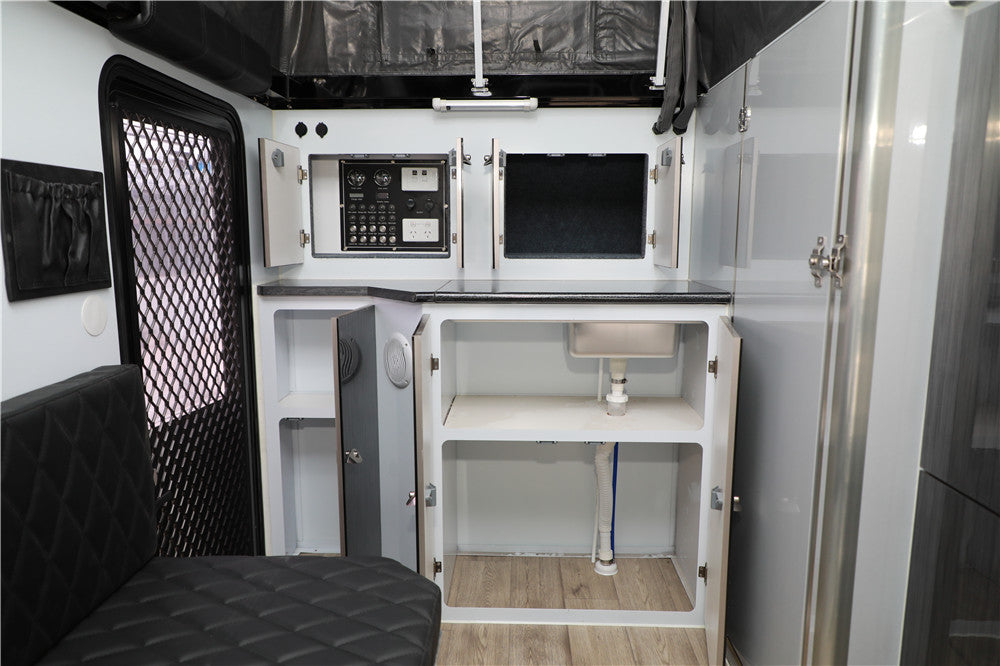

43

water sink

Stainless steel water sink inner caravan

44

LED lights

Led handle lights

45

Gas

copper pipe for gas

46

Spare tyre holder

double spare tyre holder with 4 pcs 265/75R16 tyres and alloy wheels 4 pcs

47

underneath surface

black powder coated paint rock guard underneath caravan

48

LED bed lights

LED bed reading lights 2pcs

49

table

Foldable table on surface of caravan

50

step

Aluminium stepper 1pc assembled under caravan door

51

Solar panel

100W Solar panel flexibility 2pcs with 1pc solar panel controller

52

door

new design Good quality door with lockable security screen door & curtain for privacy on door window, caravan window include anti-mosquito mesh and shade curtain

53

rim

Stainless steel aluminium alloy rim

54

jerry can holder

jerry can holders 2pcs

55

files folder

leather file pocket inner caravan

56

TAP

Good quality hot and cold foldable tap 2pcs

57

TV

1 unit with TV bracket
