Toy Hauler-12

Caravan Specifications

Basic Information

• Body Size: 3696mm (L) × 2196mm (W) × 2085mm (H)

• Overall Size: 5674mm (L) × 2310mm (W) × 2985mm (H)

• Chassis Material: Iron tube, hot-dip galvanized

• Body Structure: Fiberglass + Aluminium frame + XPS + Fiberglass

• Floor Structure: Plastic honeycomb board with PVC floor adhesive

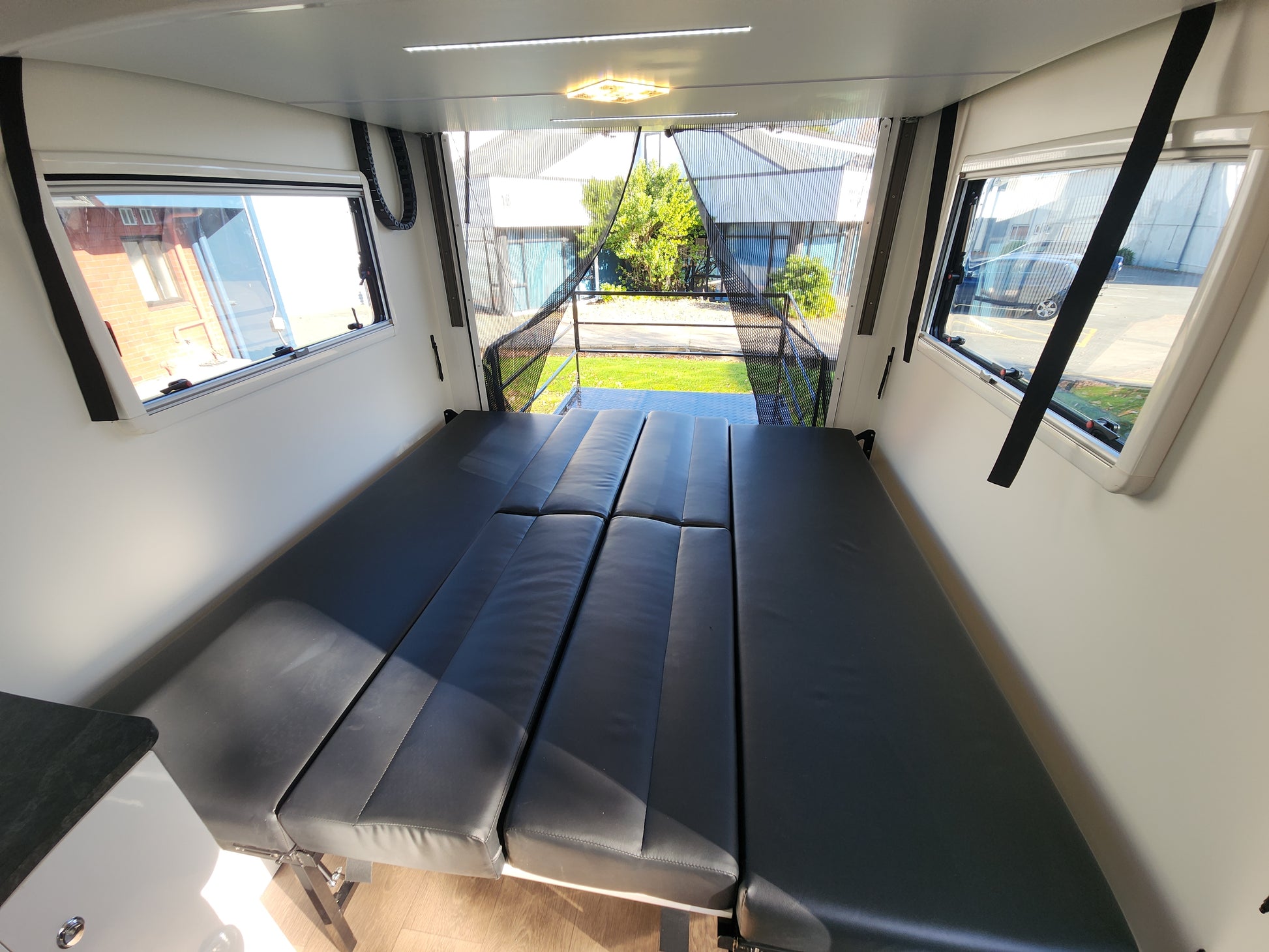

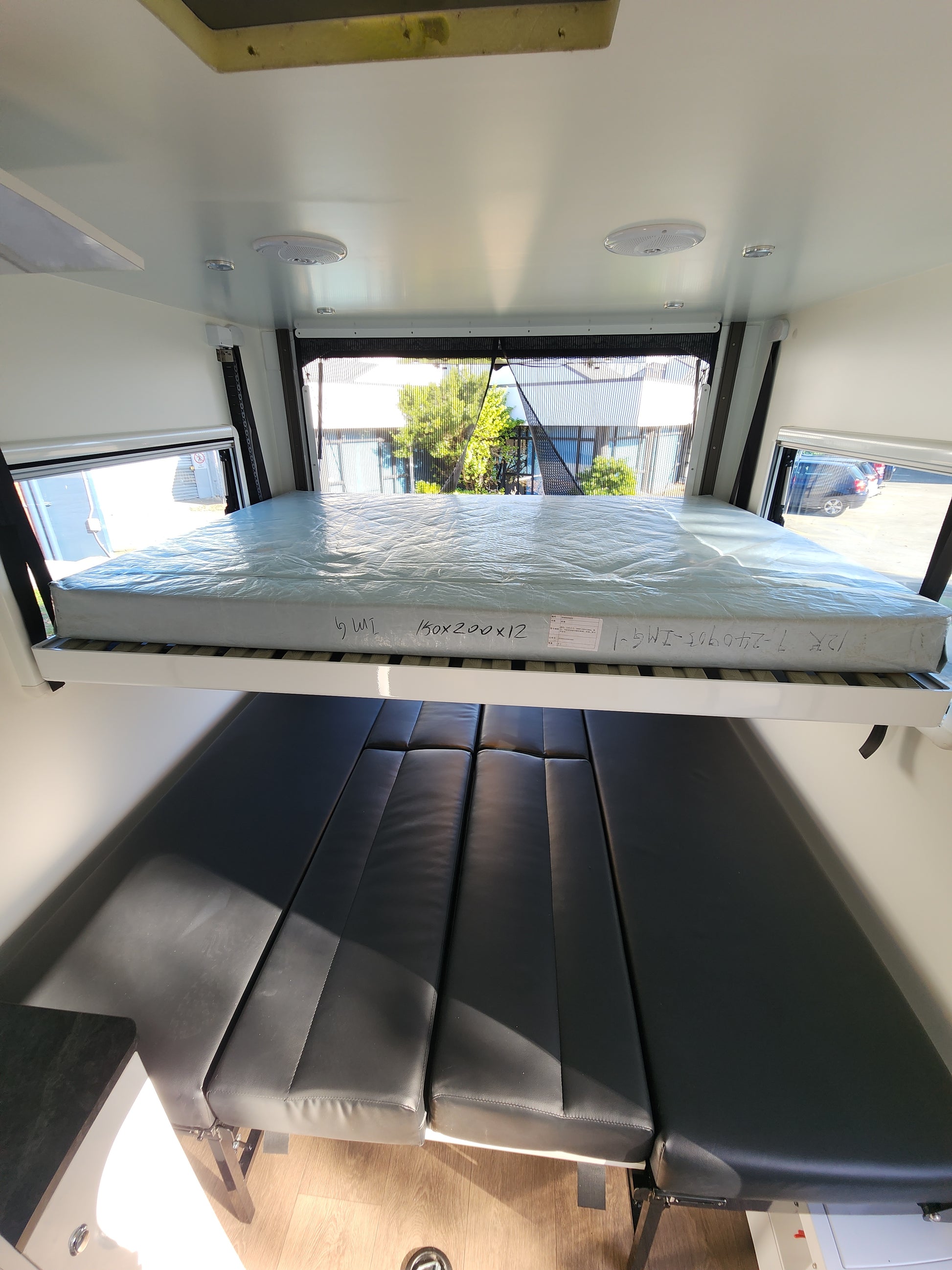

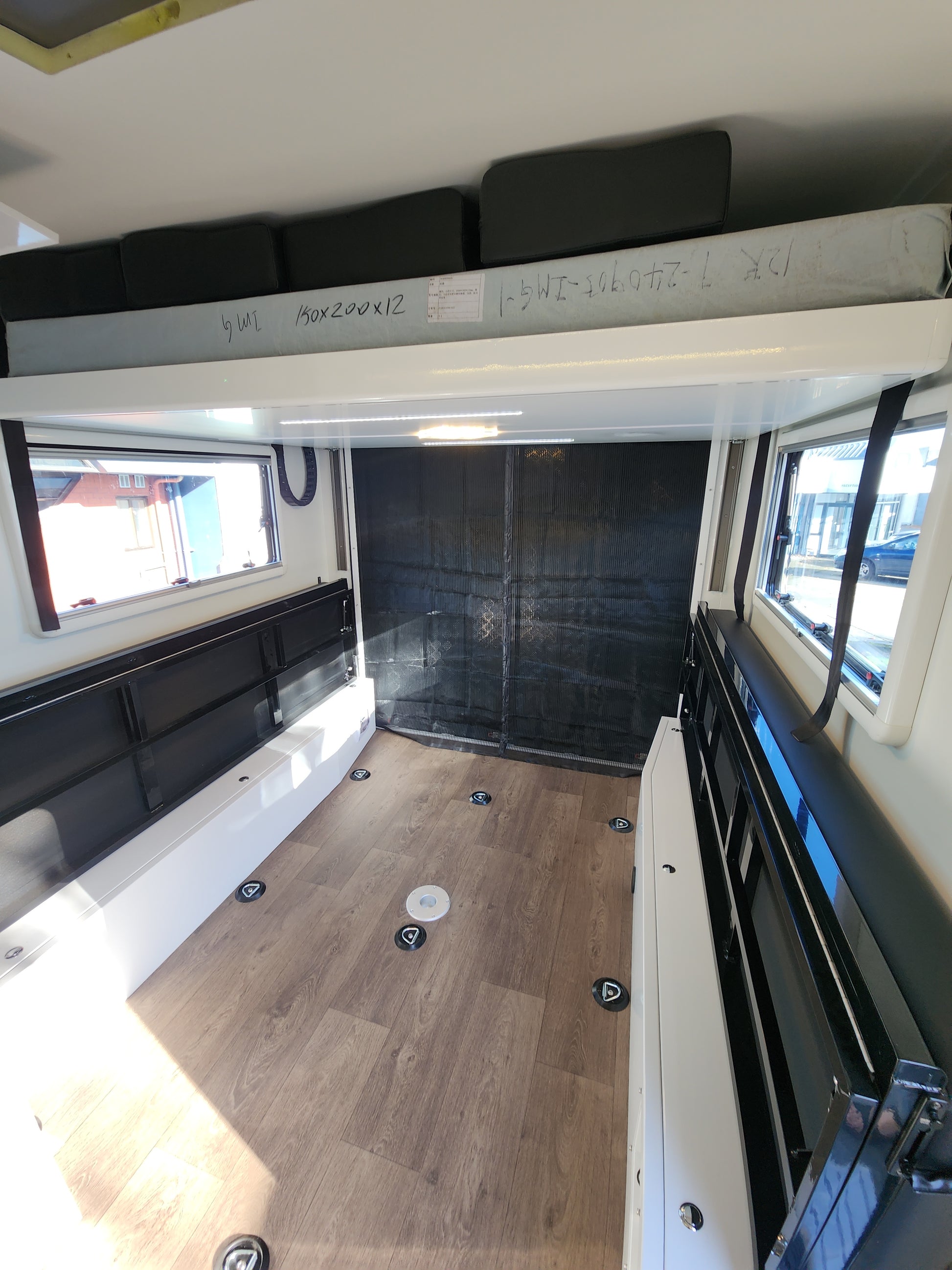

Sleeping

• Sleep Capacity: 4 people

• Mattress: Spring mattress

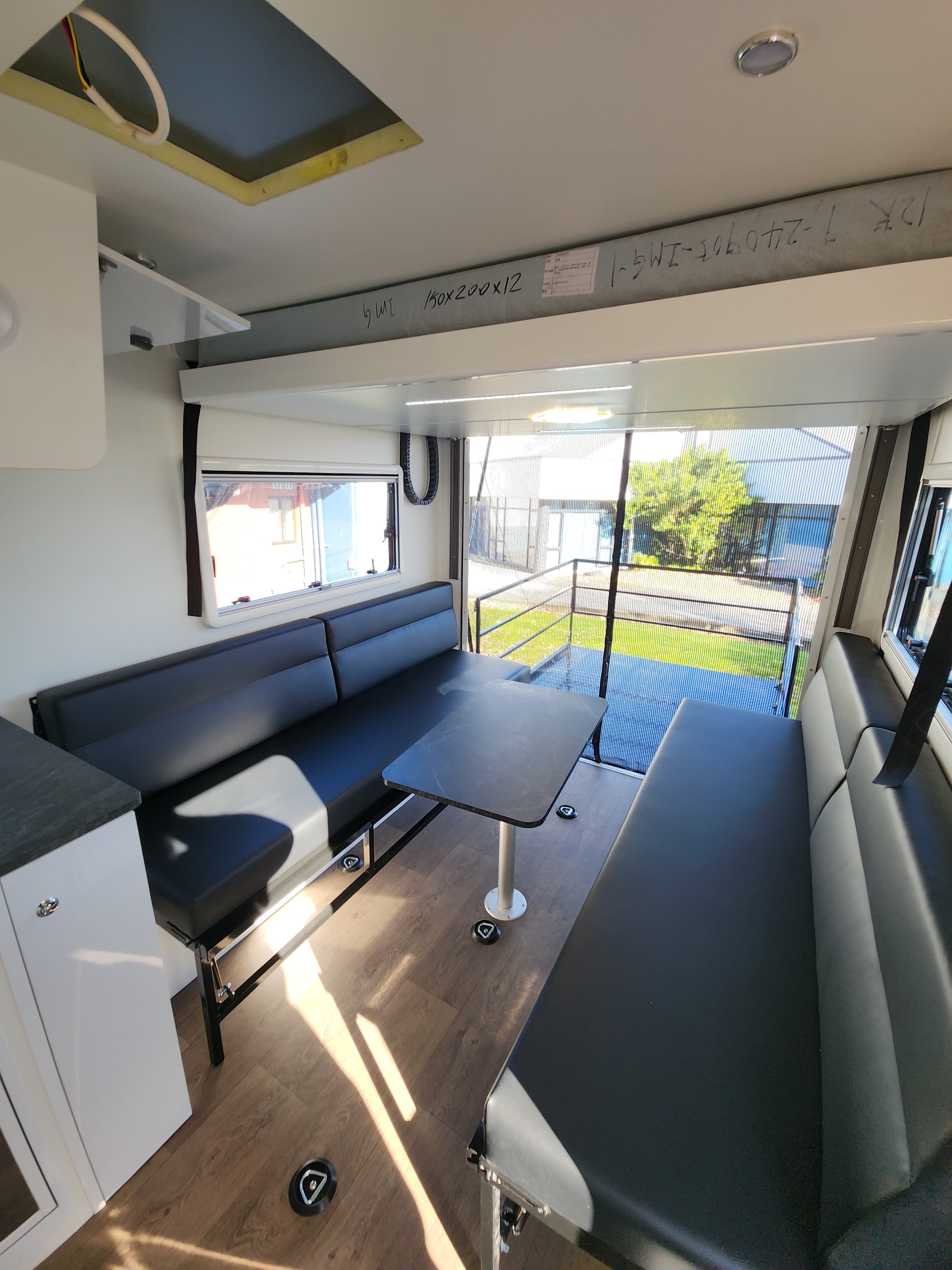

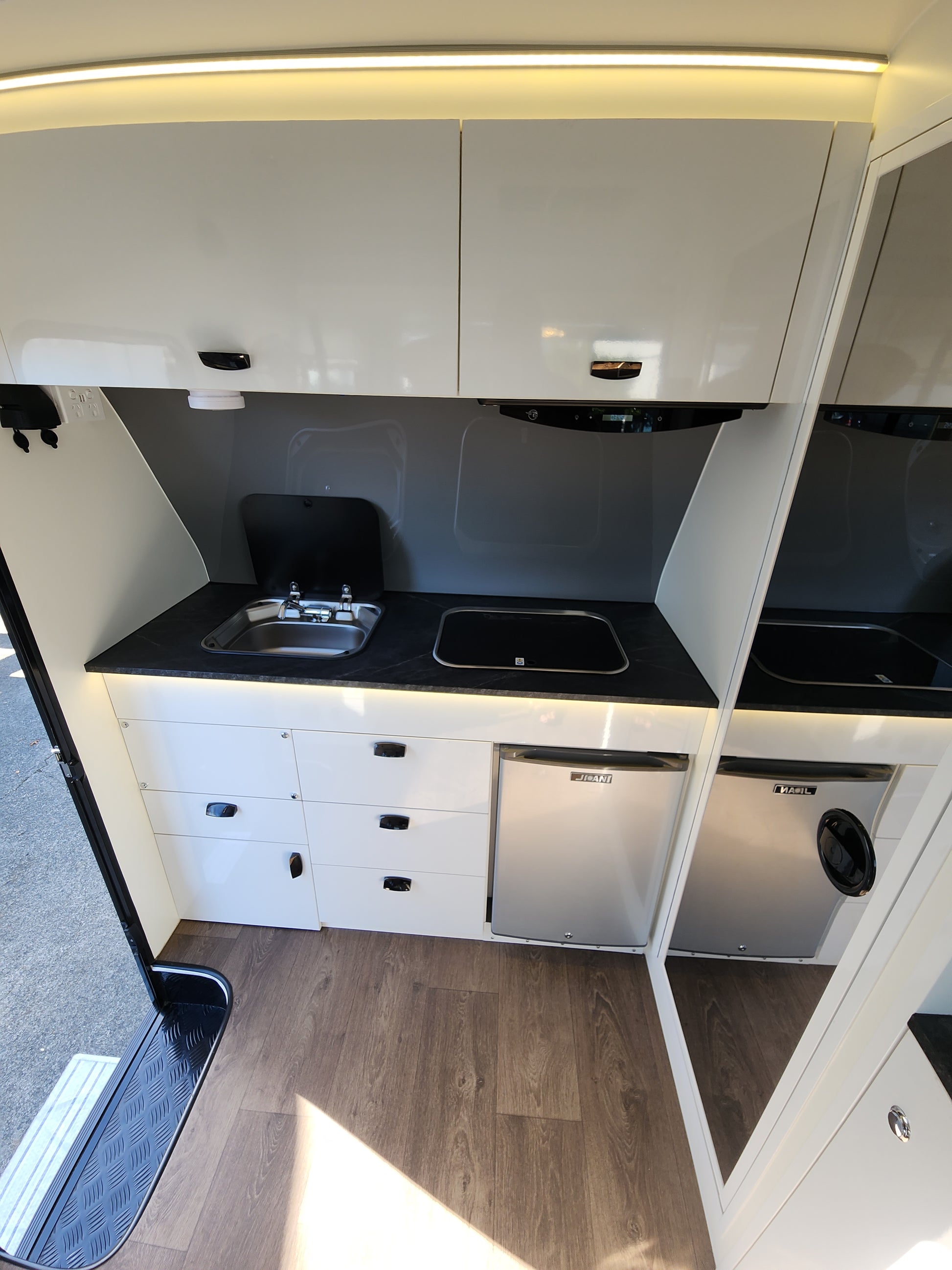

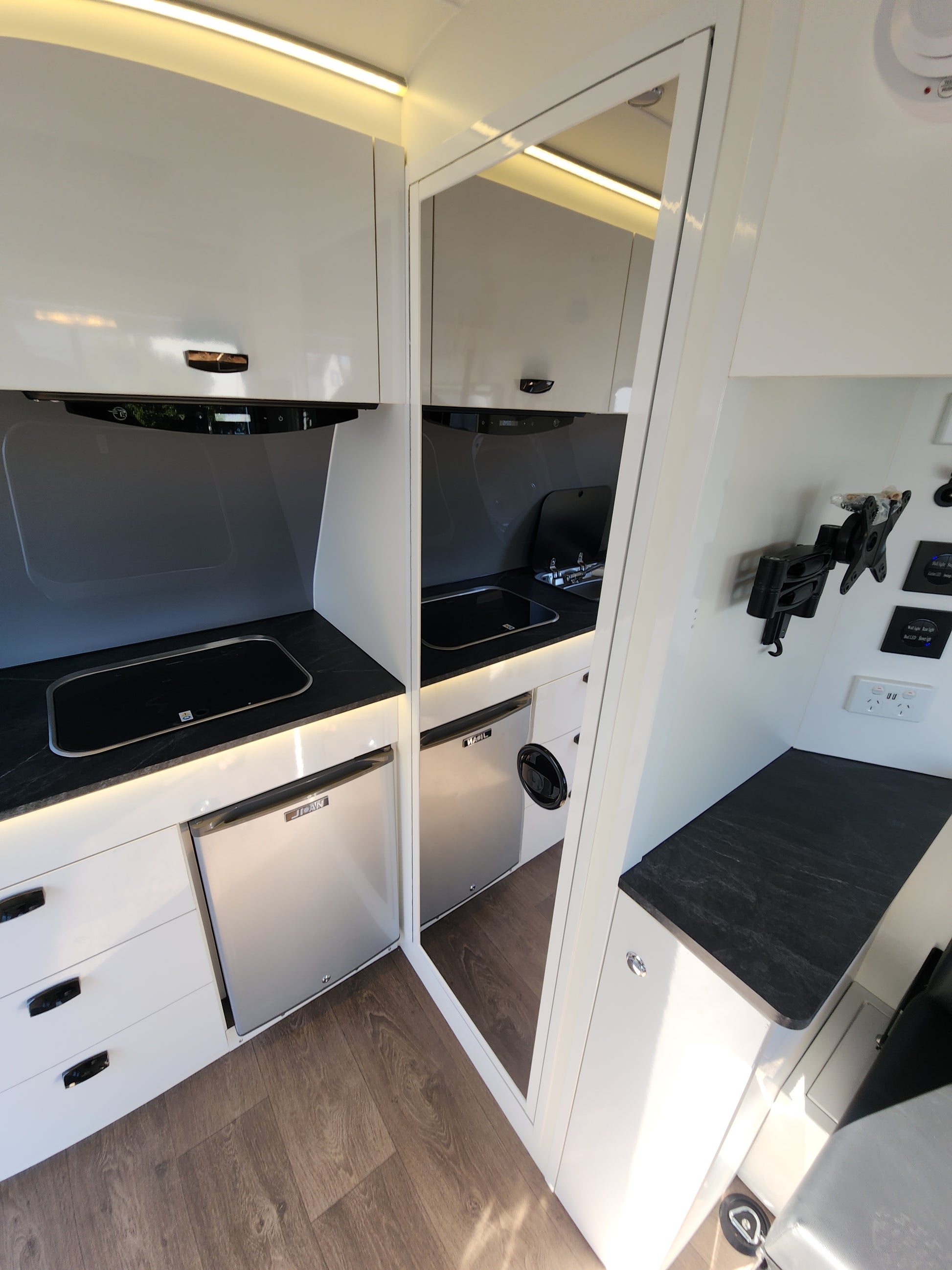

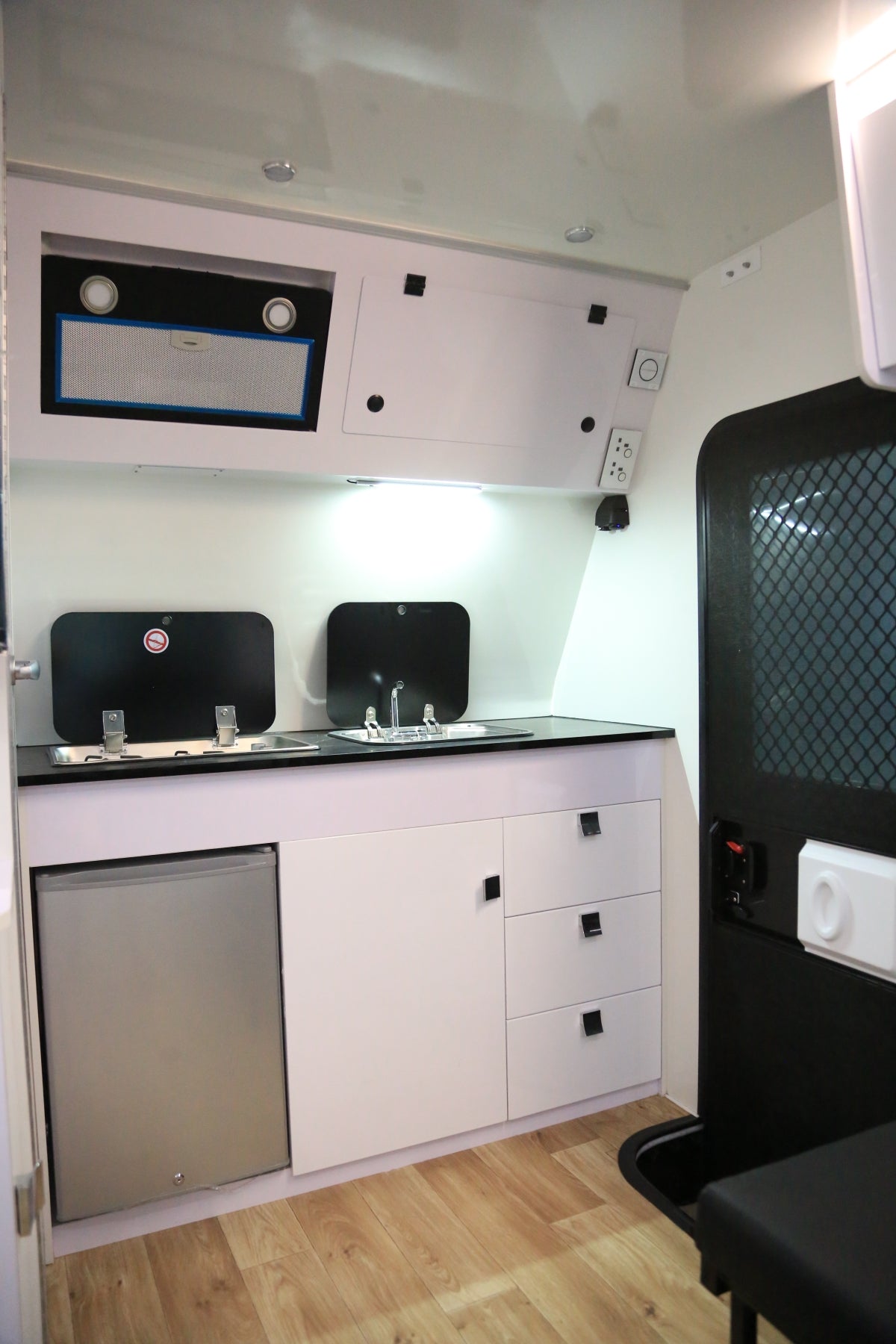

Living & Kitchen Area

• Table: Folding expansion table

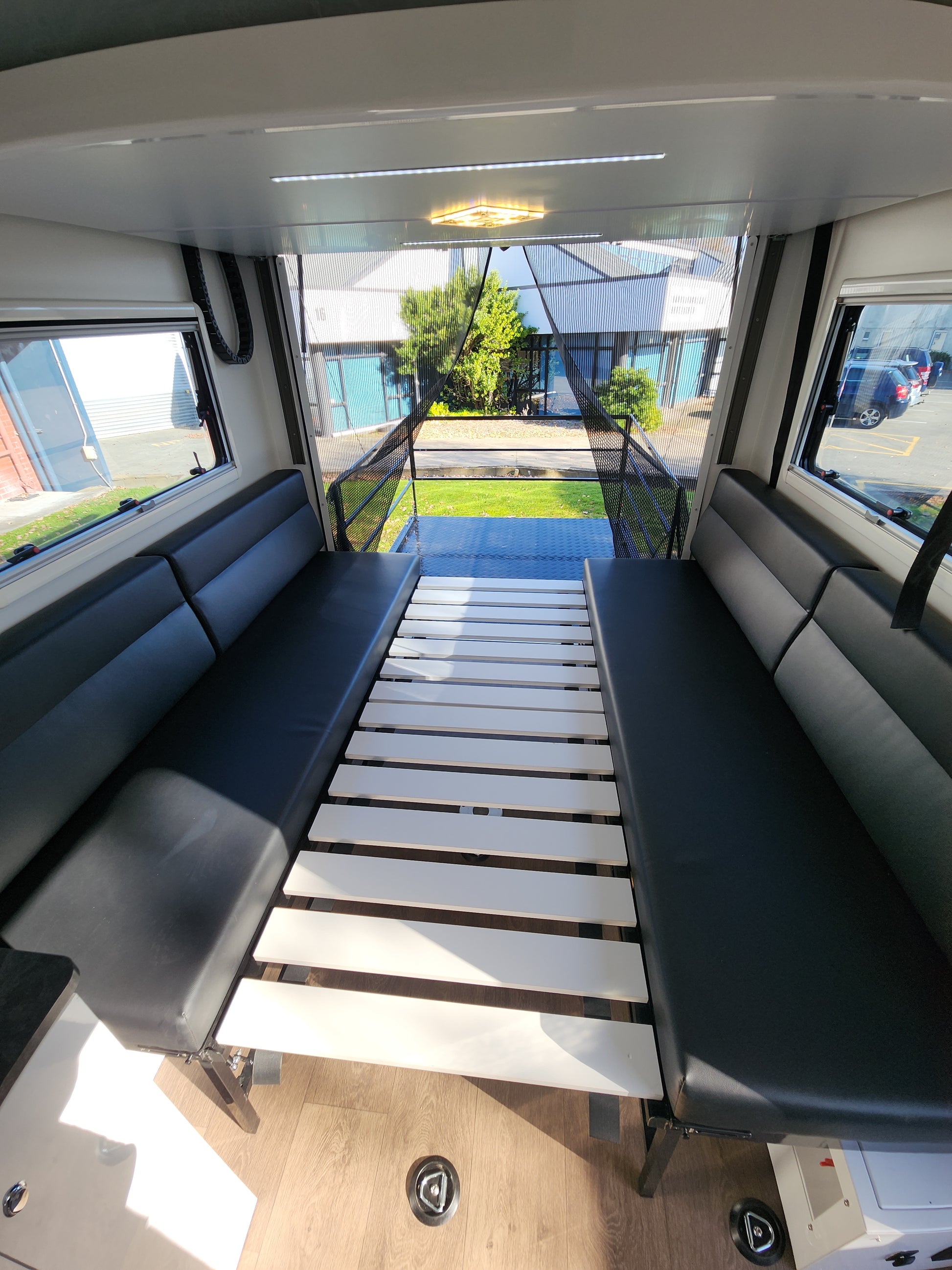

• Sofa Seating Capacity: 8

• Fridge: 70L

• Cooktop: Two-head gas burner

• Range Hood: Included

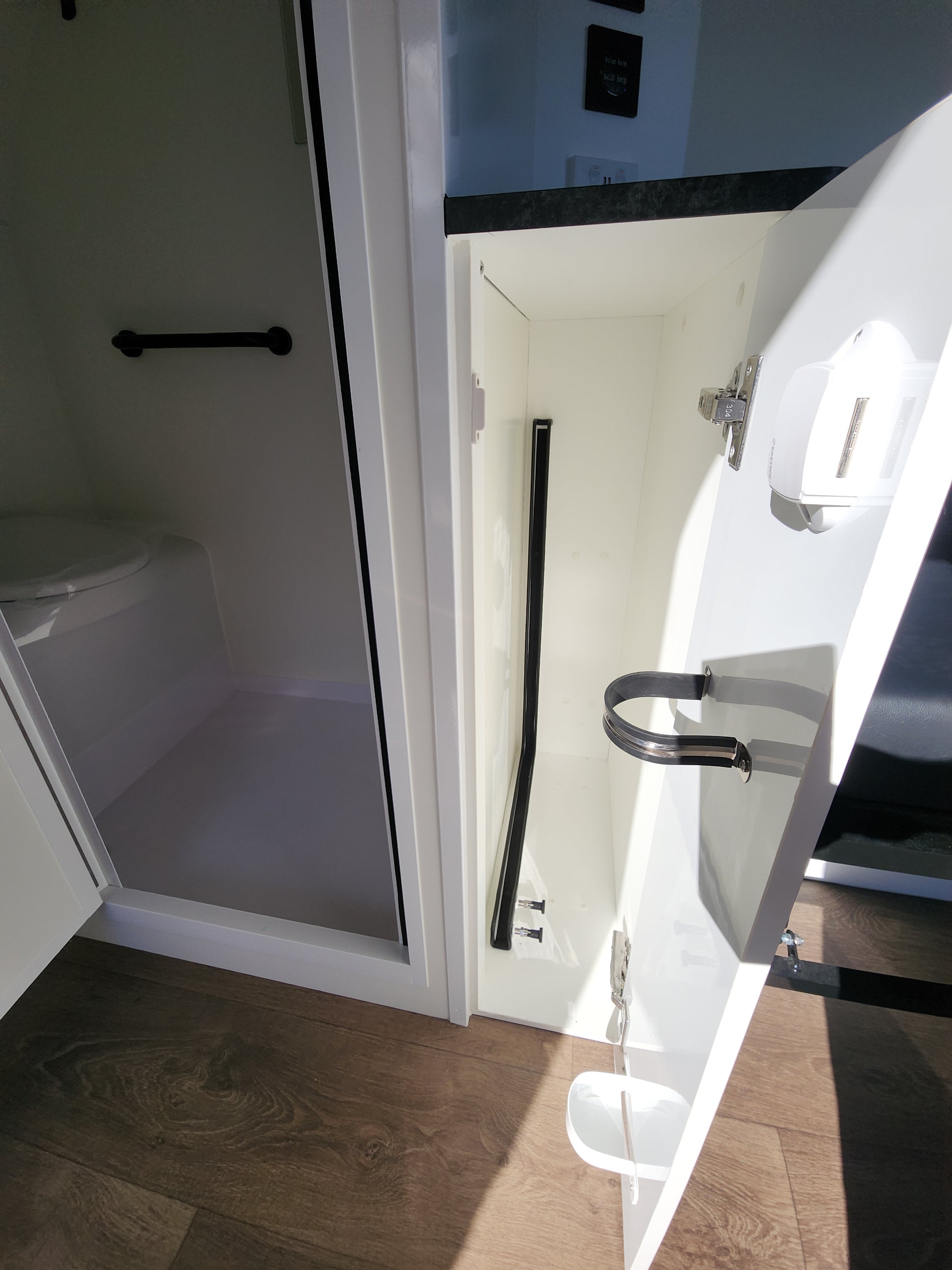

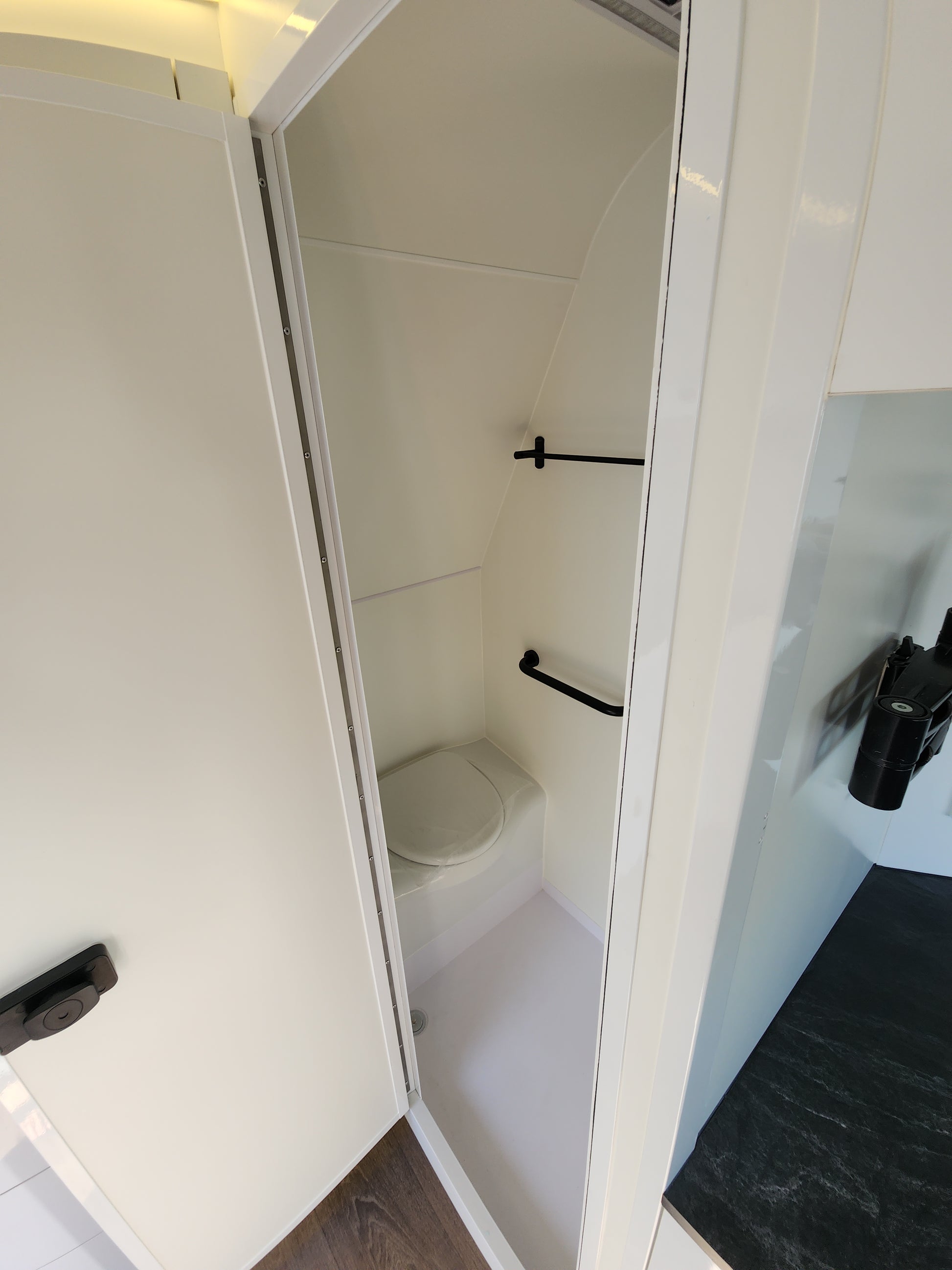

• Toilet: Thetford toilet

• TV: 24"

• Audio: MP3 player

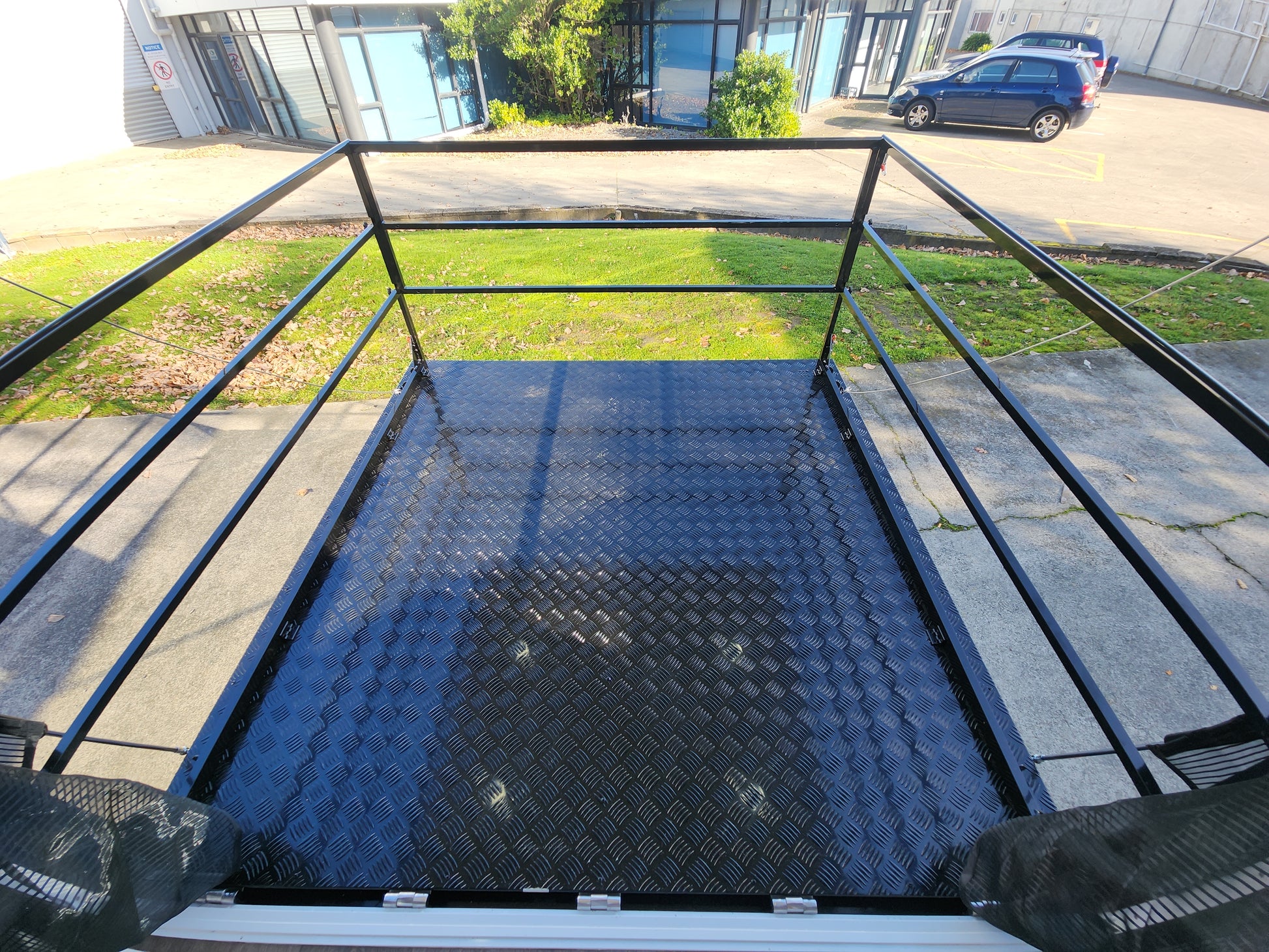

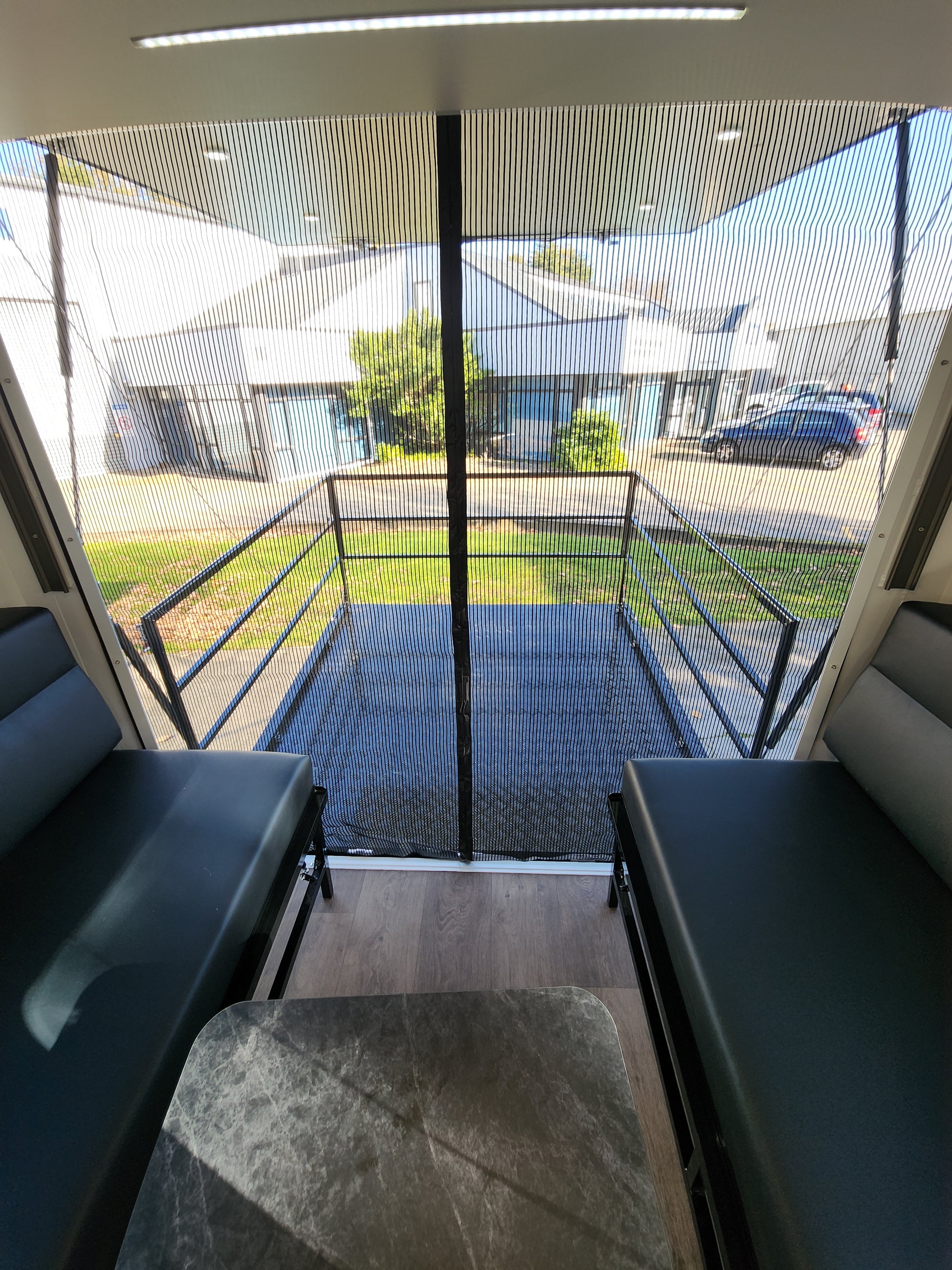

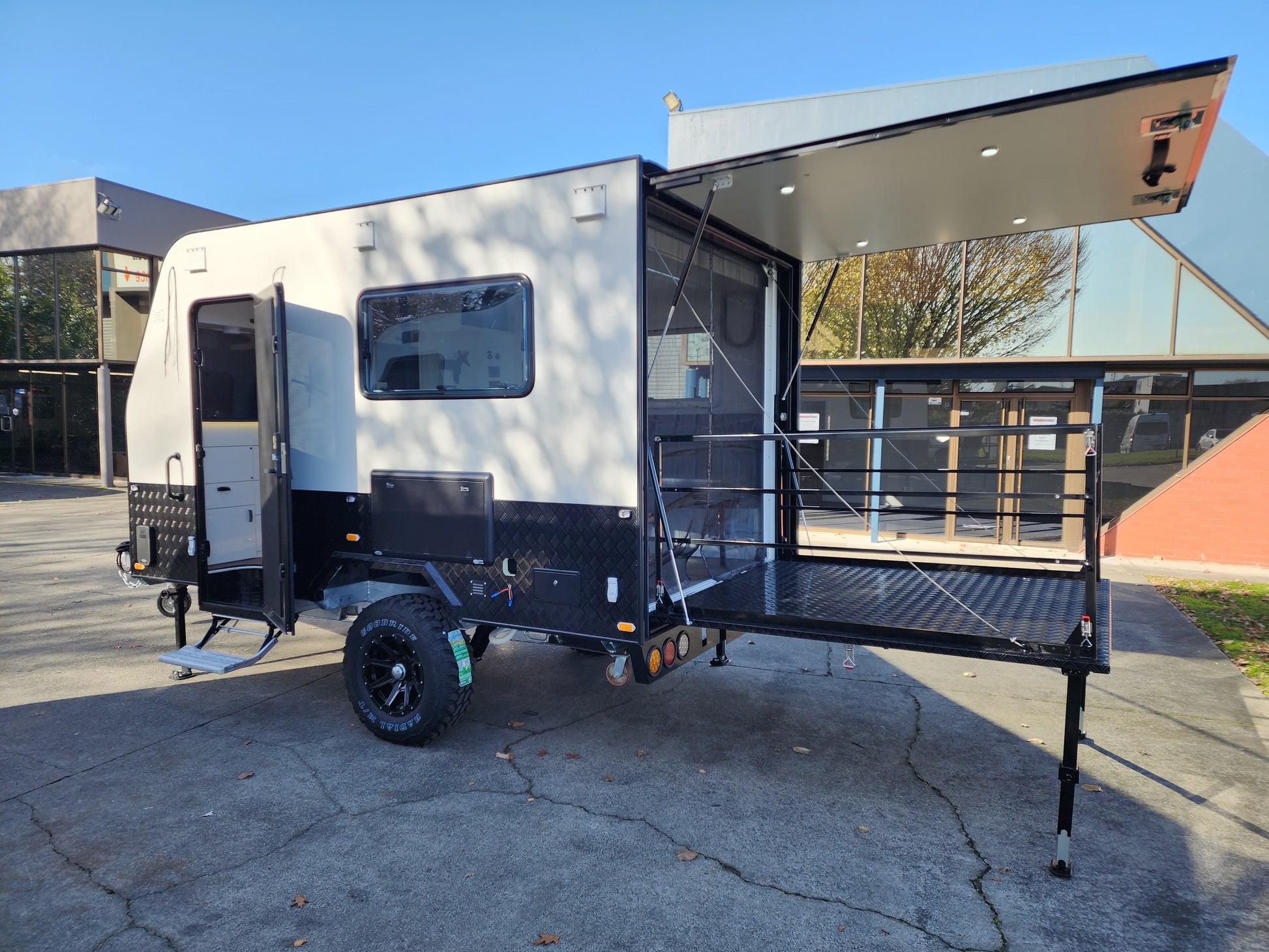

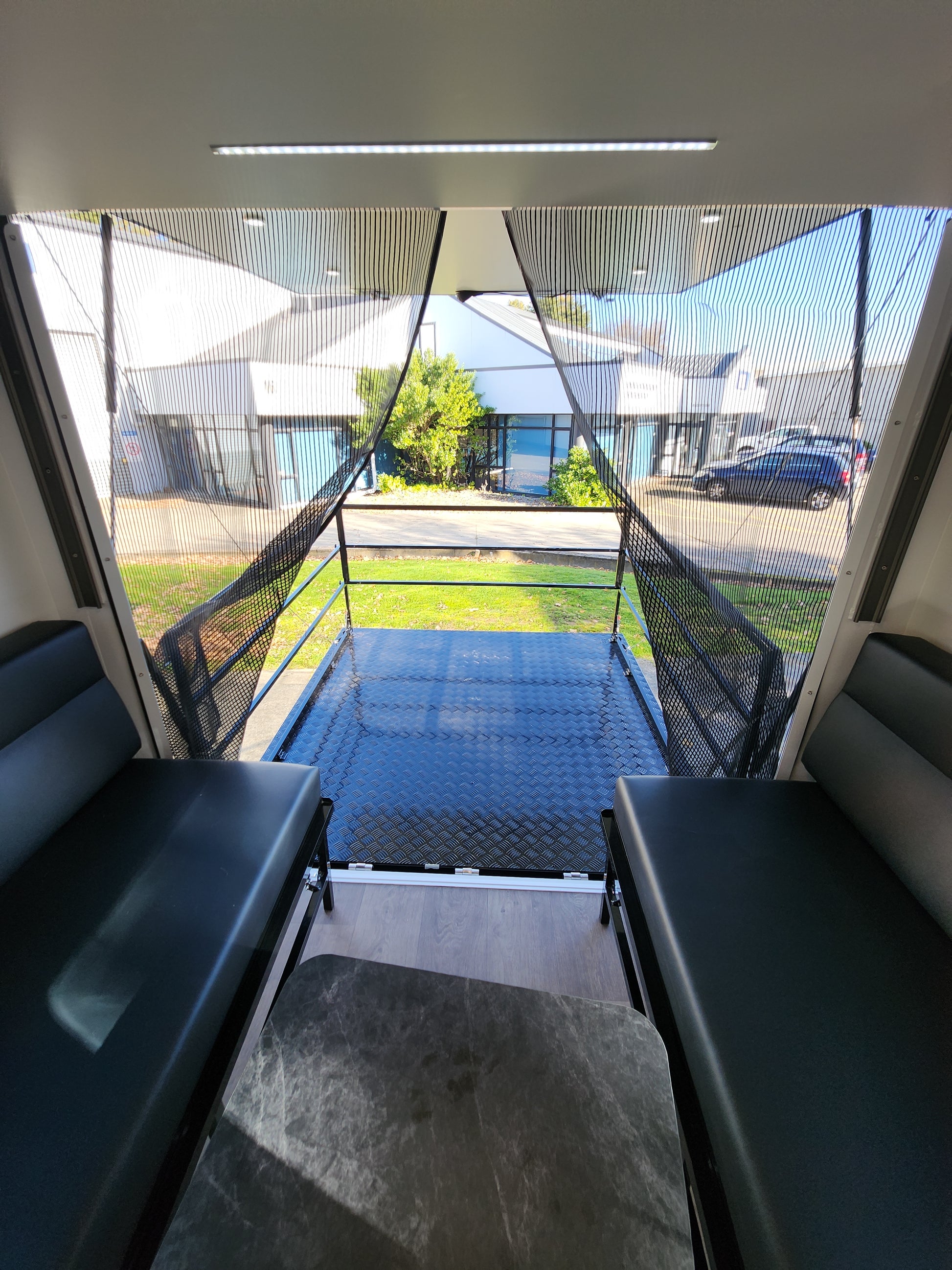

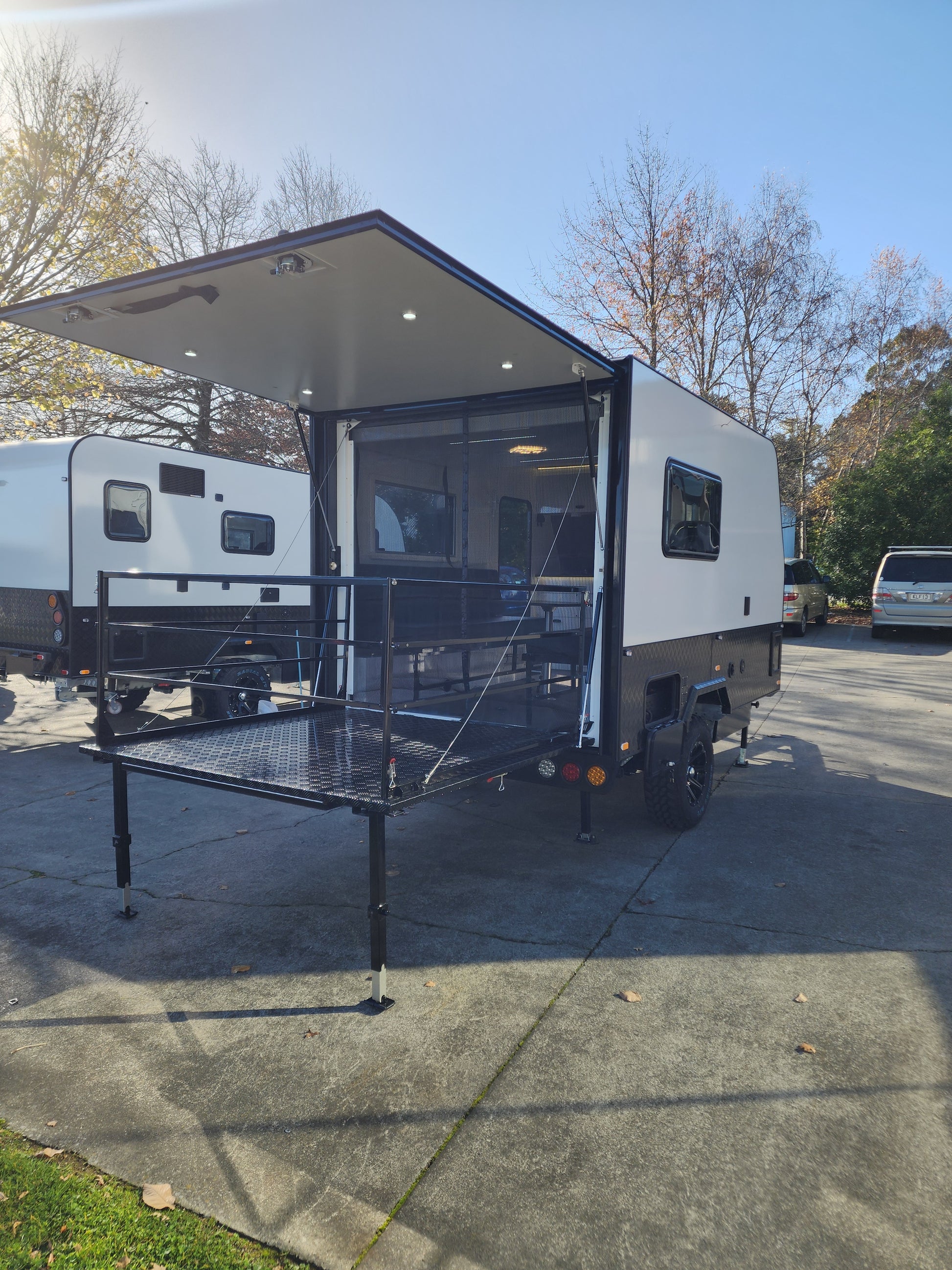

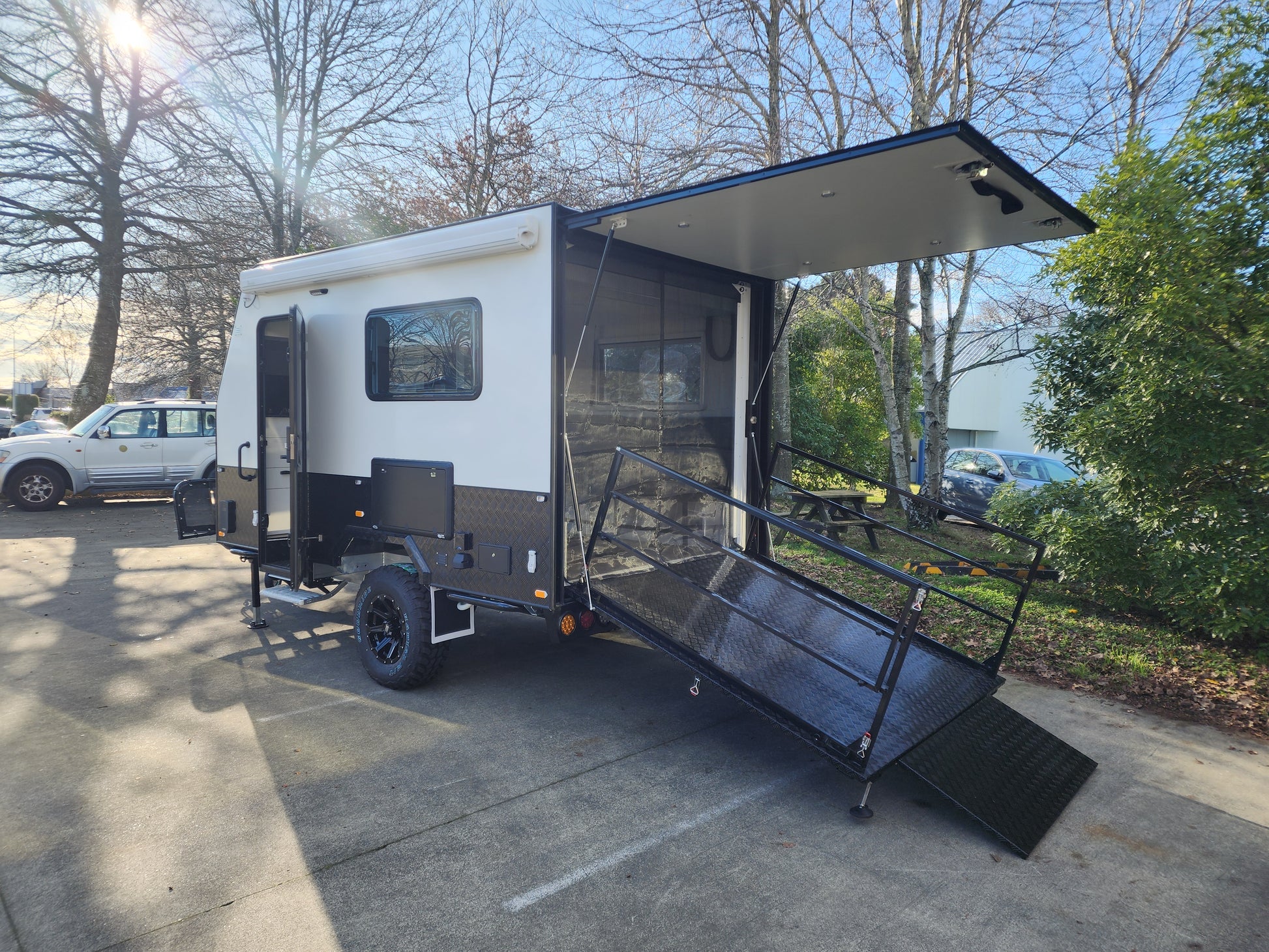

Rear Balcony

• Balcony with guardrail

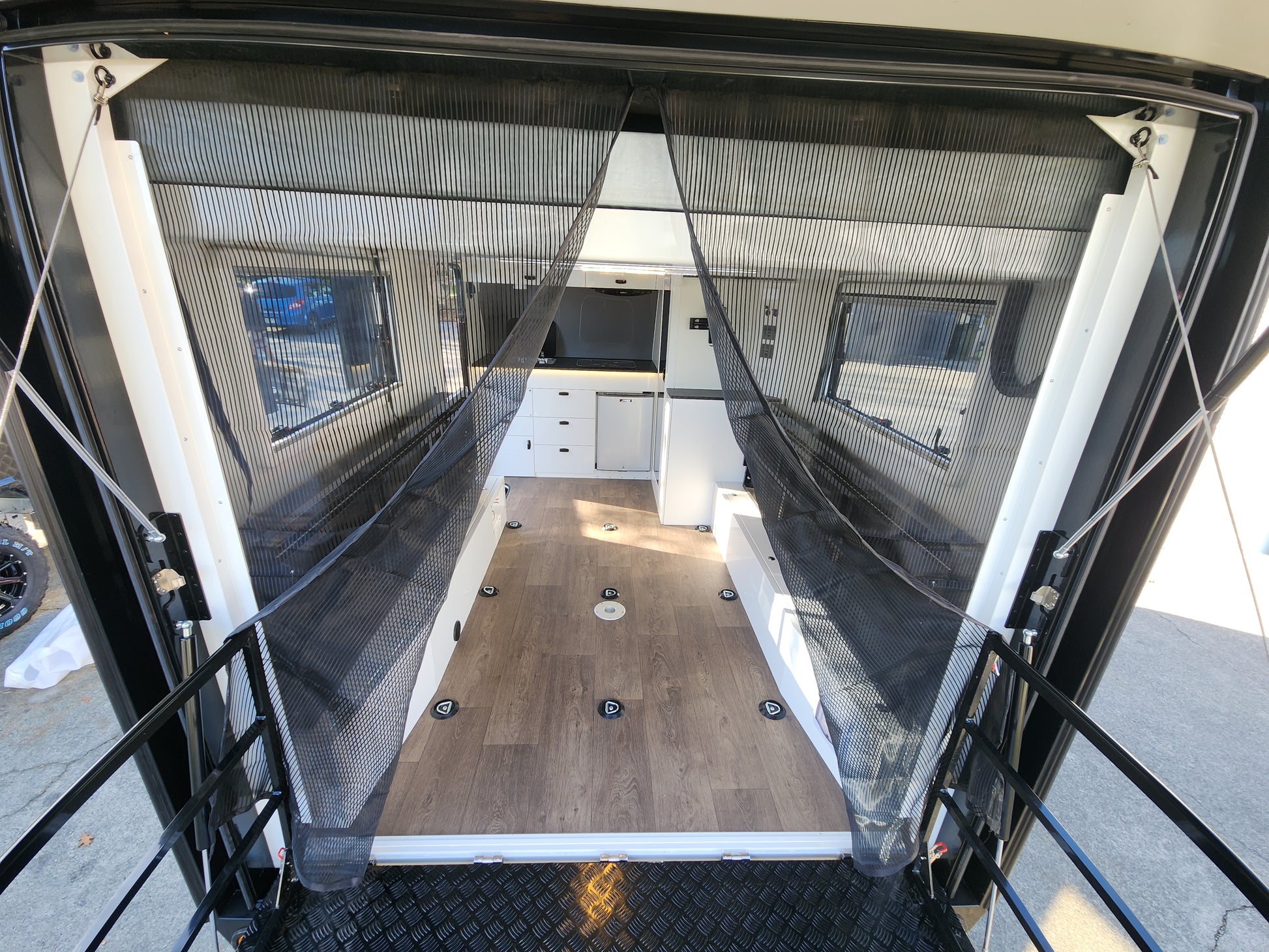

• Mosquito-proof curtain

Tow System

• Coupling: New Zealand standard

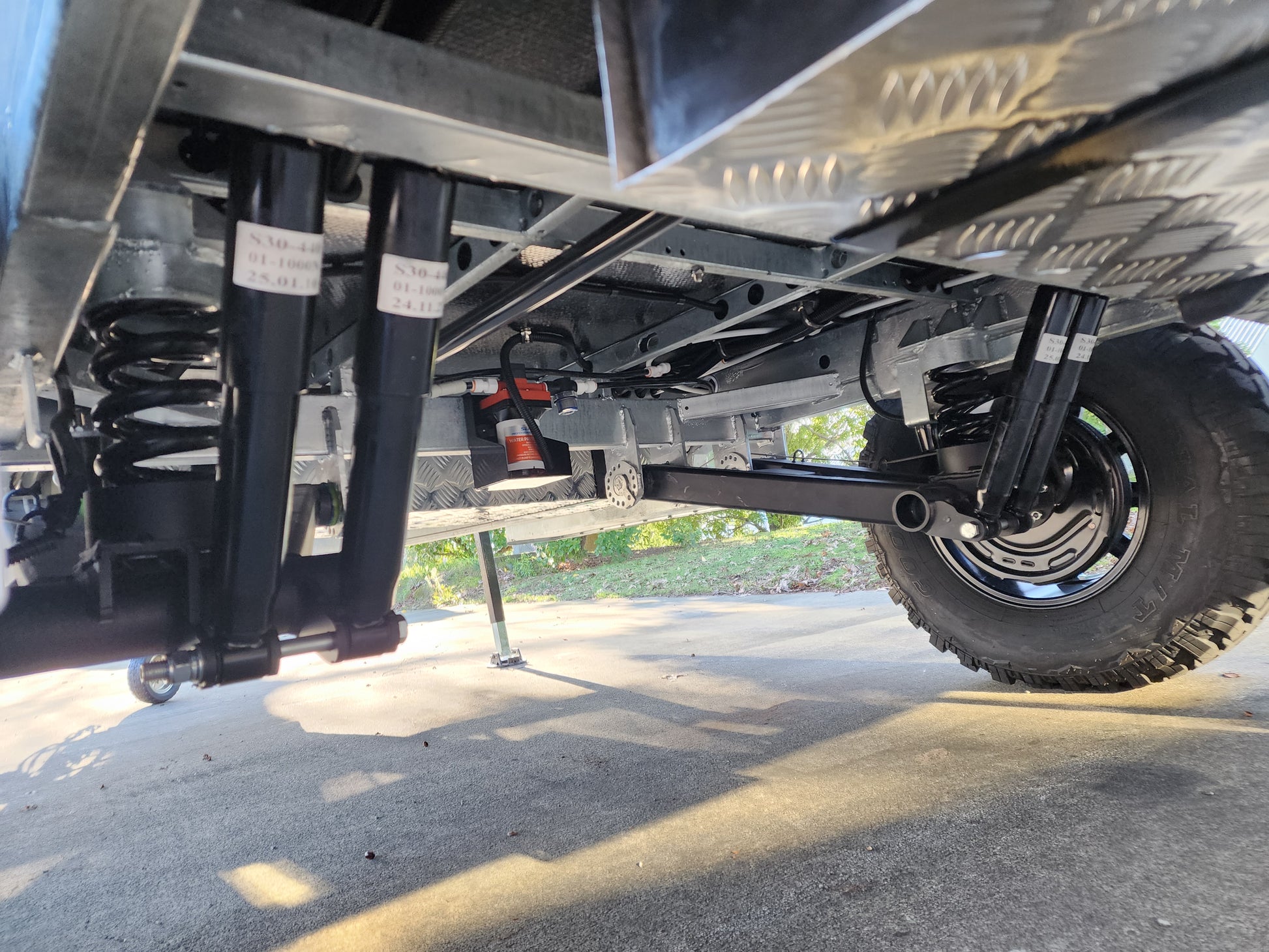

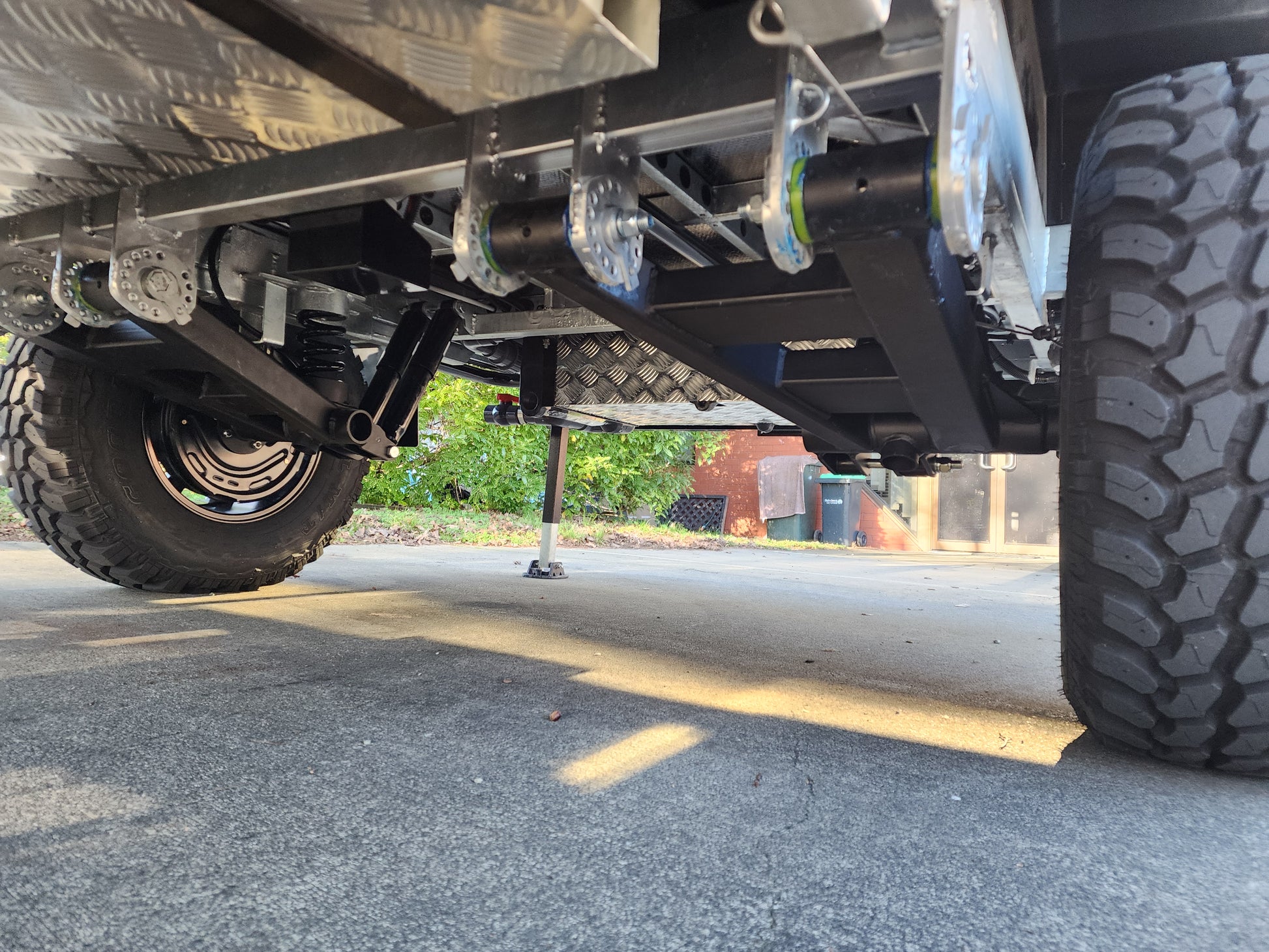

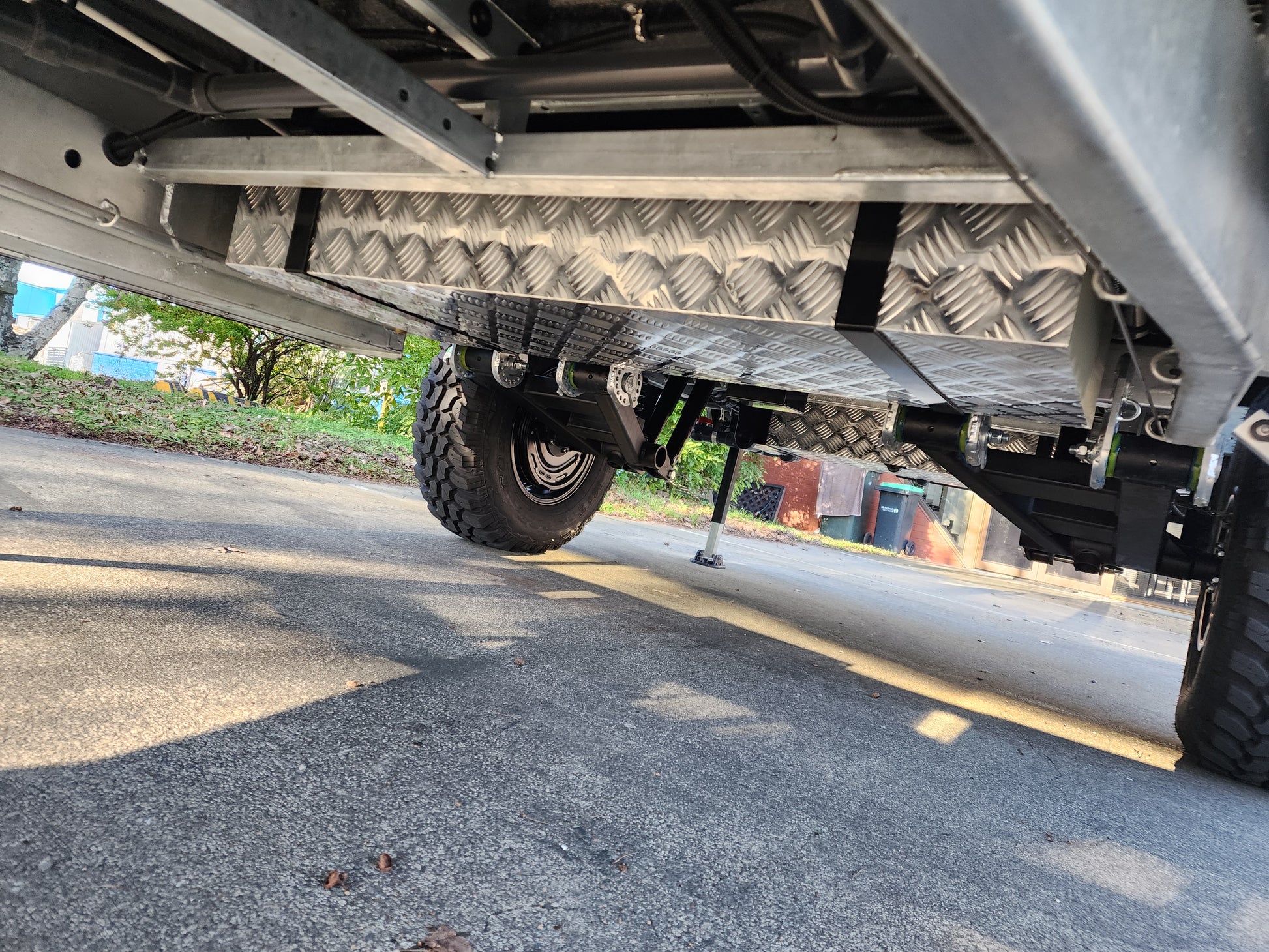

Axle & Suspension

• Axle: Single axle

• Suspension: Independent suspension system

• Braking: 12" electric brakes with manual handbrake

• Tyres: 265/75R16

Water System

• Fresh Water Tank: 95L

• Grey Water Tank: 95L

• Water Heater: 14L Truma

• Taps: External single cooling brass faucet

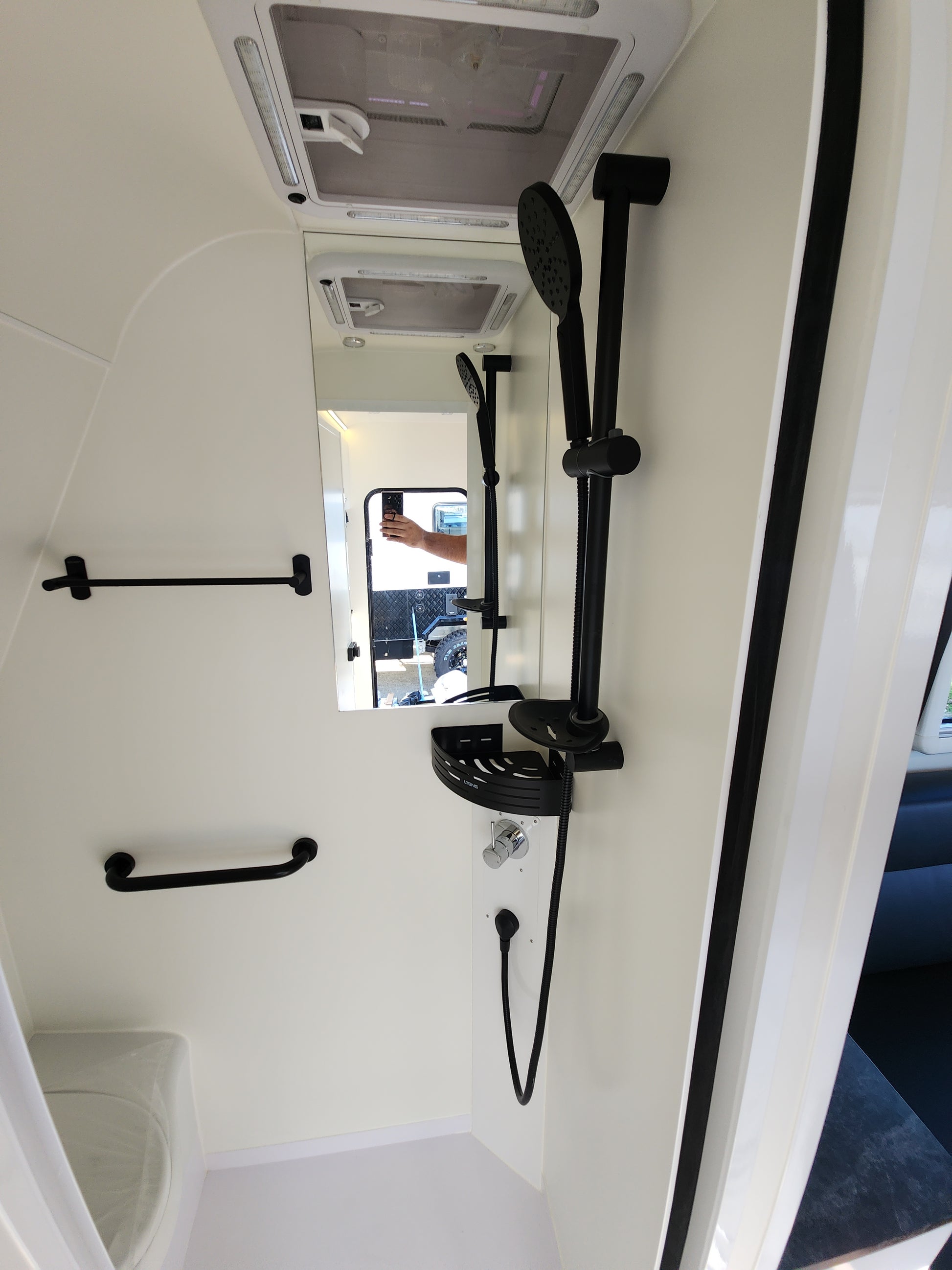

• Shower: External shower box with hot & cold water

Gas System

• Gas Bottle Rack: Holds 2 × 9kg bottles

Electrical System

• Emergency Brake System: Included

• Reversing Camera: Included

• Battery: 2 × 150AH maintenance-free batteries

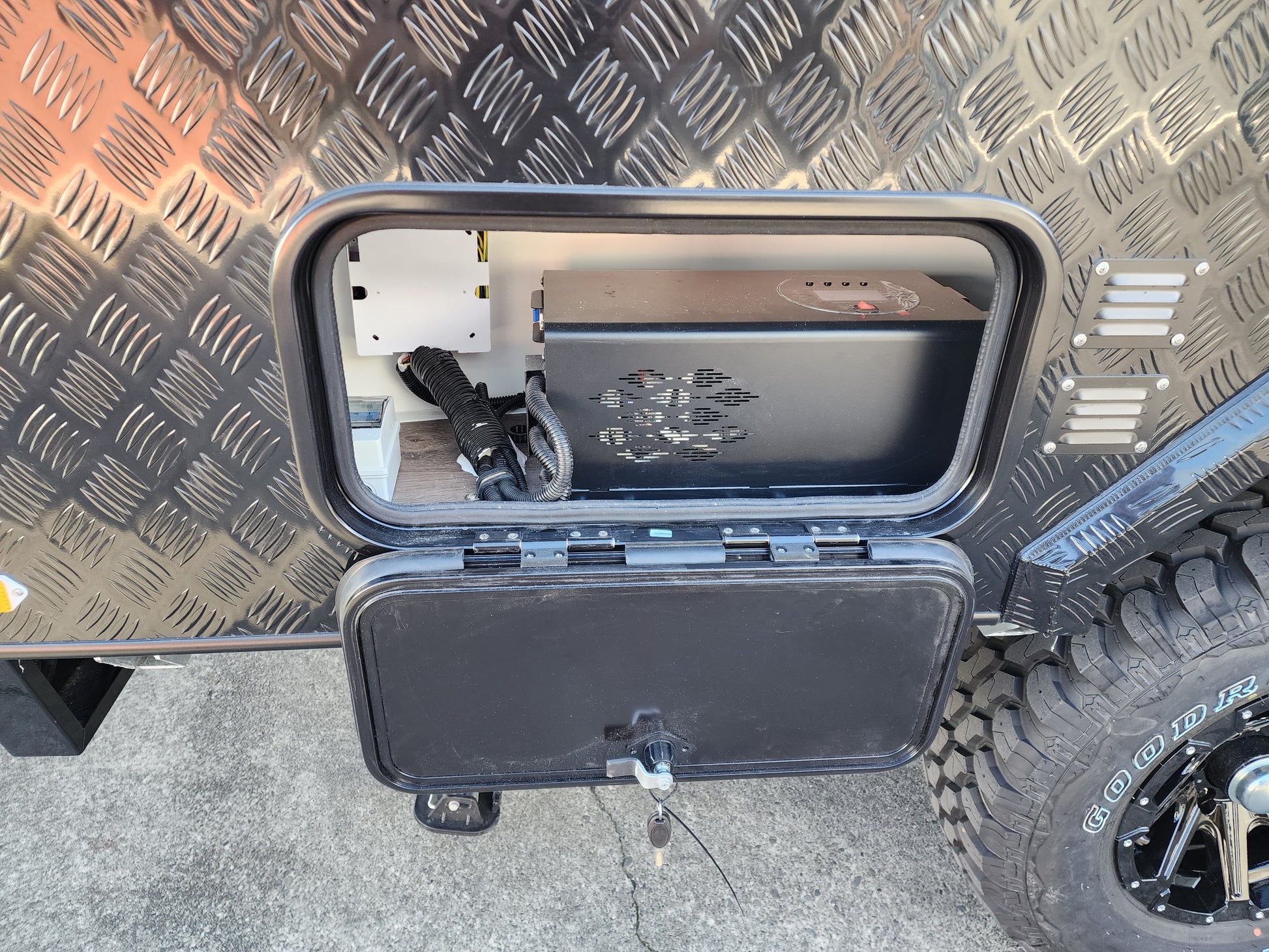

• Inverter: 12V to 240V, 2000W sine wave inverter with charging function

• Solar Panels: 2 × 100W (12V each)

Additional Features

• Awning: 3000mm (L) × 2000mm (W), electric

• Air Heater: 4–5kW

• Fire Extinguisher: 1kg

• Front Storage Box: Included
