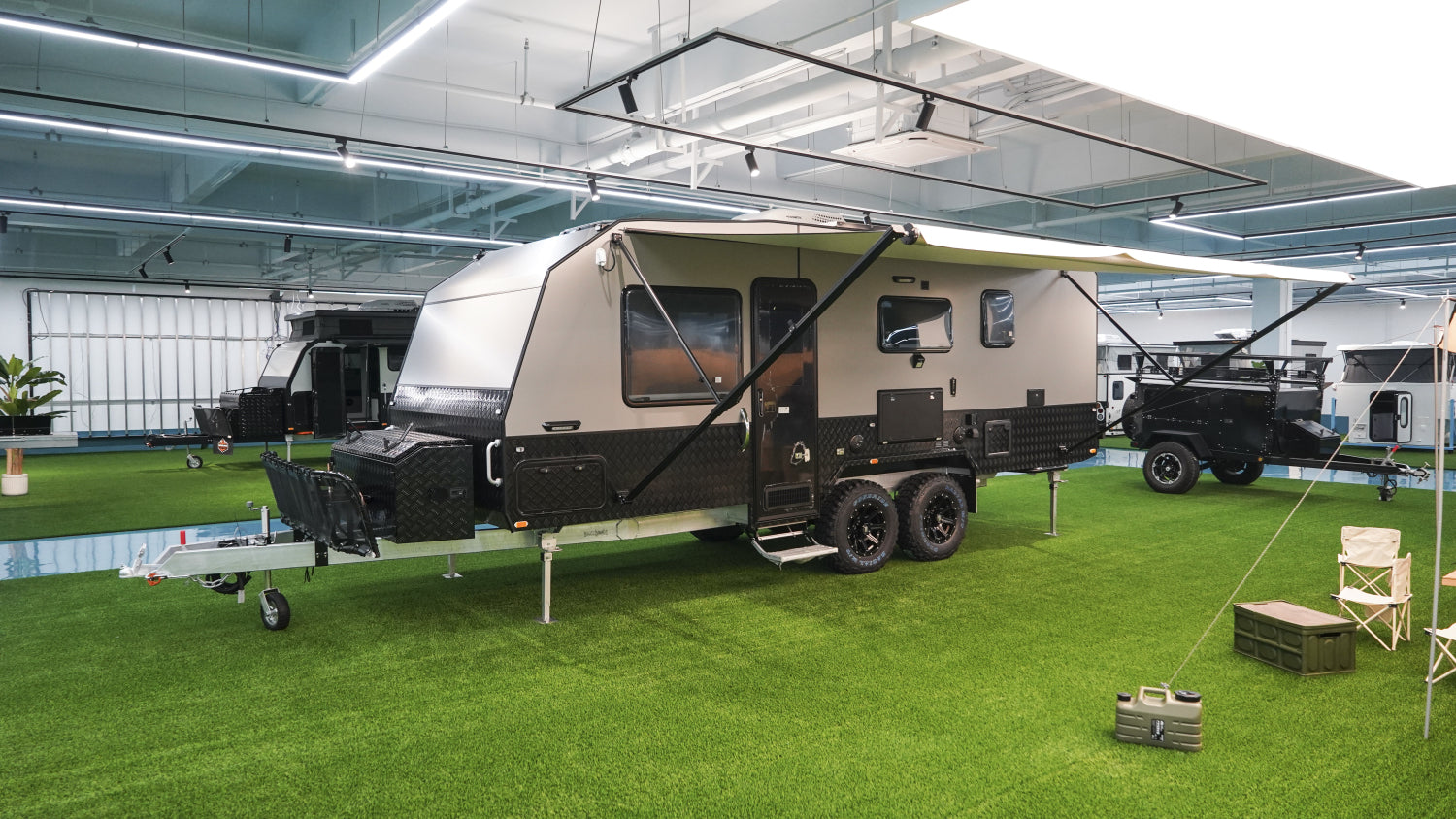

Explorer-21B

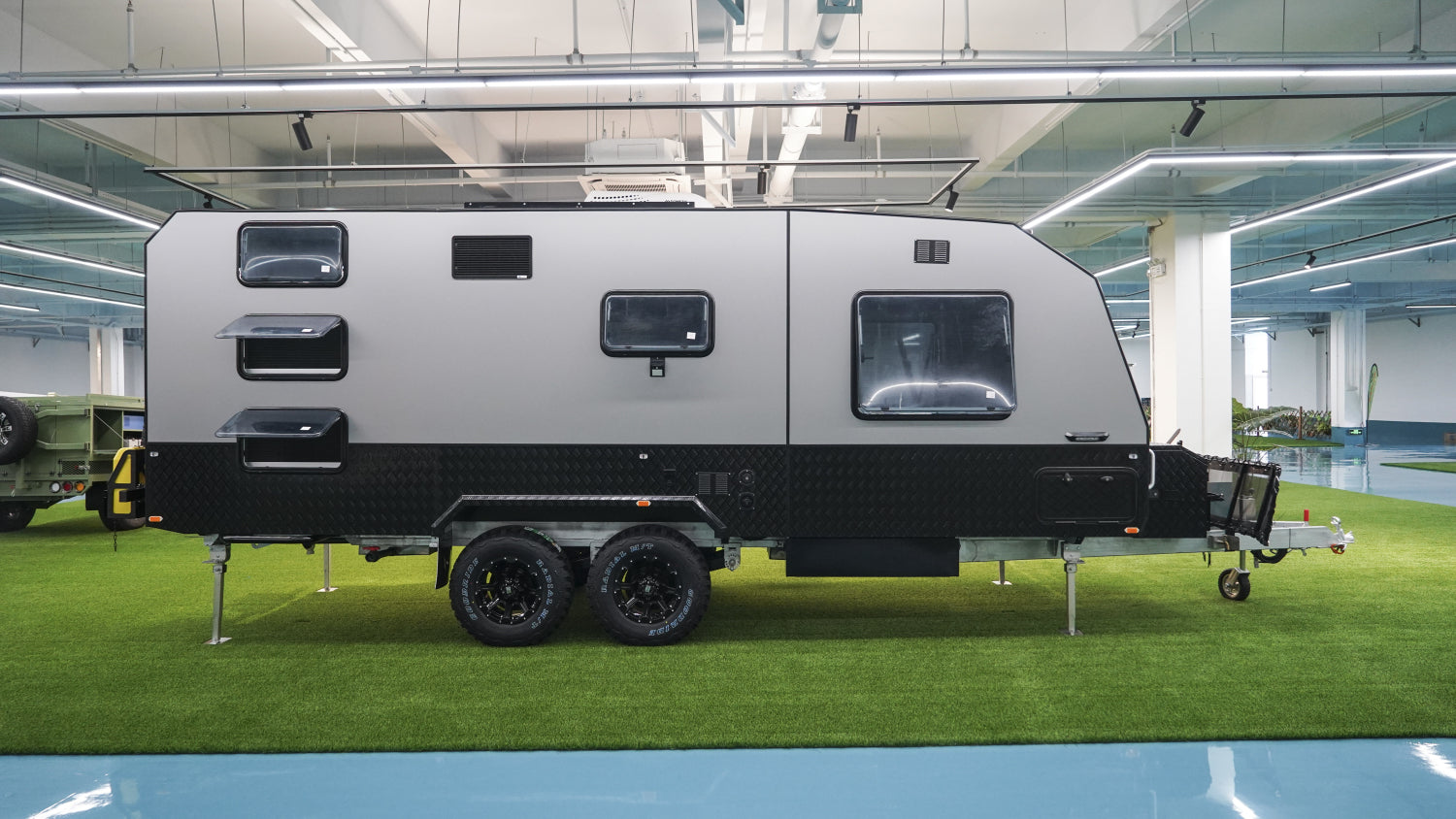

Basic Information
|
Body size |
6425.5(L)*2210(W)*2095(H)/ mm |
|
Interior dimensions |
6355(L)*2134(W)*1960(H)/ mm |
|
Overall size |
8945(L)*2300(W)*3138(H)/ mm |
|
ATM |
3400 KG |
|
GTM |
3220 KG |
|
Tare Mass |
2780KG |
|
Chassis material |
iron pipe + hot dip galvanized/galvanized pipe |
|
Body structure |
Fiberglass + aluminum frame + XPS + Aluminum Composite Panel |
|
Floor structure |
plastic honeycomb board + PVC floor adhesive |
|
Distance from the ground |
568mm (Drawbar) |
|

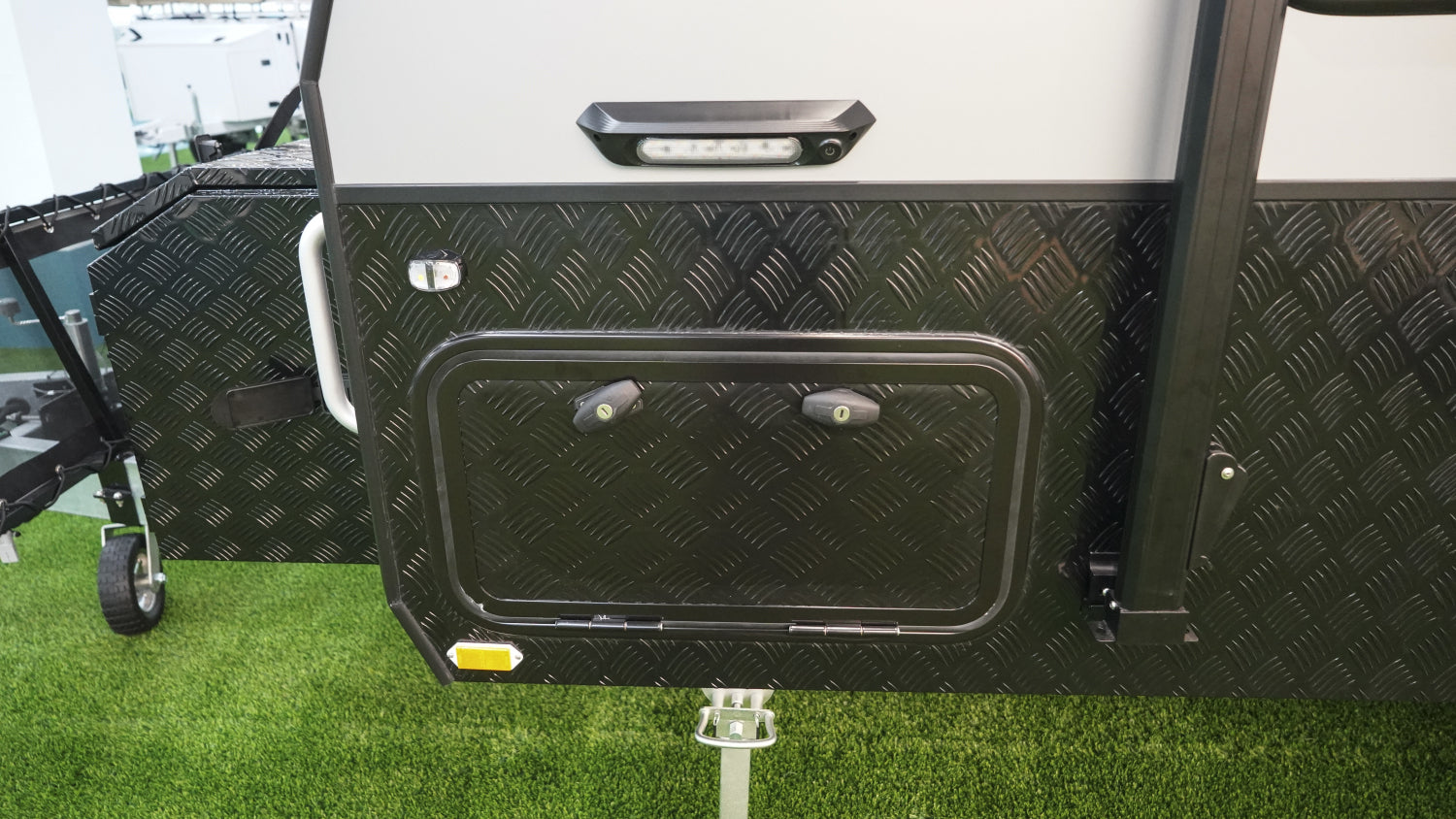

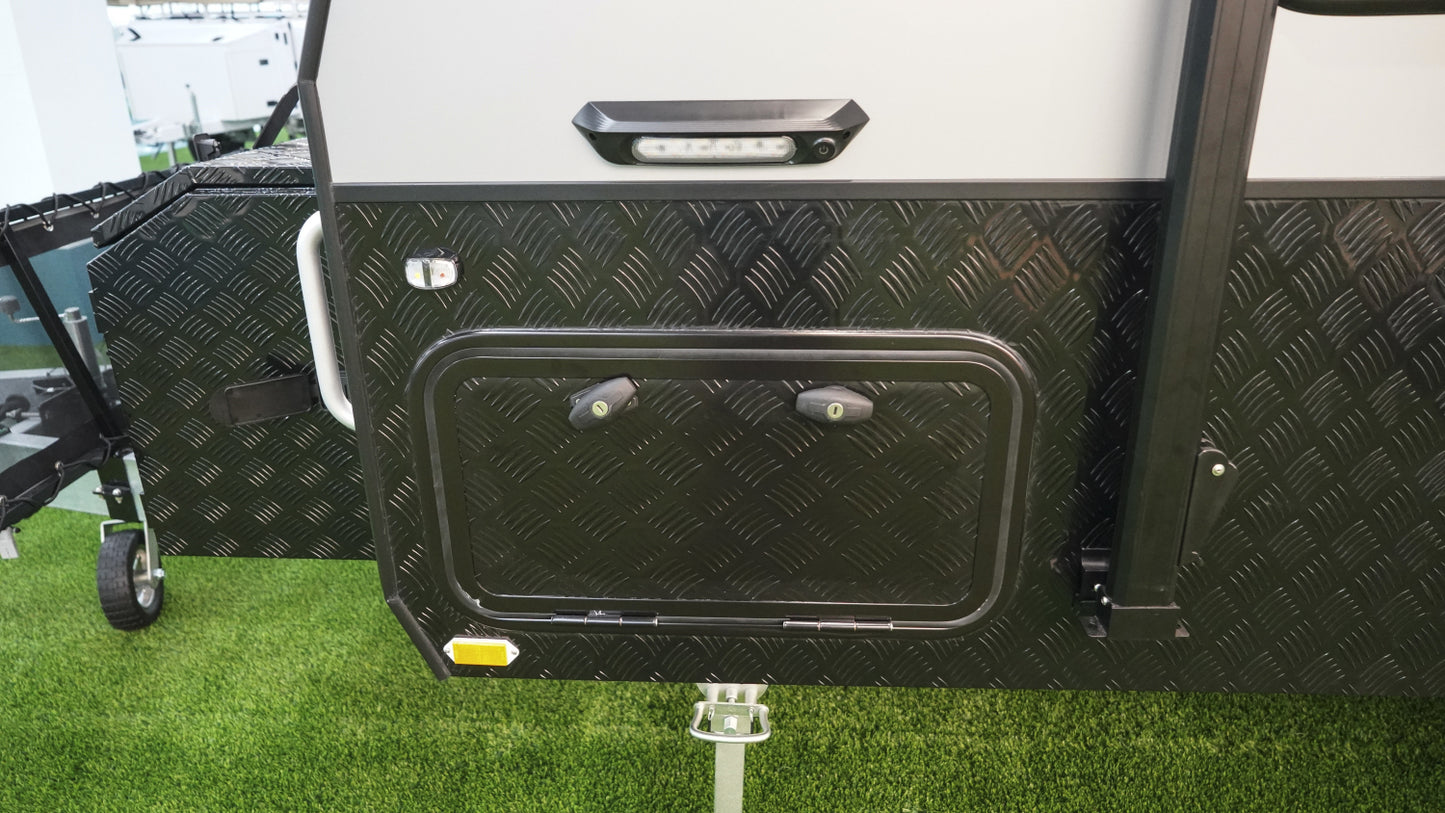

Height of aluminum diamond plate |
600mm |
|
Sleep |
|
|
Sleep capacity |
5 people |
|

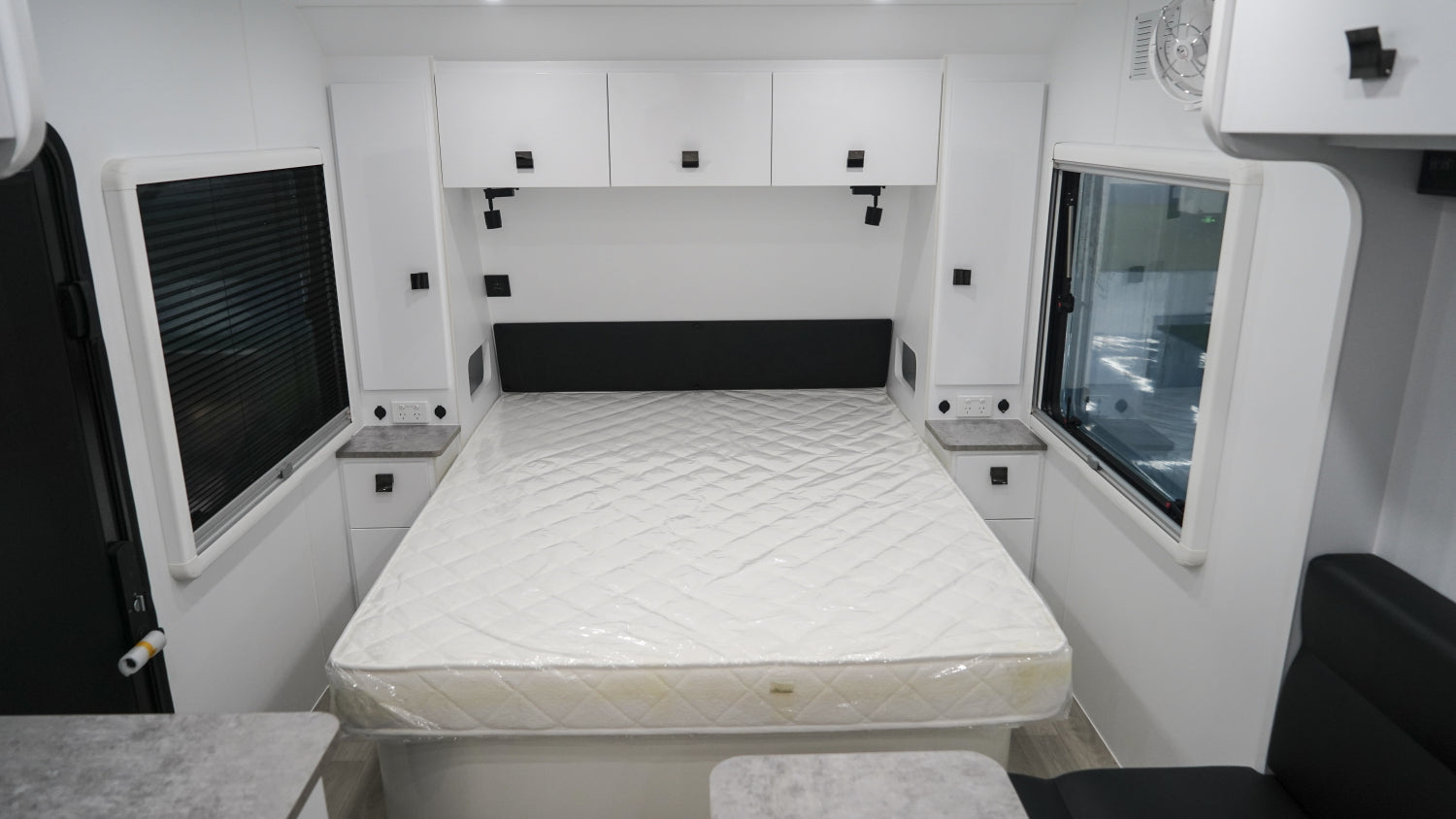

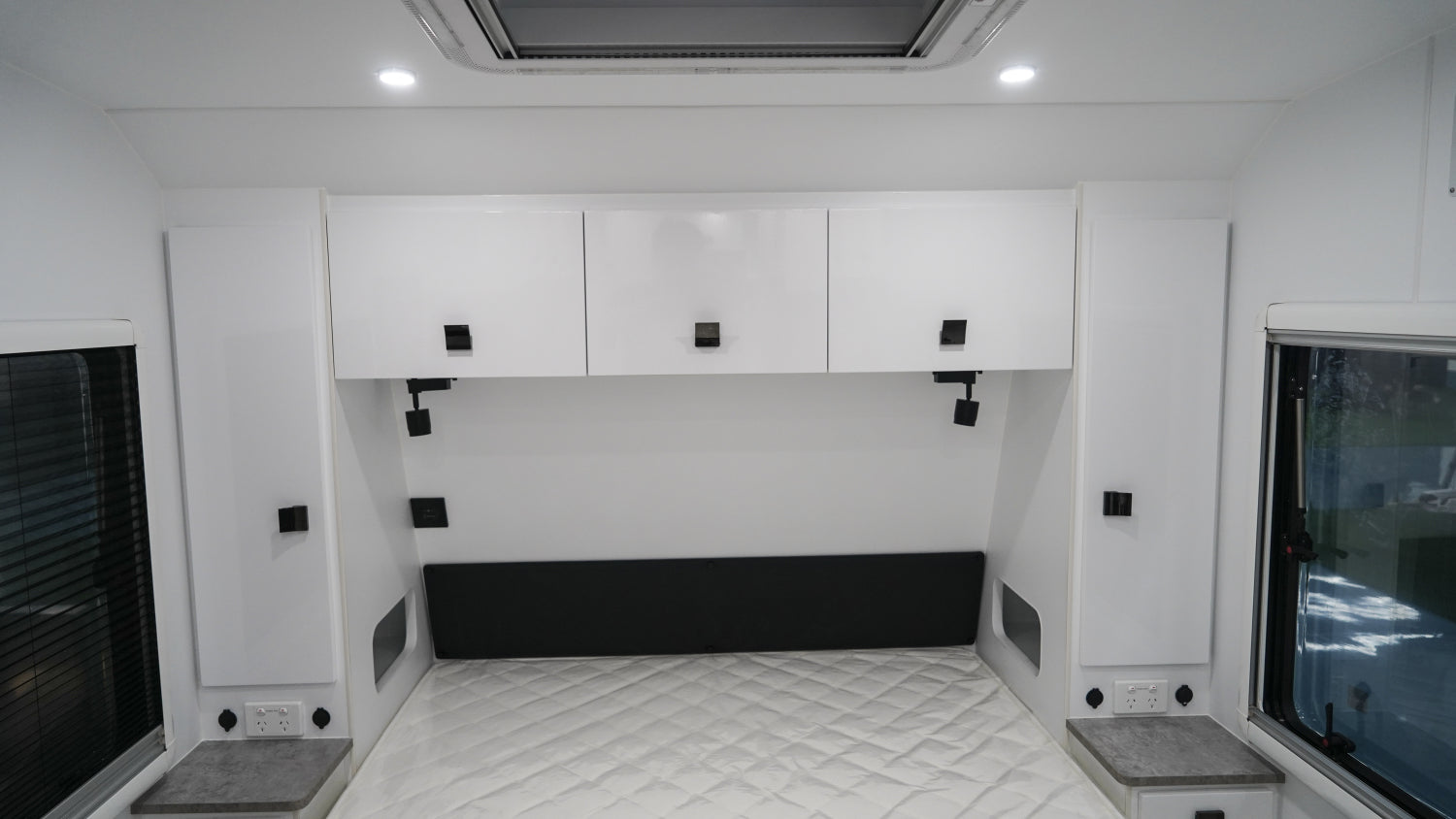

Double bed size |
2000*1500 mm |
|

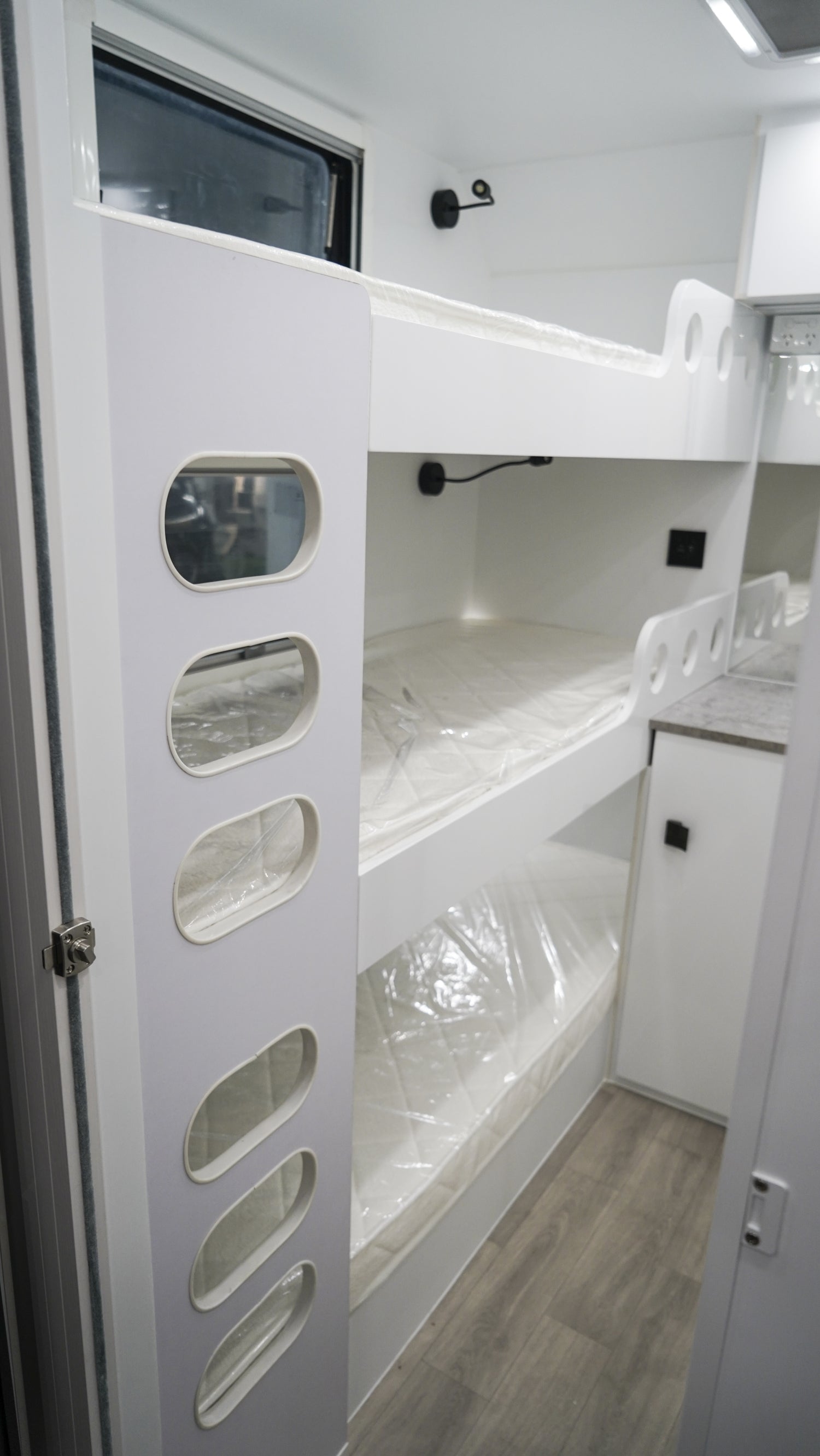

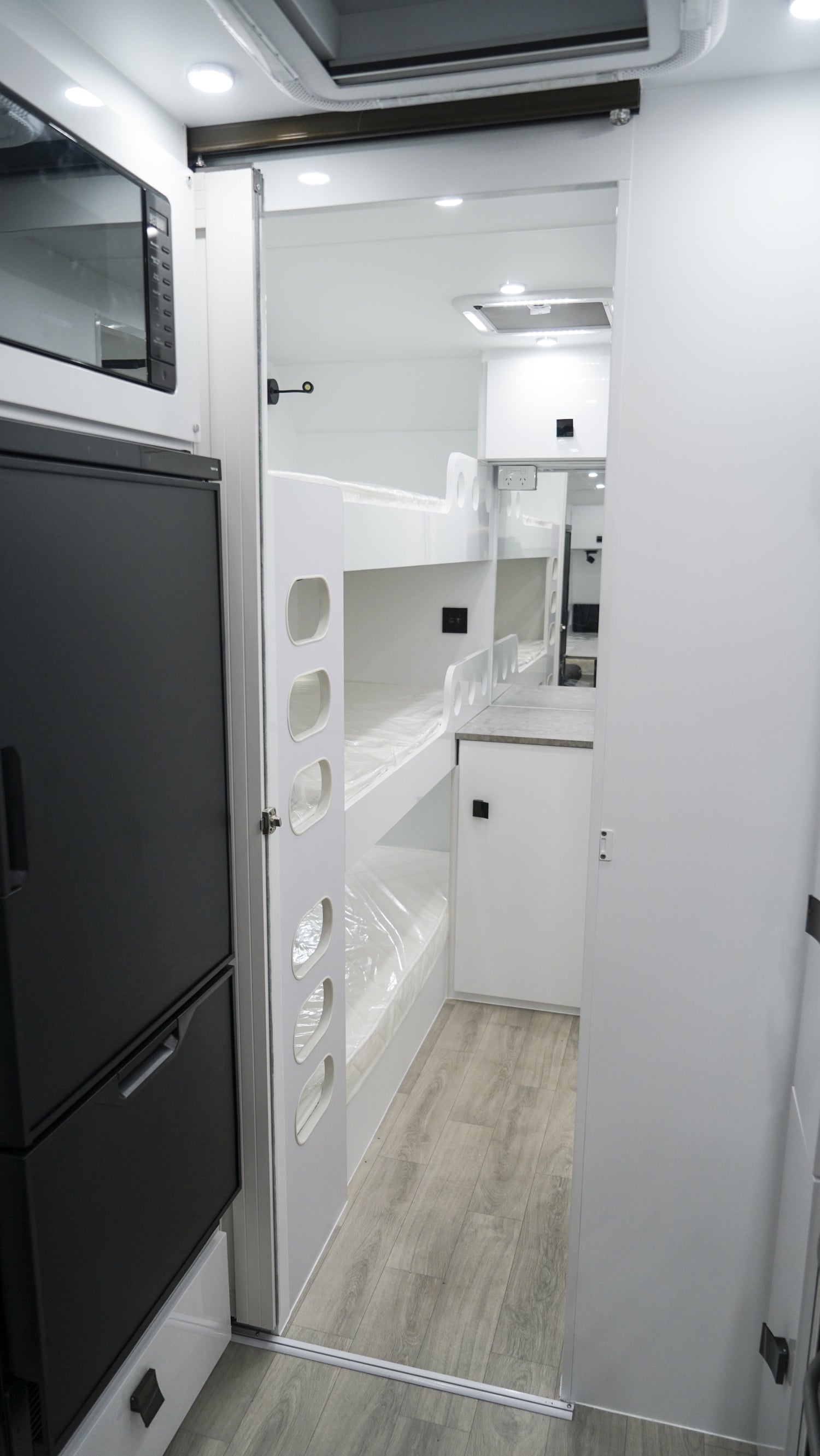

Size of triple bunk bed |
1858*682 mm |
|
Size of sofa bed |
1830*900 mm |
|
Mattress material |
sponge mattress |
|
Bedside cushion |
|
|

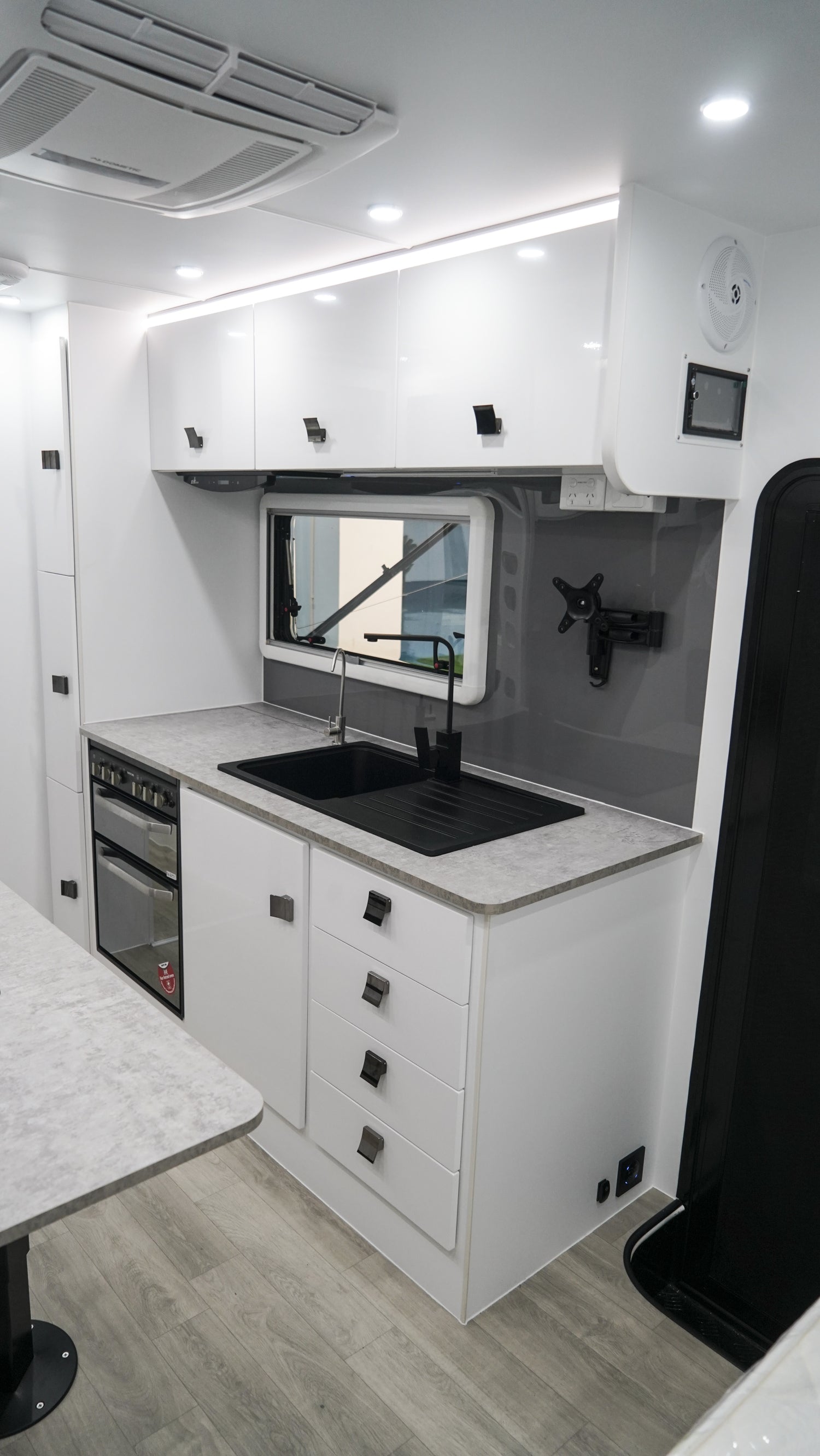

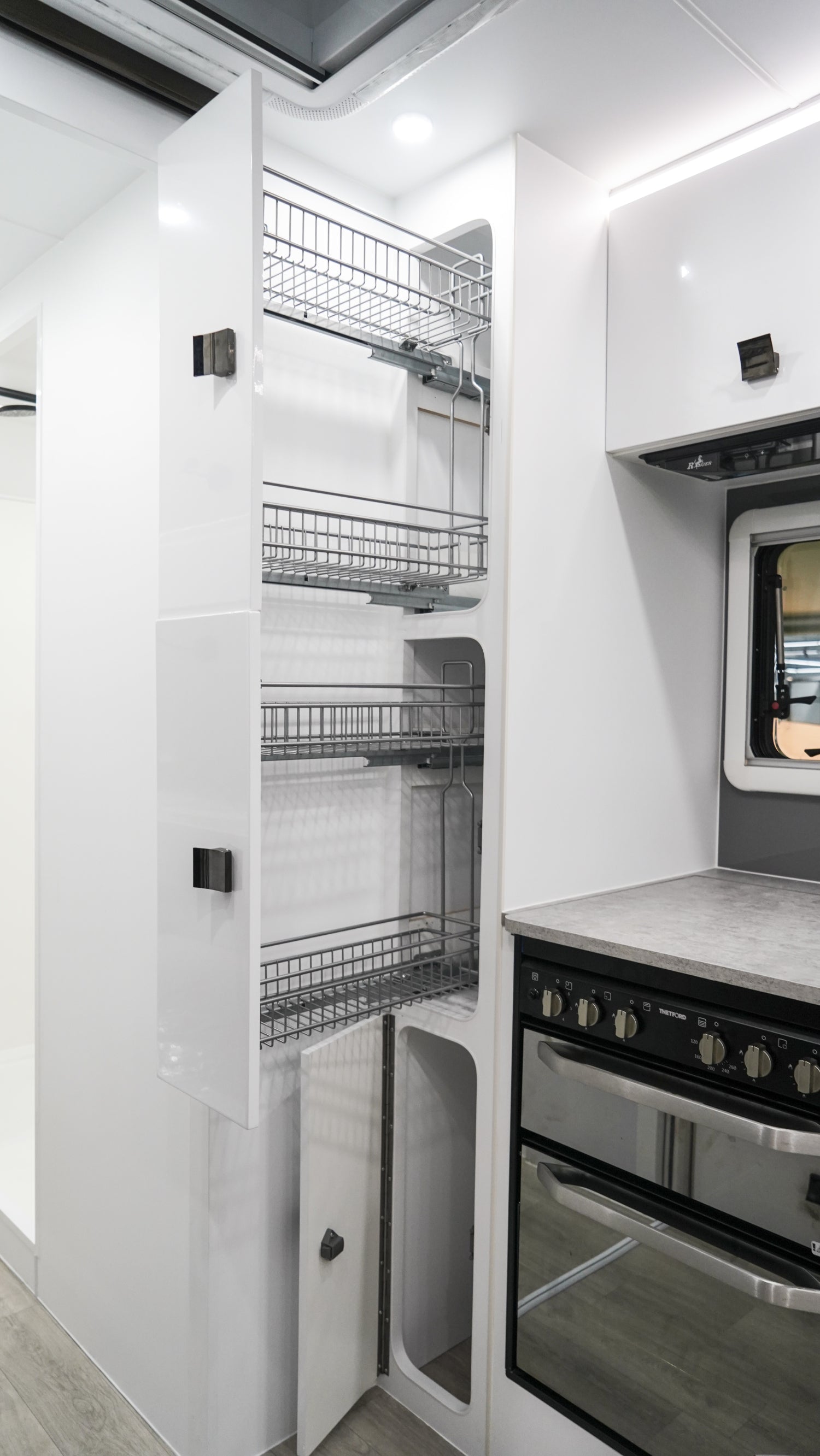

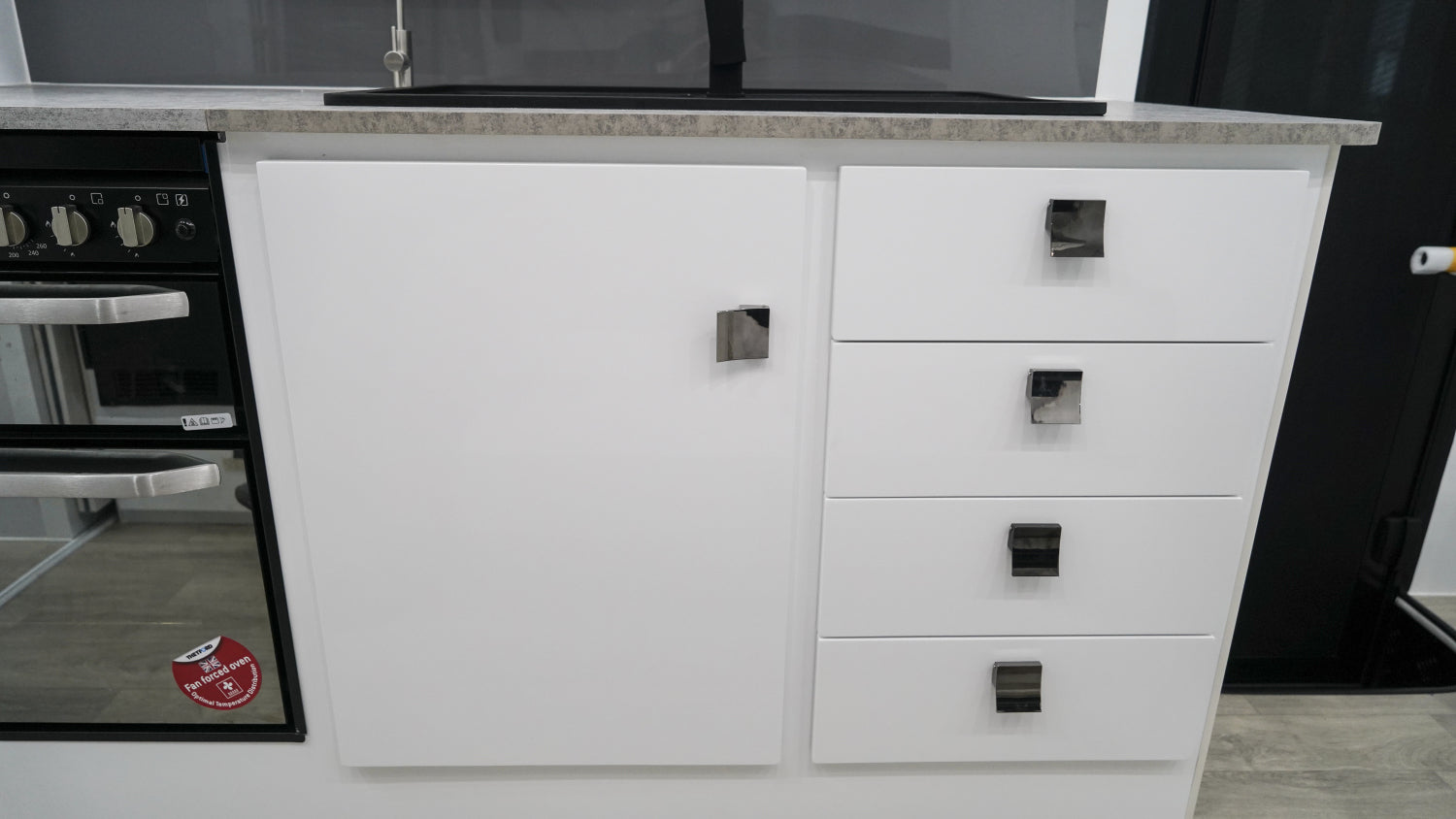

Kitchen |
|
|
Kitchen area |
1830*900mm |
|

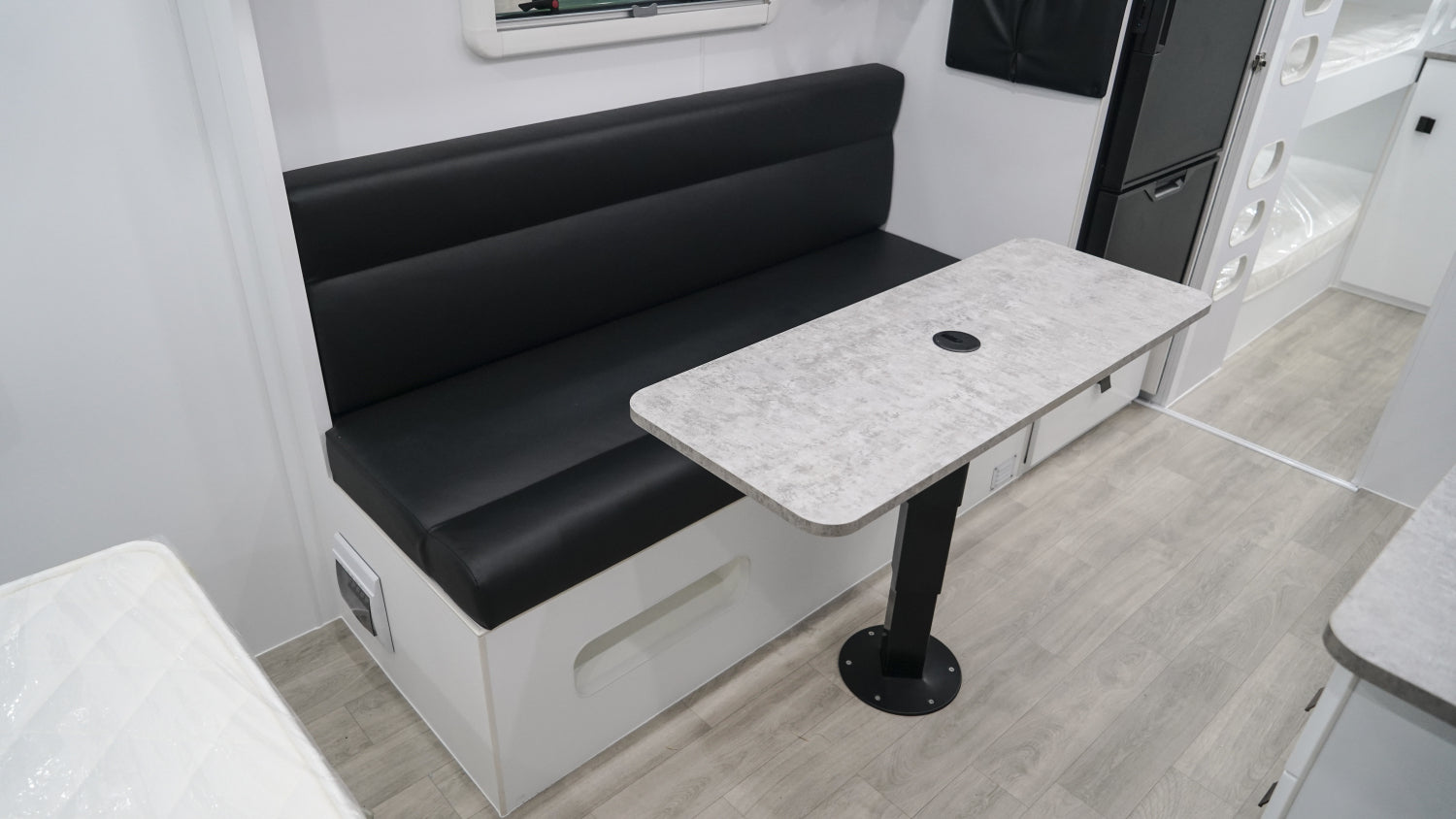

Table |
Pneumatic lifting table |
|
Seats on sofa |
4 |
|

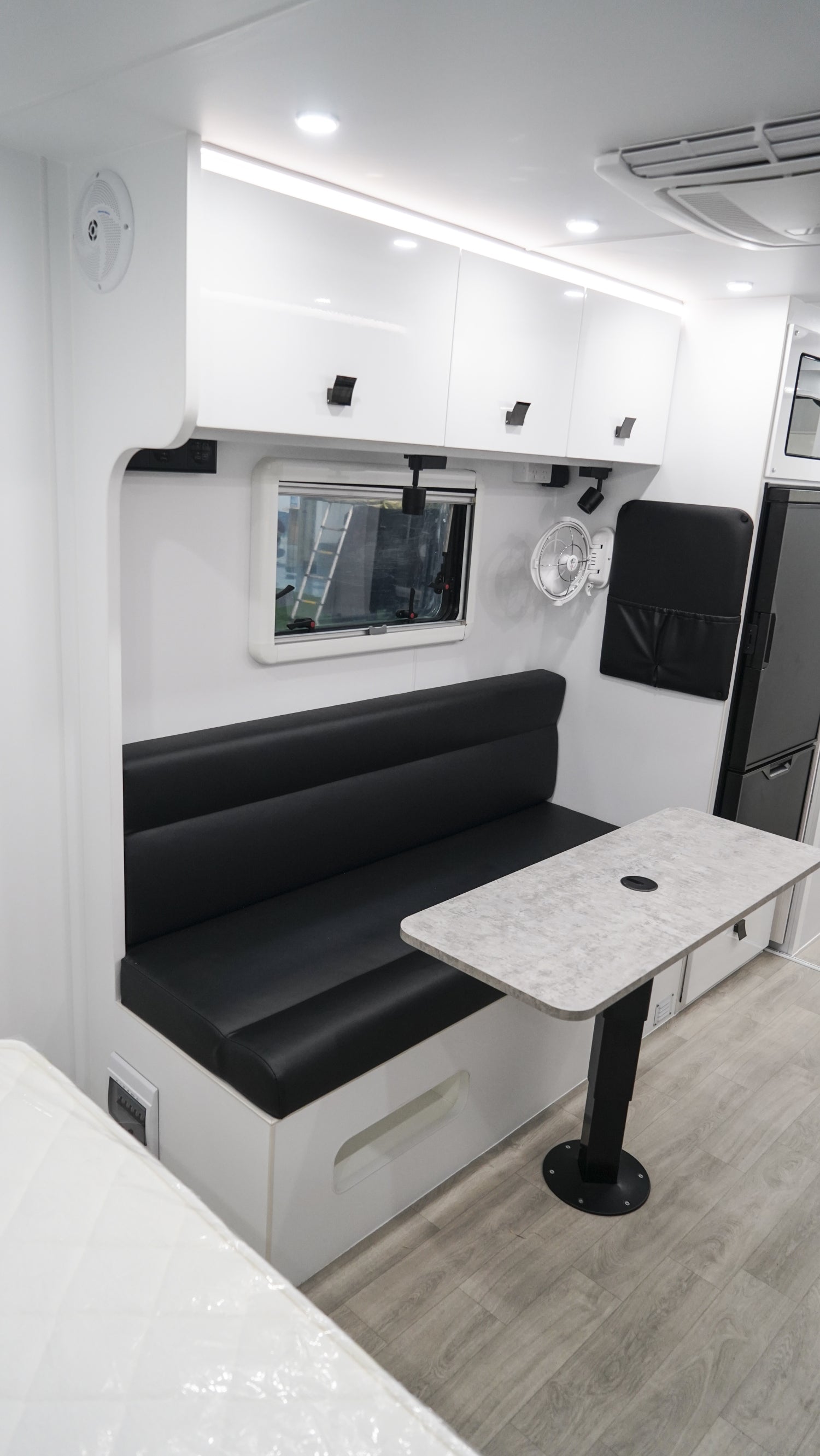

Sofa |
Black artificial leather |
|
Tow System |
|
|
Hitch |
Australian standard off-road hitch; 3500KG |
|
Safety chains |
2 |
|
Axle and Suspension |
|
|
Independent suspension system |
|
|
Twin Axle |
|
|
Axle |
Ø 60 round steel |
|
Damping |
Spring + damping rod, with a total load of 3500KG |
|
Braking |
12-inch electric brake with manual brake |
|
Wheel hub |
16-inch aluminum alloy |
|
Tyre |
265/75R16 |
|
Rear spare tire |
265/75R16 |
|
Water System |
|
|
Fresh water tank |
2*95L |
|
Grey water tank |
125L |
|
Water heater |
14L Truma water heater (Electricity and gas integration) |
|
Water pump |
12V water pump with flow rate of 11.3LPM |
|
Water inlet |
gravity inlet and pressure reducing water inlet |
|
Dry and wet partitioned bathroom |
|
|

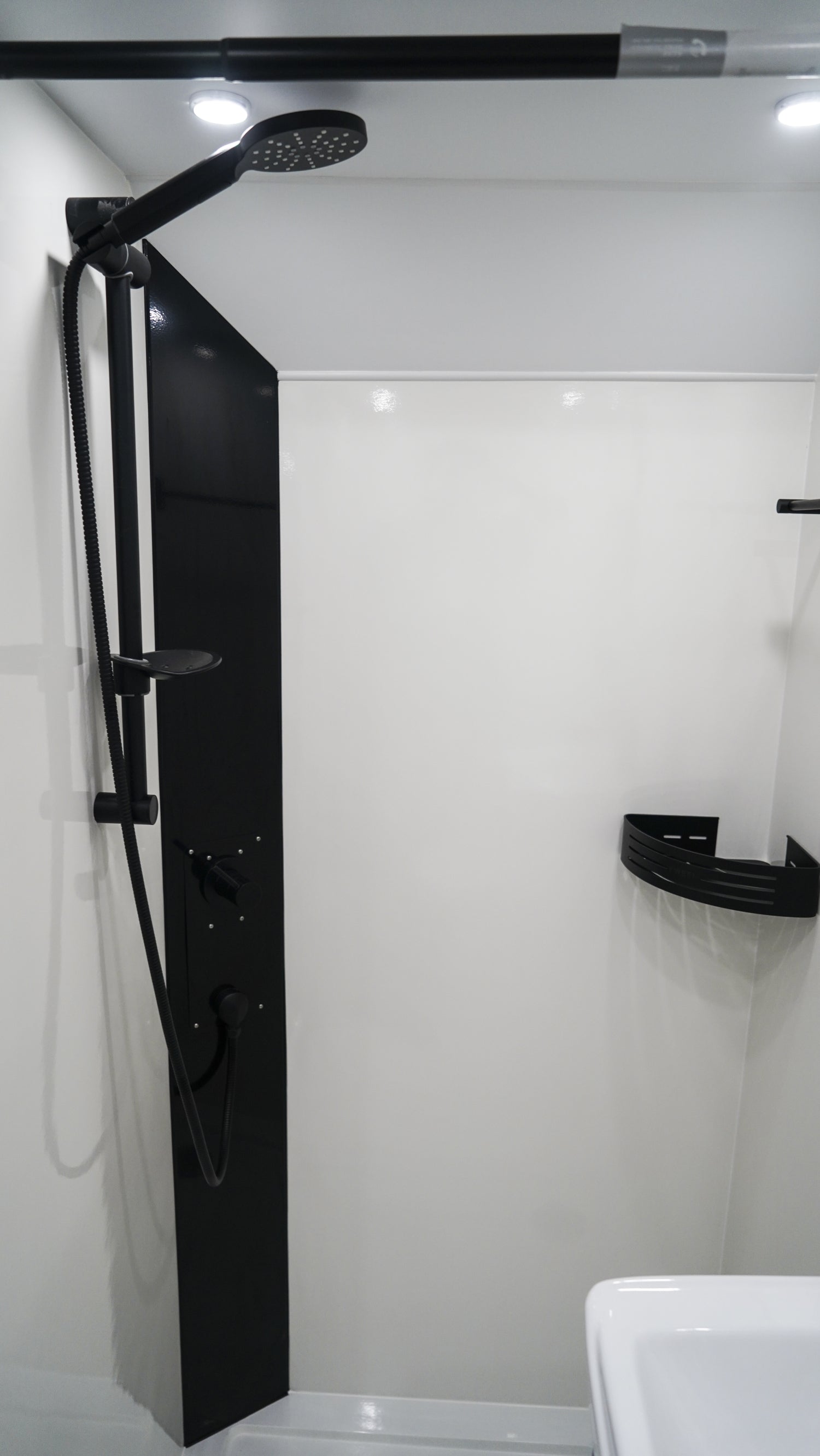

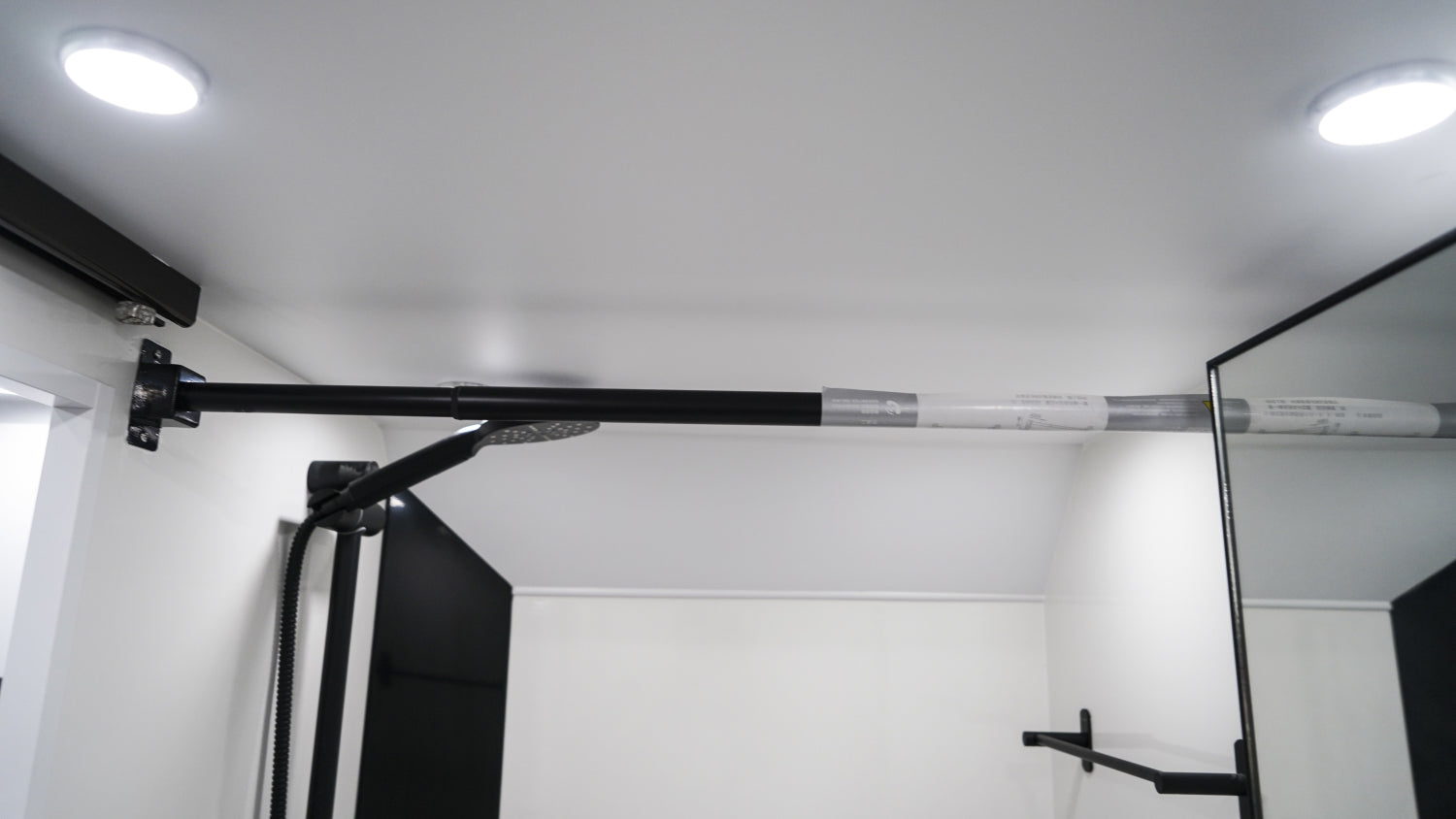

Bathroom shower |
adjustable height |
|
Wash basin faucet |
hot and cold faucets |
|
Sewage valve |
|
|
External shower box (hot and cold water) |
|
|
External single cooling brass faucet |
|
|

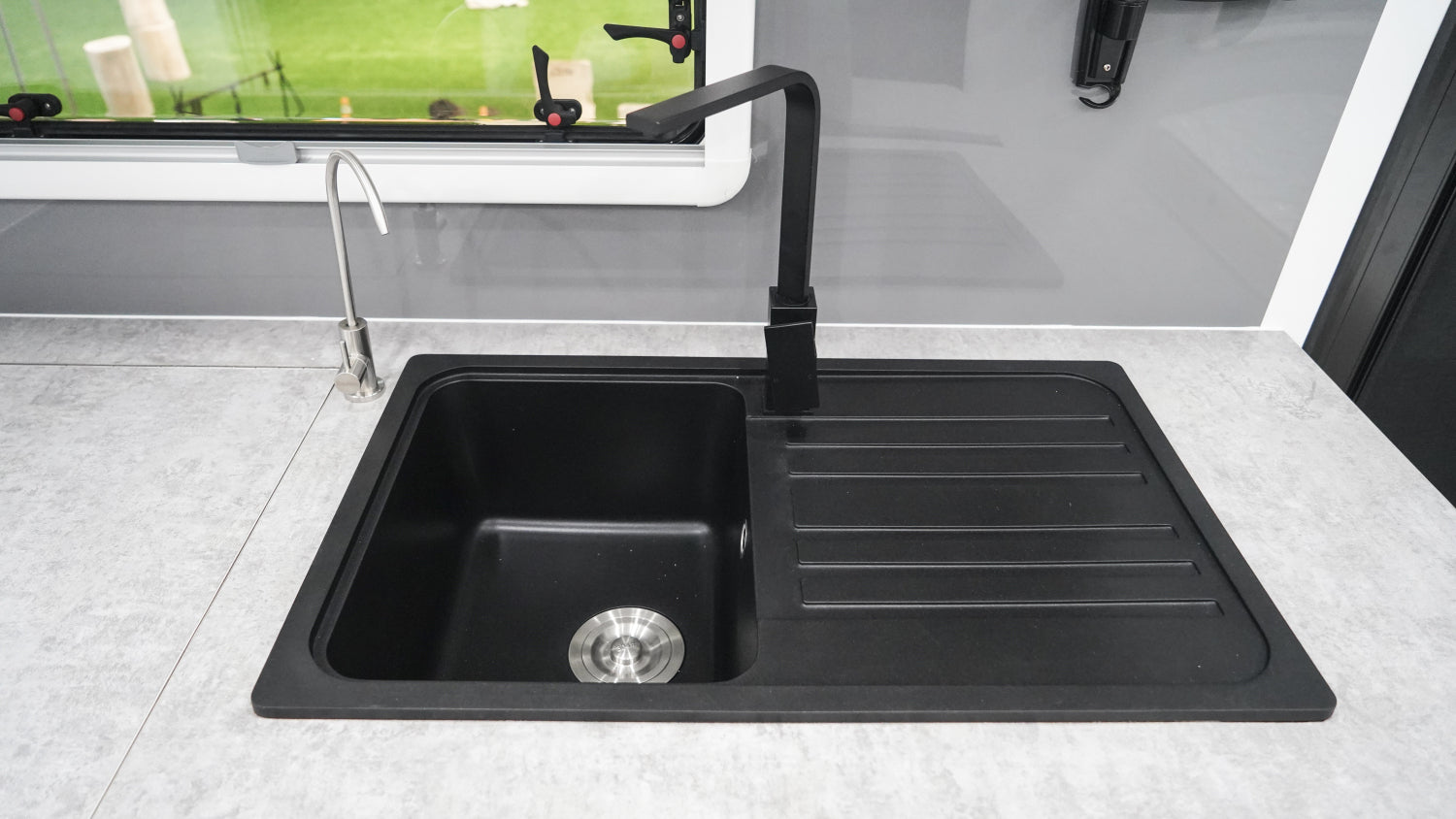

Kitchen sink (with cutting board) |
|
|
Gas System |
|
|
9KG gas bottle rack |
2 |
|
All copper gas pipe system |
|
|

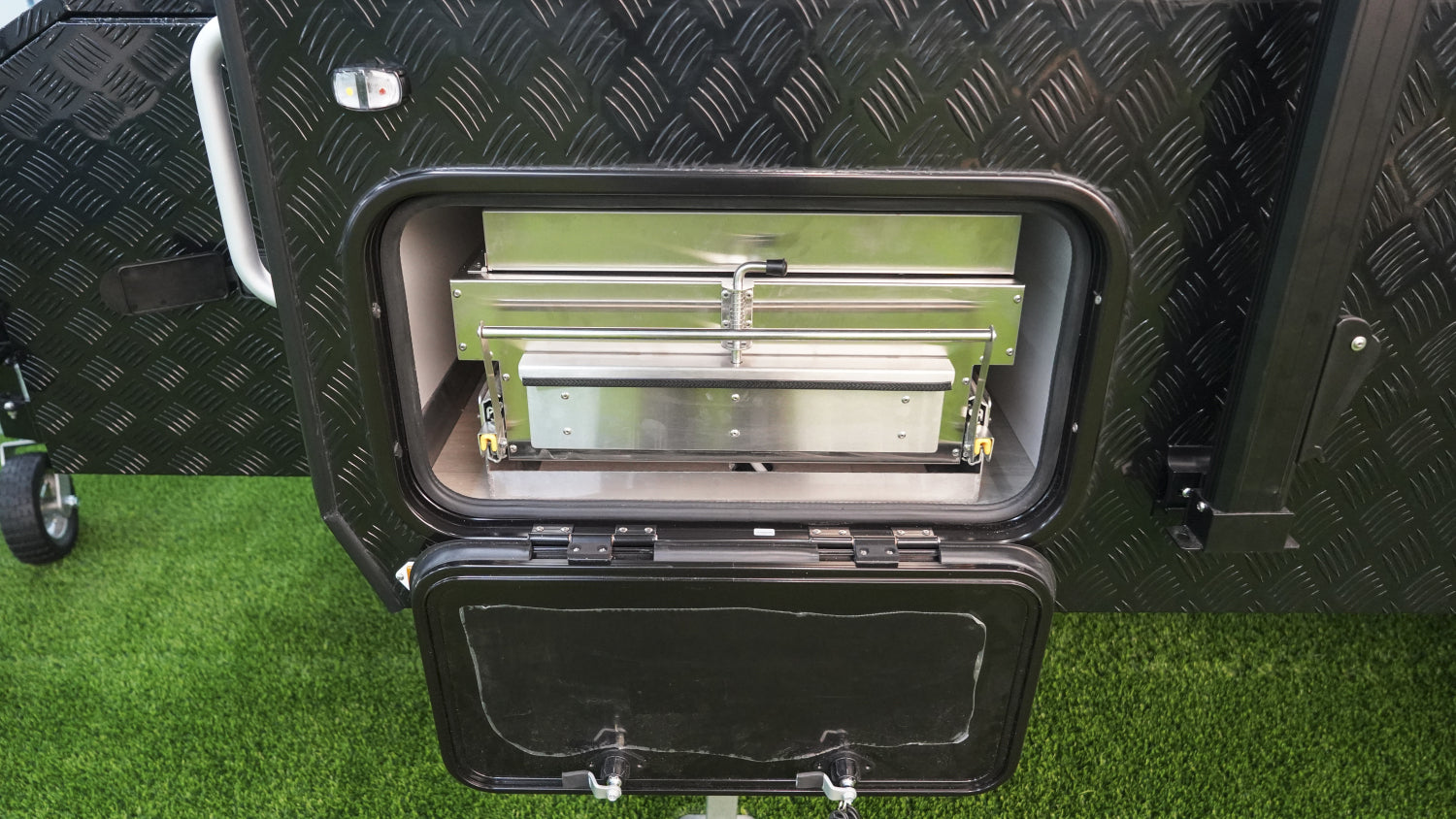

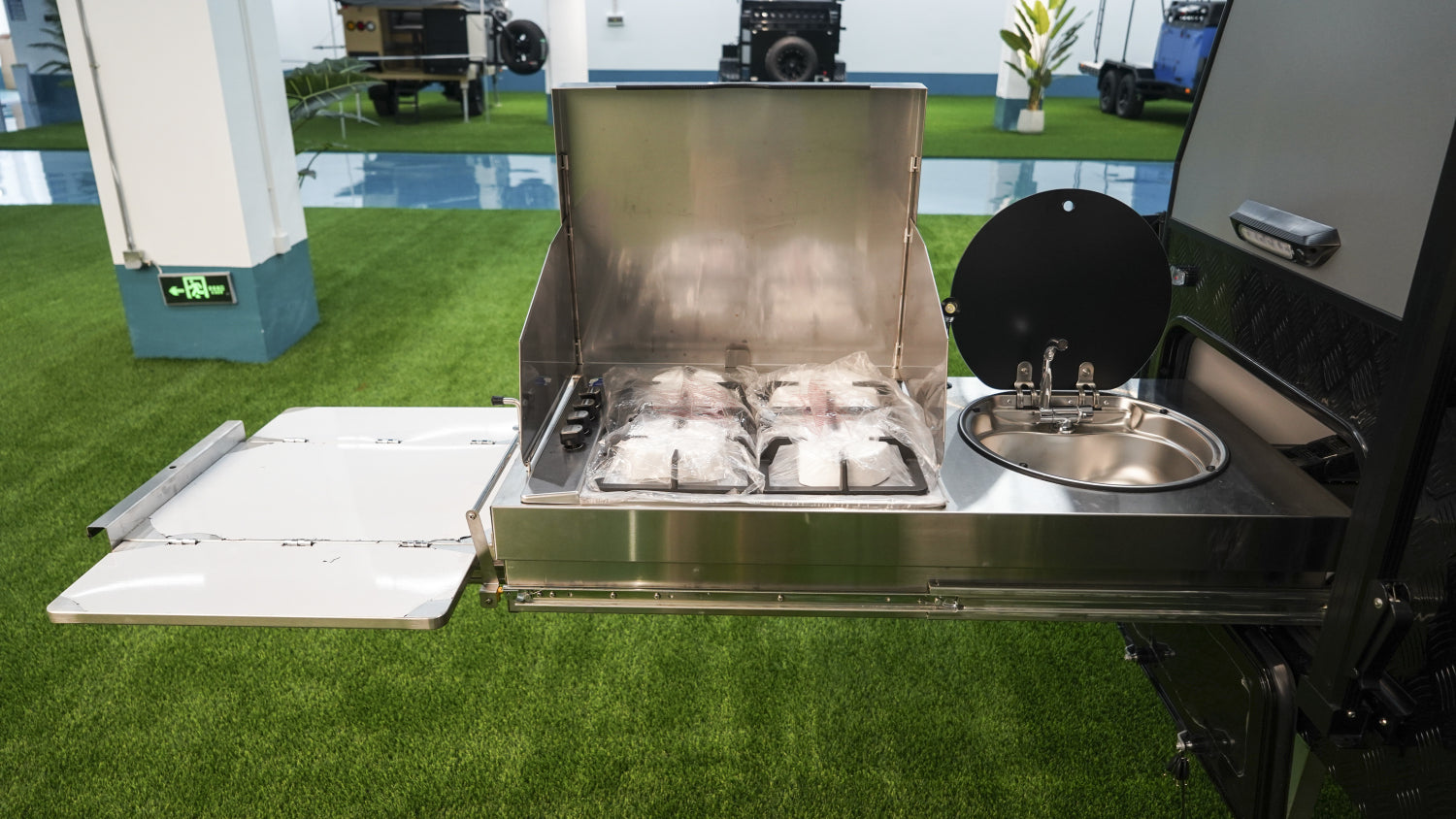

Slide out kitchen |
|
|
Electric System |
|
|
Front car connector |
7-core flat connector |
|
50A Anderson plug |
|
|
Emergency braking system |
|
|
Taillight set |
|
|
License plate lights |
2 |
|
Side wall lights |
6 |
|
Front position lights |
2 |
|
Reflective sheet |
|
|
Battery isolators |
|
|
Battery |
maintenance -free battery, 12V100AH*3 |
|
Sine wave inverter |
12V to 240V, 3000W, with charging function |
|
Solar energy controller |
20A and 2x Solar panels |
|
Electricity display |
electricity meter (digital display) |
|
Water level display |
freshwater level table and grey level table |
|
External mains socket |
220V -240V, 15A |
|
External charging cable |
10m |
|
240V circuit breaker |
|
|
12V circuit breaker |
|
|

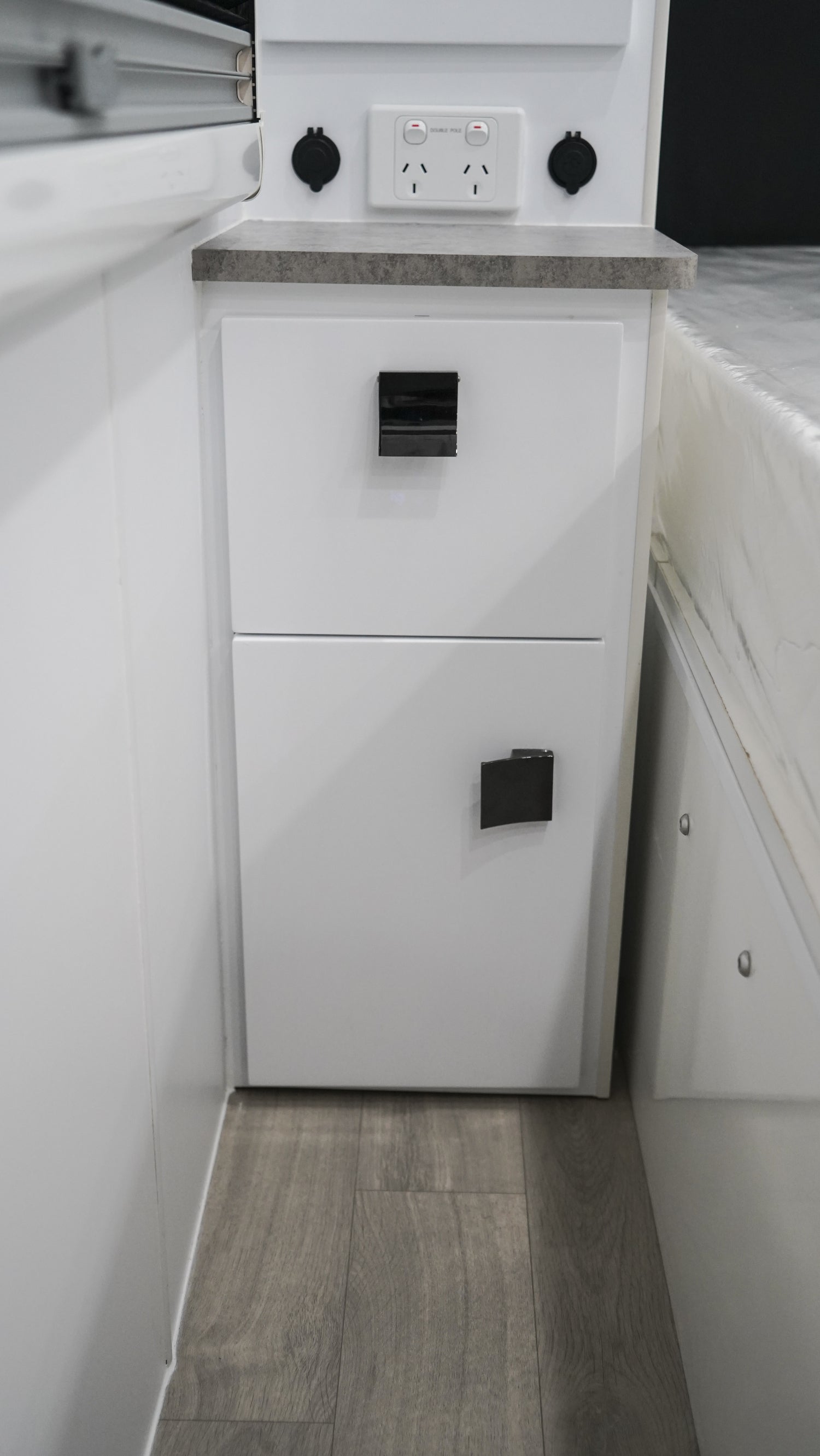

Available power outlets |
110 ~ 240 V outlets *5, 5*USB sockets, |
|
5*cigarette lighter |
|
|
External electrical outlet |
1*220V outlet (Australian standard), 2*USB |
|
outlet+1*cigarette lighter |
|
|
Lighting |
LED |
|
Electric Facilities |
|
|

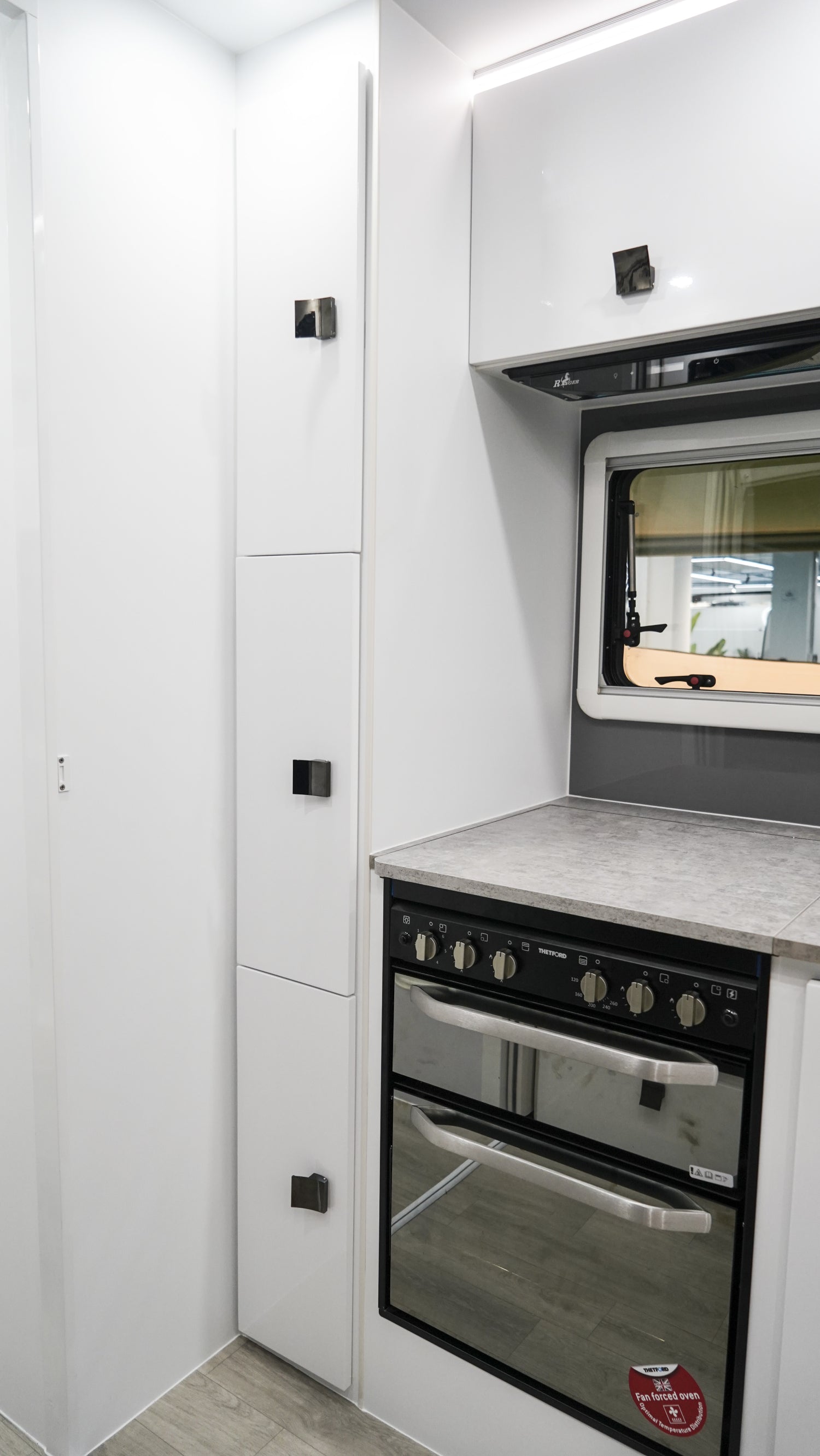

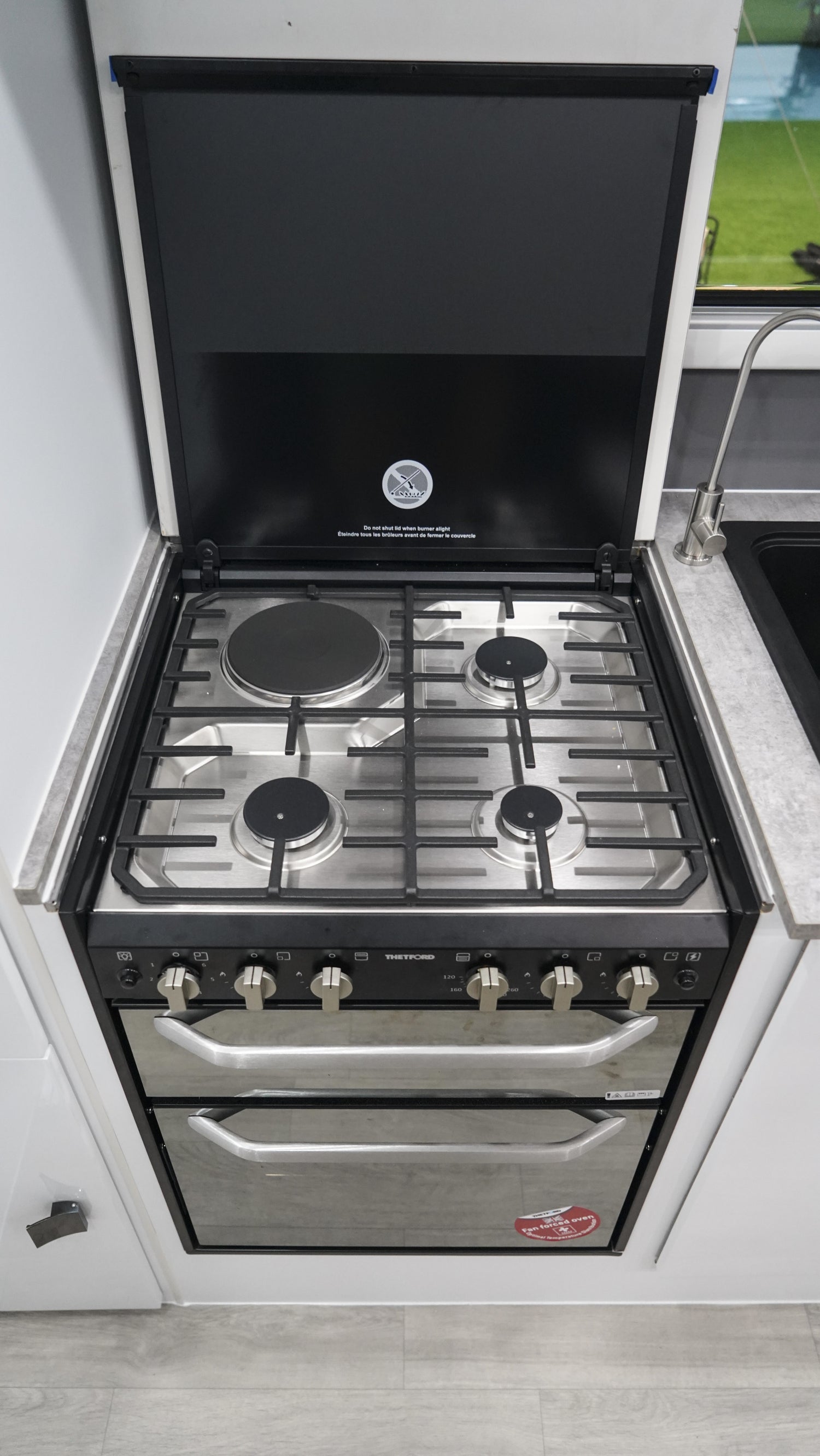

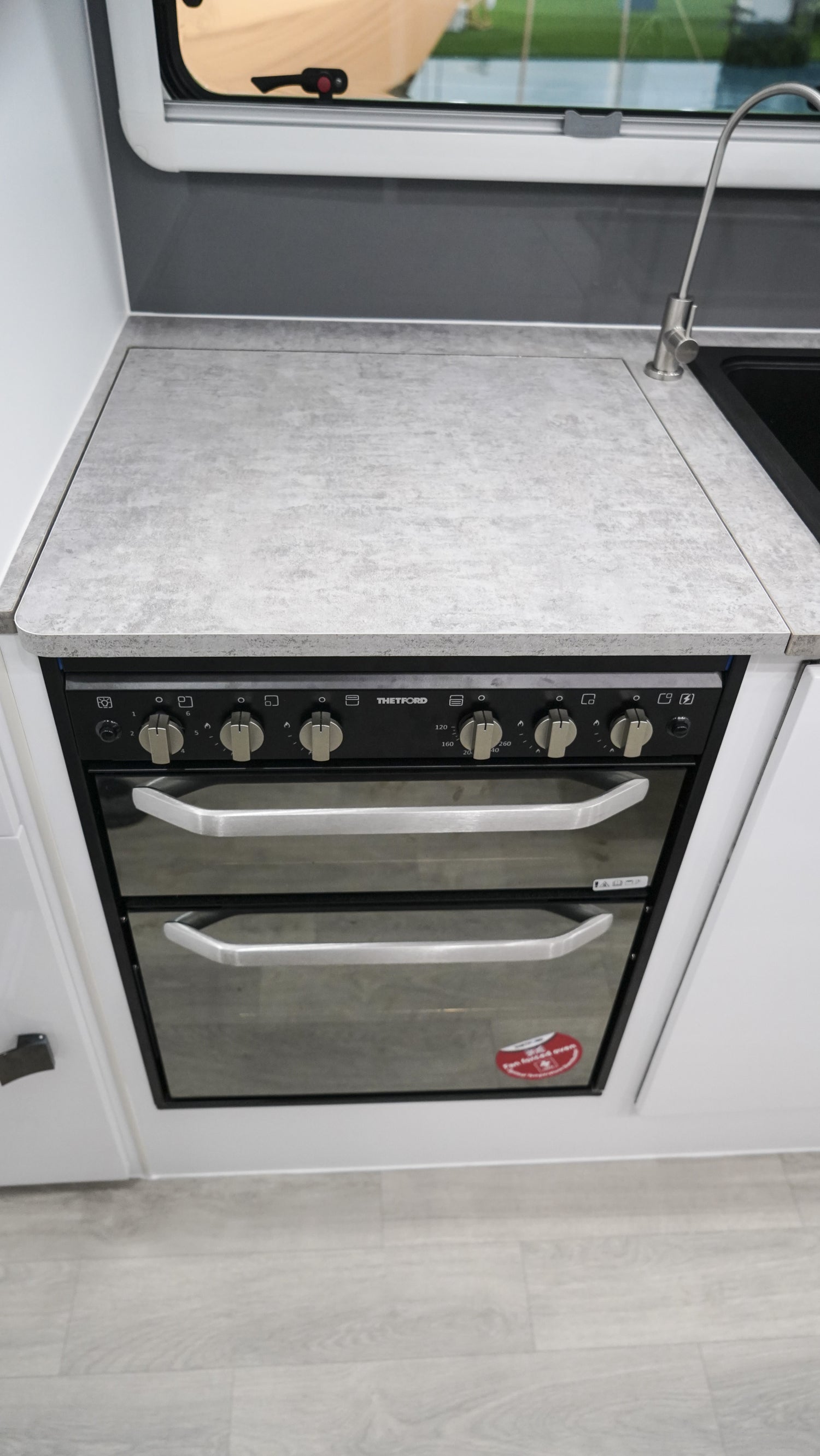

Thetford 3 gas 1 electric stove with oven and grill |
(All -in-one combination unit with stove, grill and oven) |
|

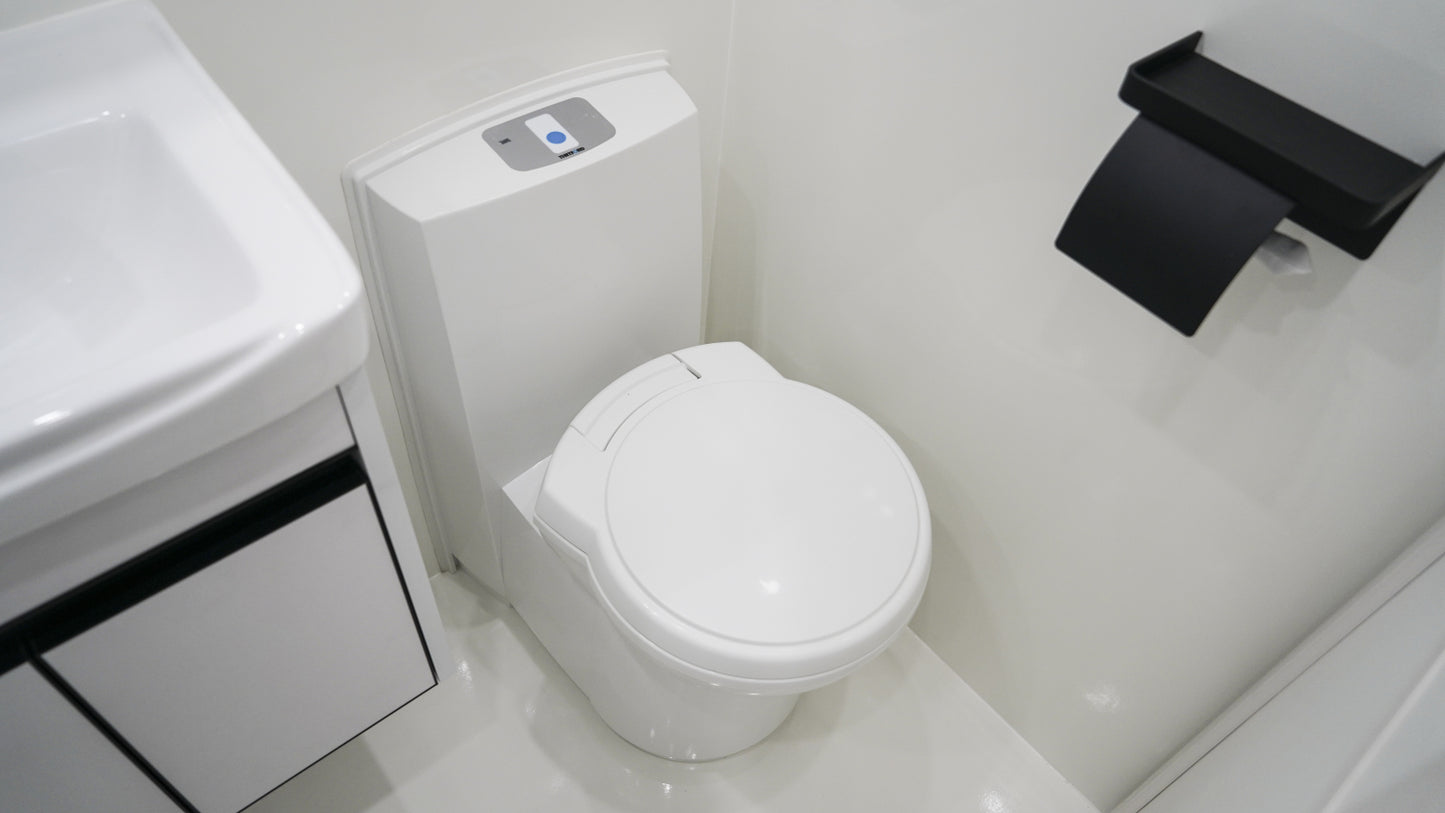

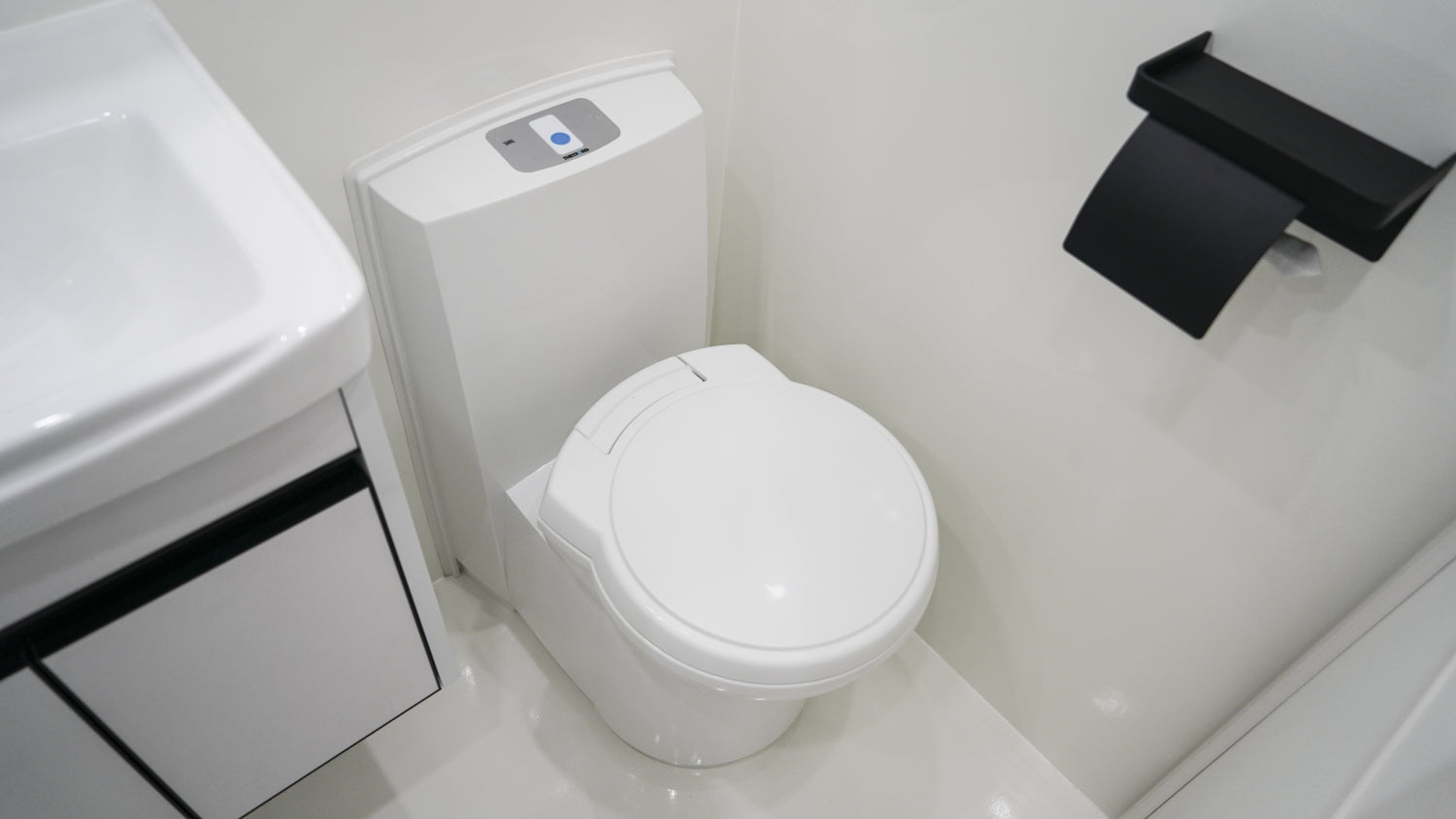

Thetford toilet |
|
|

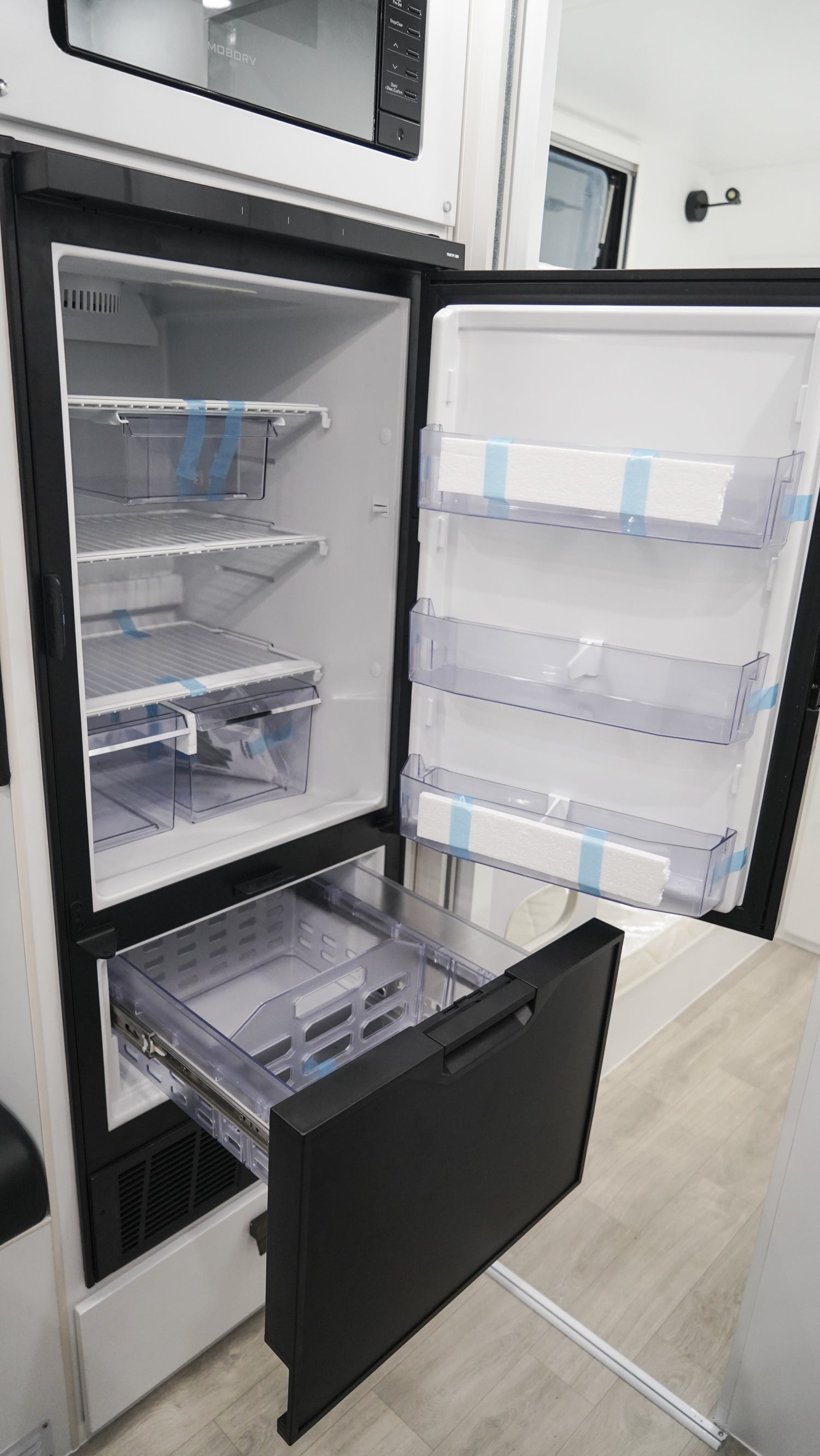

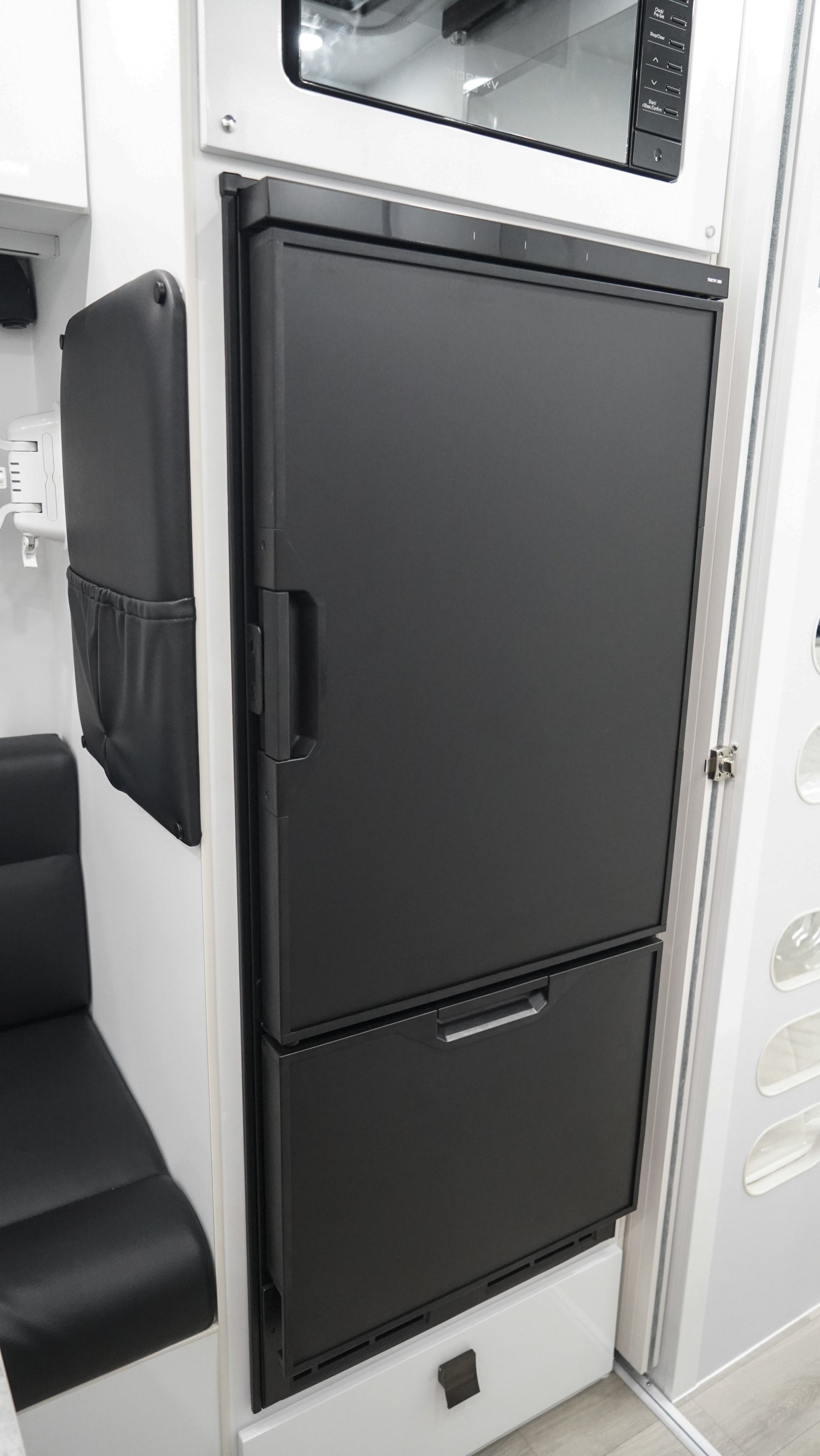

Thetford 184L refrigerator |
|
|
Dometic Air Conditioner |
|
|
Diesel Air Heater |
|
|
Micro -wave oven |
|
|
Kitchen extractor fan |
|
|
MP5 player |
|
|
Interior Speaker |
2 |
|
Exterior waterproof speaker |
2 |
|
Digital TV antenna |
|
|
FM radio antenna |
|
|
Bathroom ventilator |
2 |
|
700*500 skylight with lights |
1 |
|
450*400 skylight with lights |
1 |
|
Windows |
1000x800 *2, 900x450 *1, 700x400 *3 and 450*500 *1 |
|
Door handle with led light |
|
|
External folding table |
1 |
|
CO alarm, Smoke detector, Gas alarm |
|
|

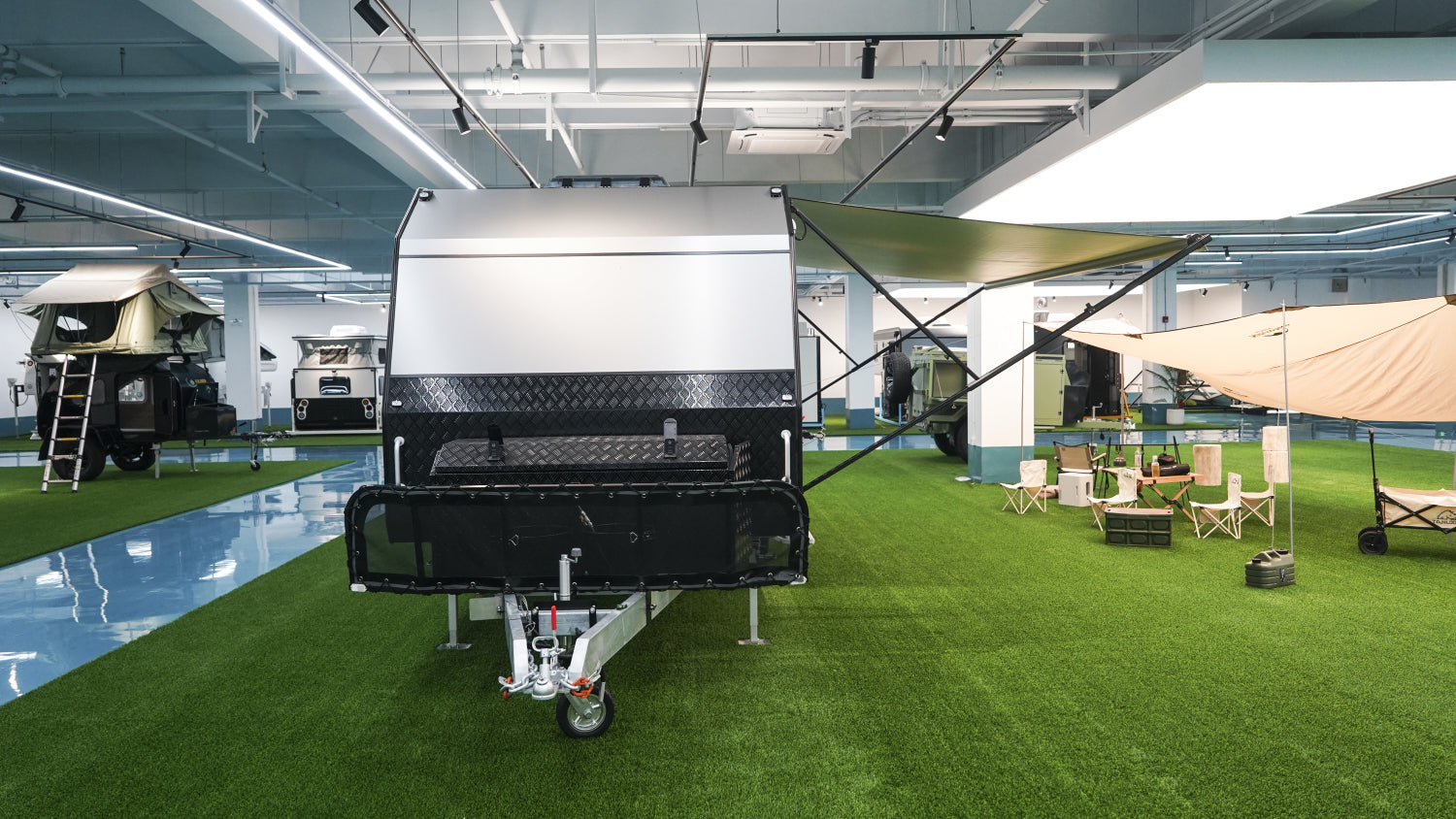

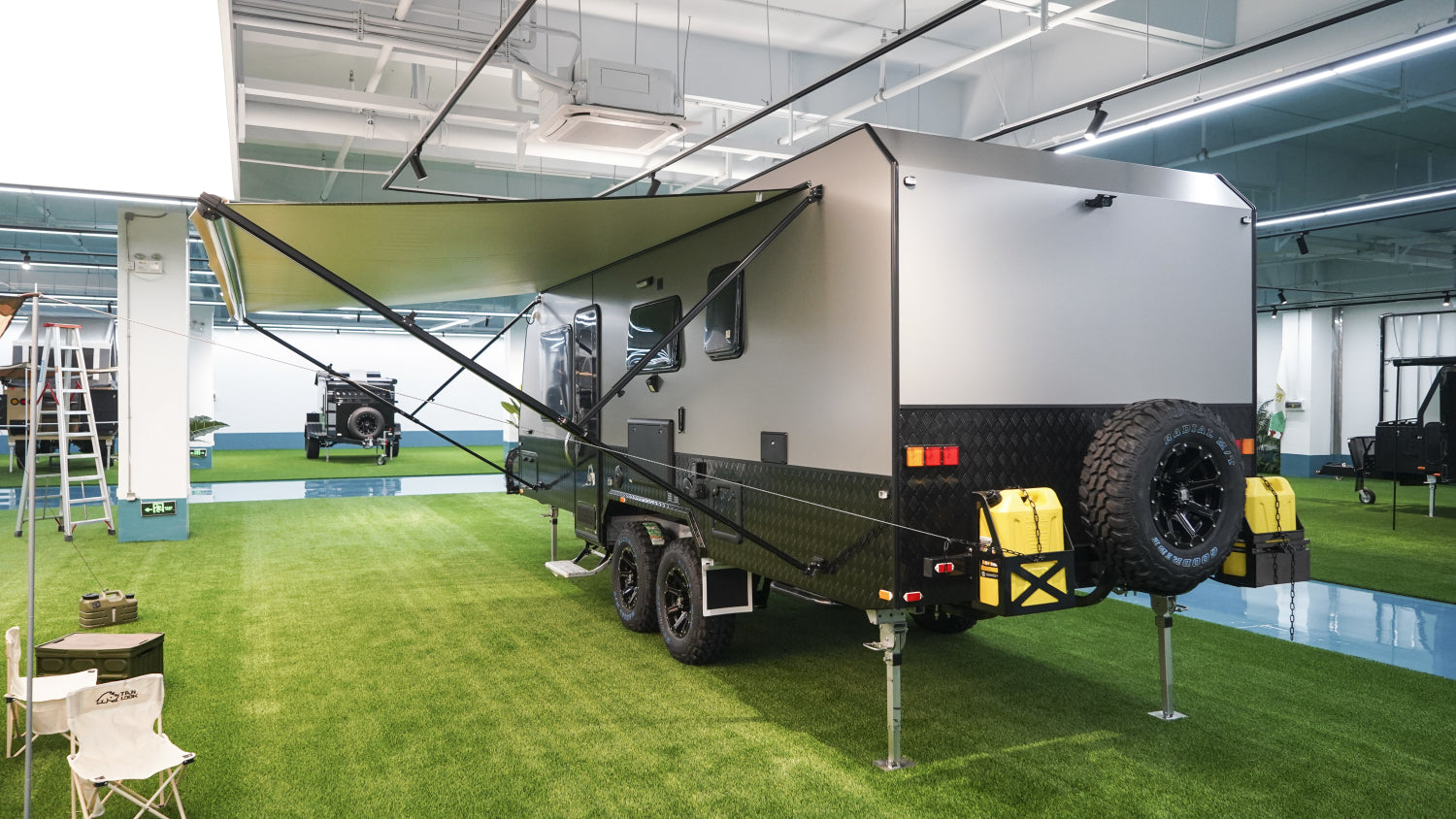

Awning |
|
|
Awning with pole |
5000(L)*2500(W)/ mm, electrical |
|
Accessories |
|
|

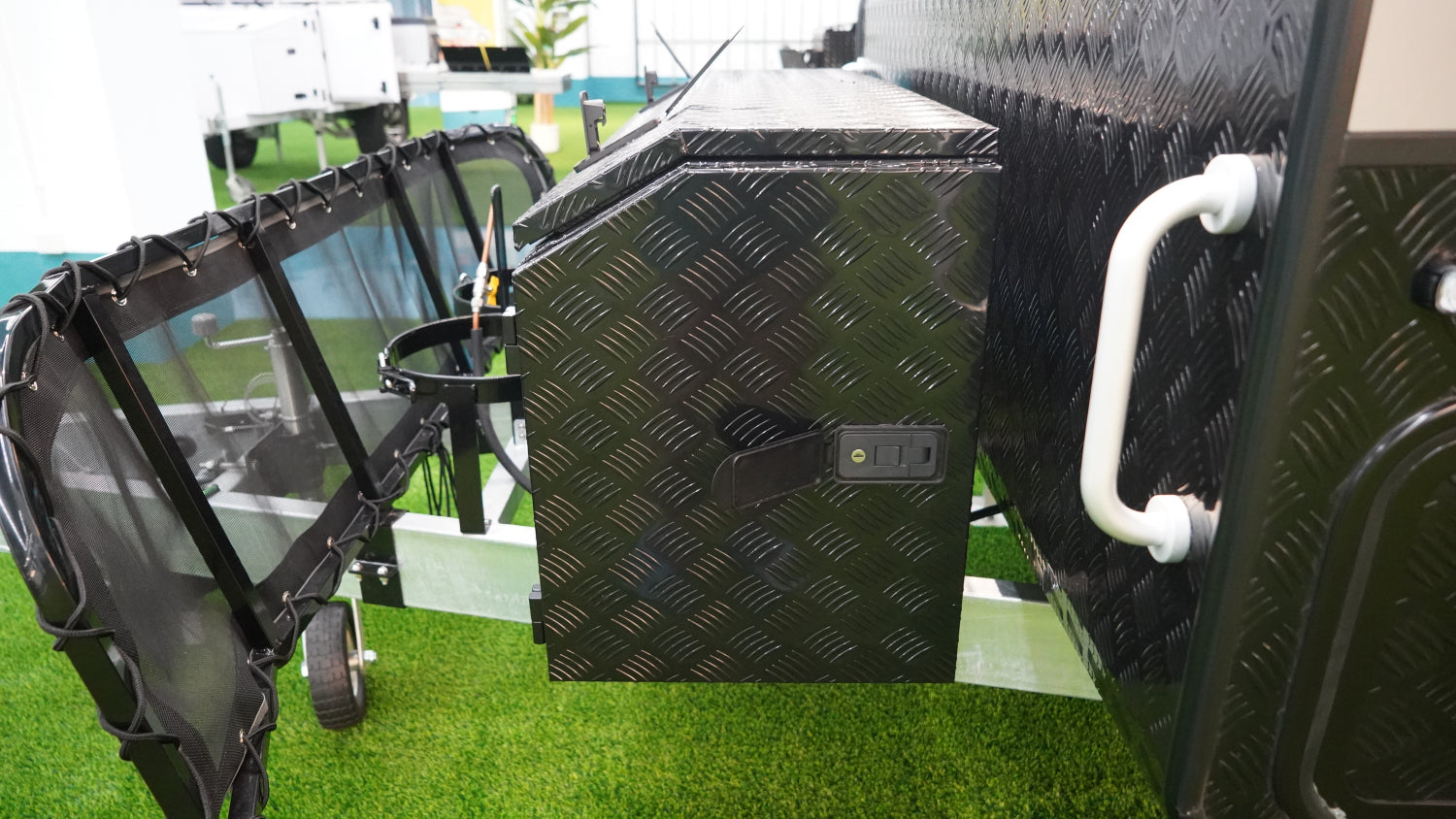

Drawbar |
welded, square tube size 150*50*3.0mm |
|
Front jockey wheel |
middle lifting type |
|
Jacks |
4 |
|
Level |
bubble level |
|
Fire extinguisher |
1KG*1 |
|

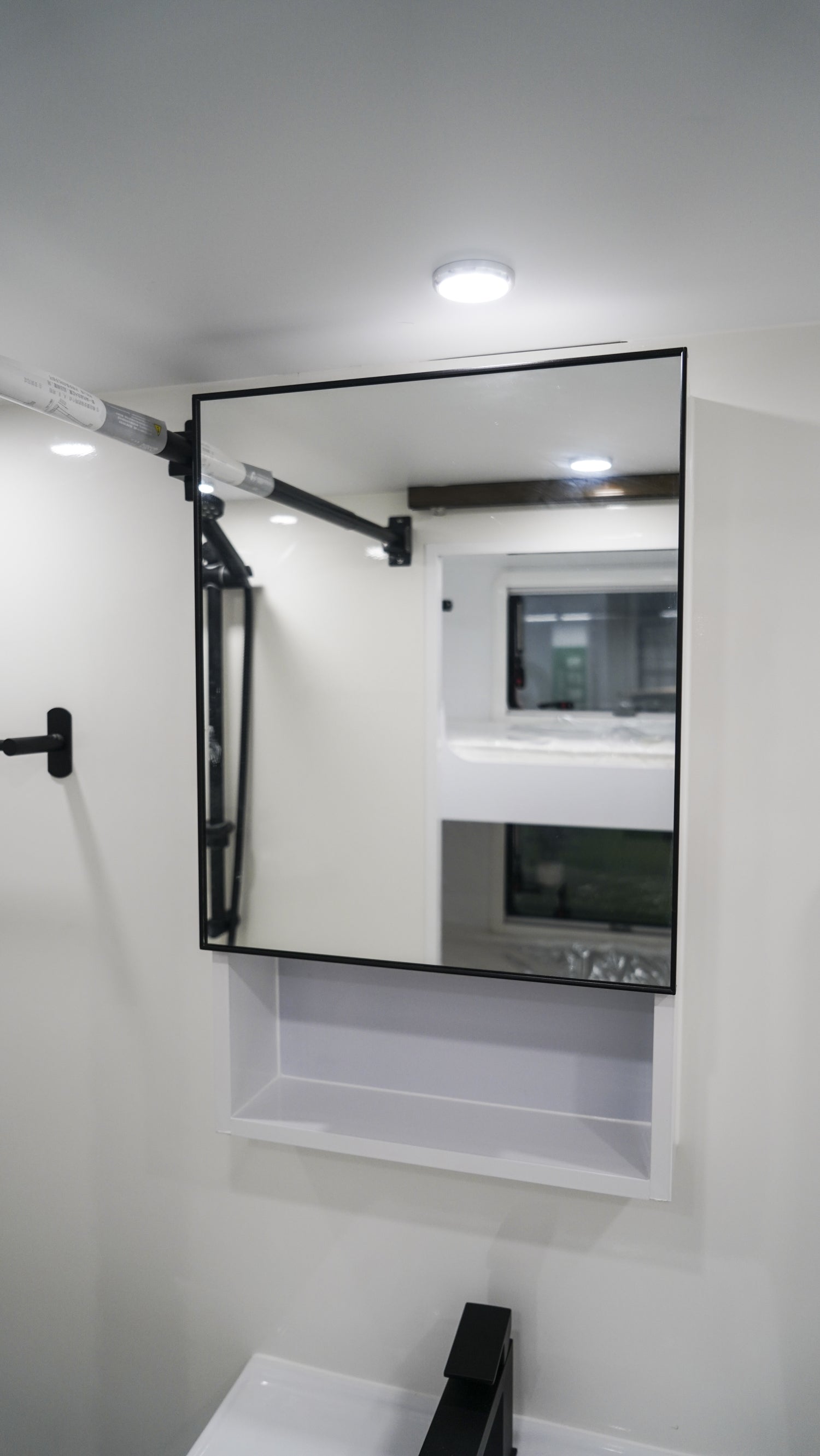

Bathroom mirror |
|
