Explorer-21 HR

Caravan Specifications

General Information

• Tare Mass: 2940kg

• Ball Weight: 210kg

• Trailer Size: 8200mm (L) × 2150mm (W) × 2800mm (H)

• Drawbar: 150mm × 50mm × 4mm

Construction & Frame

• Body: Aluminium composite panel walls

• Frame Protection: Underbody deadener-coated

• Stone Guard: Checker plate with integrated toolbox

• Seals: Pinch-weld rubber seals on all doors

• Locks: High-quality waterproof and anti-rust

• Suspension: Heavy-duty independent coil suspension with dual shock absorbers

• Brakes: 12" electric drum brakes

• Stabiliser Legs: 4 × wind-down

• Safety Chains: 2-piece system

Water System

• Fresh Water Tanks: 2 × 110L (with checker plate protection)

• Grey Water Tank: 1 × 100L (with checker plate protection)

• Water Fillers: 3 filler points

• Water Gauges: 2 included

• Pump: Fully wired electric pump, drainer & hose included

Gas & Storage

• Gas Bottle Holders: 2 × 9kg

• Jerry Can Holders: 2

• External Storage:

  • Large front boot with side opening

  • Slide-out fridge compartment

  • External pantry/storage compartment

Electrical System

• Batteries: 3 × 100Ah deep cycle

• Power Inlet: 240V system

• 12V System: With multiple sockets

• Anderson Plug: 50A, wired to battery bank

• Control Panel: With volt and amp digital meter

• Lighting:

  • LED lights inside and under annex

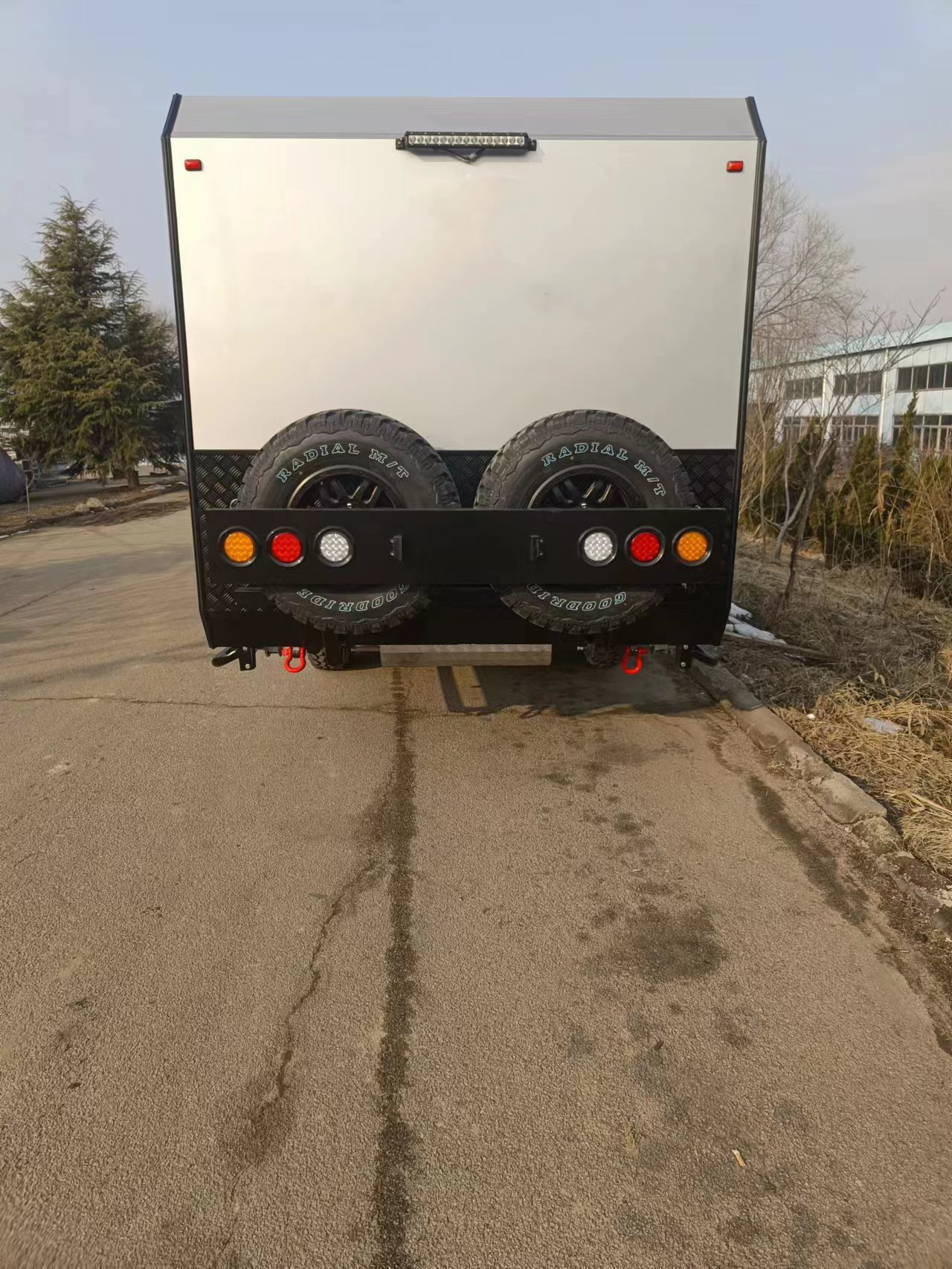

  • LED tail, indicator, and number plate lights

Wheels & Tyres

• Tyres: Mud tyres 265/75 R16

• Rims: 6-stud alloy rims

Interior Features & Storage

• Beds:

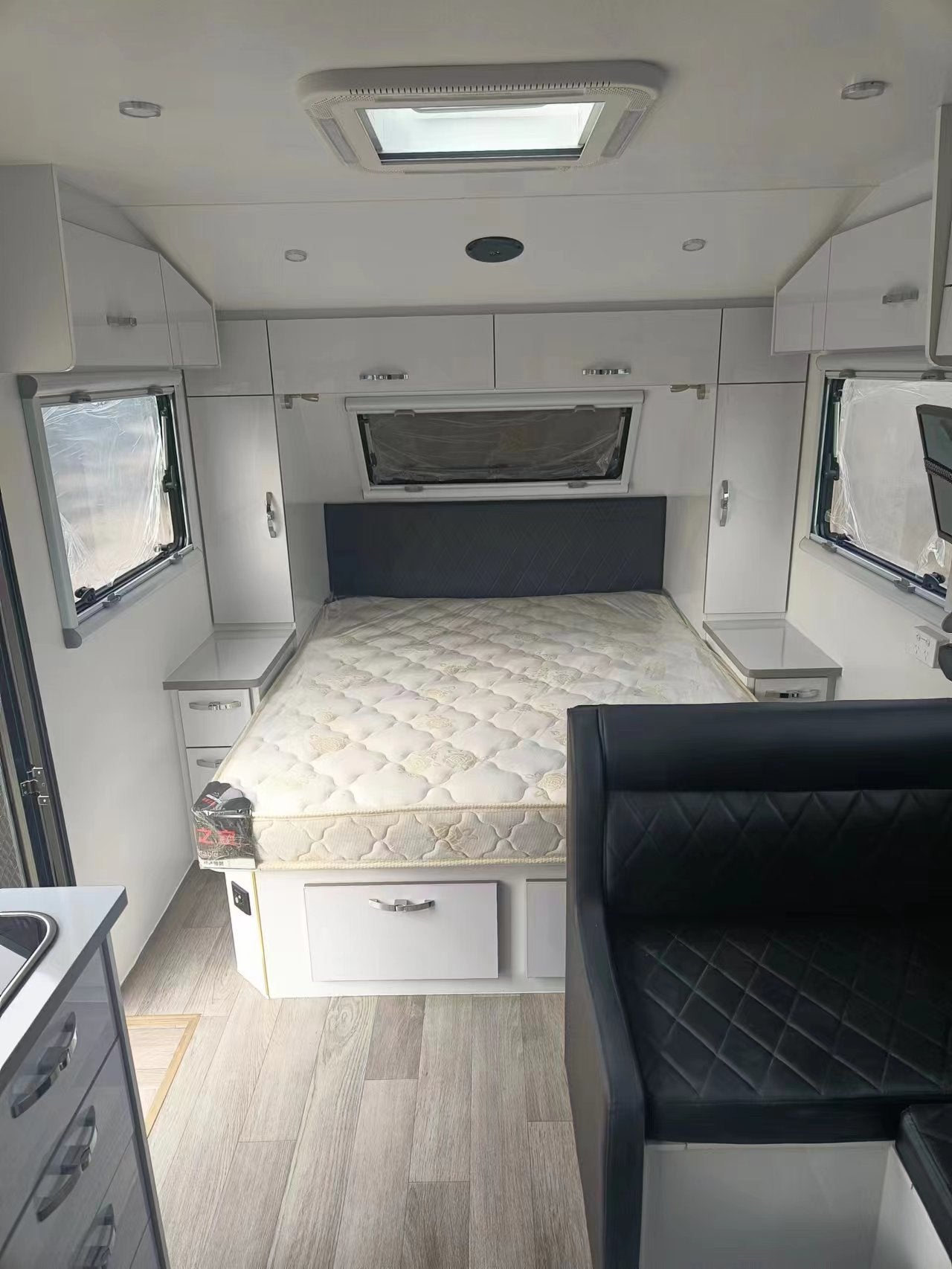

  • Main inner bed with spring mattress

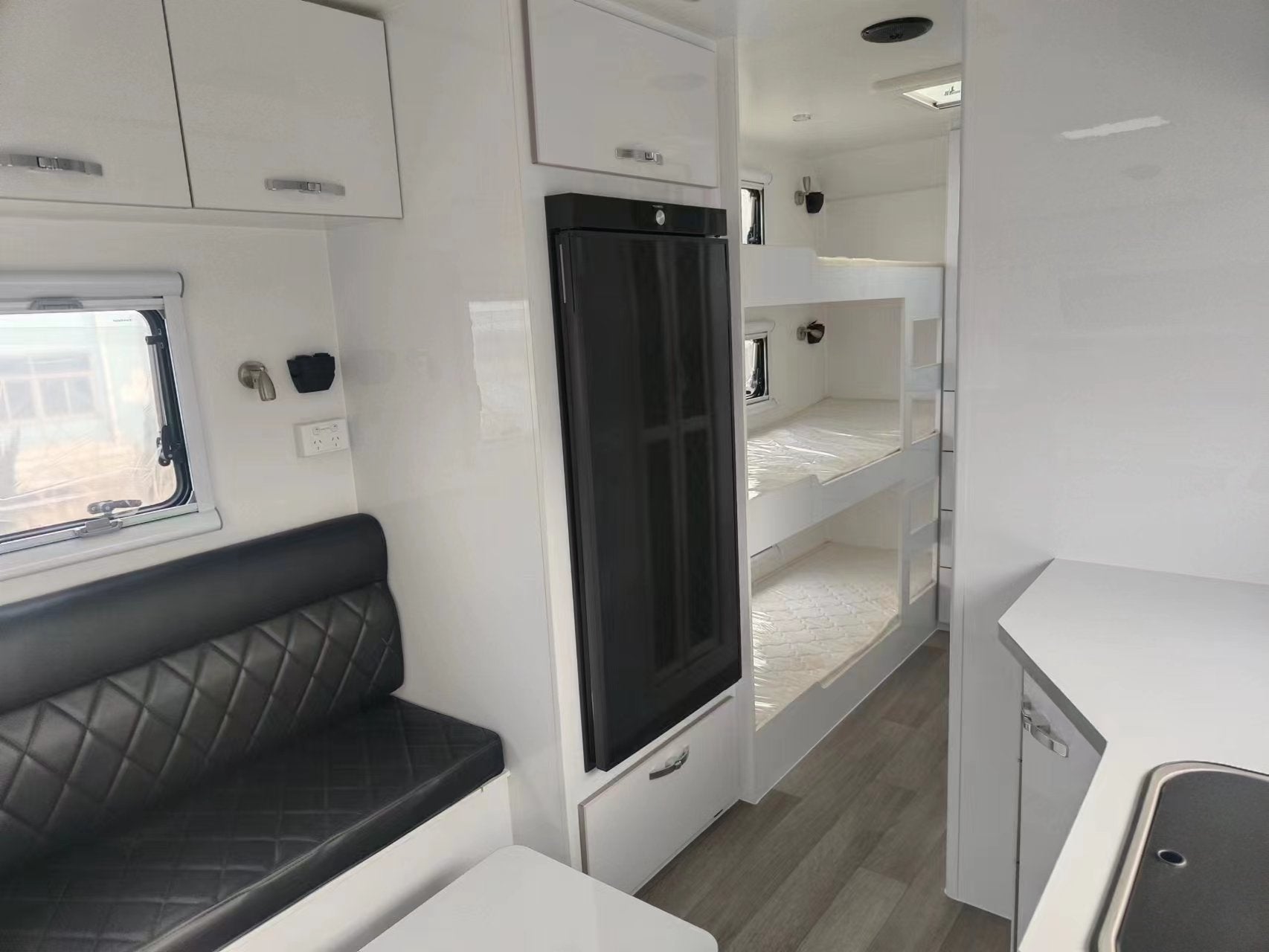

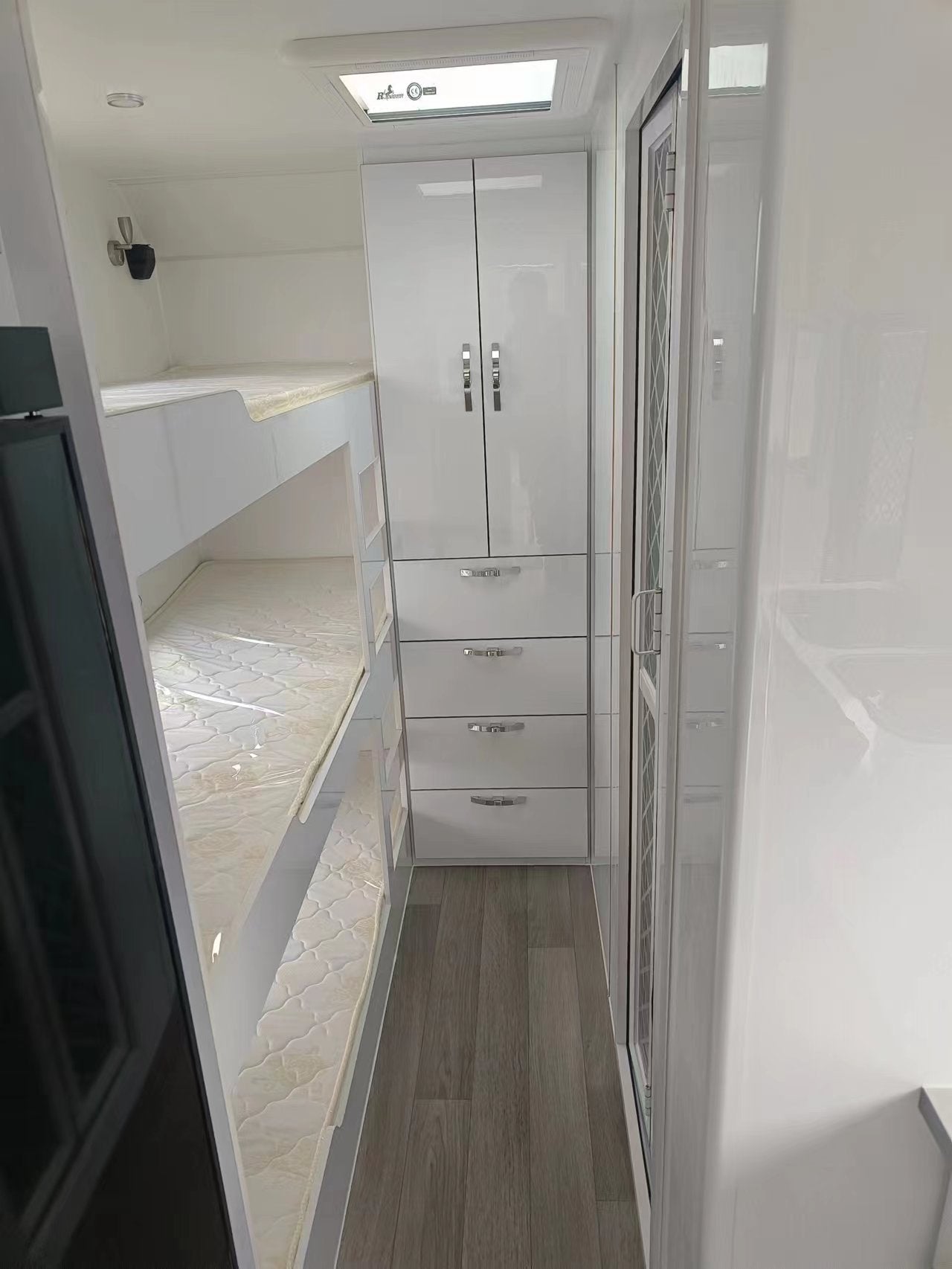

  • Bunk bed

• Windows & Ventilation:

  • Internal push-open windows

  • Skylight

  • Internal shower room with window

• Entry:

  • Full-size entry door with lockable security screen

  • Checker plate drop-down step

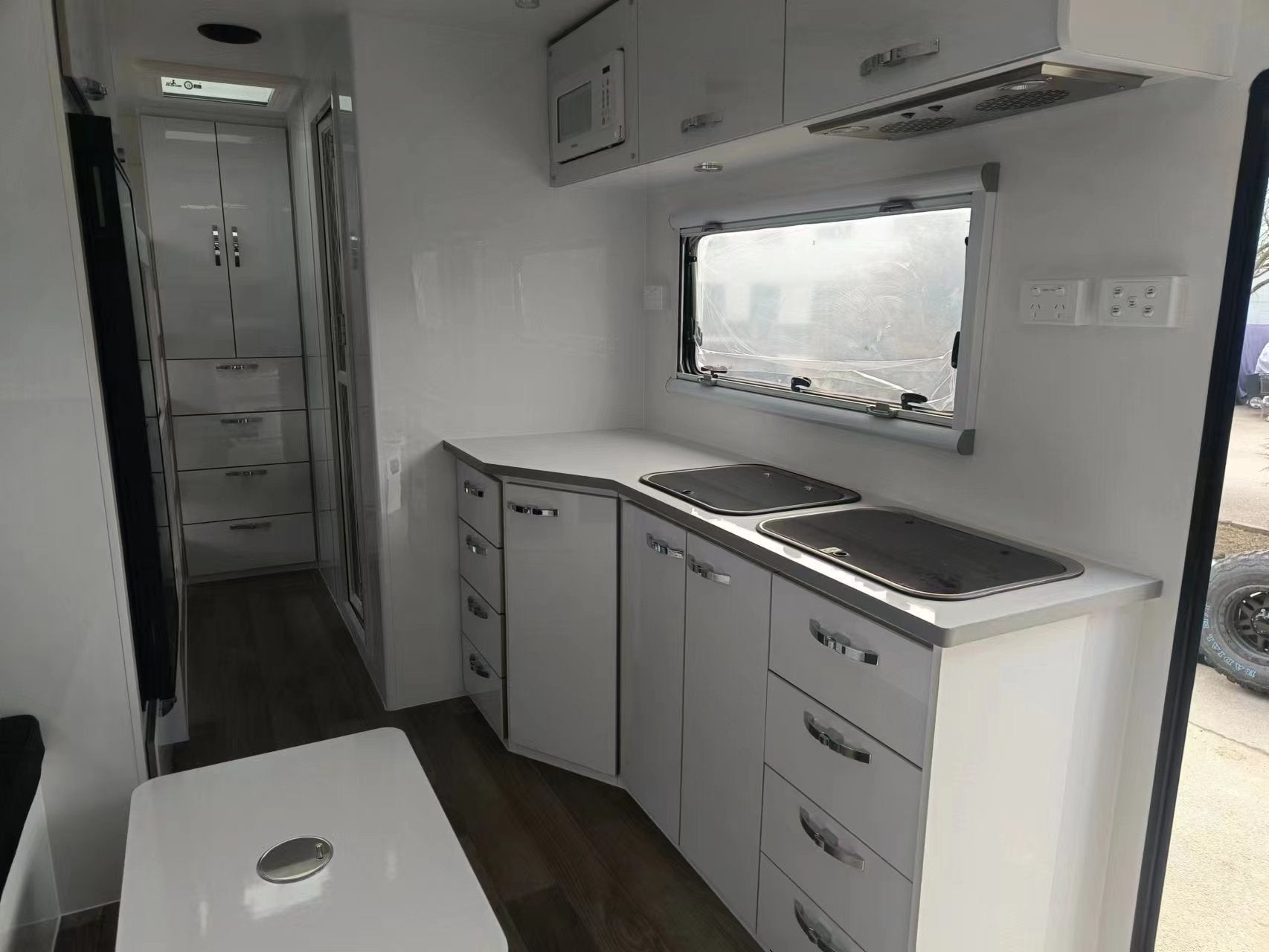

• Kitchen (Internal):

  • 2-burner gas stove with glass lid

  • Kitchen ventilator

  • Sink

  • Fridge

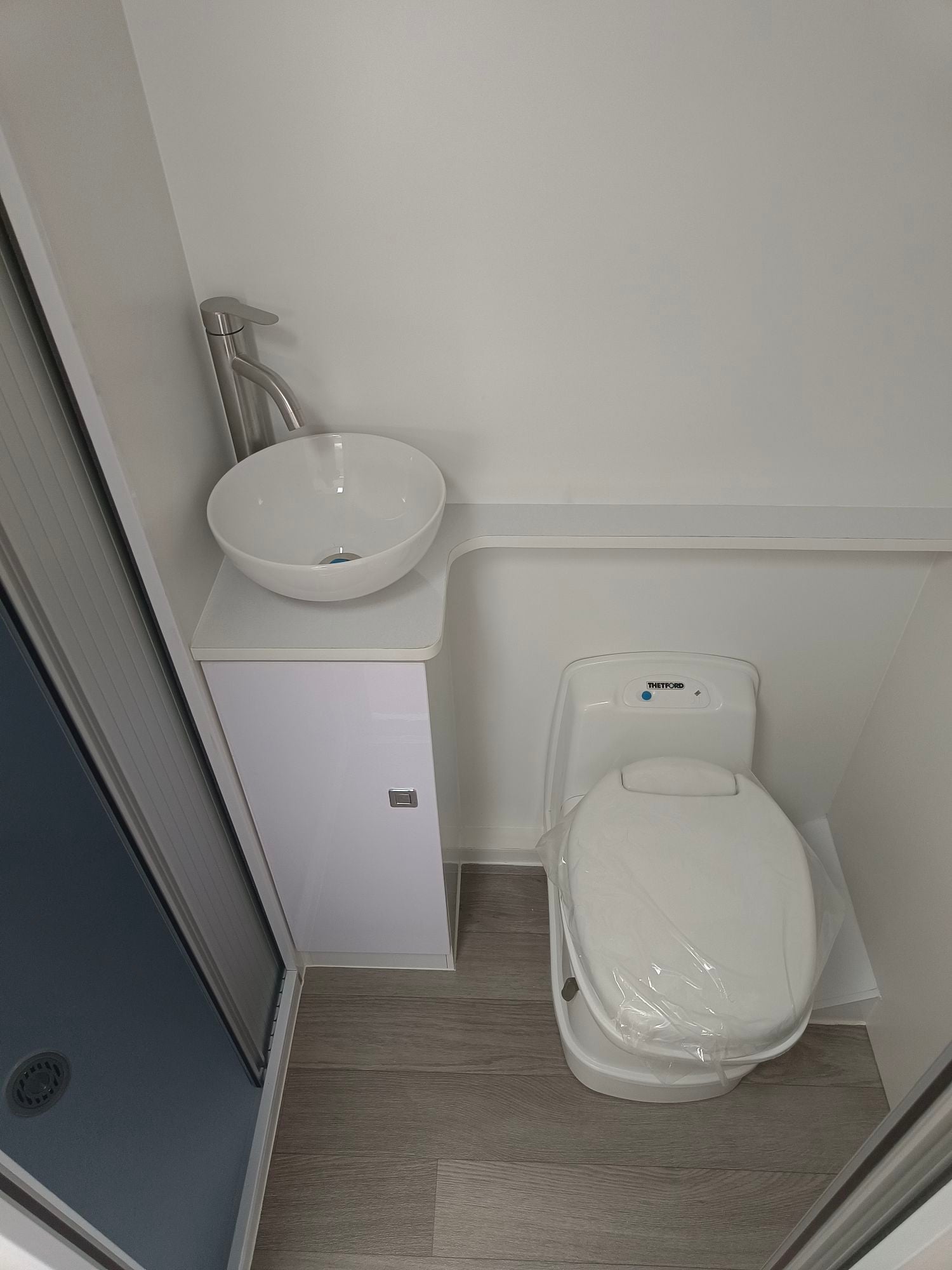

• Bathroom:

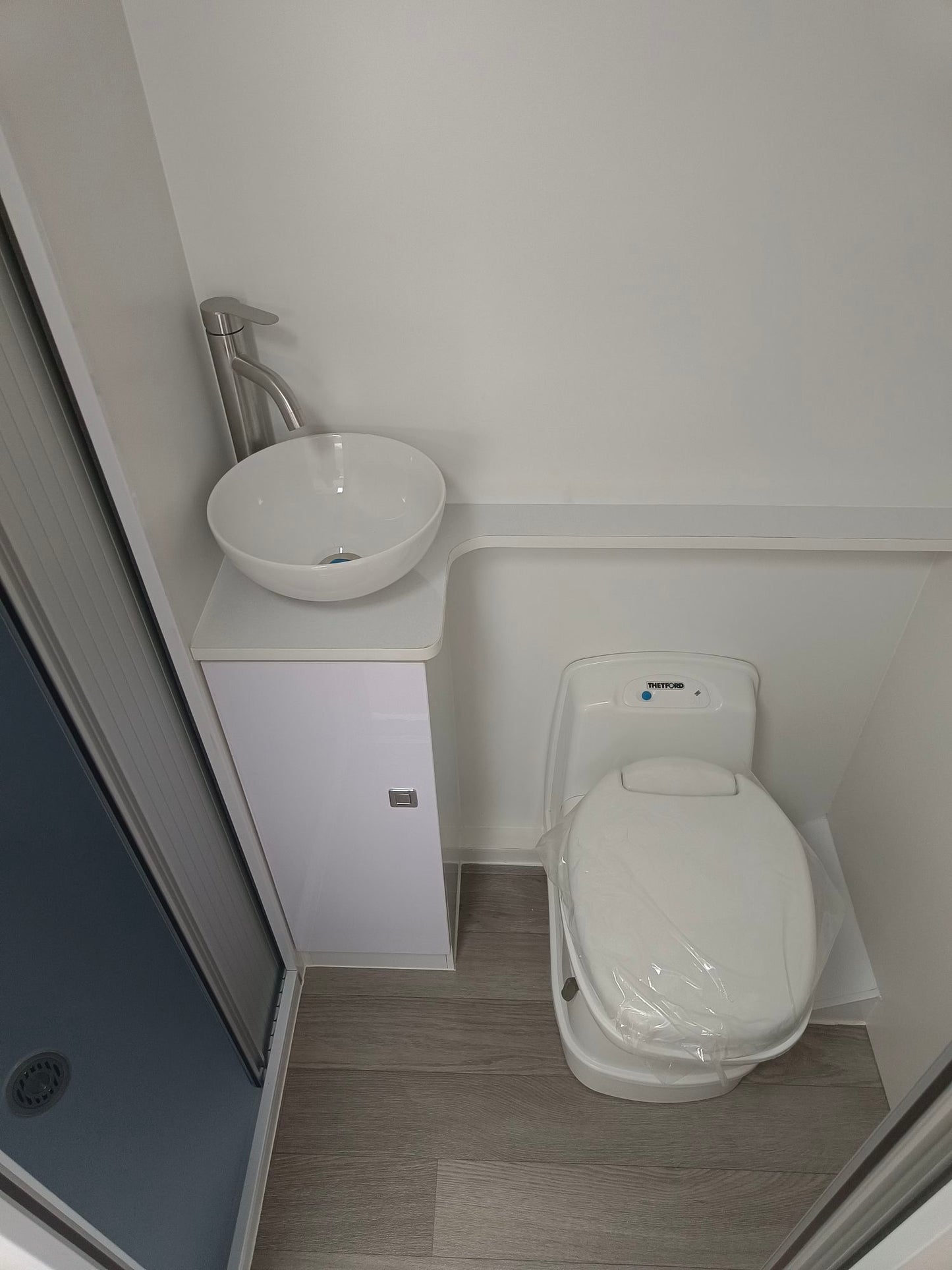

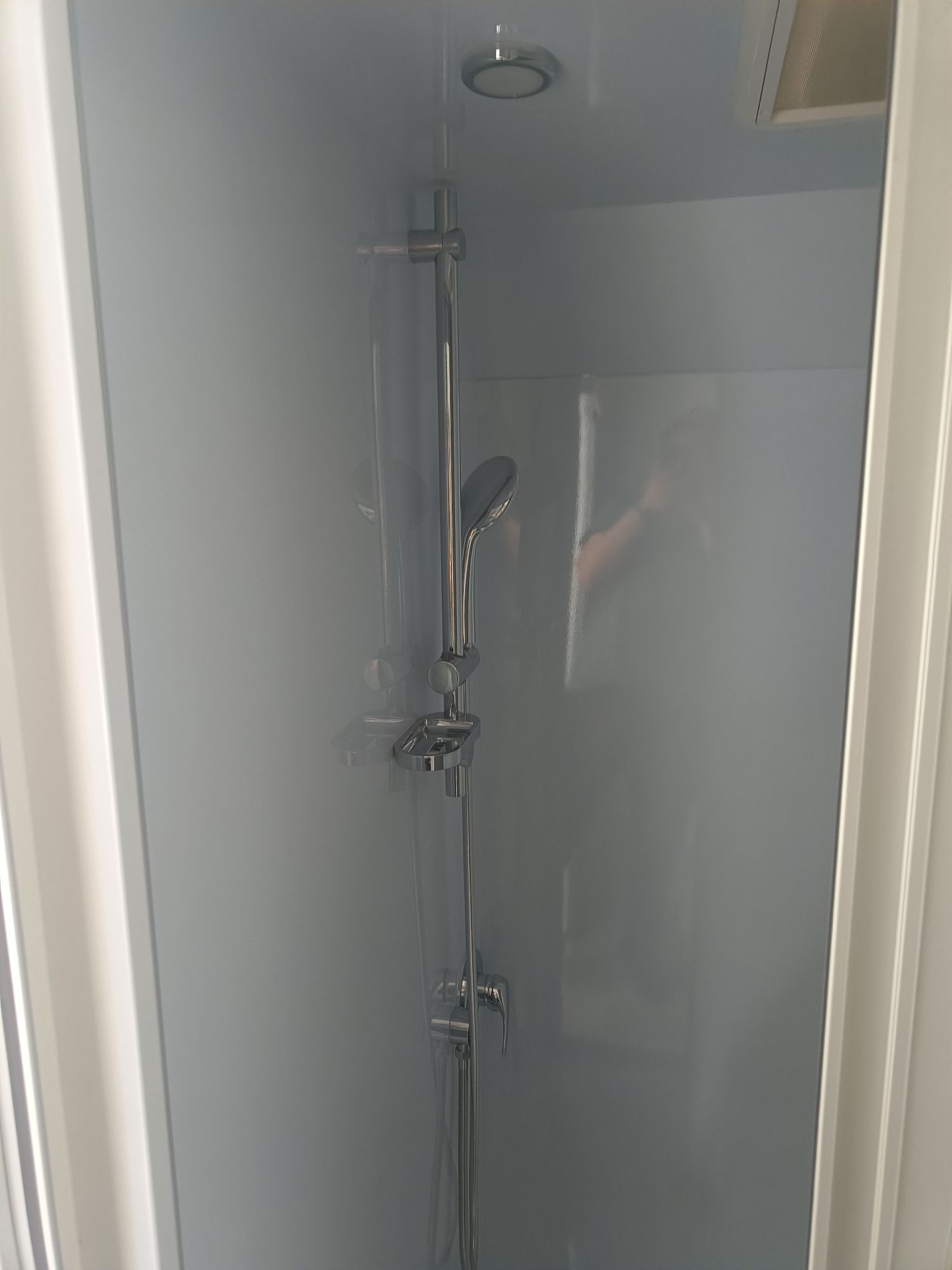

  • Inside washroom with Thetford toilet and shower fittings (WaterMark certified)

  • Storage cupboard

• Furnishings:

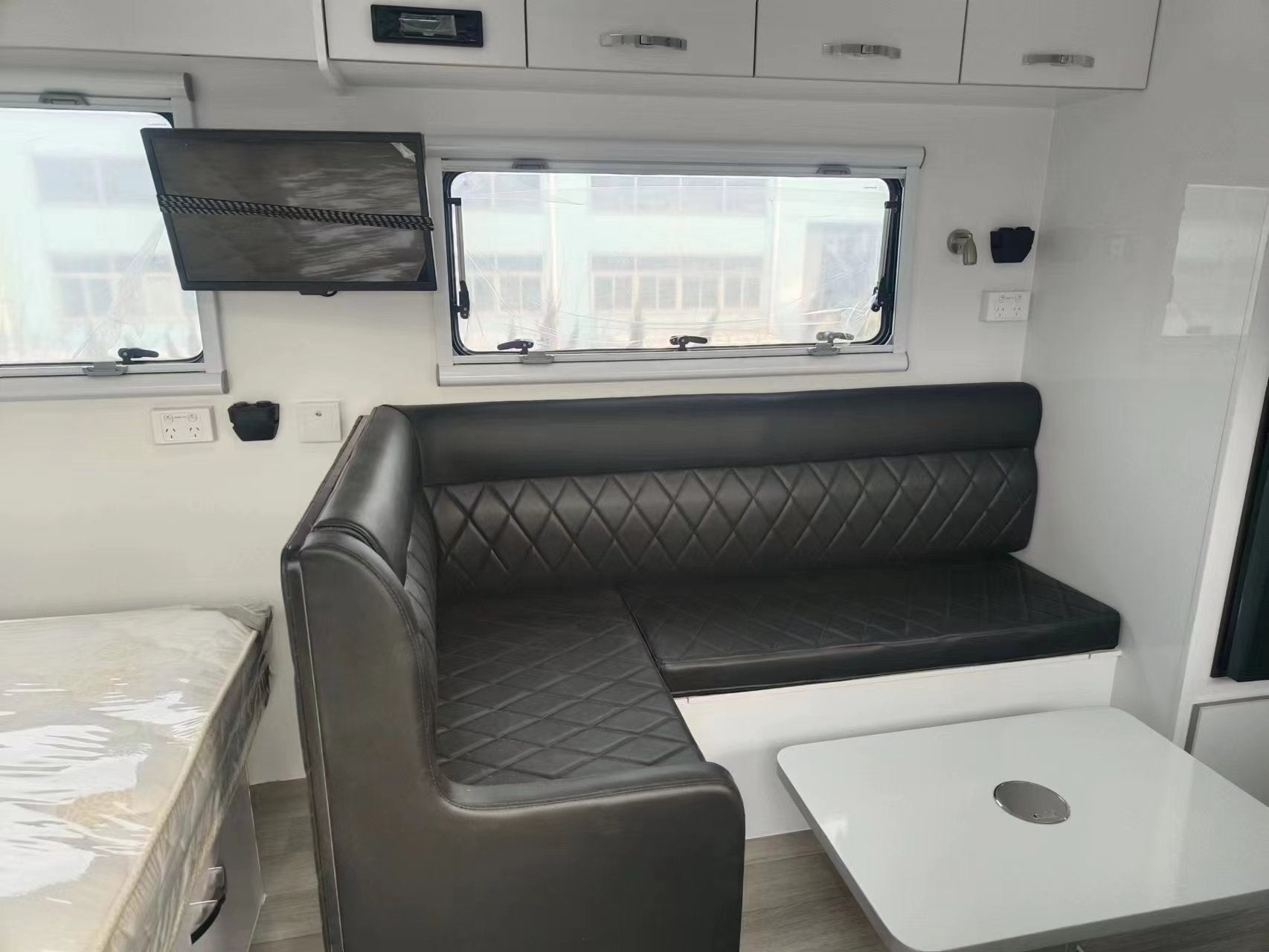

  • Double sofa with removable table

  • Simple dressing table

  • Wood-look or PVC flooring

External Kitchen

• Slide-Out Stainless Steel Kitchen:

  • Sink with drainer

  • Prep bench

  • 4-burner deluxe gas stove with regulator

  • 3-sided wind deflector

  • Fully lined cutlery drawers

Awning

• Type: Electric awning

• Size: 4300mm × 2500mm
