Explorer-18 Family

Manufacturer preview model.

This 18-foot model features a caravan queen main bed and up to 3 bunk beds, perfect for families of 2 to 5, and it comes furnished with a full internal and external kitchen so that you can feed the family rain or shine

• AGGREGATE TRAILER MASS: 3500kg
• TOW BALL WEIGHT: Approx. 230kg
• TARE MASS: Approx. 2800kg
• INTERNAL WIDTH: 2050mm W
• INTERNAL HEIGHT:2000mm H
• INTERNAL LENGTH: 5400mm L
• OVERALL LENGTH: 7700mm L
• OVERALL HEIGHT: 3080mm H
• OVERALL WIDTH: 2400mm W
• CLEAN WATER TANK: 2 x 120L Clean Water Tanks
• GREY WATER TANK: 1 x 70L Grey Water Tank
• GAS BOTTLE HOLDERS: 2 x 9.0Kg Gas Bottle Holders
• DOOR STEP: Manual Extend-Retract Step
• FRAME: Hot Dipped Galvanized A-Frame & Drawbar + Underbody Deadener to Protect Chassis and Drawbar
• BRAKES: Off-Road 12" Electric Brakes & Handbrake
• SUSPENSION: Tandem Axle Independent Trailing Arm Suspension with Lovells Twin Shock Absorbers
• COUPLING: NZ Standard
• TYRES & RIMS: Mud Tyres 265/75/R16 - 6 Stud Alloy Rims
• SPARE TYRE LOCATION: Two spare wheels with twin swing-out style back bar
• BODY: Aluminium Composite Panel Walls
• STABILIZER LEGS: 4 x Drop Down Heavy Duty Fully Adjustable Stabilizer Legs
• ROCK SLIDERS: 4 x Rock Slider
• SOLAR PANELS: 800W (4 x 200W) Roof Top Mounted Solar Panels
• ENTERTAINMENT: 24" Full HD Smart LED TV with Internal & External Mounts + Omnidirectional TV Antenna
• LIGHTING: Internal LED Lights and Bug Repellent External LED Lights
• BATTERY SYSTEM: 260AH AGM Batteries with 2000W Pure Sine Wave Inverter
• AIR CONDITIONER: Optional
• AUDIO: Bluetooth Radio with 4 x 5" Marine Grade Speakers
• PLUGS: 7-Pin Plug & 50A Anderson Plug
• HOT WATER SYSTEM: Truma 14L Gas & Electric Hot Water System
• POWER SYSTEM: 12V & 240V Power Sockets Throughout
• HEATER: Diesel Heater
• EXTERNAL POWER: 240V Power Inlet
• WATER PUMP: Fully Wired Electric Water Pump
• BATTERY CHARGERS: 30A
• BODY LIGHTS: Submergible LED Lights
• LOUNGE: Double Bench Lounge with Lagoon Style Table Pole
• ENSUITE: Internal Ensuite With Shower, Dometic Toilet & Basin
• DOOR: Door with Lockable Security Screen

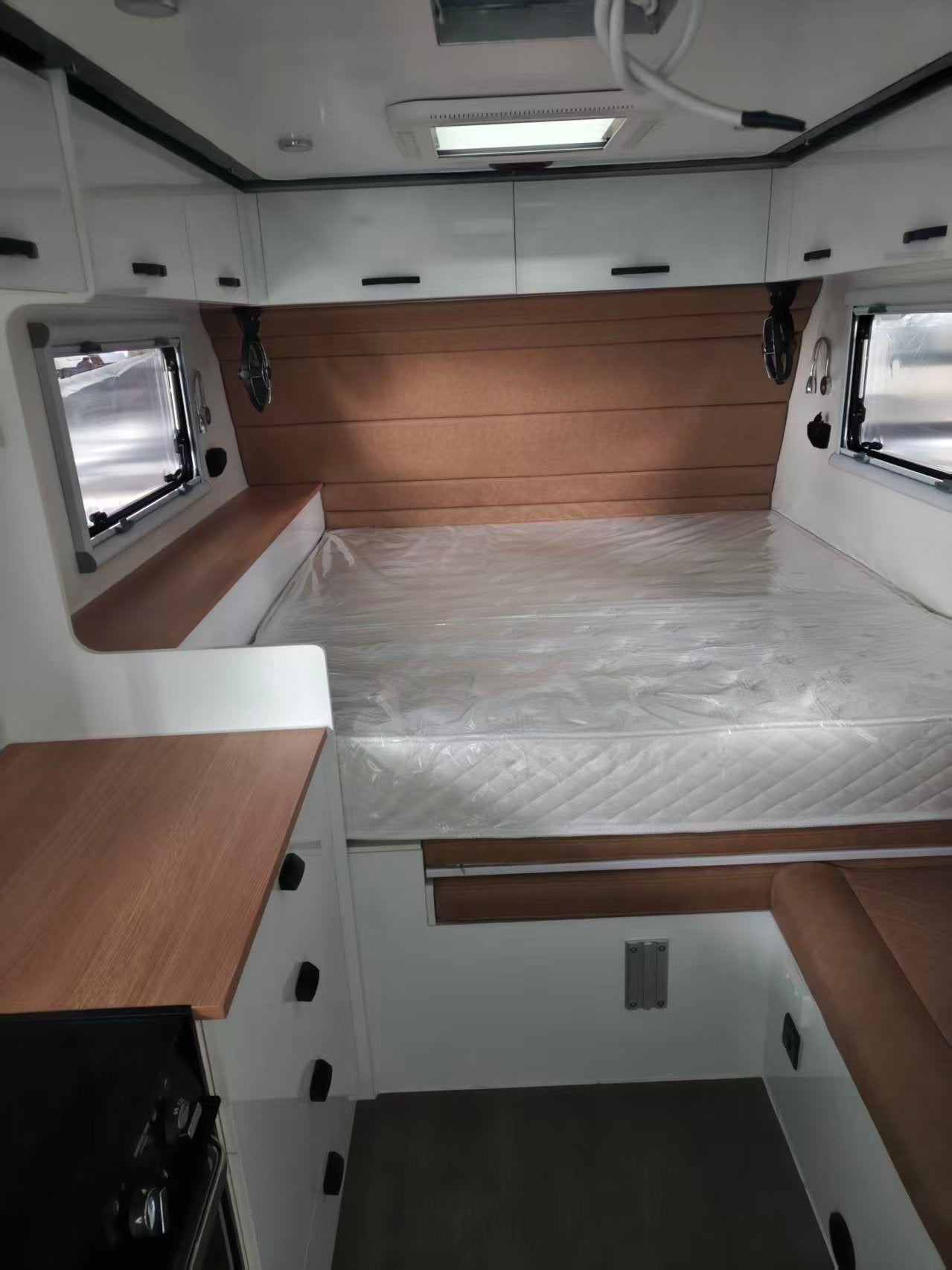

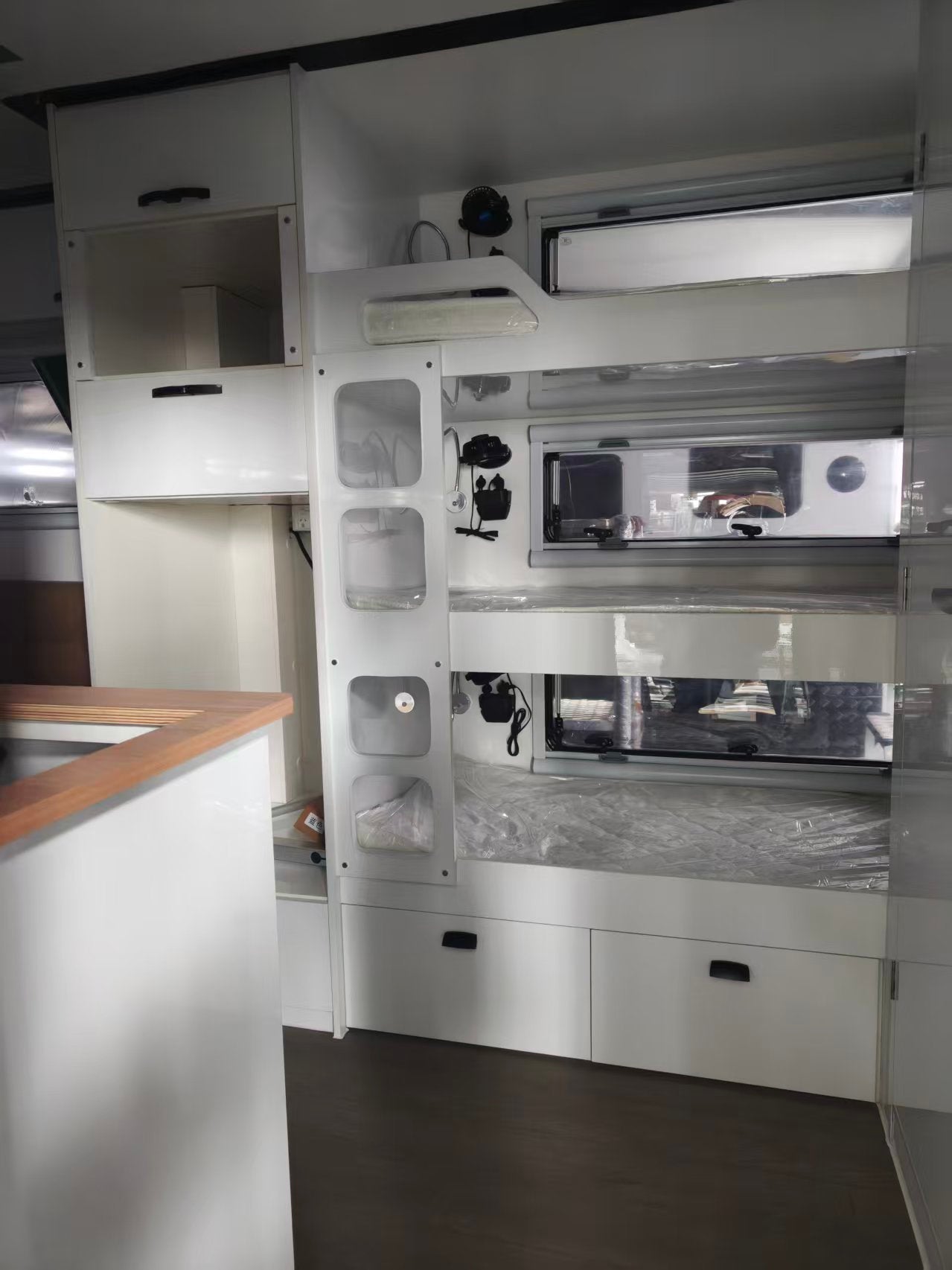

• BED: King Size Bed with Inner Spring Mattress (2040 x 1830mm) + 1-3 x Permanent Bunk Beds (1890 x 680mm)
• FLOOR: Vinyl Floor
• INTERNAL KITCHEN: Internal Dometic Two Burner Gas Stove and Sink
• INTERNAL CABINETRY: Internal Cupboards, Drawers & Storage
• CUPBOARD: Powder-coated aluminium Internal cupboards and drawers.
• SHOWER: Outdoor Shower
• DRAWERS: Fully Lined Cutlery Drawers
• KITCHEN: External Kitchen, Slide Out Stainless Steel Kitchen with 4 x Burner Gas Stove, Sink, Draining Board, Prep Bench & 3 Sided Wind Deflector
• FRIDGE: External Slide Out Fridge Drawer to fit a 96L Dual Zone Fridge
• AWNING: Electric Awning - 5.0 x 2.4m
• ANNEX ROOM: Full Annex Kit with Water Resistant Walls, Windows, Doors, Floor and Skirt with Anti-flap Kit
• DRS: Dometic Dust Reduction System (optional)
