Explorer-17DB Caravan

Caravan Specifications

Basic Information

• Trailer Size: 7777mm (L) × 2300mm (W) × 3114mm (H)
• ATM: 3000kg
• Tare Mass: 2620kg
• Drawbar: 150mm x 50mm x 4mm
• Tow ball weight: 240kg
• Chassis Material: Iron tube + hot-dip galvanized tube
• Body Structure: Aluminium composite panel wall, Solid fiberglass roof, underbody deadener protecting frame

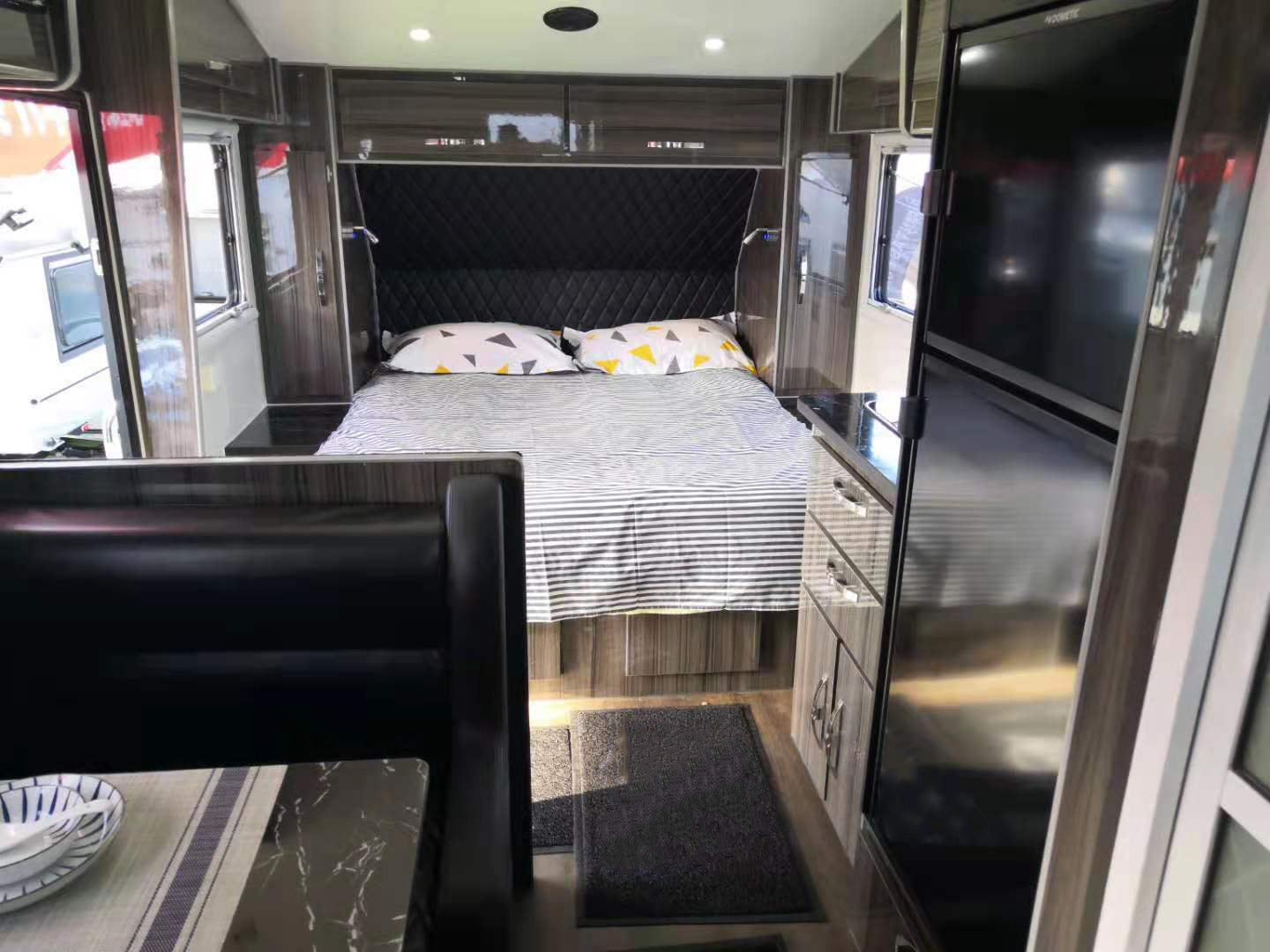

Sleeping

• Sleep Capacity: 4 people
• Mattress Material: innerspring queen mattress + foam bunk beds

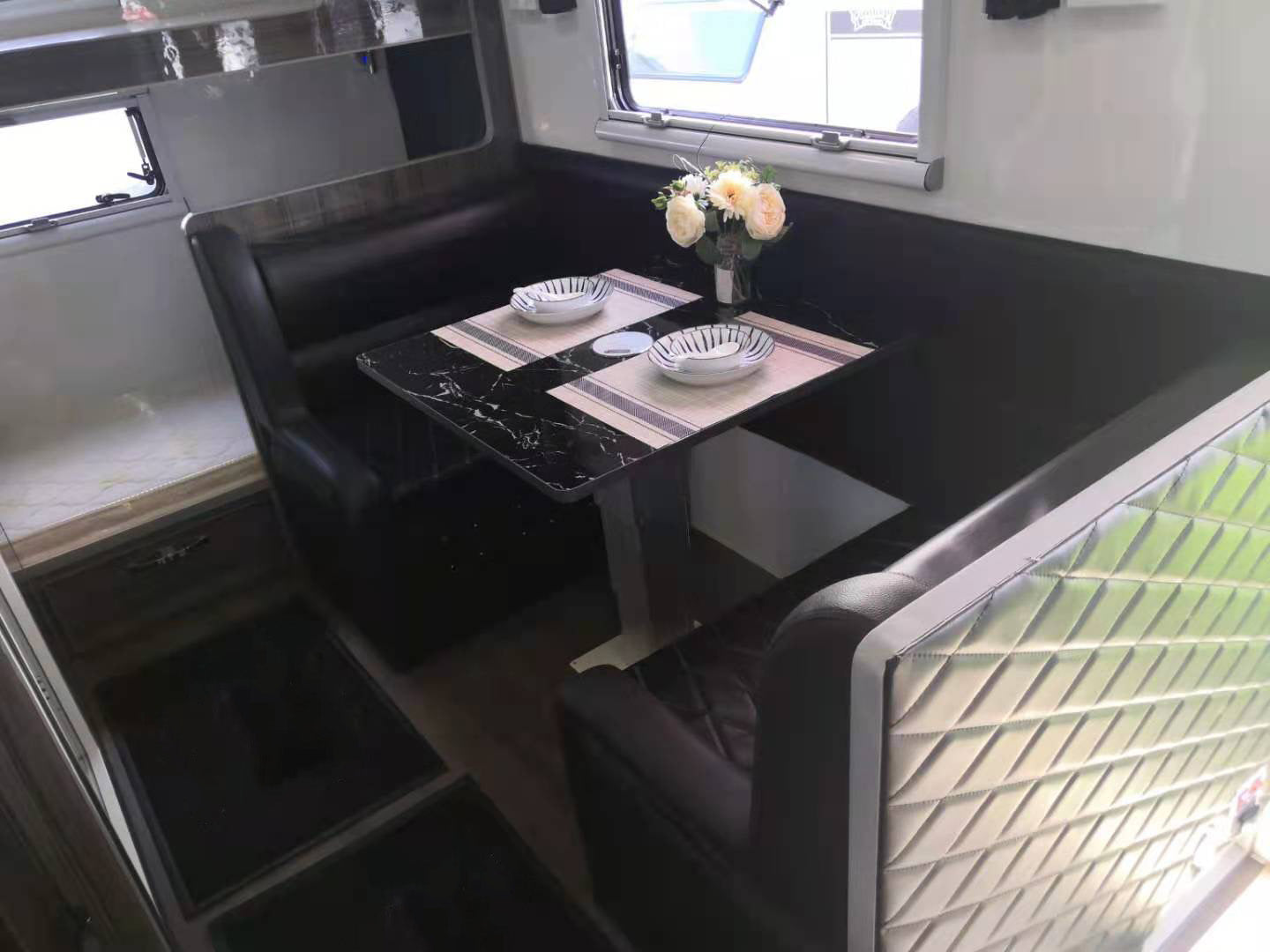

Living & Kitchen Area

• Table: Pneumatic lifting table
• Sofa Seating Capacity: 4
• Sofa Material: Black artificial leather

Tow System

• Hitch: New Zealand standard off-road hitch
• Safety Chains: 2

Axle & Suspension

• Suspension: Independent suspension system
• Axle Type: Dual axle,
• Braking: 12" electric brakes with manual handbrake
• Wheel Hub: 16" aluminium alloy
• Tyres: 265/75R16

Water System

• Fresh Water Tanks: 2 × 110L
• Grey Water Tank: 100L
• Water Heater: 14L Truma
• Water Pump: 12V, 11.3 LPM
• Water Inlet:  2x water inlet
• Faucets: Hot and cold
• Sewage Valve: Included
• Shower: External box with hot and cold water
• Additional Taps: External single-cooling brass faucet
• Sink: With cover

Gas System

• Gas Bottle Rack: 2 × 9kg
• Gas System: All copper pipe system

Electrical System

• Front Connector: 7-core flat connector
• Anderson Plug: 50A
• Emergency Brake System: Included
• Battery: 3 × 100AH
• Inverter: 12V to 240V, 2000W sine wave with charging
• Solar Controller: 20A
• Solar Panels: 2 × 150W (12V each)
• Power Monitoring: Digital electricity meter
• Water Level Monitoring: Fresh and grey tank level display
• External Mains Socket: 220V–240V, 16A
• Charging Cable: 10m
• Circuit Breakers: 240V and 12V
• Power Outlets: 5 × 110–240V, 4 × USB
• External Outlets: 1 × 240V, 1 × USB, 1 × Cigarette lighter
• Lighting: LED

Electric Facilities

• Fridge: Thetford 152L
• Cooktop: internal 2-burner gas stove, External slide-out stainless-steel kitchen with sink, draining board + prep bench, Deluxe 4-burner gas stove + regulator.
• Toilet: Thetford
• Extractor Fan: Kitchen
• Air Conditioner: Dometic B3200 (upgrade available)
• Audio: MP3 player, FM radio antenna
• Speakers: 2 interior, 2 waterproof exterior
• TV Antenna: Digital
• Bathroom Ventilators: 2
• Door Handle: With LED light
• Heating: Diesel heater

Awning

• Electric Awning with Poles: 3000mm (L) × 2500mm (W)

Accessories

• Jockey Wheel: 10" swing up and lockable
• Stabiliser Jacks: 4
• Level Gauge: Bubble level
• Fire Extinguisher: 1 × 1kg
• Storage: Front box
• Bumpers: Side and rear bumpers
• Stone Guard: Included
