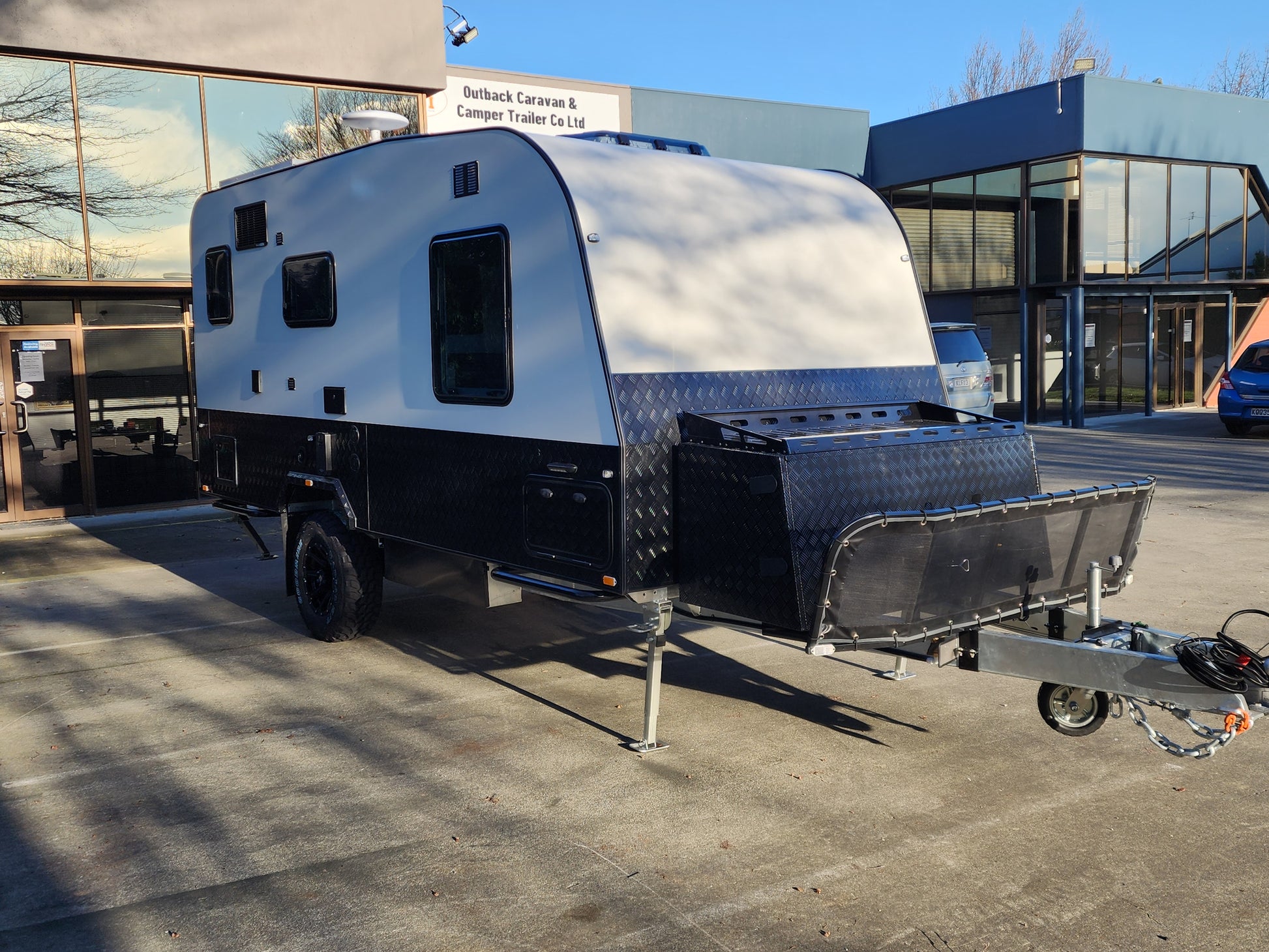

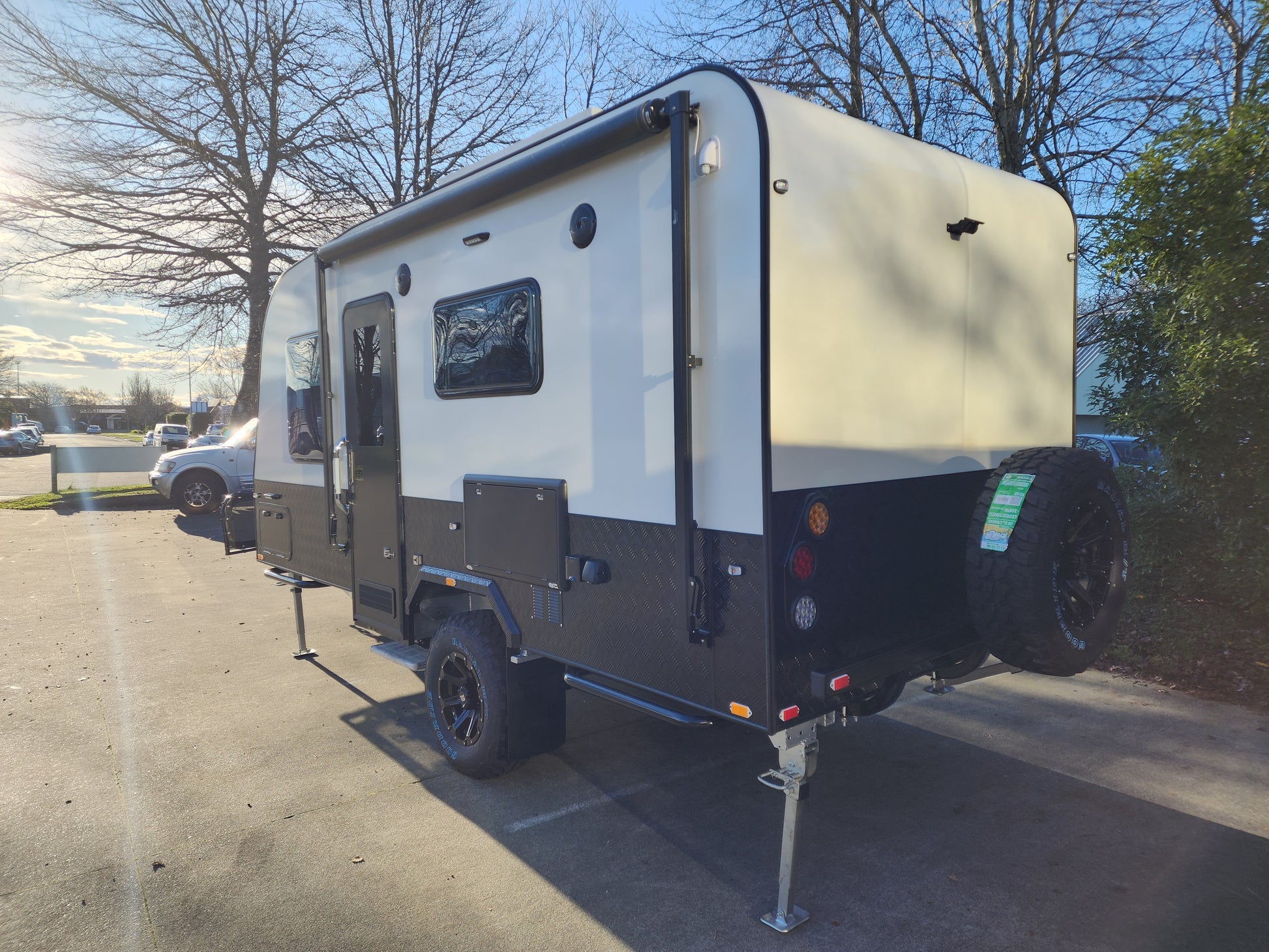

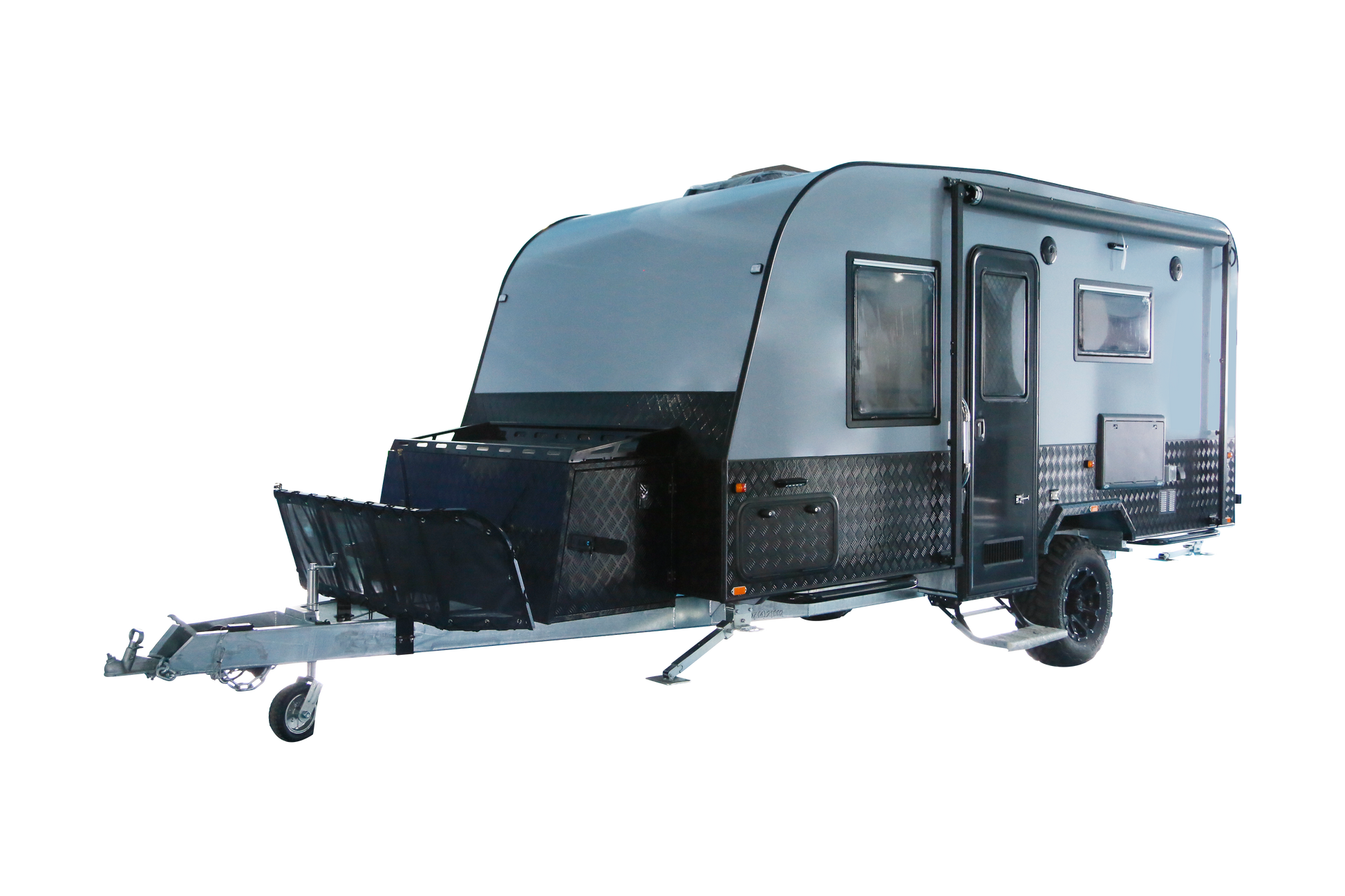

Explorer-16A

Caravan Specifications

Basic Information

• Body Size: 4868mm (L) × 2201mm (W) × 2070mm (H)

• Interior Dimensions: 4801mm (L) × 2134mm (W) × 1960mm (H)

• Overall Size: 7777mm (L) × 2300mm (W) × 3114mm (H)

• ATM: 3000kg

• GTM: 2820kg

• Tare Mass: 2150kg

• Maximum Load: 600kg

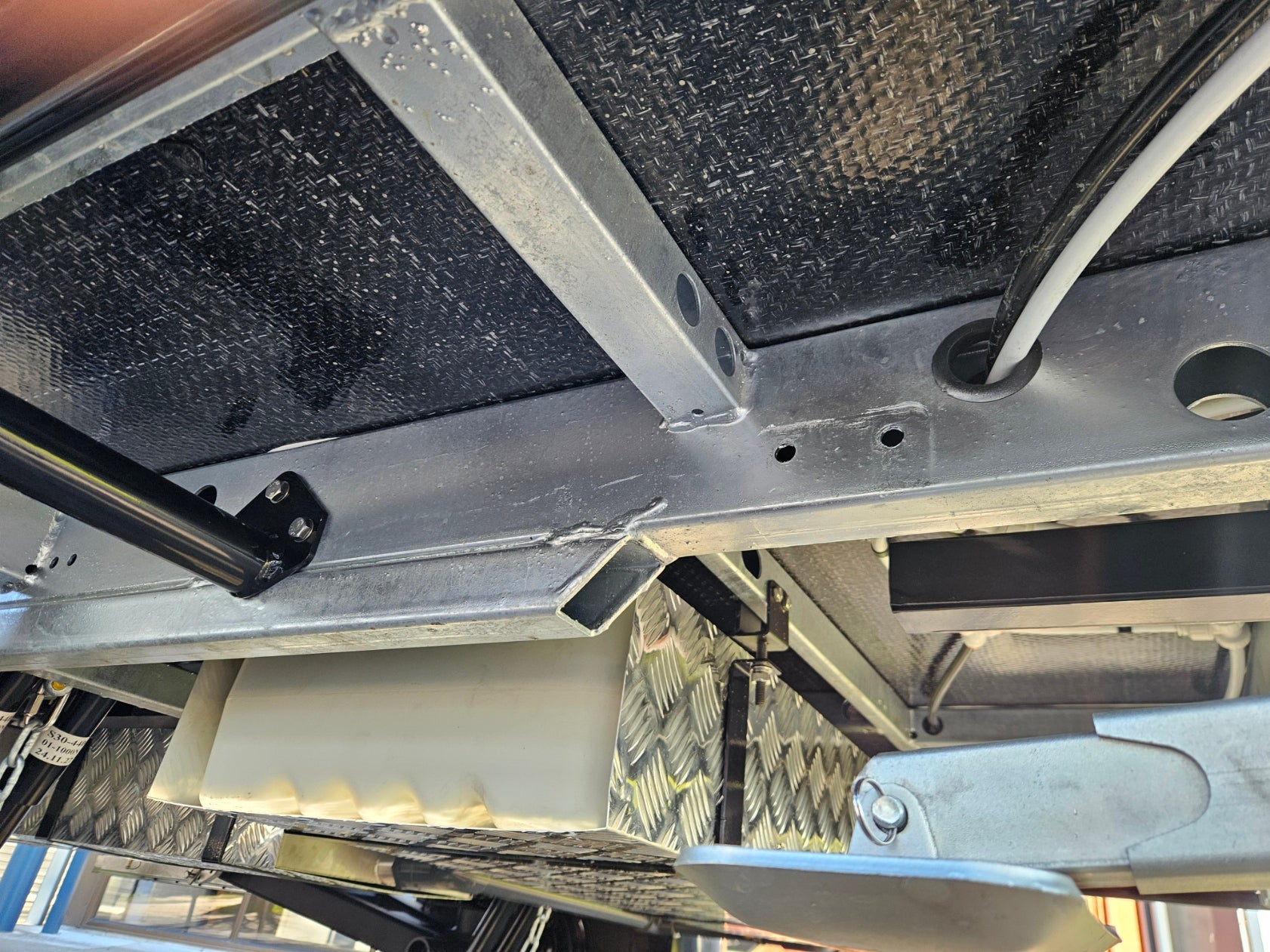

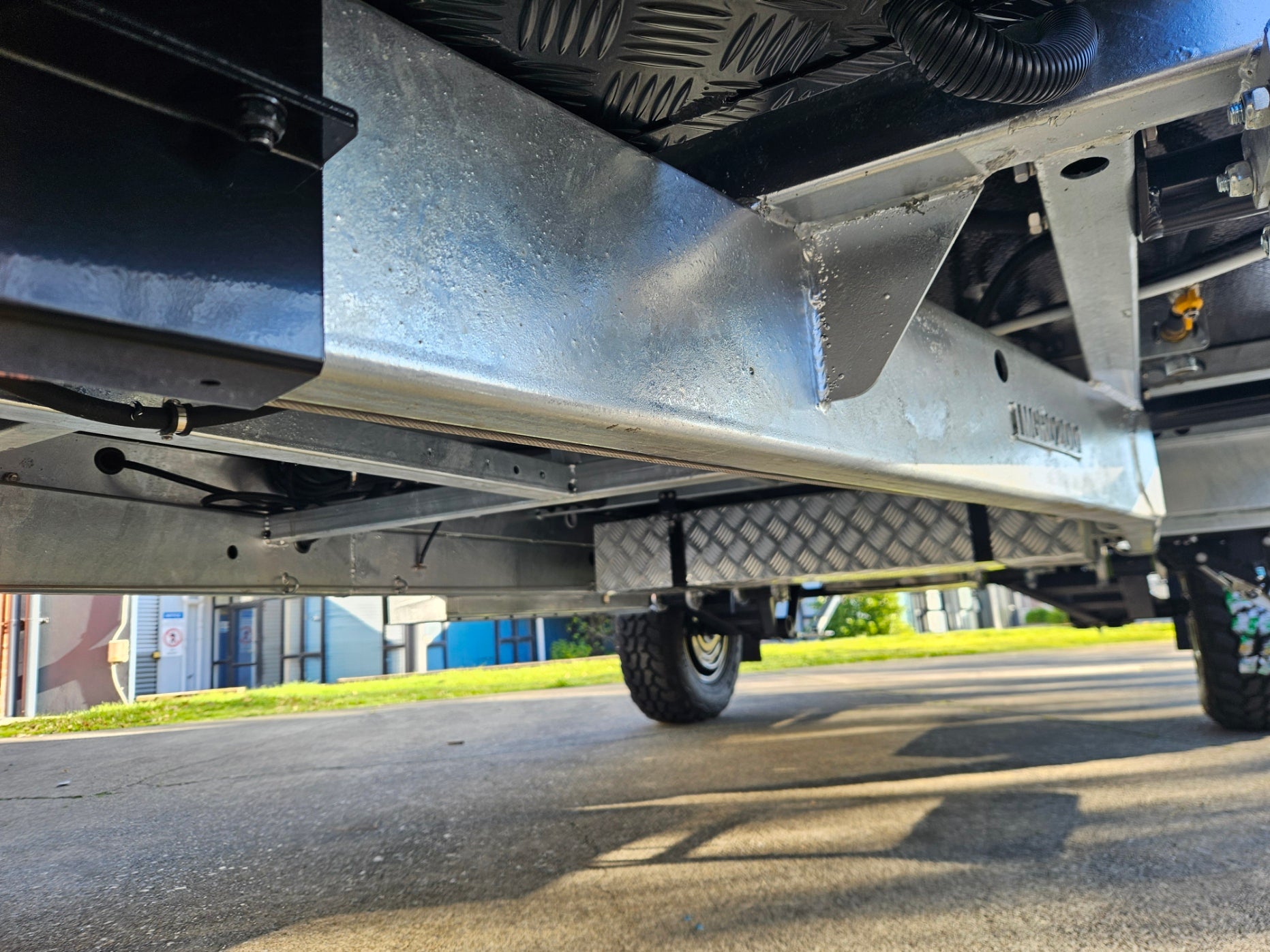

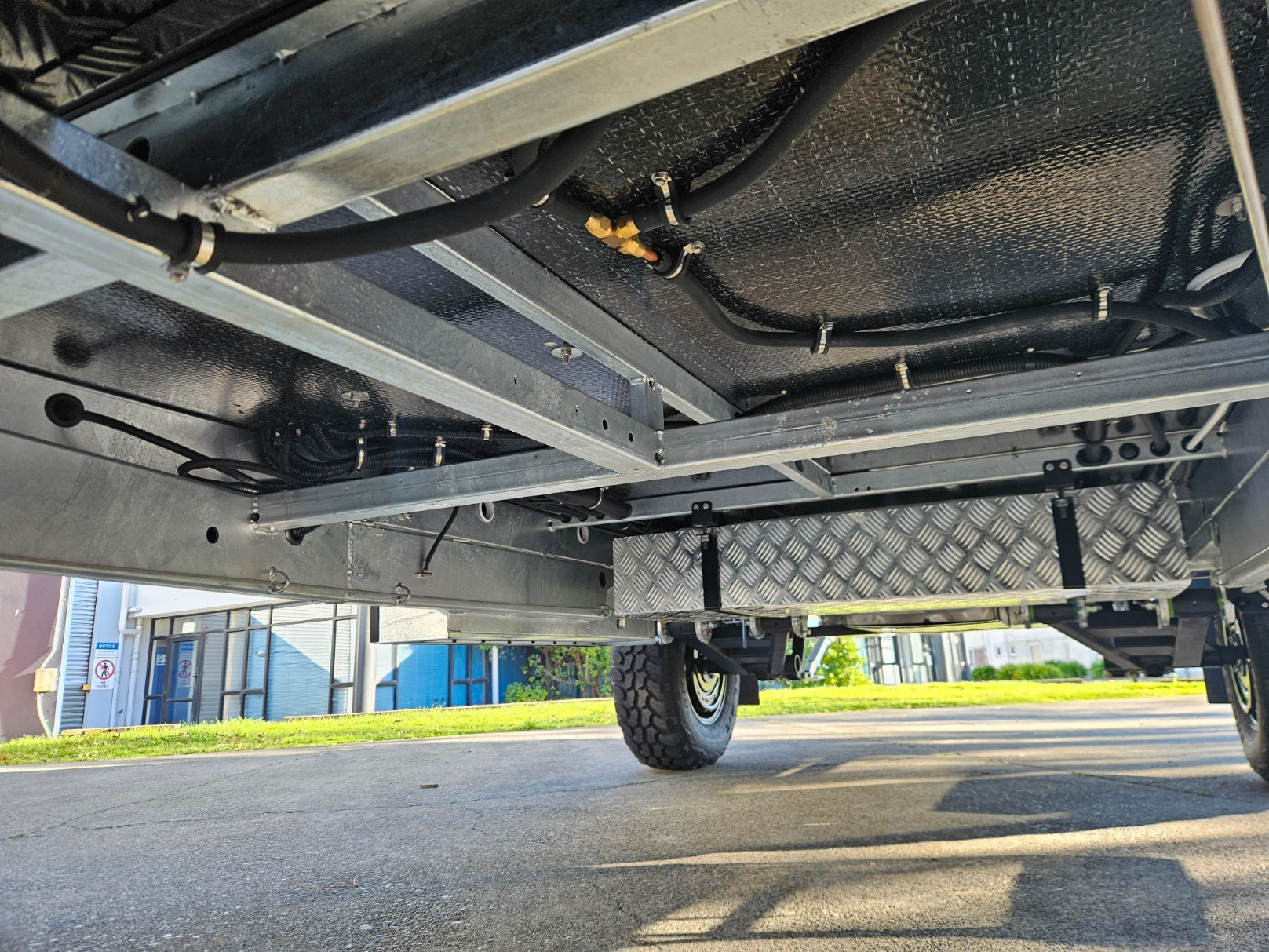

• Chassis Material: Iron tube + hot-dip galvanized tube

• Body Structure: Fiberglass + Aluminium frame + XPS + Fiberglass

• Floor Structure: Plastic honeycomb board with PVC floor adhesive

• Ground Clearance (Drawbar): 548mm

• Checker Plate Height: 590mm

Sleeping

• Sleep Capacity: 3 people

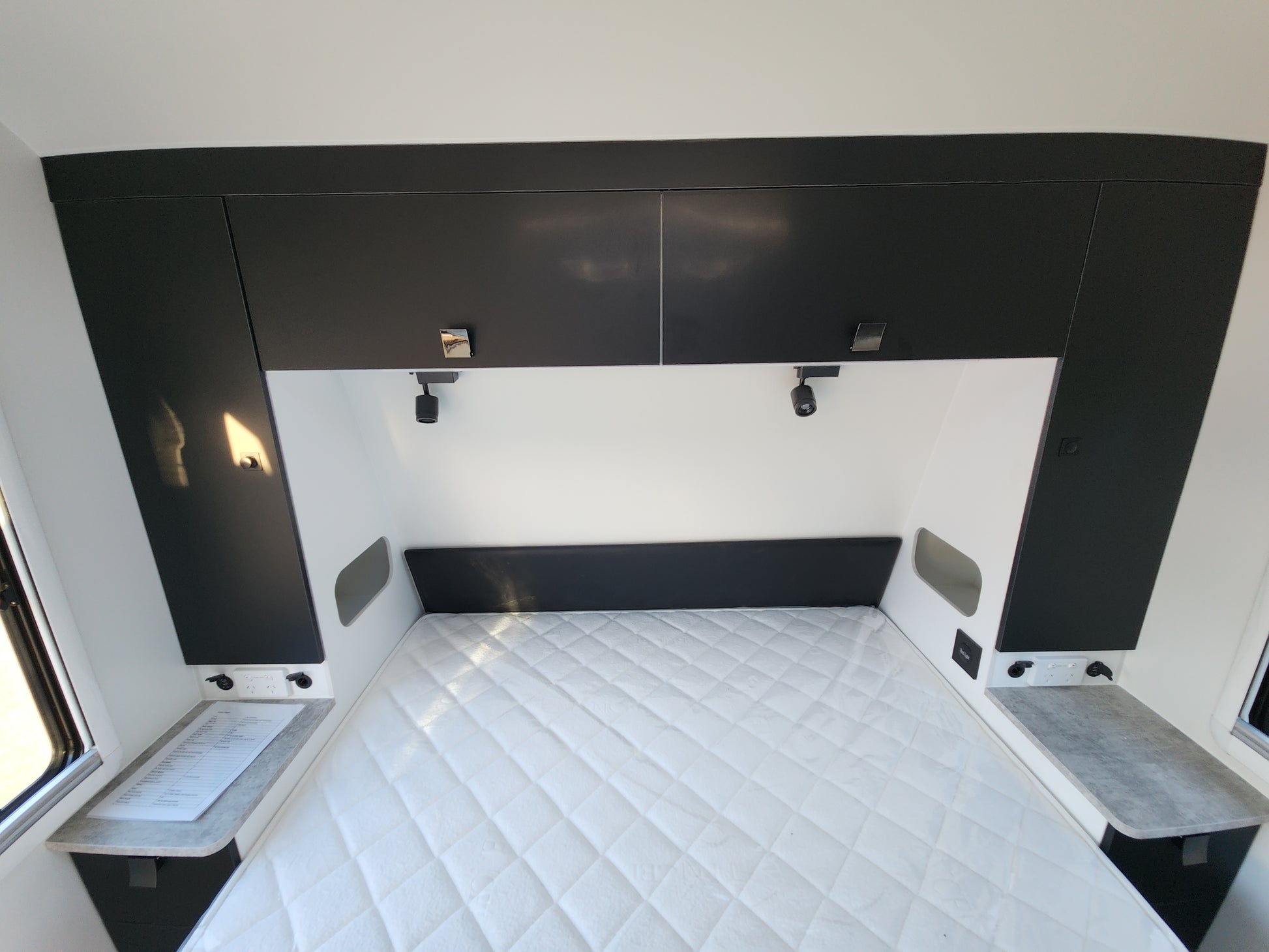

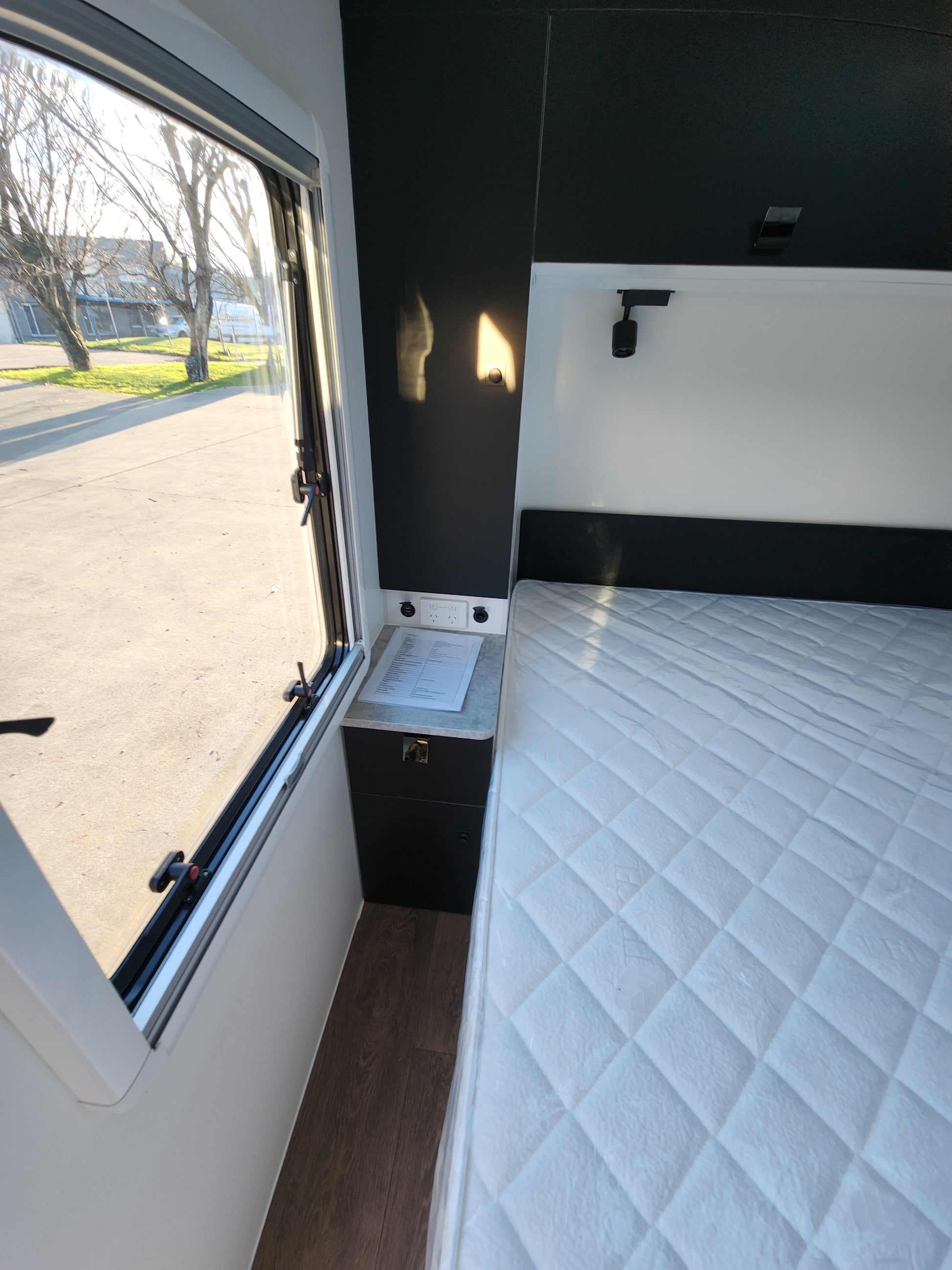

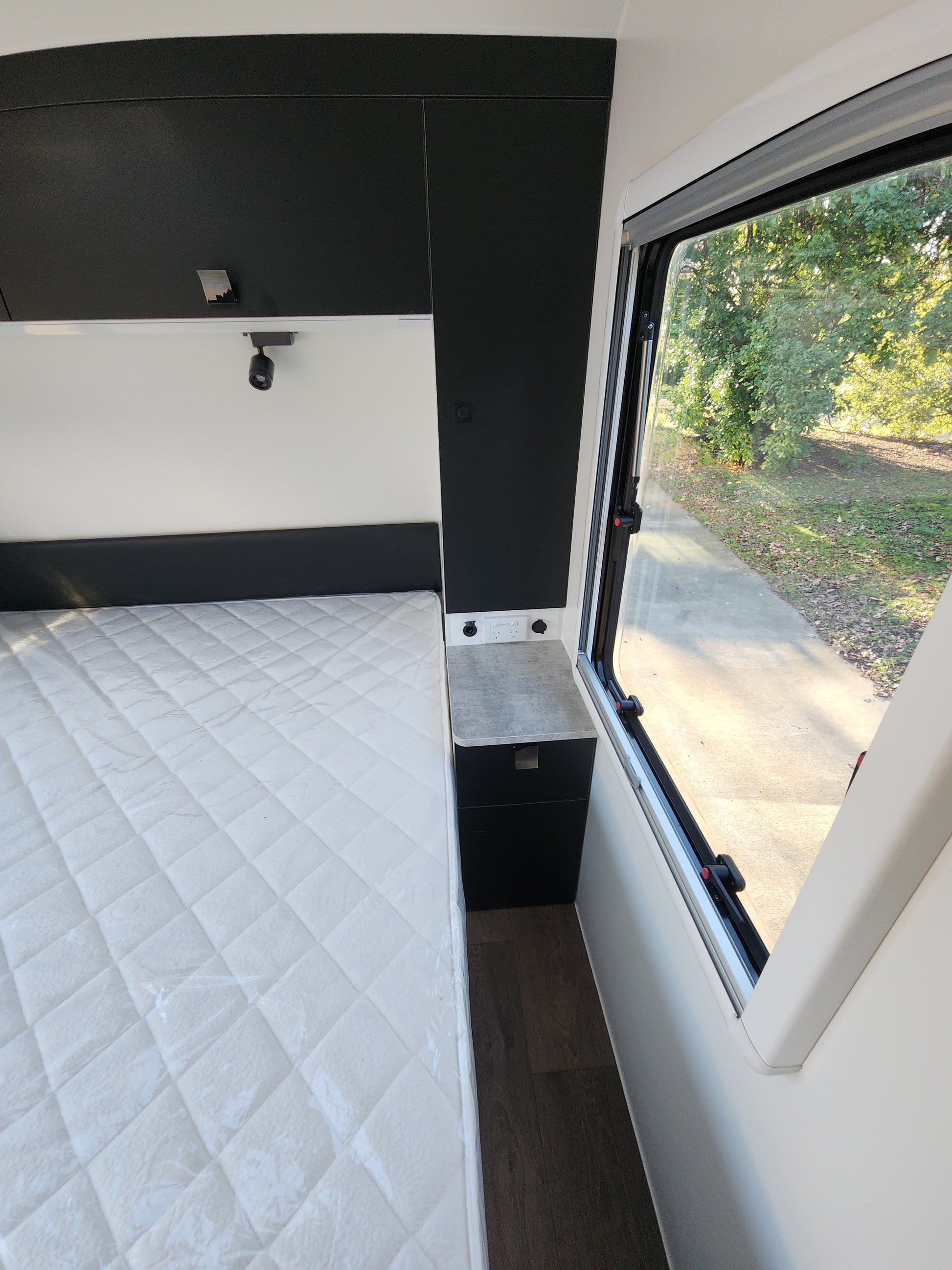

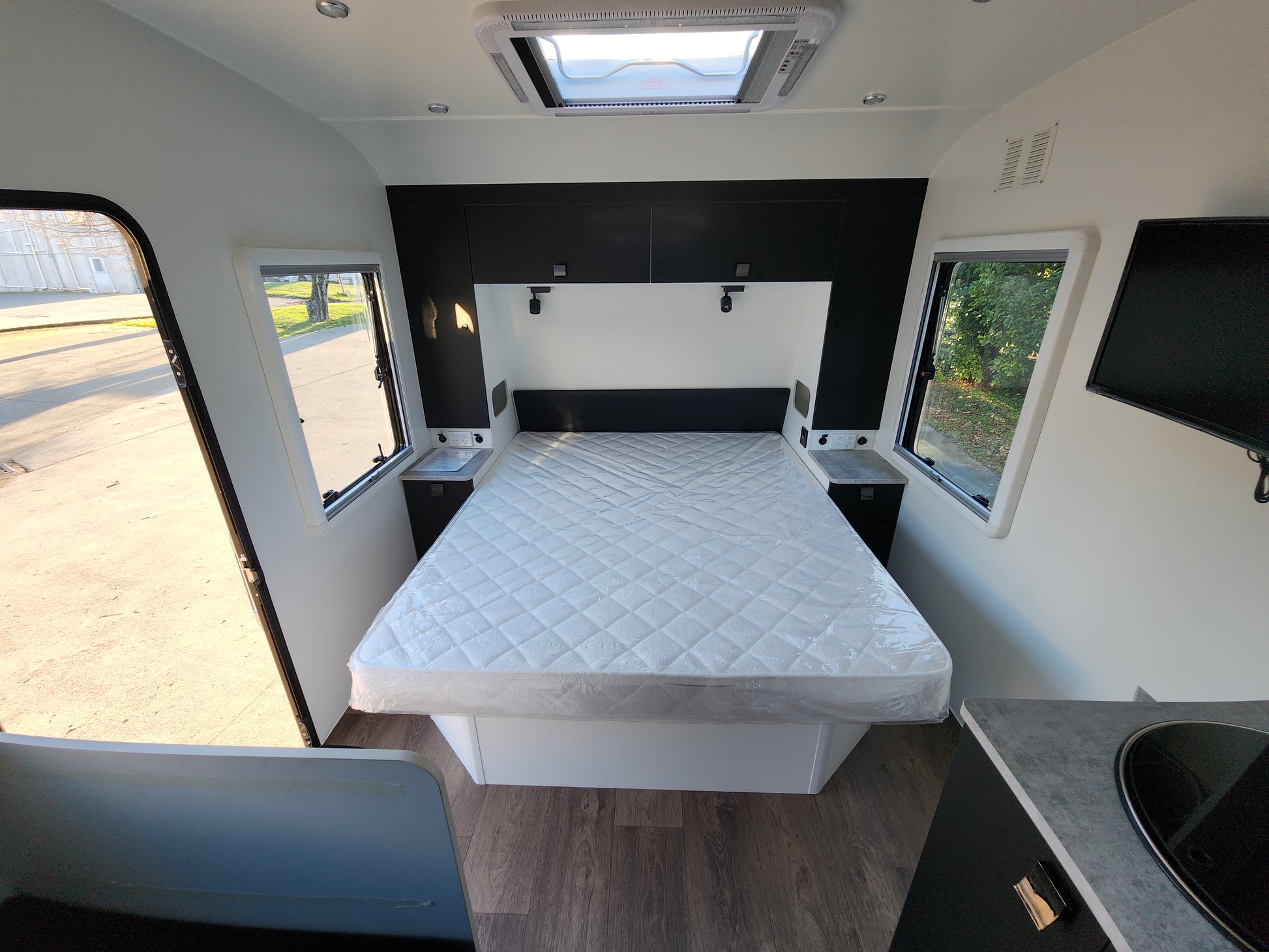

• Double Bed Size: 1900mm × 1500mm

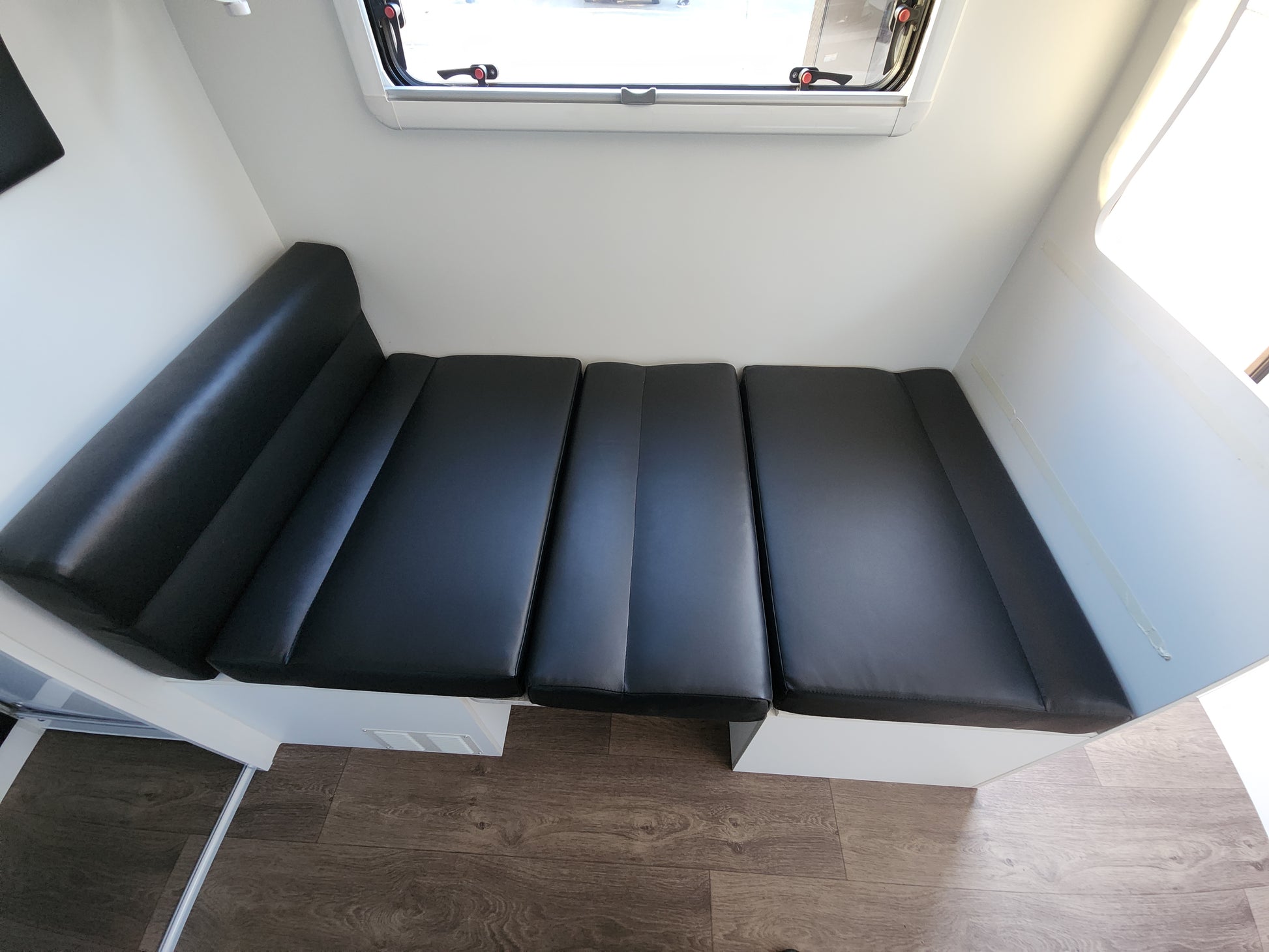

• Sofa Bed Size: 1540mm × 800mm

• Mattress Material: Sponge + Latex pad

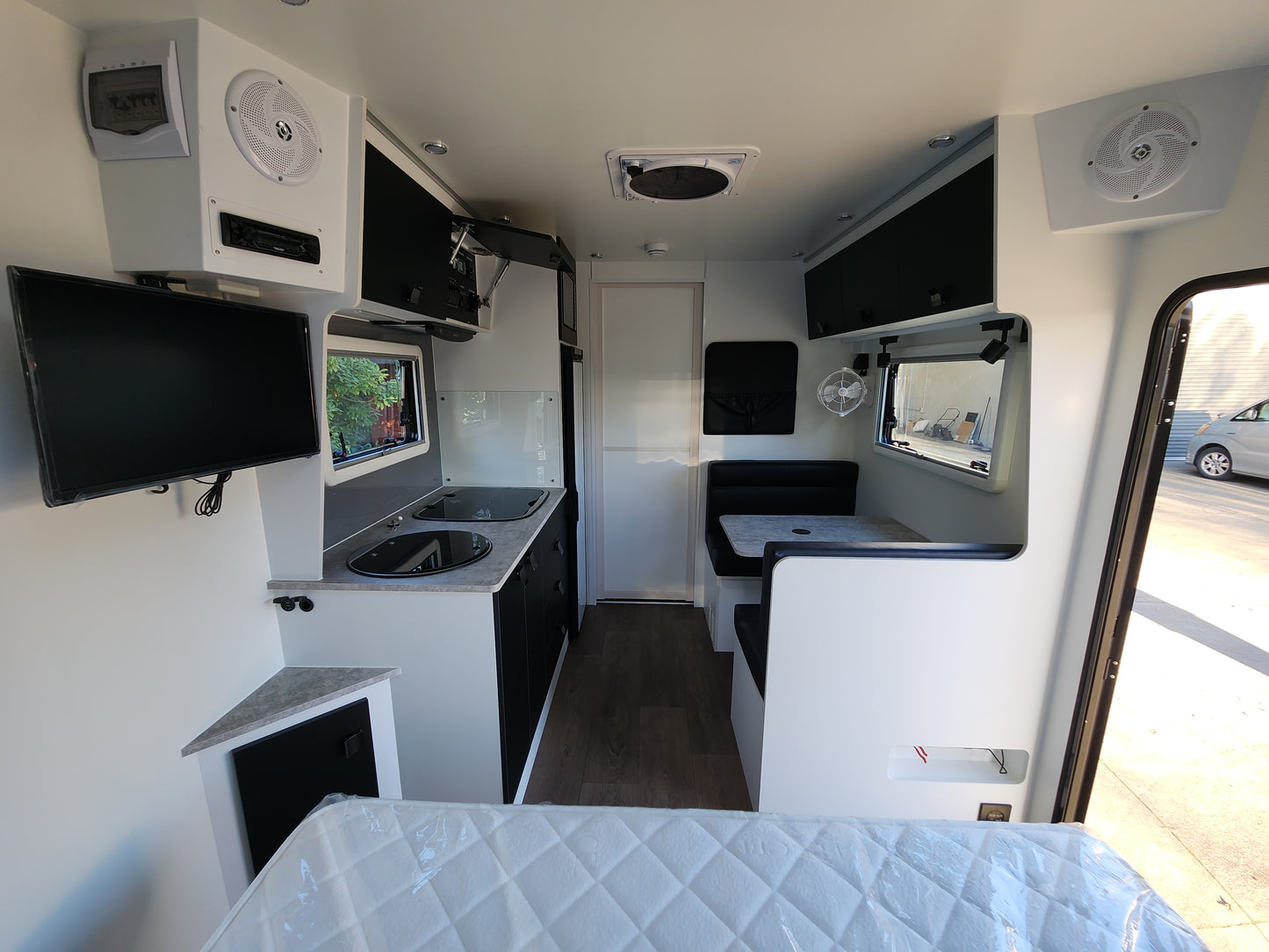

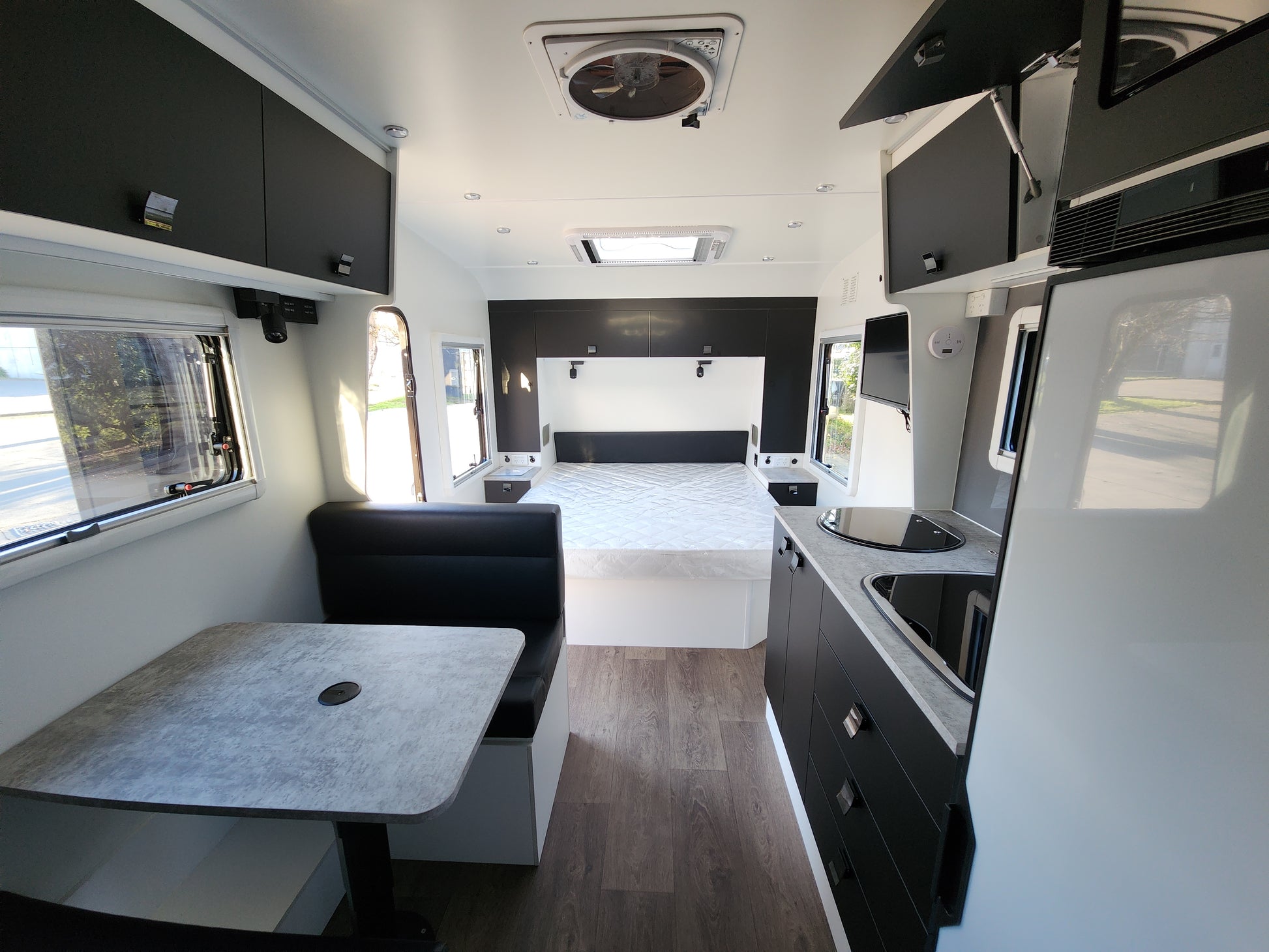

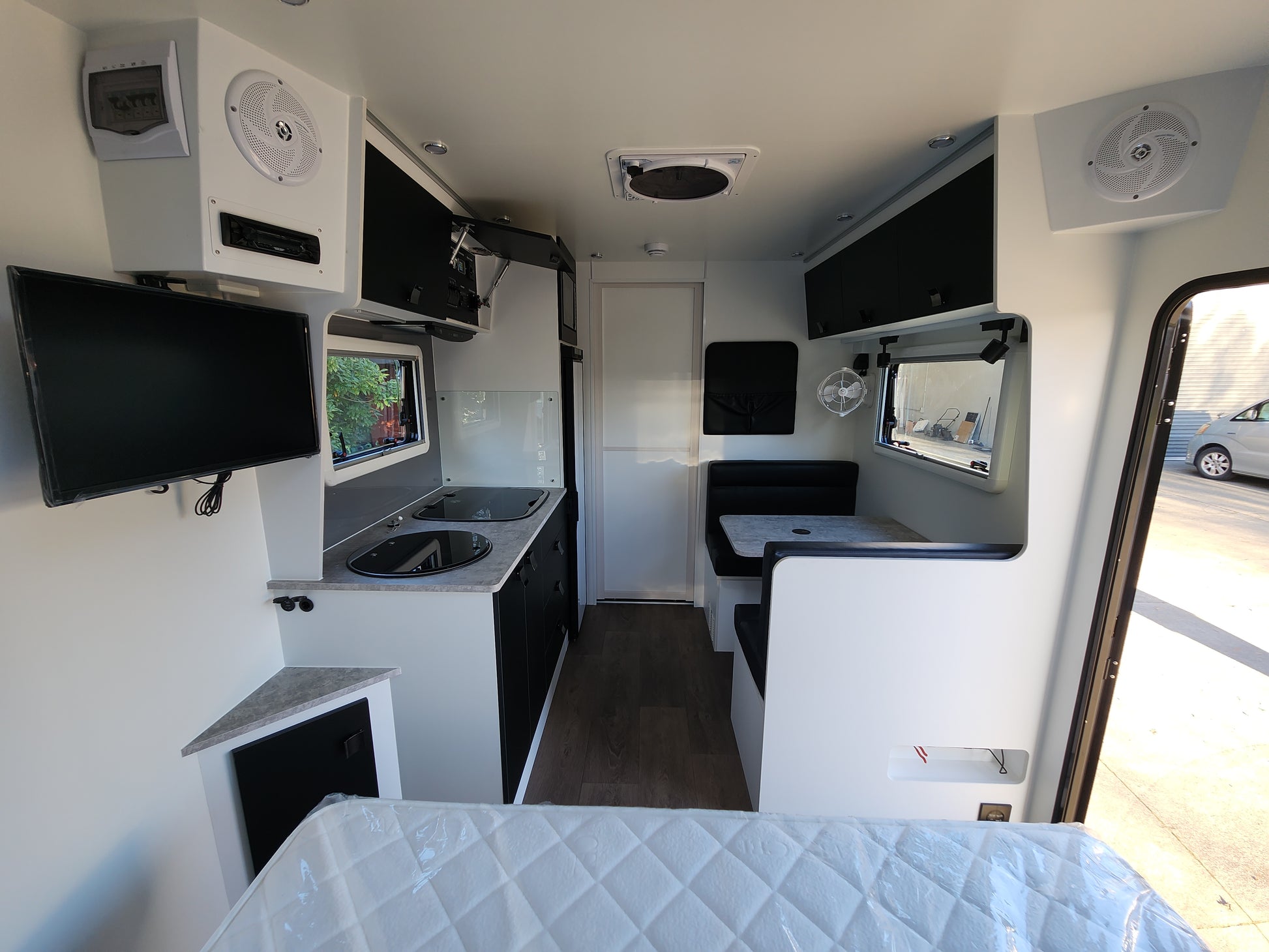

Living & Kitchen Area

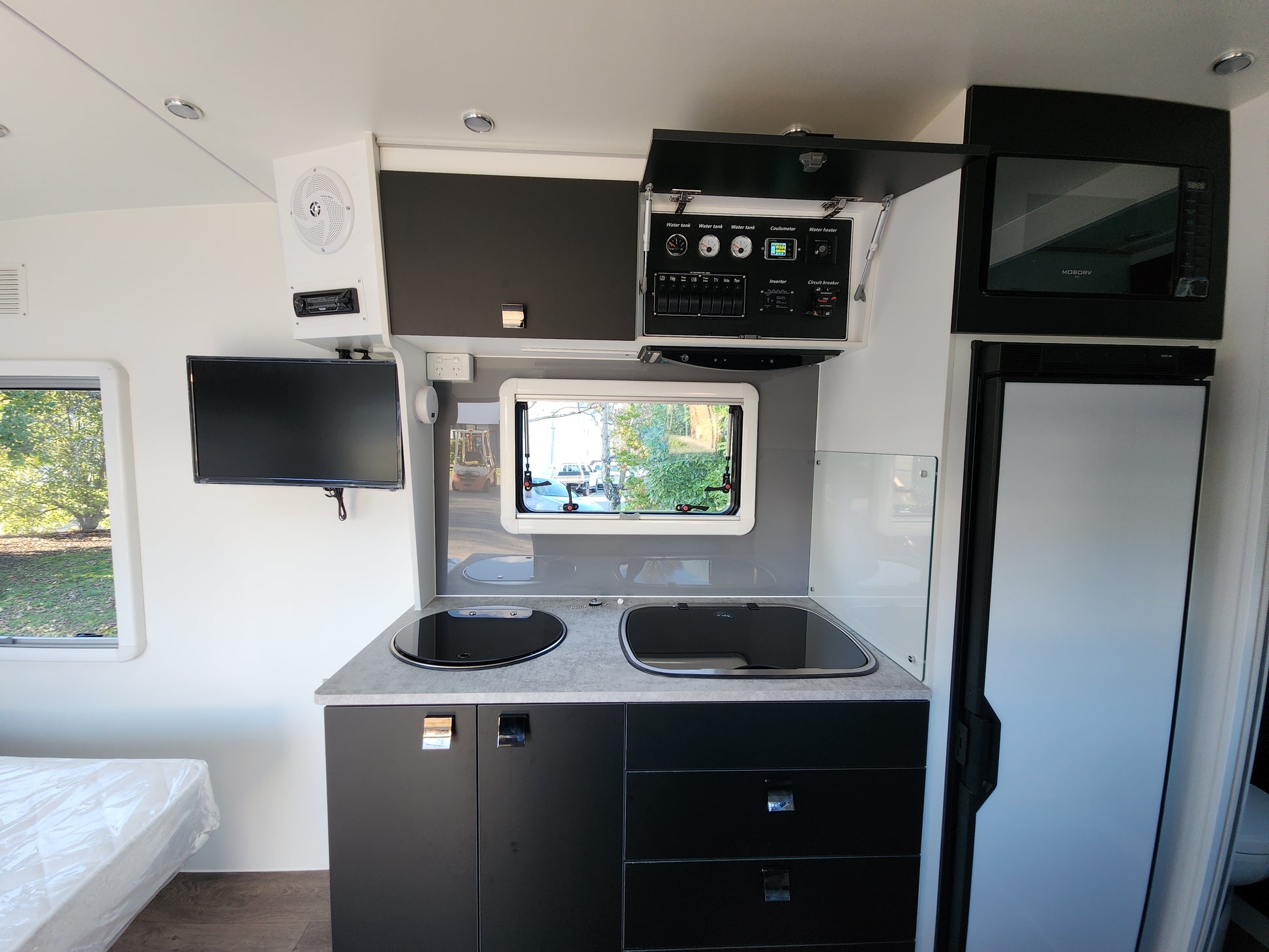

• Kitchen Area Size: 1540mm × 800mm

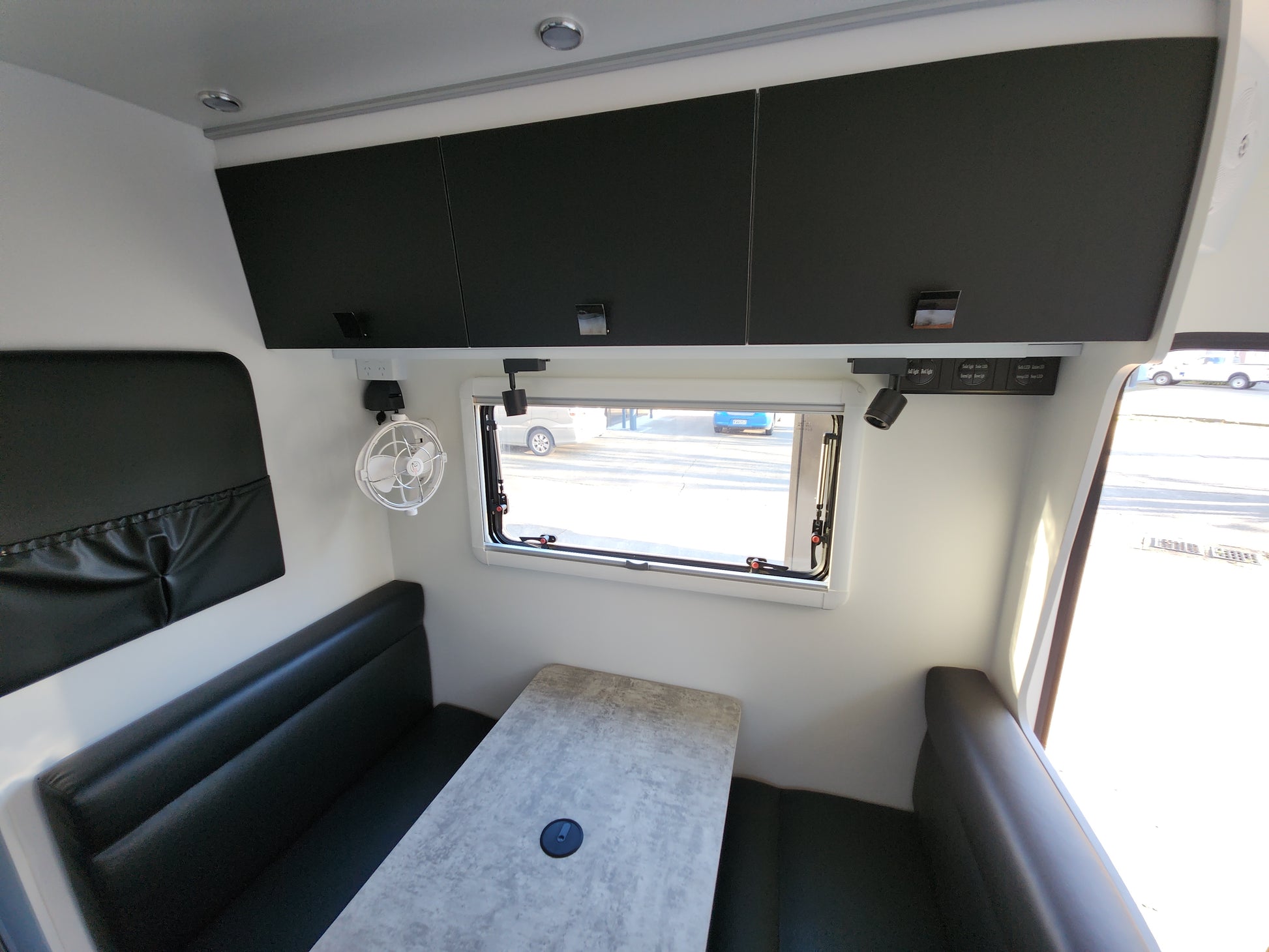

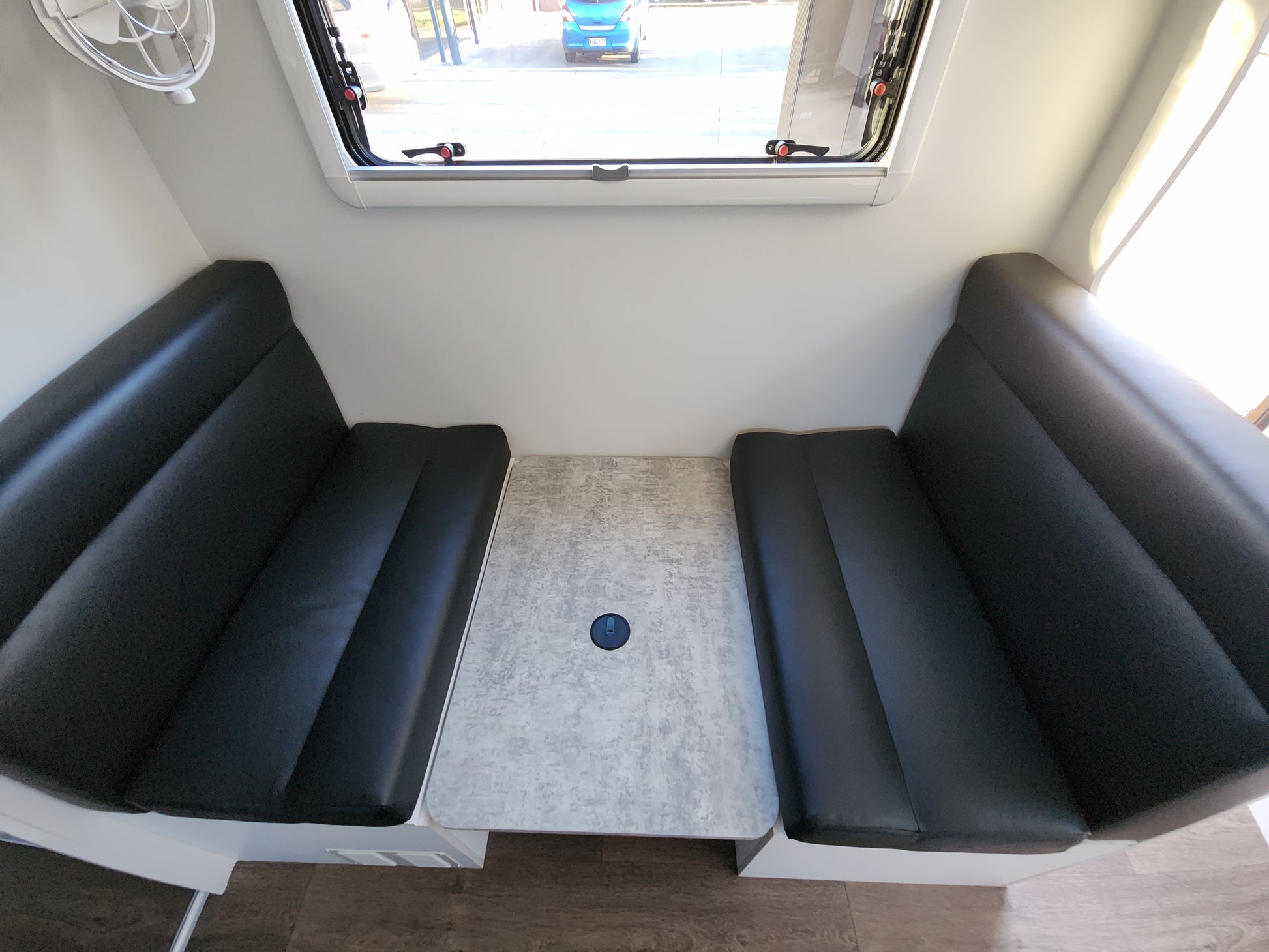

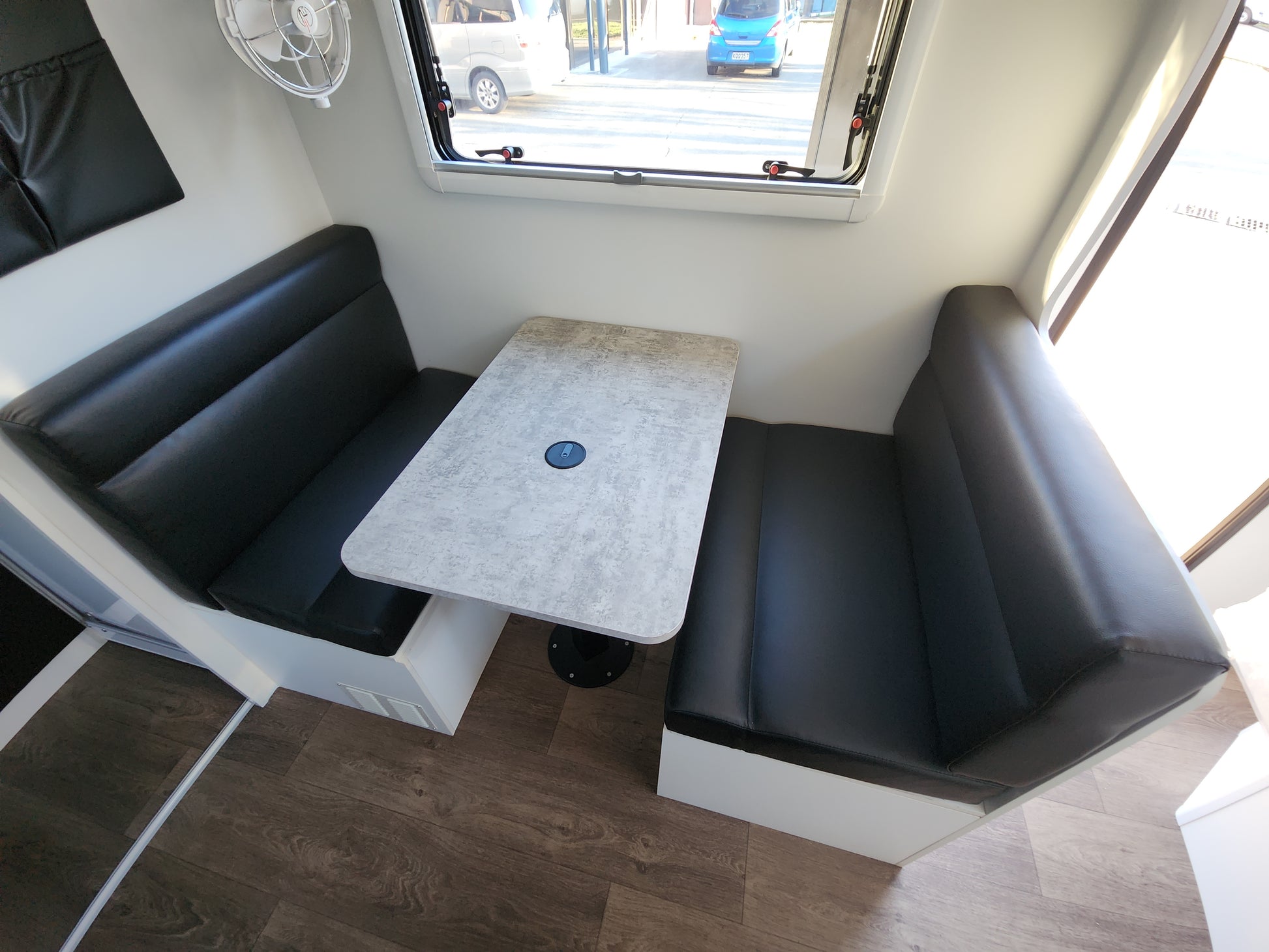

• Table: Pneumatic lifting table

• Sofa Seating Capacity: 4

• Sofa Material: Black artificial leather

Tow System

• Hitch: New Zealand standard

• Safety Chains: 2

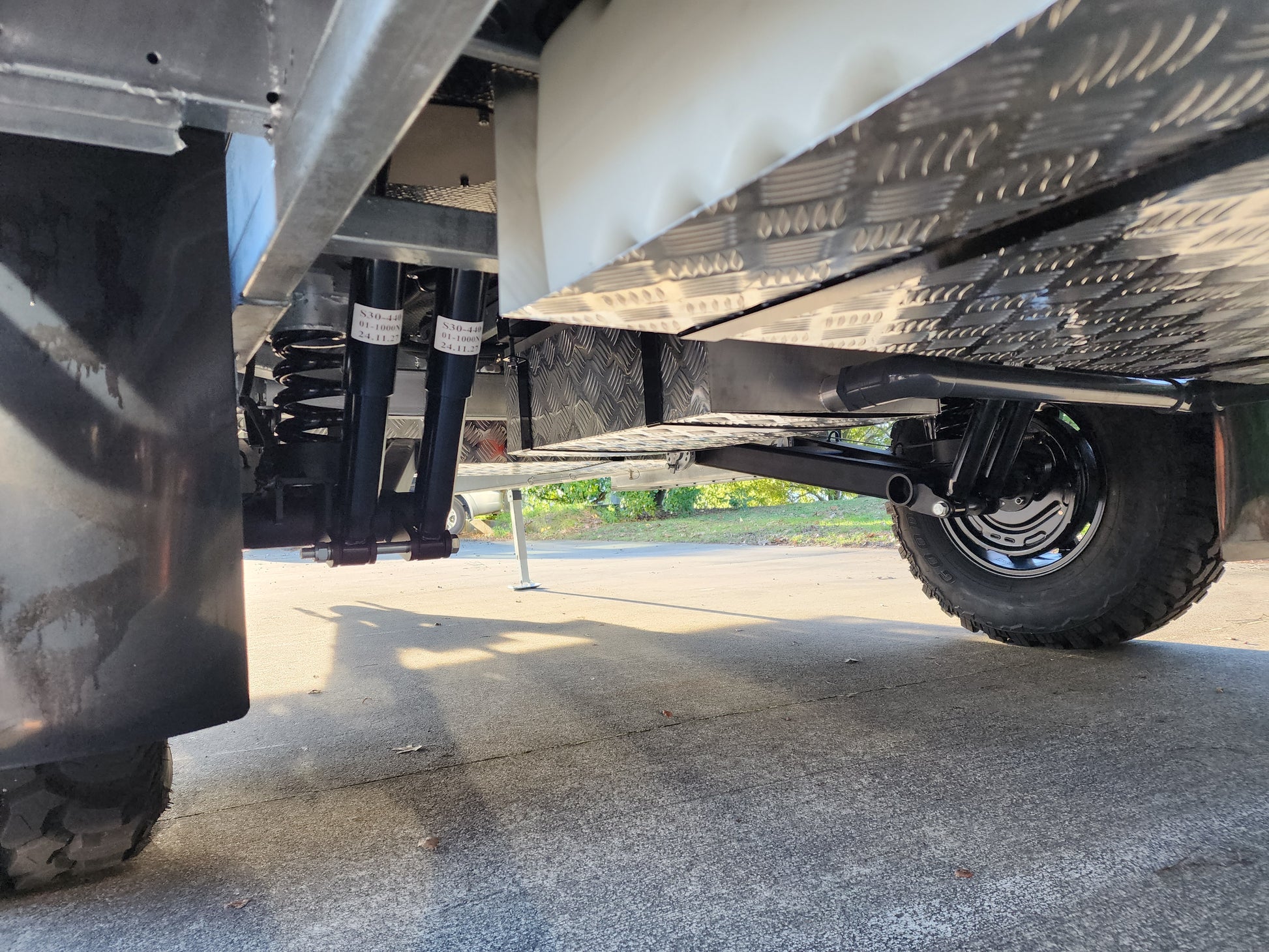

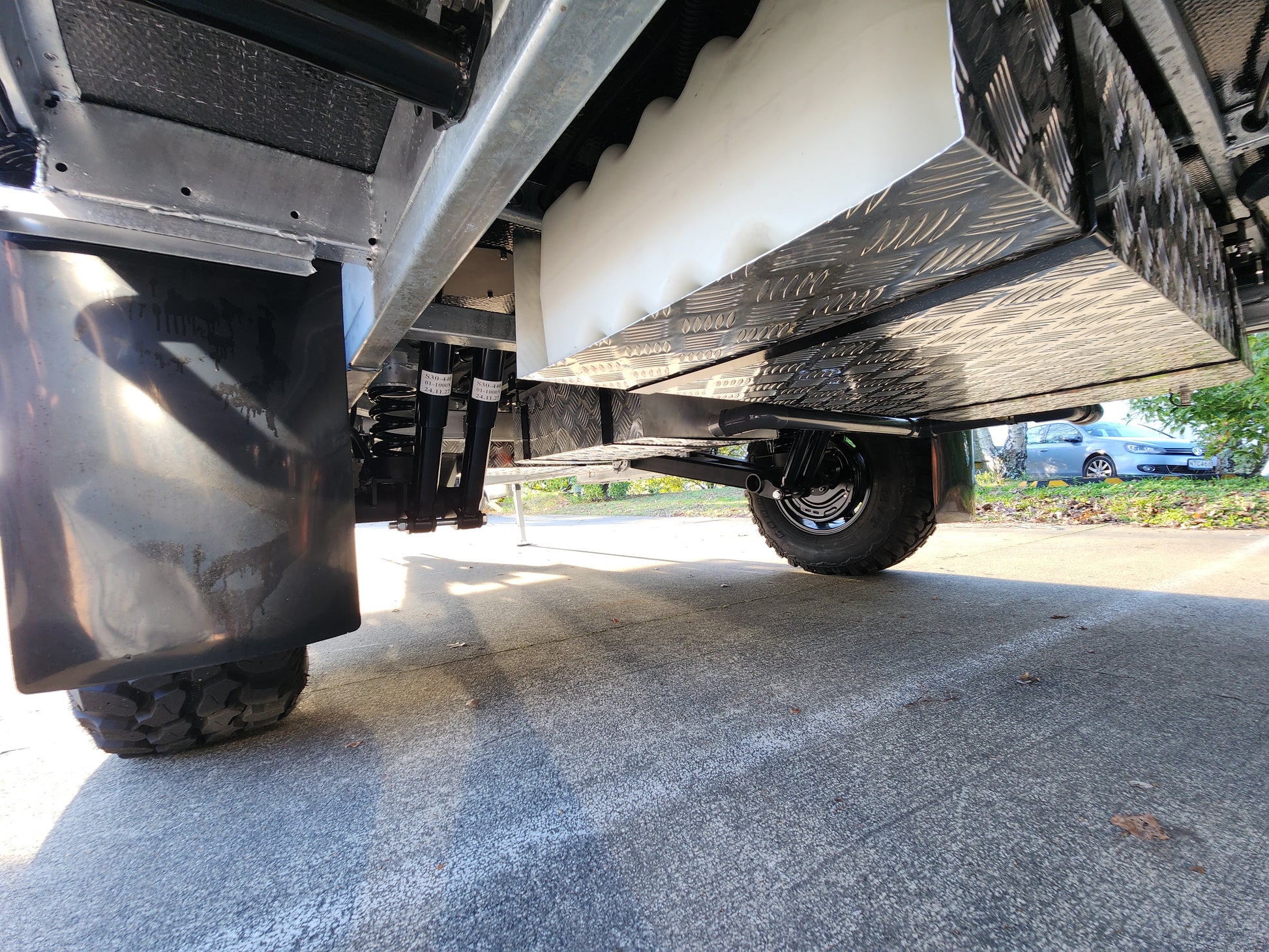

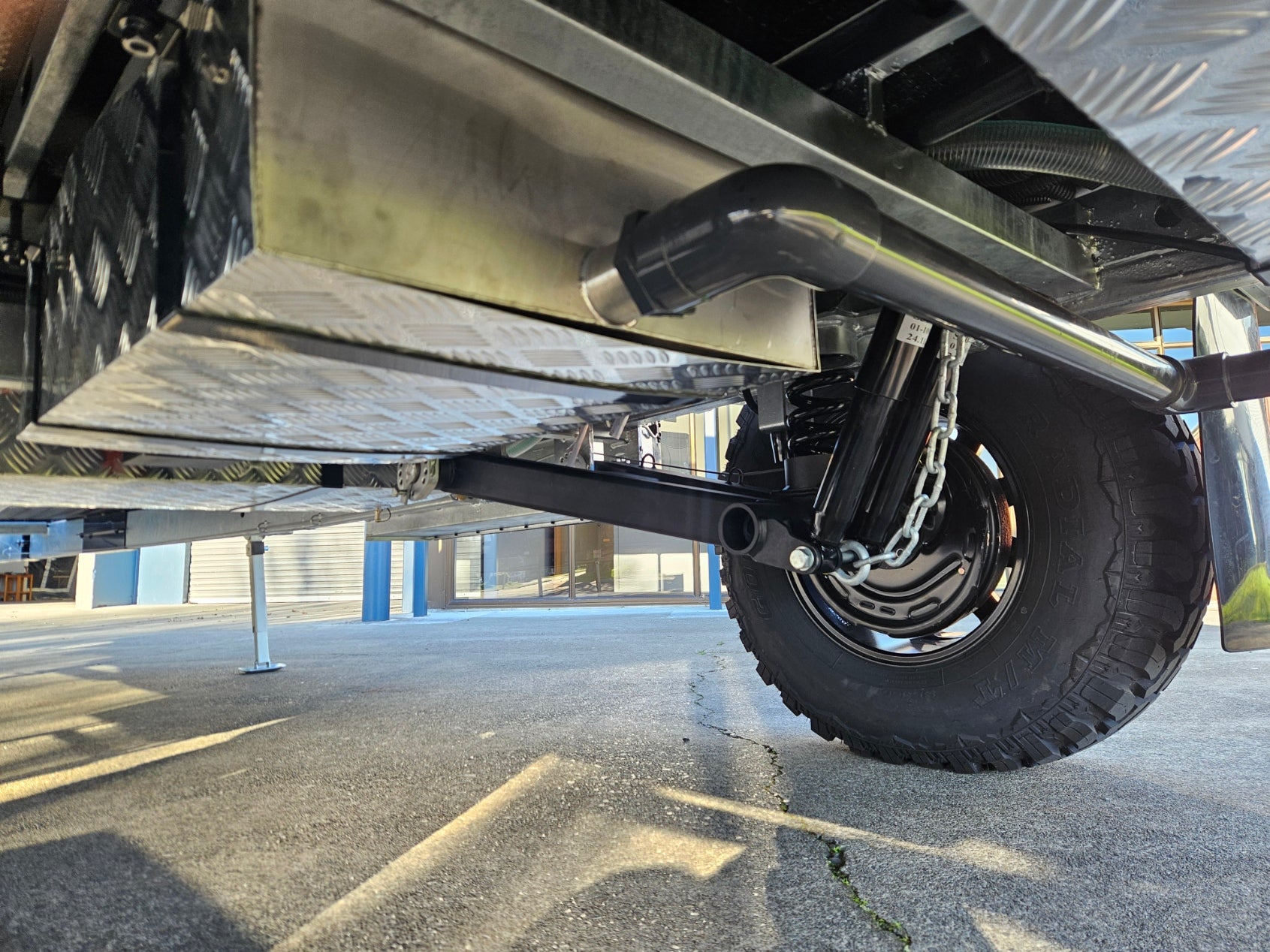

Axle & Suspension

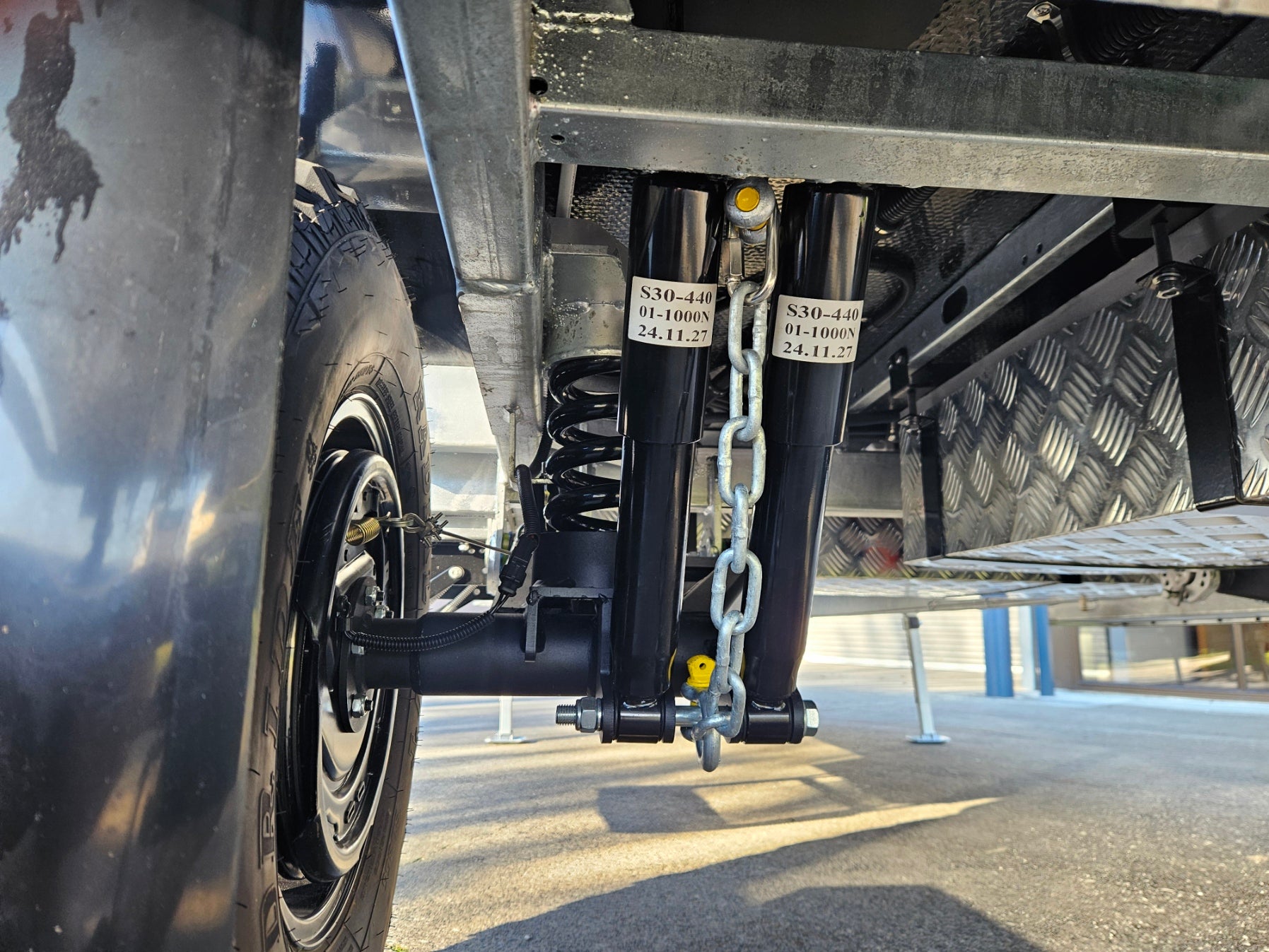

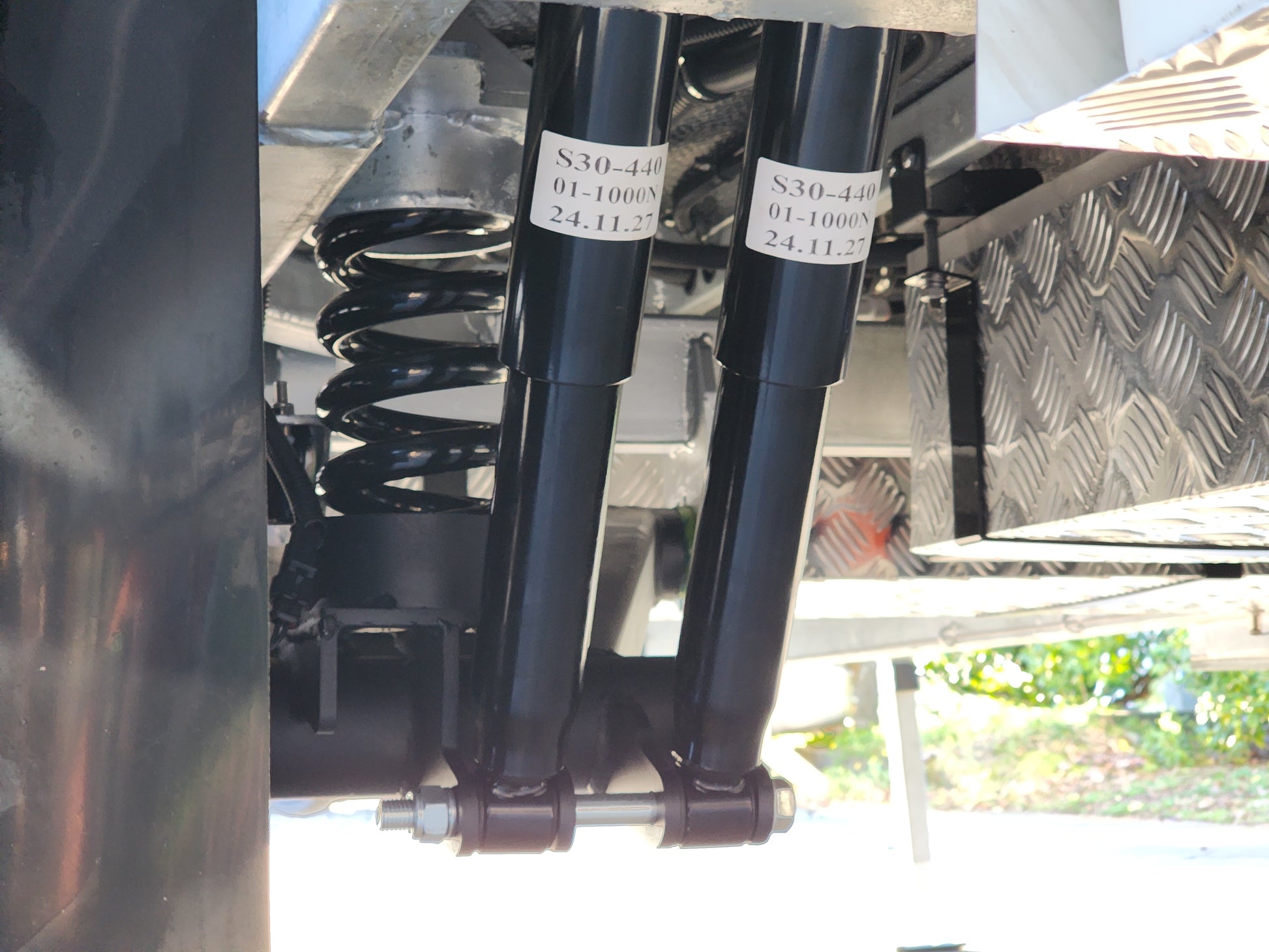

• Suspension: Independent suspension system

• Axle Type: Single axle, 60-round steels

• Braking: 12" electric brakes with manual handbrake

• Wheel Hub: 16" aluminium alloy

• Tyres: 265/75R16

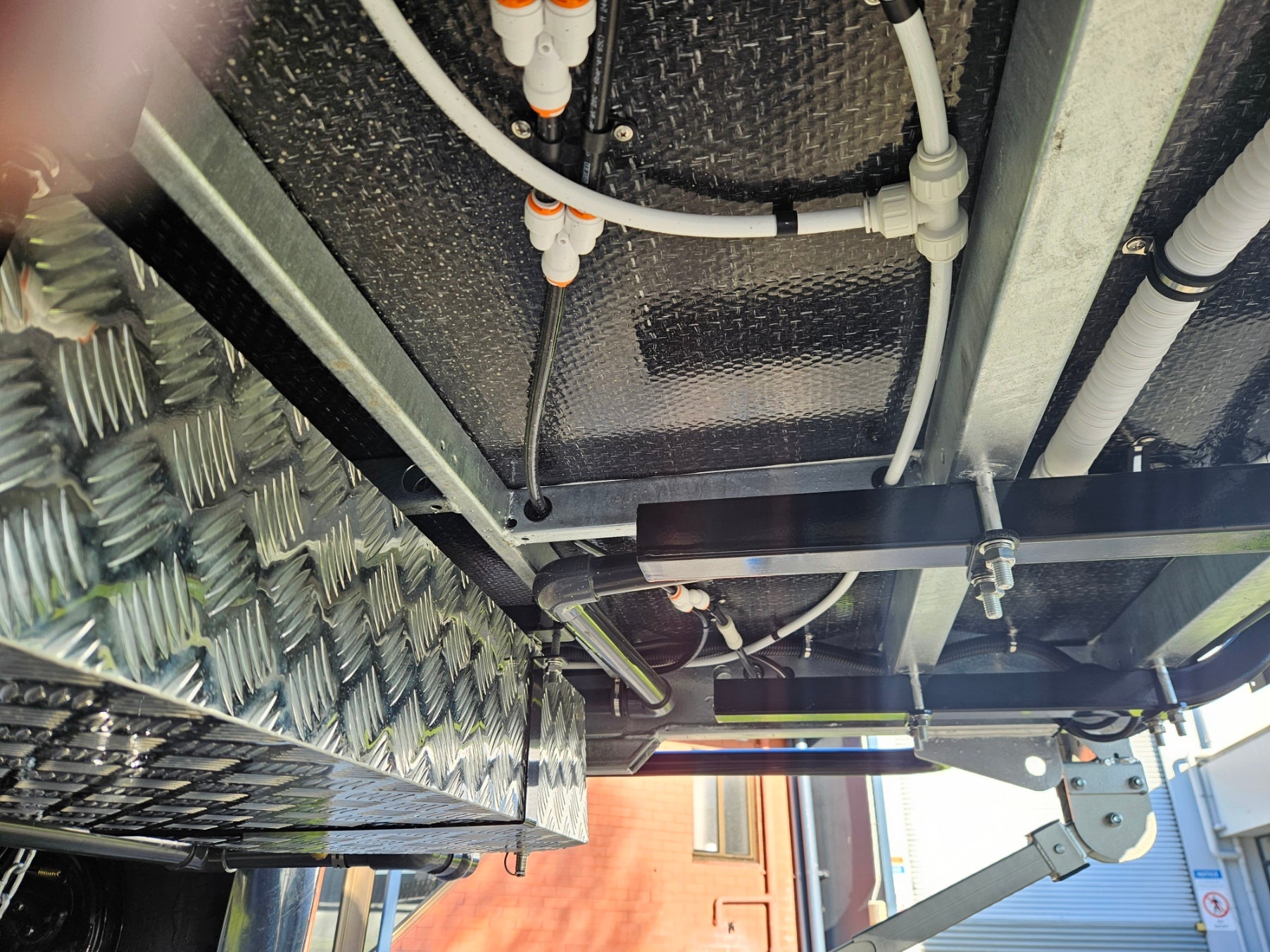

Water System

• Fresh Water Tanks: 2 × 95L PE tanks

• Grey Water Tank: 125L

• Water Heater: 14L Truma

• Water Pump: 12V, 11.3 LPM

• Water Inlet: PE water inlet

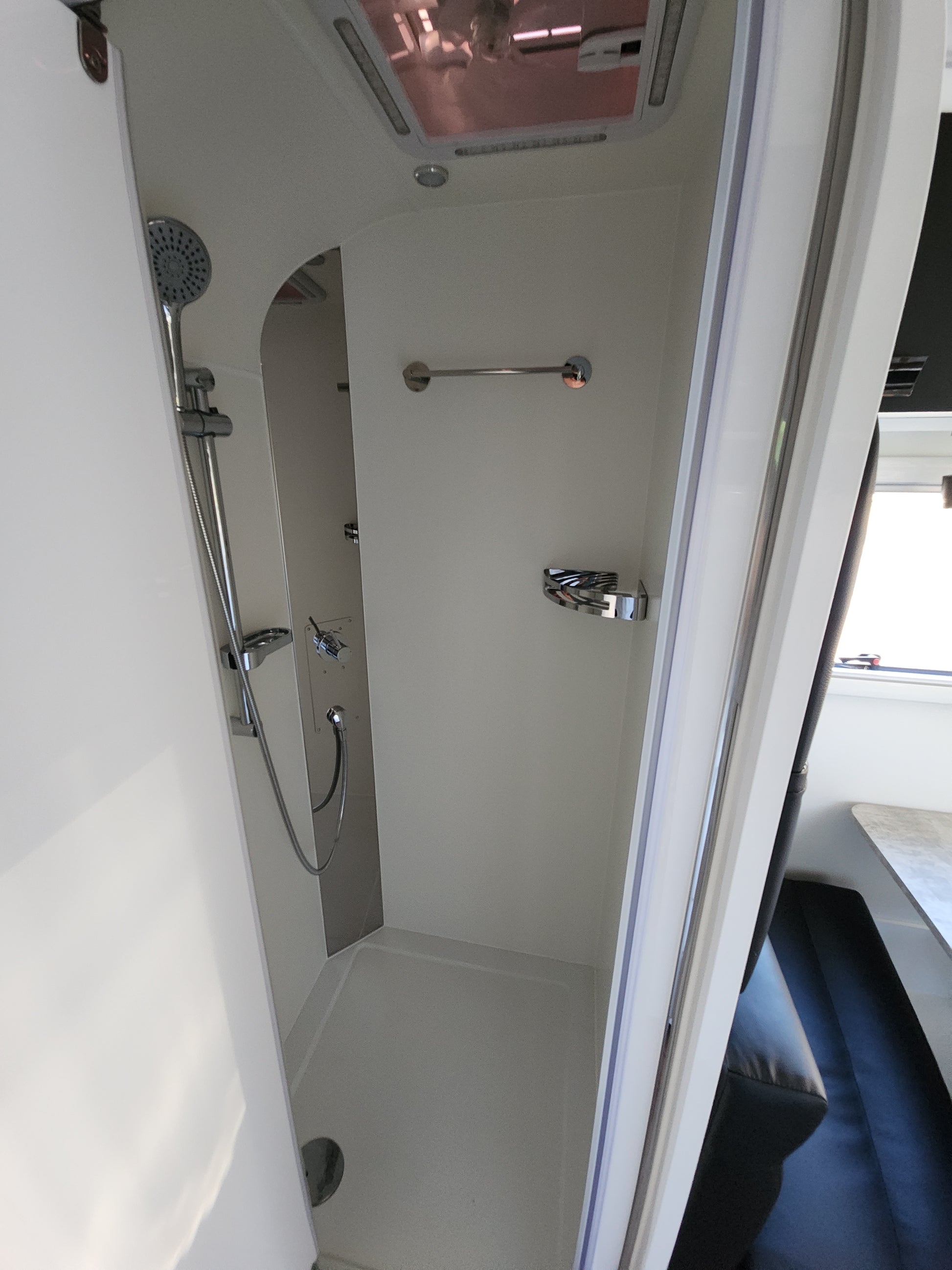

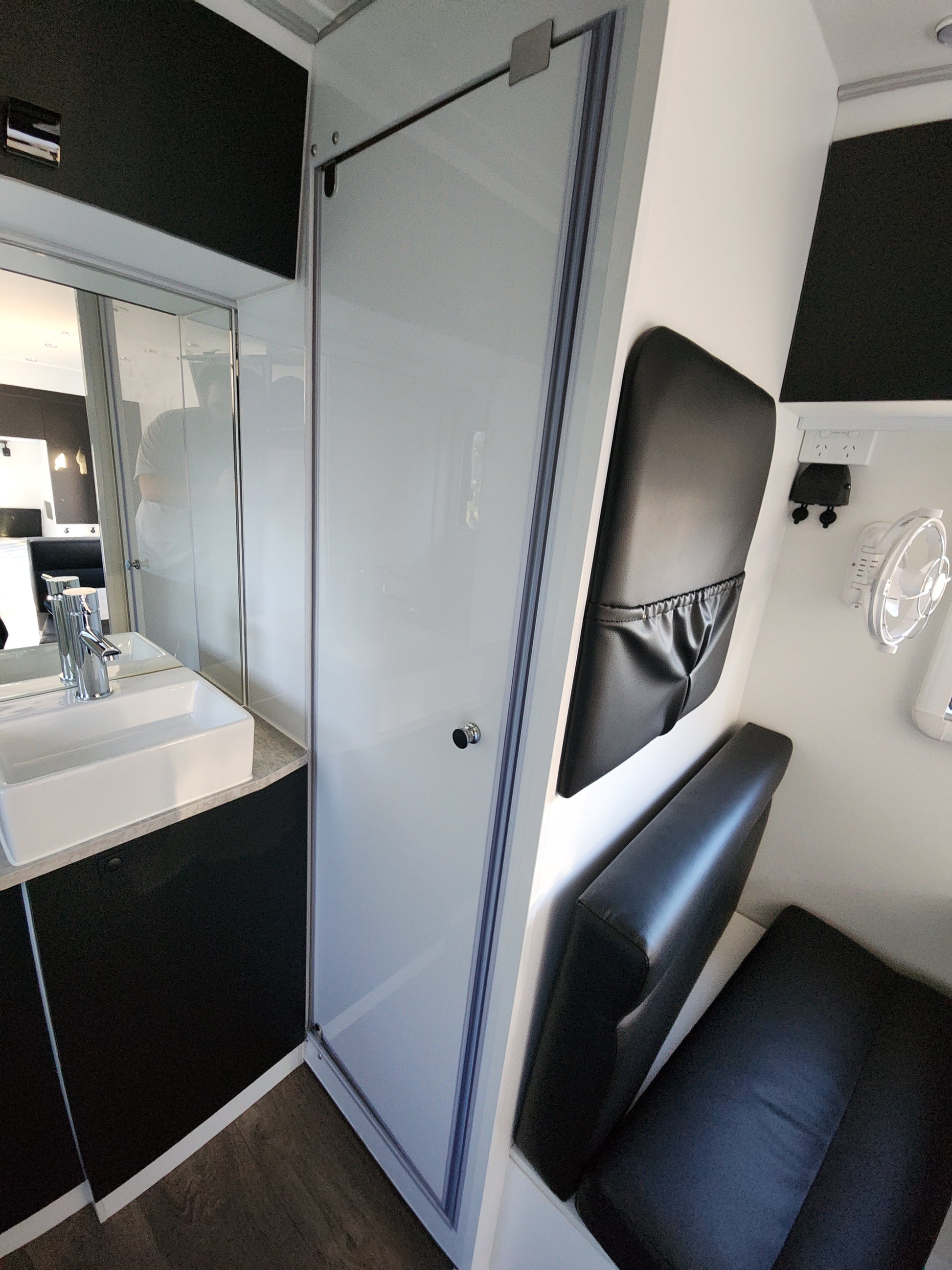

• Bathroom: One-piece fiberglass

• Faucets: Hot and cold

• Sewage Valve: Included

• Shower: External box with hot and cold water

• Additional Taps: External single-cooling brass faucet

• Sink: With cover

Gas System

• Gas Bottle Rack: 2 × 9kg

• Gas System: All copper pipe system

Electrical System

• Front Connector: 7-core flat connector

• Anderson Plug: 50A

• Emergency Brake System: Included

• Battery: 1 × 200AH Lithium

• Inverter: 12V to 240V, 2000W sine wave with charging

• Solar Controller: 20A

• Solar Panels: 3 × 100W (12V each)

• Power Monitoring: Digital electricity meter

• Water Level Monitoring: Fresh and grey tank level display

• External Mains Socket: 220V–240V, 16A

• Charging Cable: 10m

• Circuit Breakers: 240V and 12V

• Power Outlets: 5 × 110–240V, 4 × USB

• External Outlets: 1 × 240V, 1 × USB, 1 × Cigarette lighter

• Lighting: LED

• Reversing Camera: Included

Electric Facilities

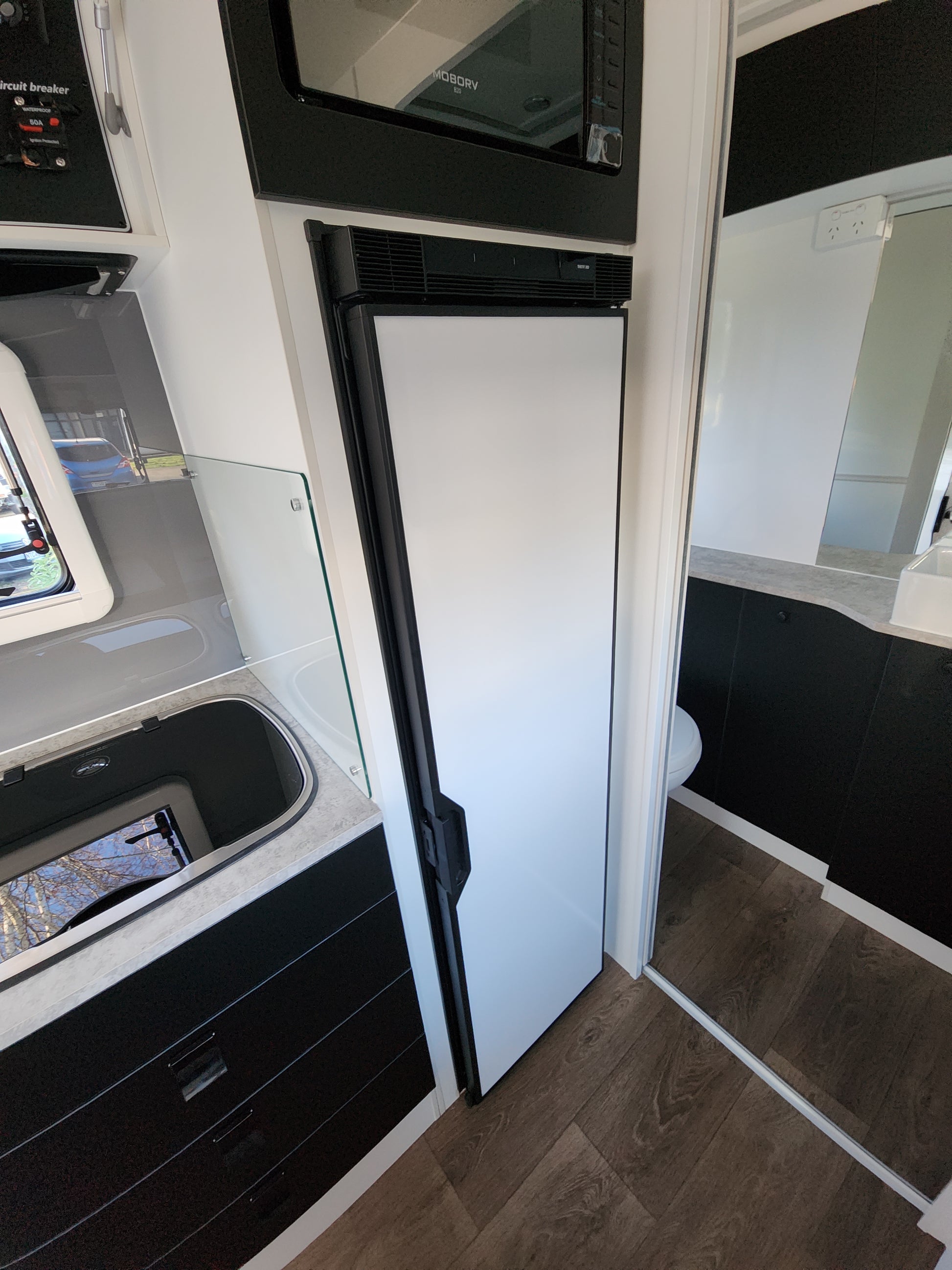

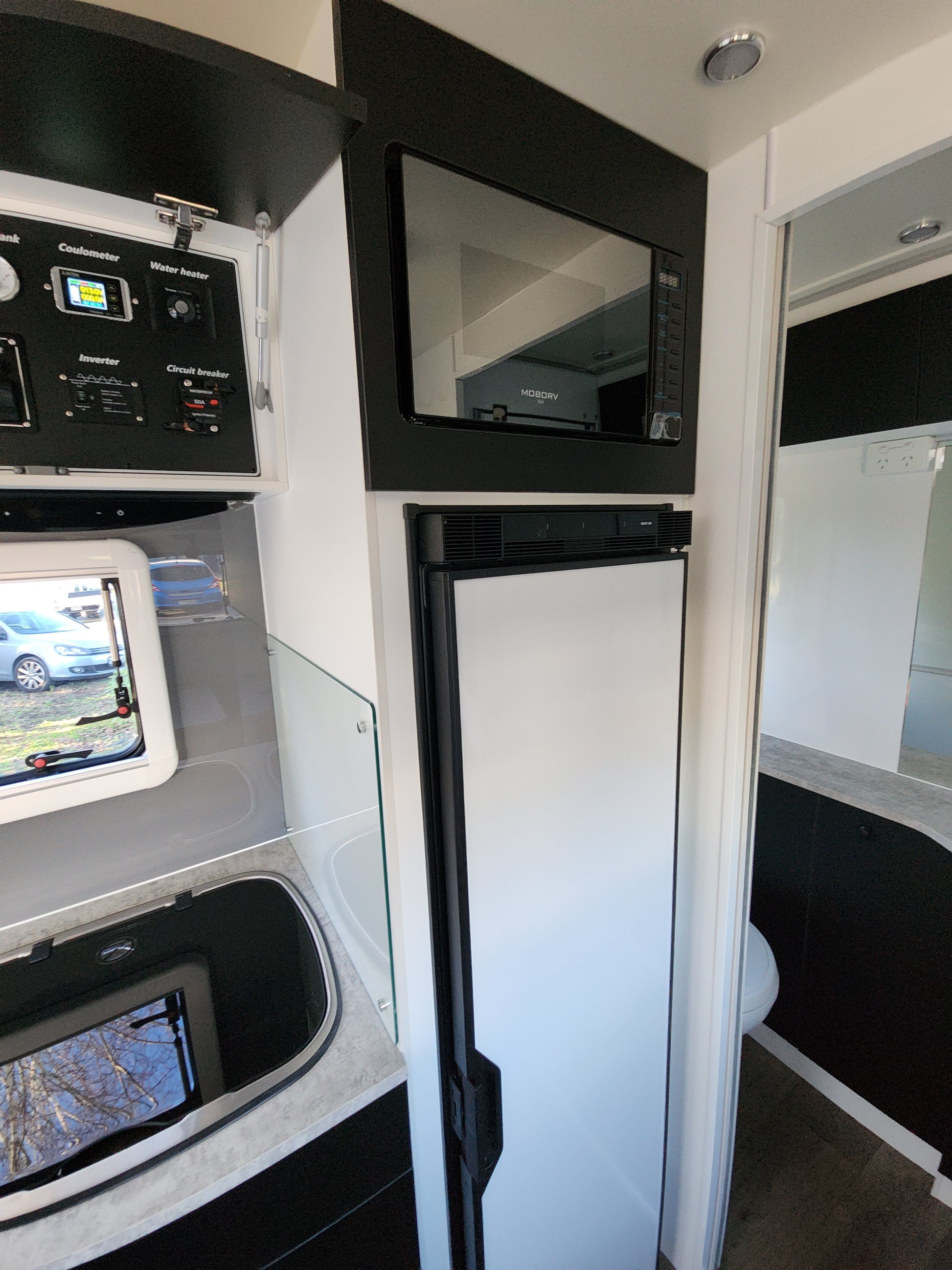

• Fridge: Thetford 152L

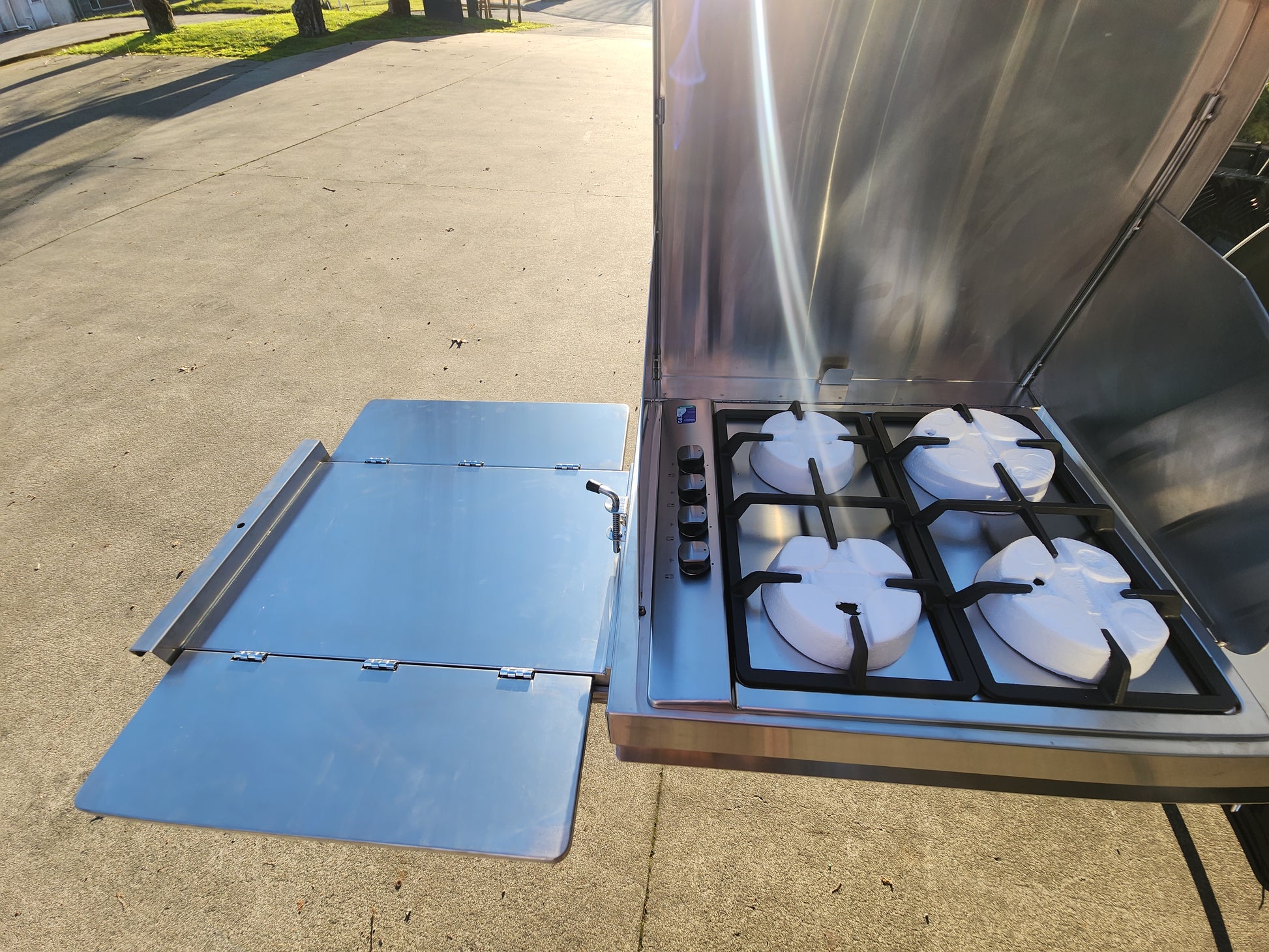

• Cooktop: Thetford four-head burner (oven upgrade available)

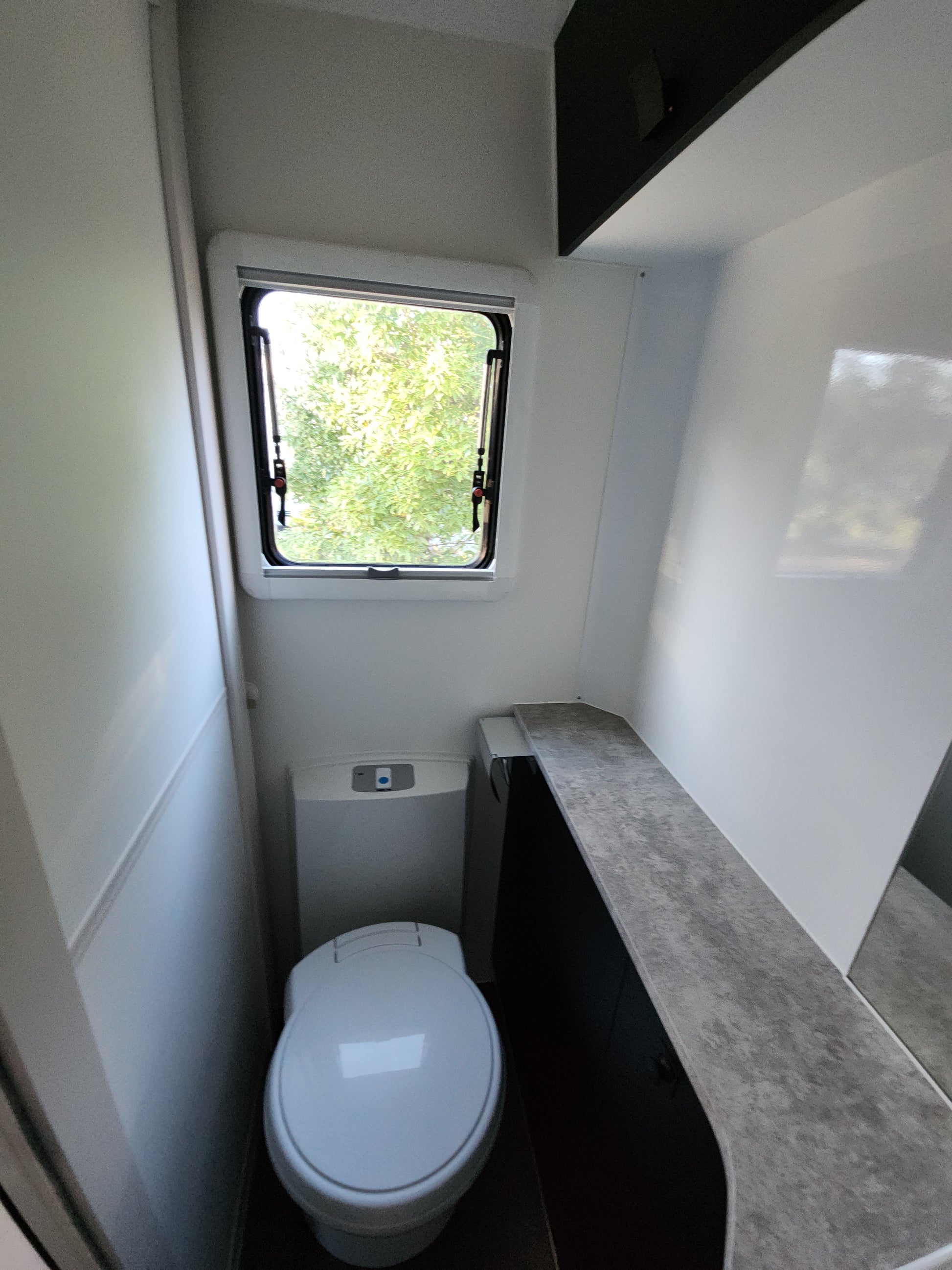

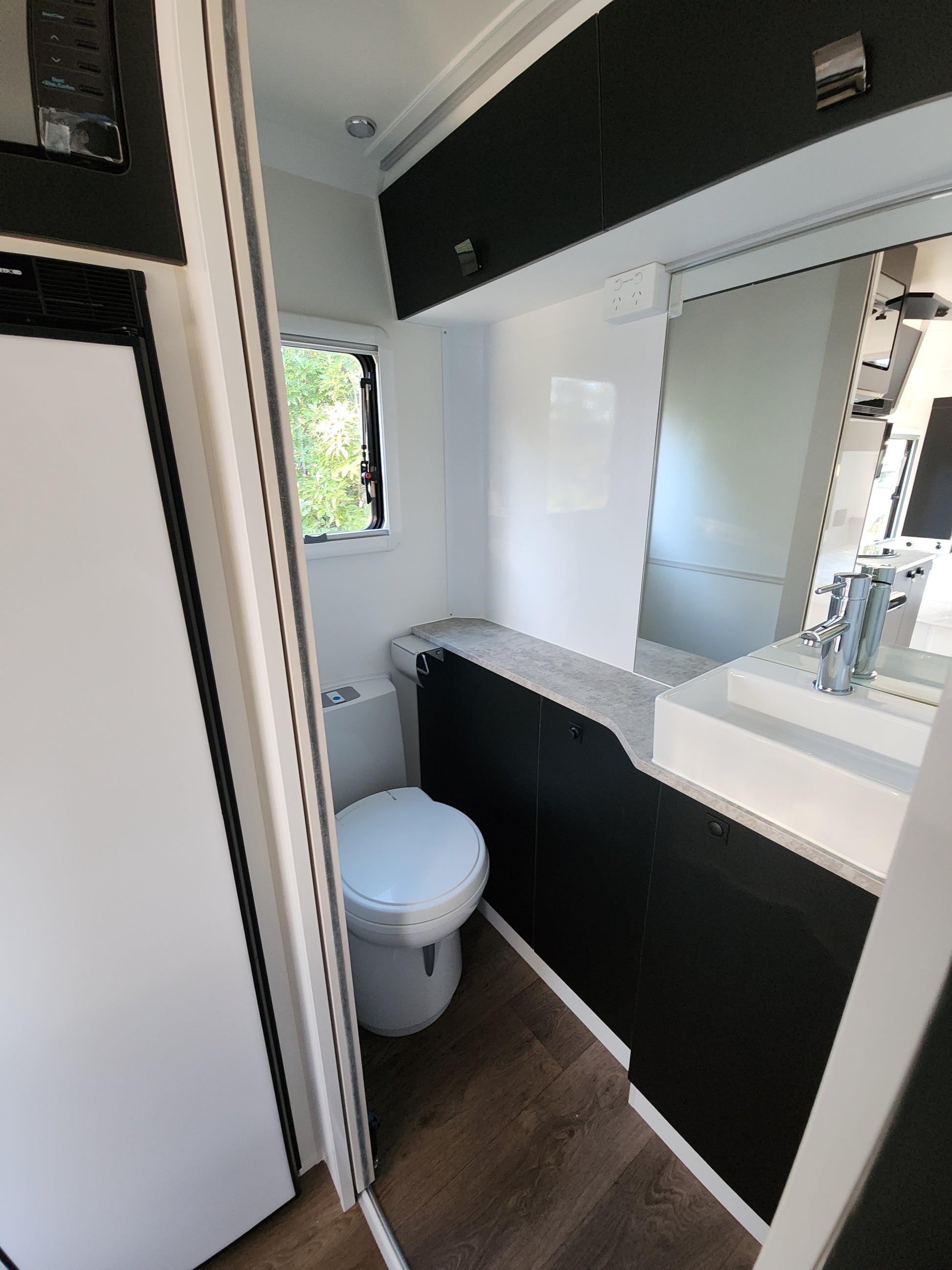

• Toilet: Thetford

• Microwave Oven: Included

• Extractor Fan: Kitchen

• Air Conditioner: Dometic B3200 (upgrade available)

• Audio: MP3 player, FM radio antenna

• Speakers: 2 interior, 2 waterproof exterior

• TV Antenna: Digital

• Bathroom Ventilators: 2

• Skylight: 700mm × 500mm with integrated lights

• Windows:

  • 2 × 700mm × 800mm

  • 1 × 900mm × 450mm

  • 1 × 700mm × 400mm

  • 1 × 450mm × 500mm

• Door Handle: With LED light

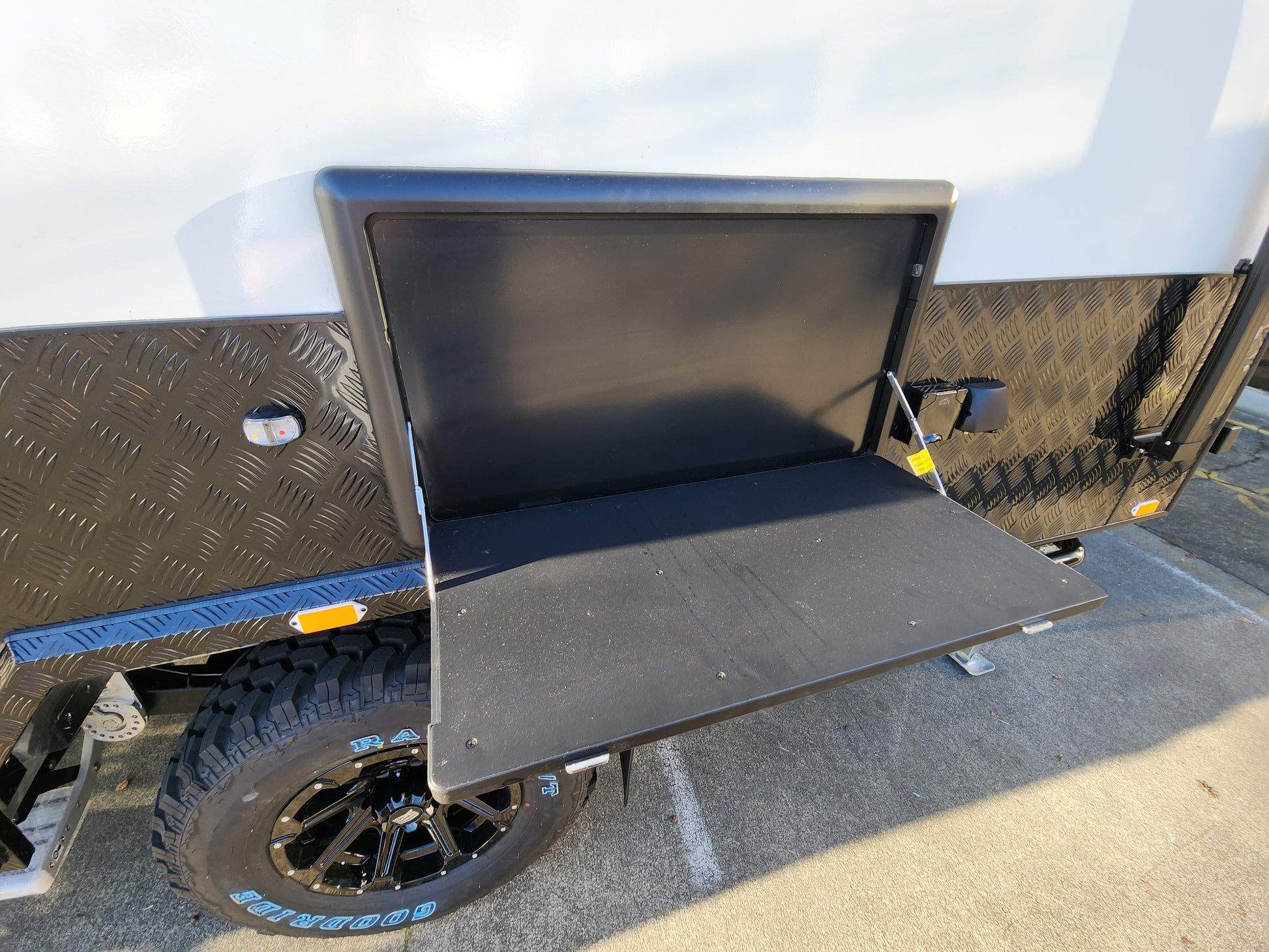

• External Folding Table: 1

• Safety Devices: Smoke detector, gas alarm

• Heating: Diesel heater

Awning

• Manual Awning with Poles: 3000mm (L) × 2500mm (W)

Accessories

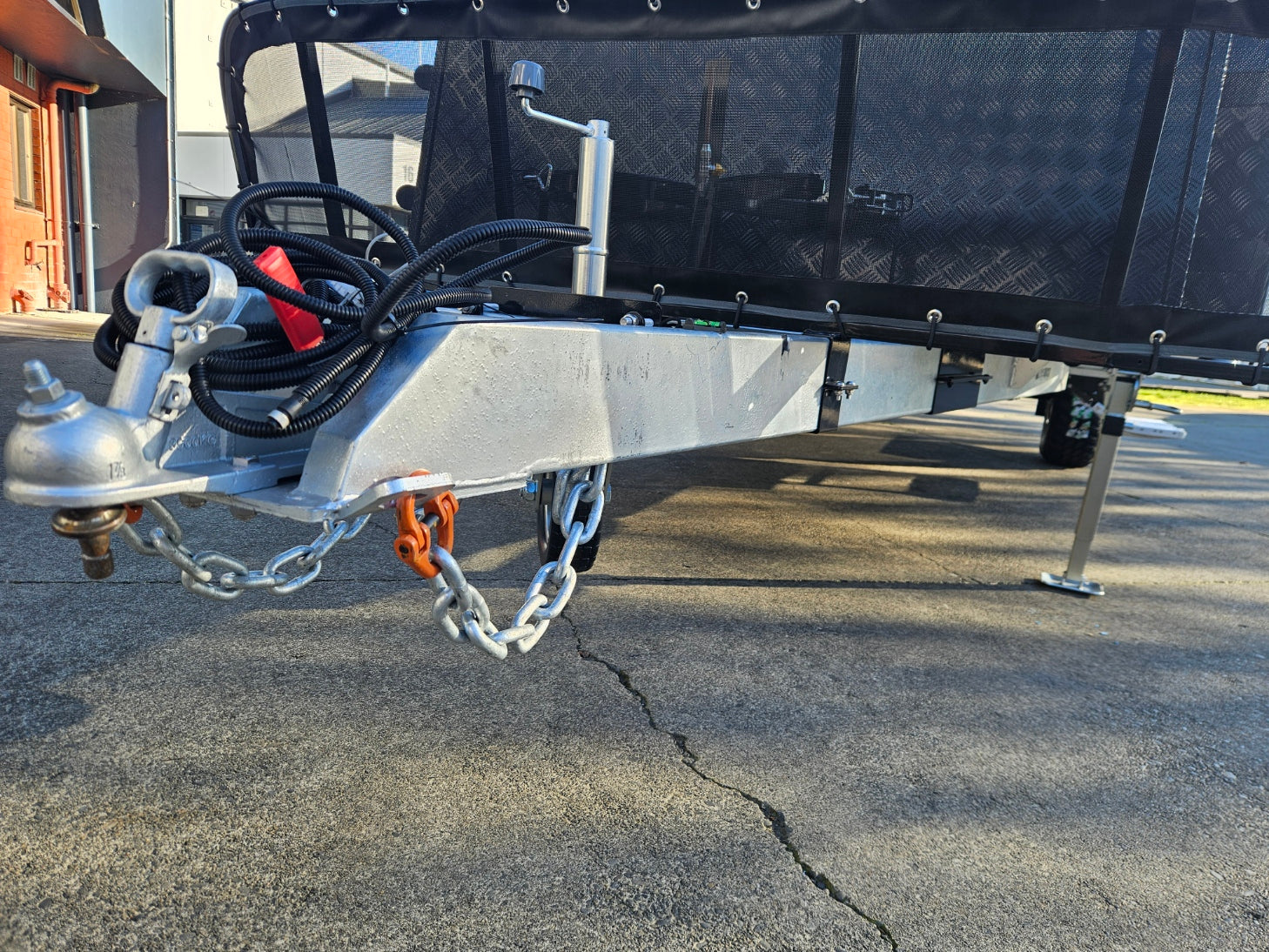

• Drawbar: Welded, 150mm × 50mm × 3.0mm square tube

• Jockey Wheel: Middle lifting type

• Stabiliser Jacks: 4

• Level Gauge: Bubble level

• Fire Extinguisher: 1 × 1kg

• Bathroom Mirror: Included

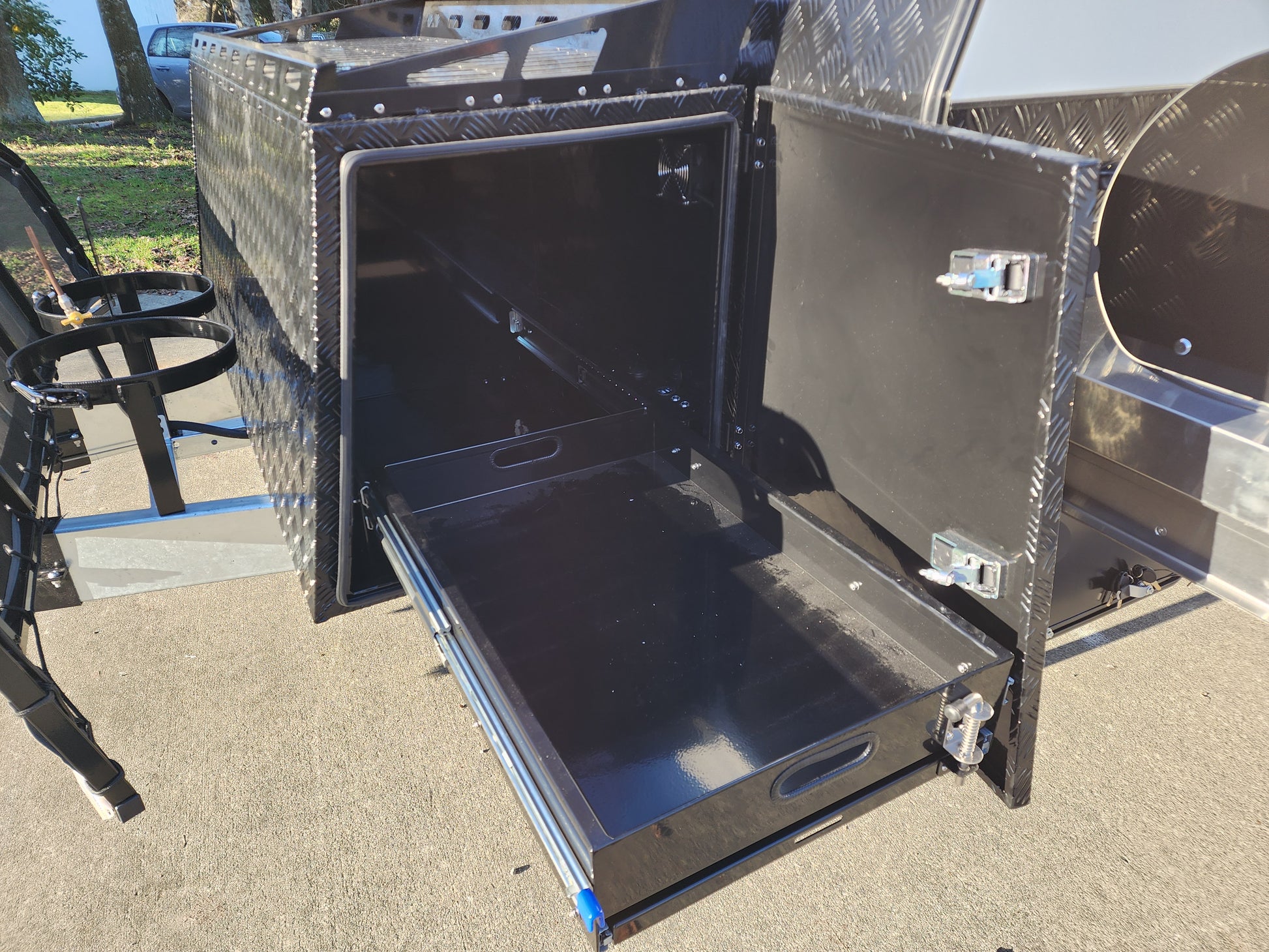

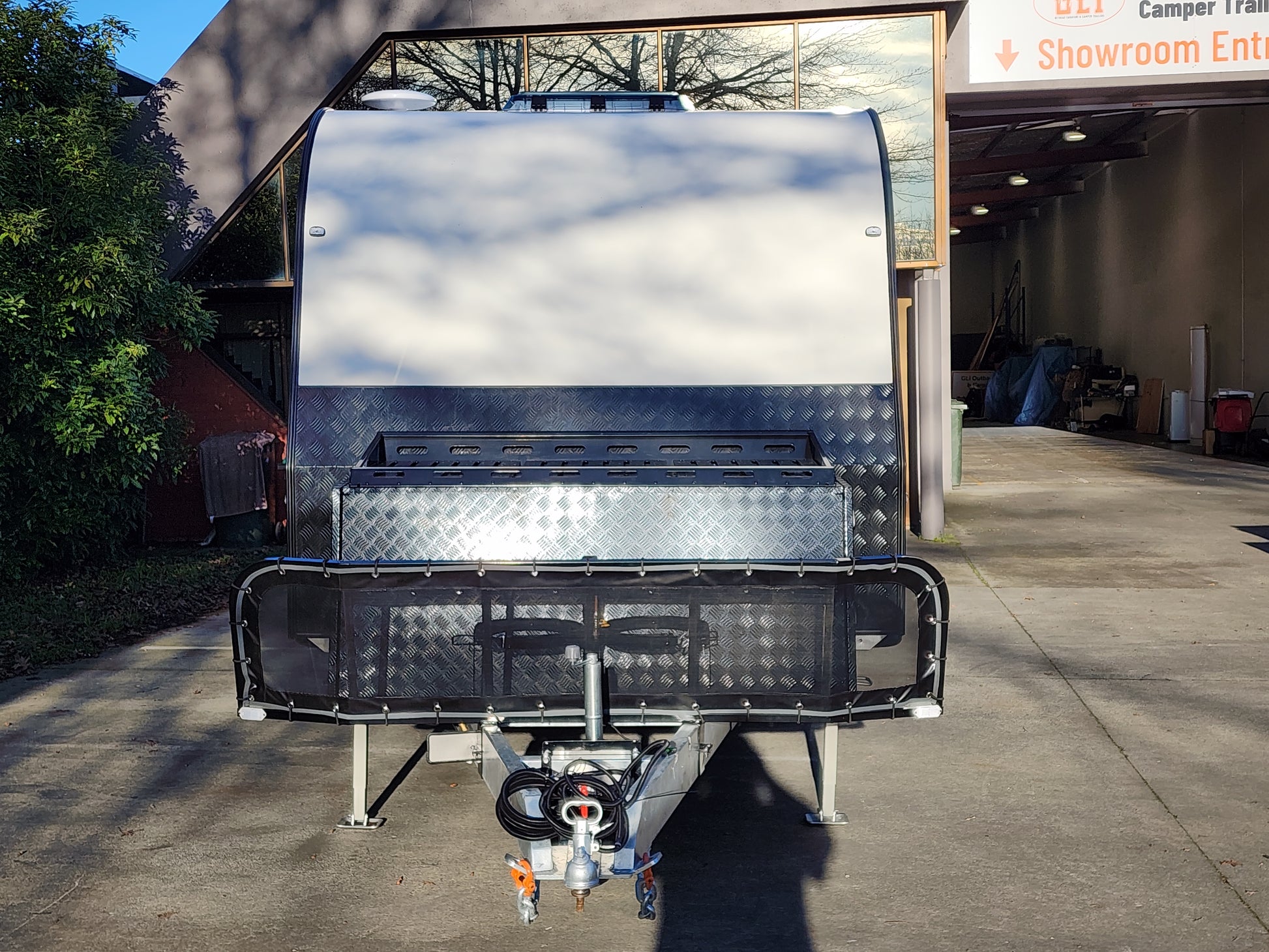

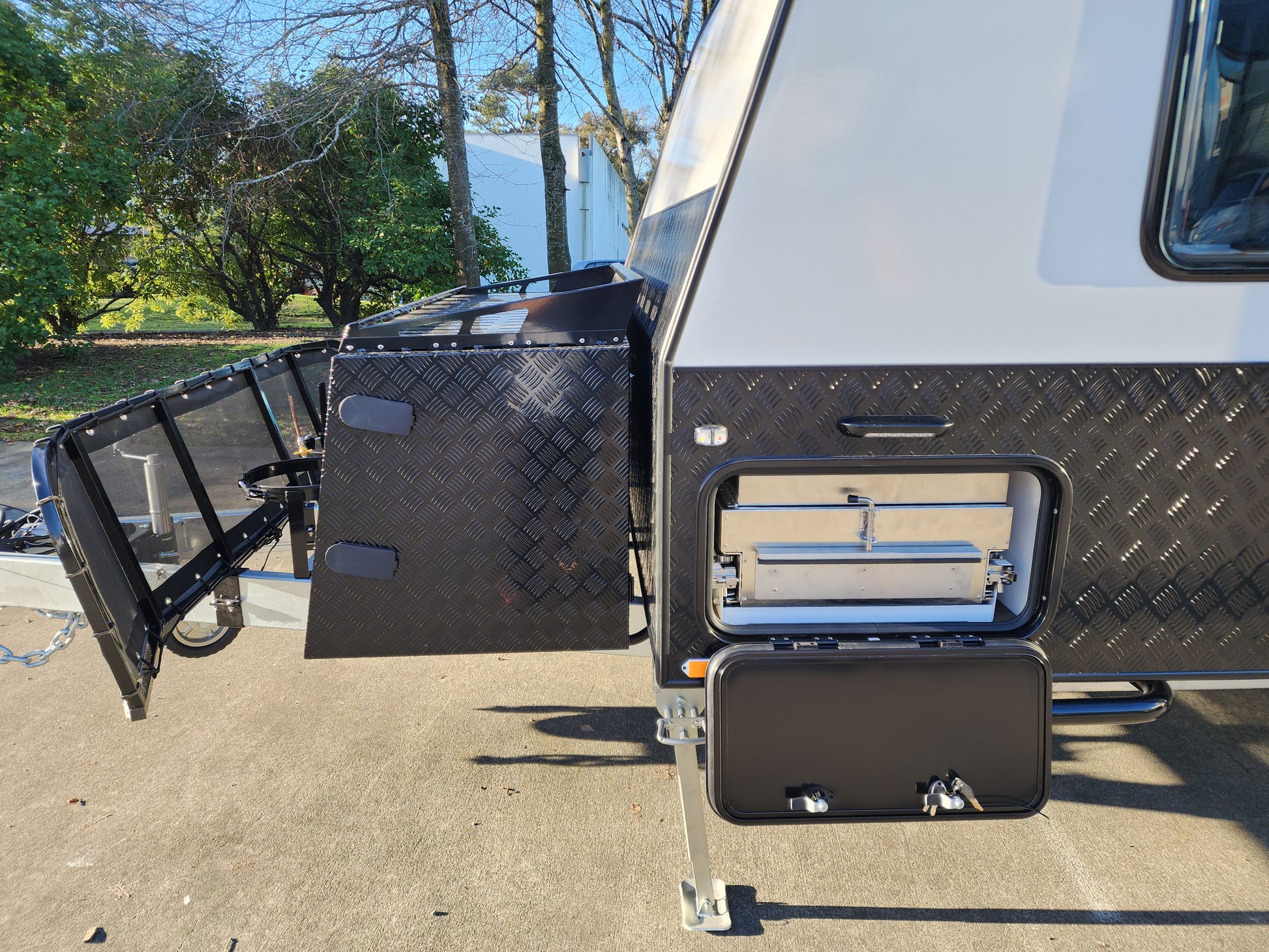

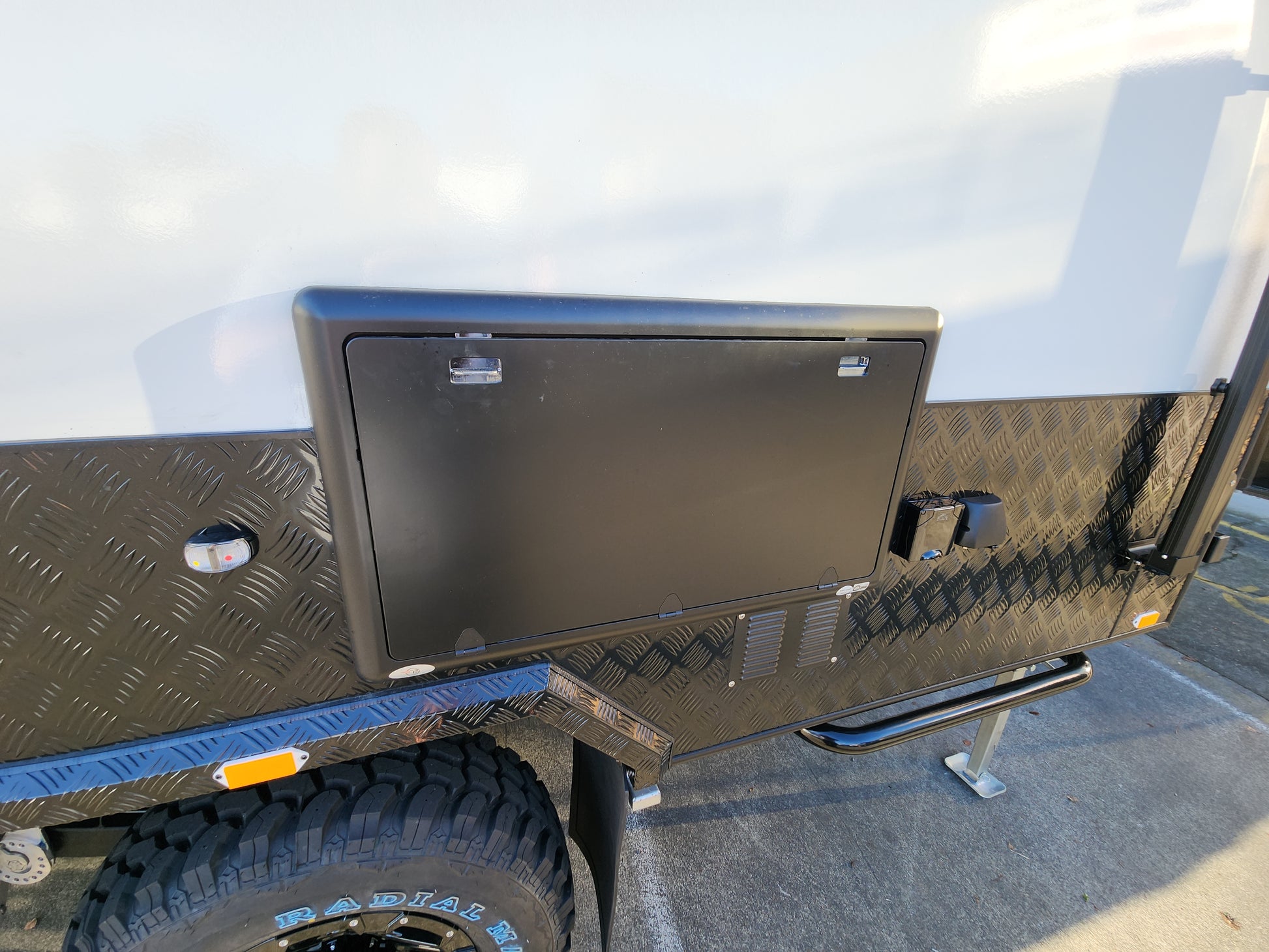

• Storage: Front box

• Bumpers: Side and rear bumpers

• Stone Guard: Included

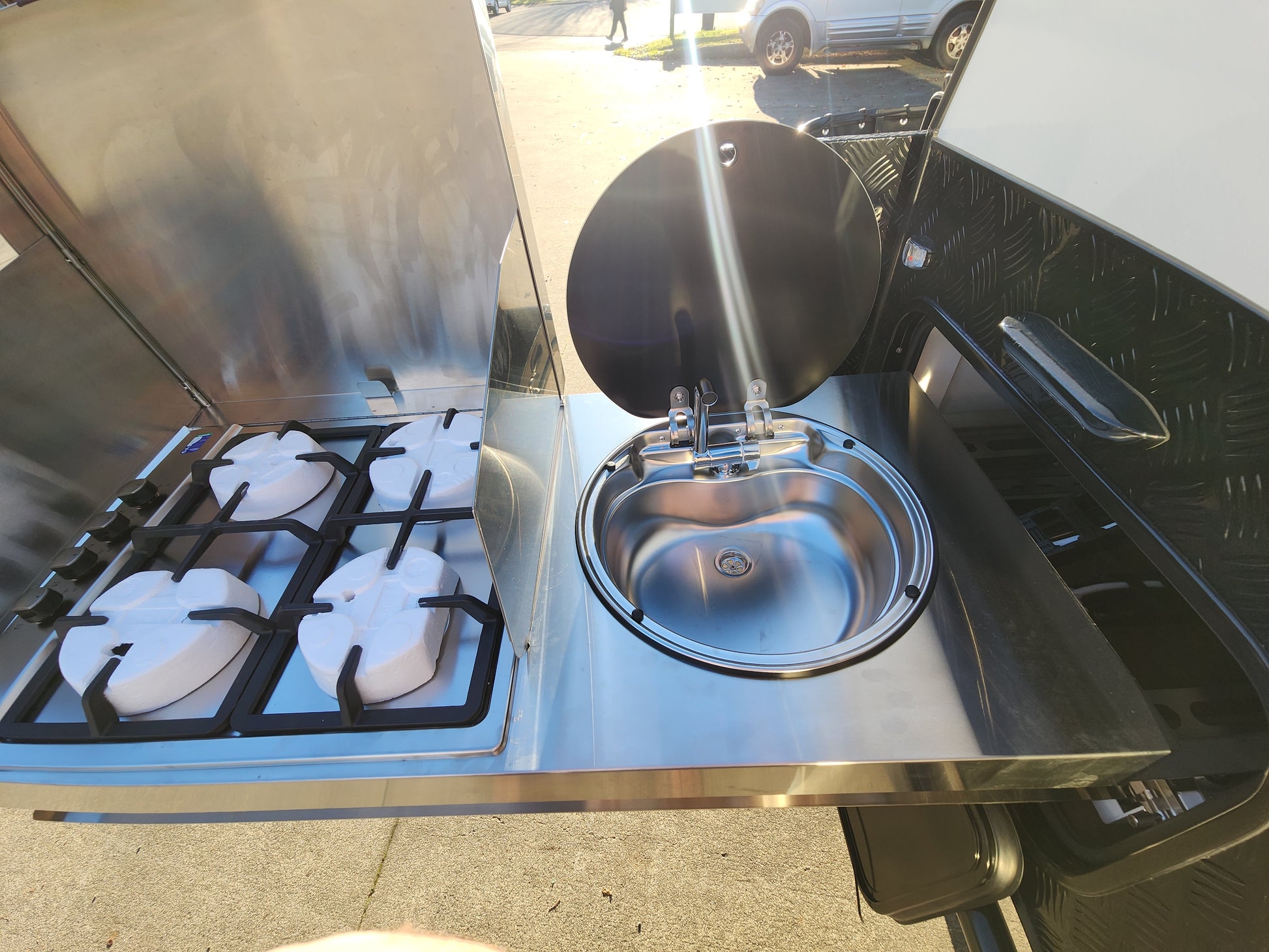

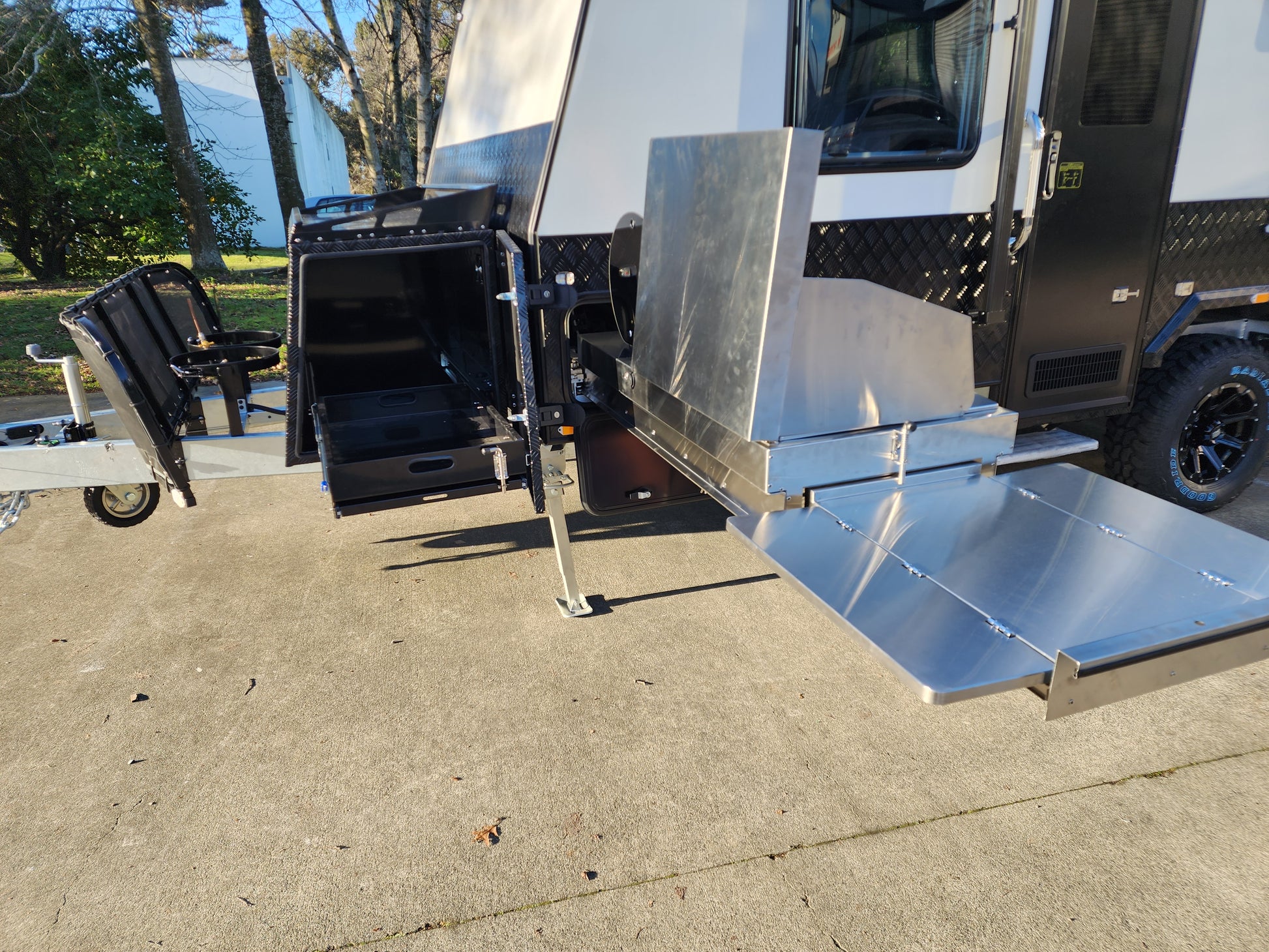

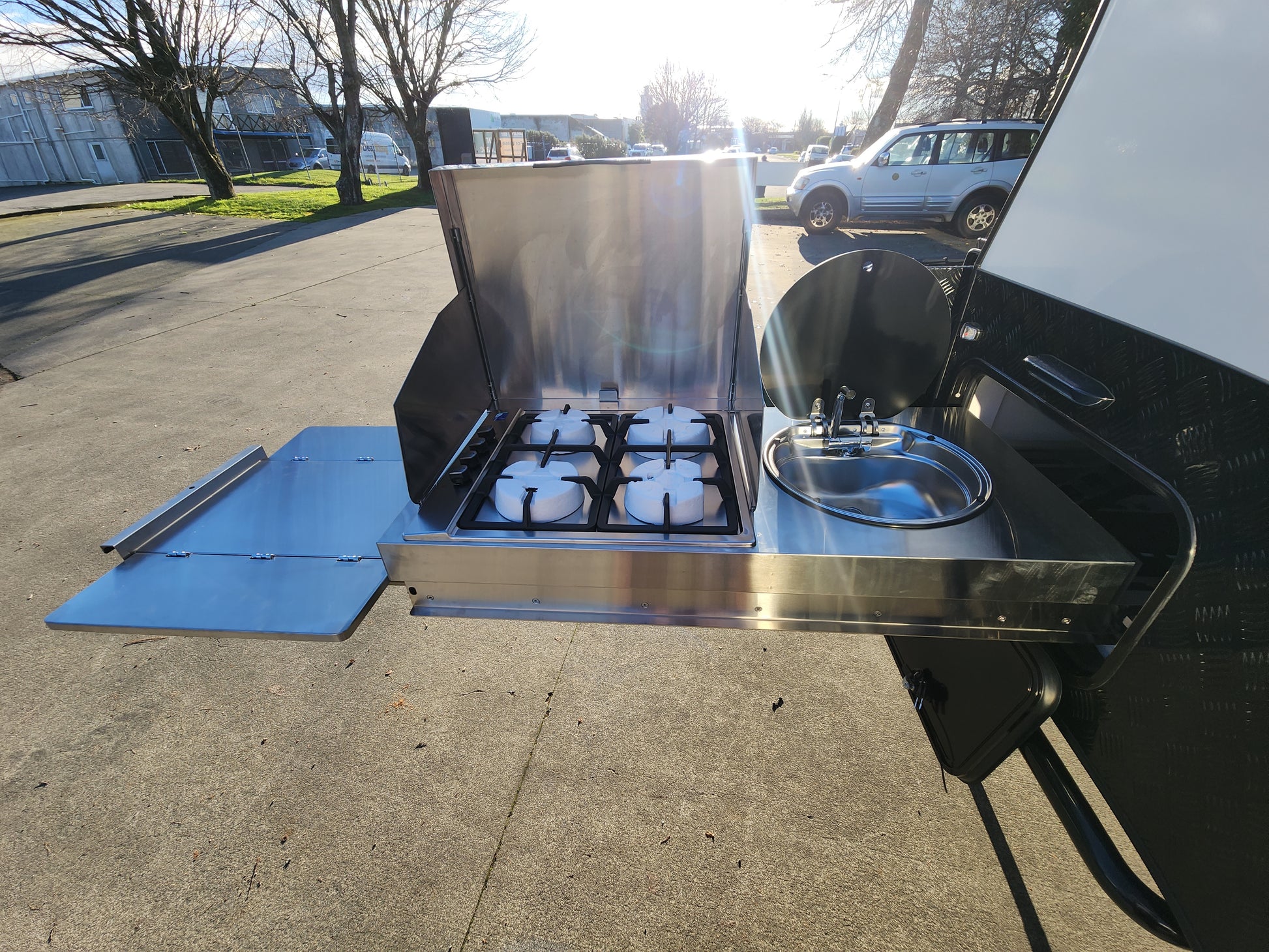

• Slide-Out Kitchen: Included
