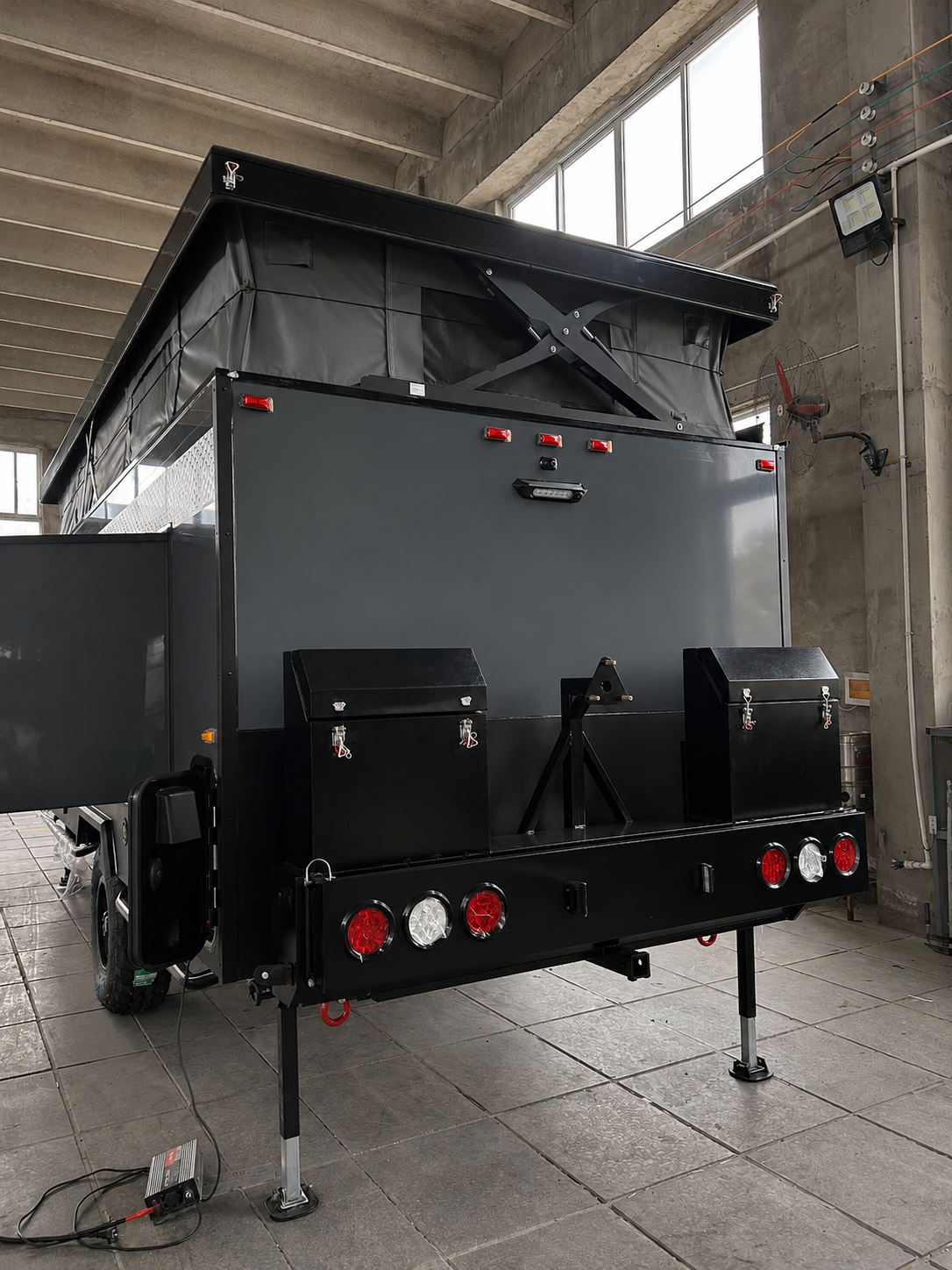

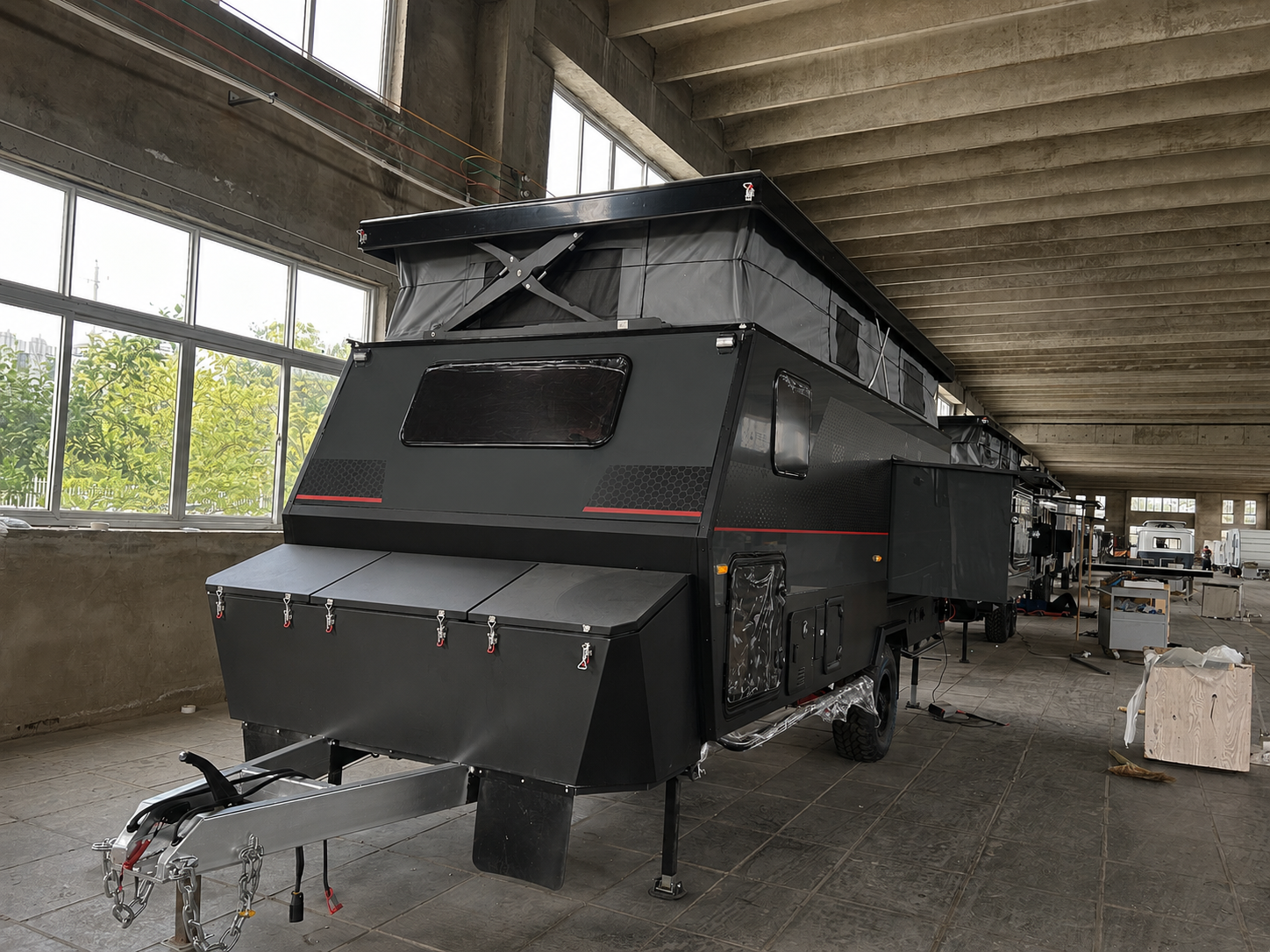

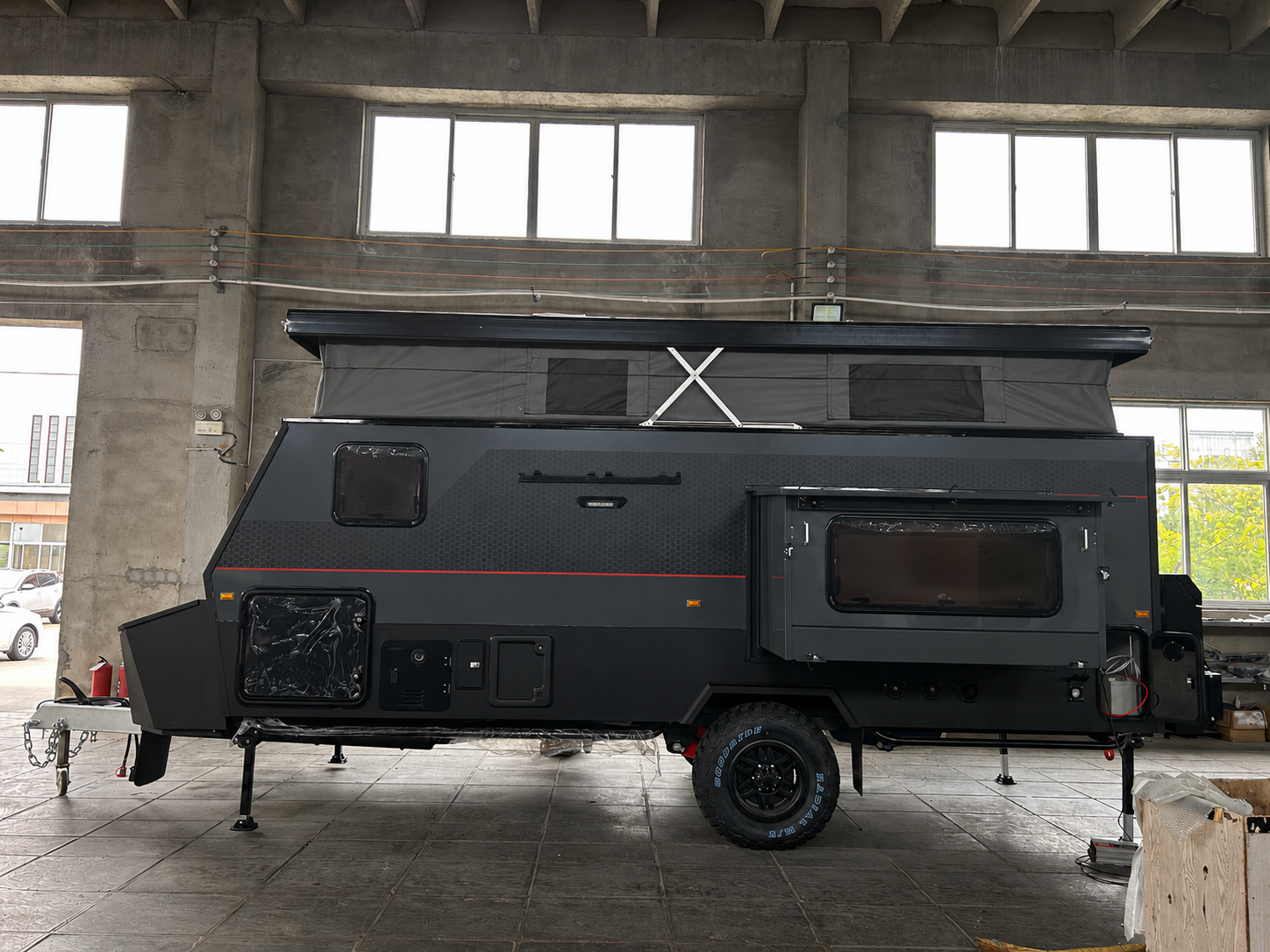

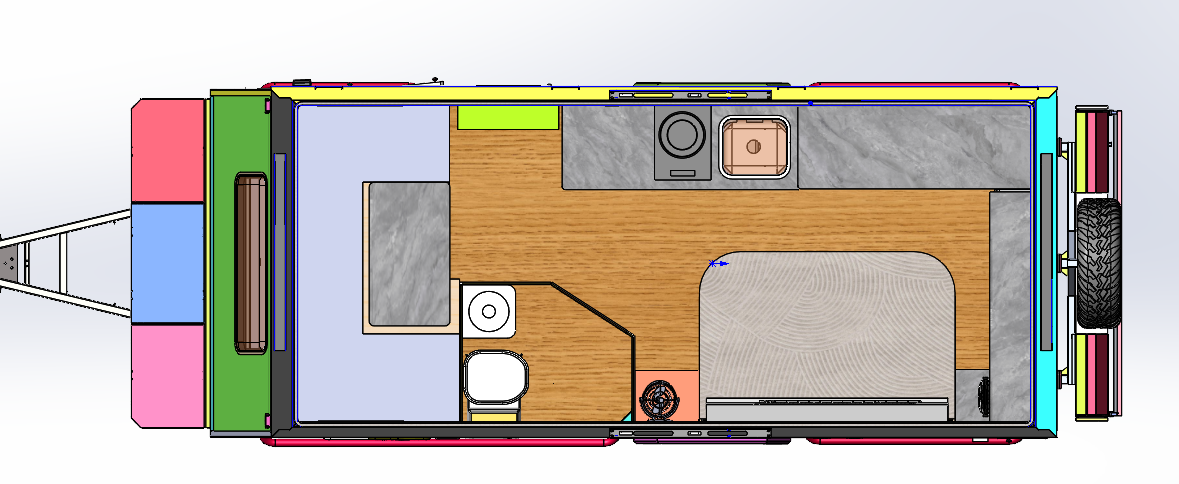

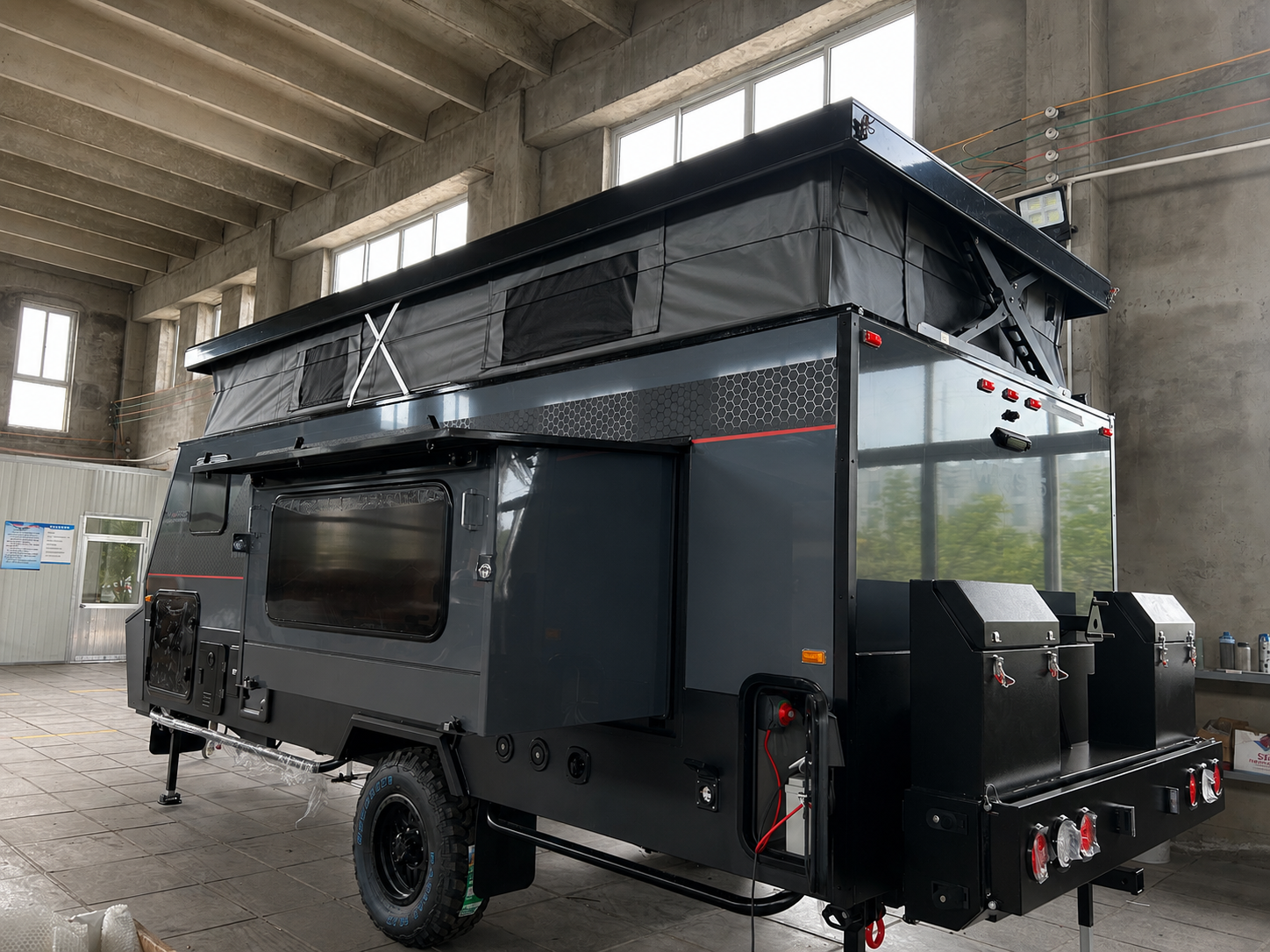

Explorer-15SB

Key Specs

• ATM: 3000kg
• Tare: 2380kg
• Ball Weight: 240kg
• Size (closed): 7250mm (L) × 2300mm (W) × 2700mm (H)
• Size (open): 7250mm (L) × 2300mm (W) × 3110mm (H)
• Heavy-duty independent coil suspension with dual shock absorbers
• 12” electric drum brakes
• Mud tyres 265/75/R16 on 6-stud alloy rims (AT tyres optional)
• Swing-out tailgate with double spare tyres
• 150 × 50 × 4mm drawbar

Construction

• Aluminium composite panel body
• Aluminium roof and front
• Underbody protective coating
• Checker plate stone guard with toolbox
• 4 stabiliser legs
• Sealed doors with pinch-weld protection
• Safety chains fitted

Water & Gas

• 120L + 120L freshwater tanks with protection
• 80L grey water tank
• 2 × water fillers with gauges
• 2 × 9kg gas bottle holders

Electrical & Power

• 2x 130Ah AGM battery system (lithium upgrade available)
• 600W solar system
• 50A Anderson plug
• 240V & 12V power system
• Control panel with volt & amp display
• Stereo system (CD/MP3/USB/Radio)
• Optional: Air conditioning, dust reduction system

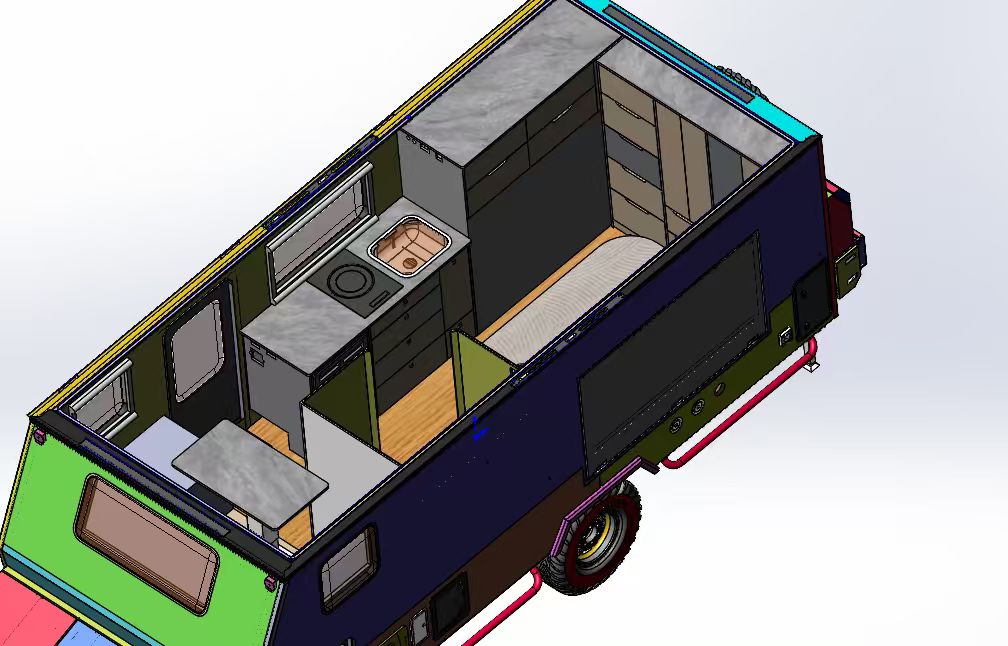

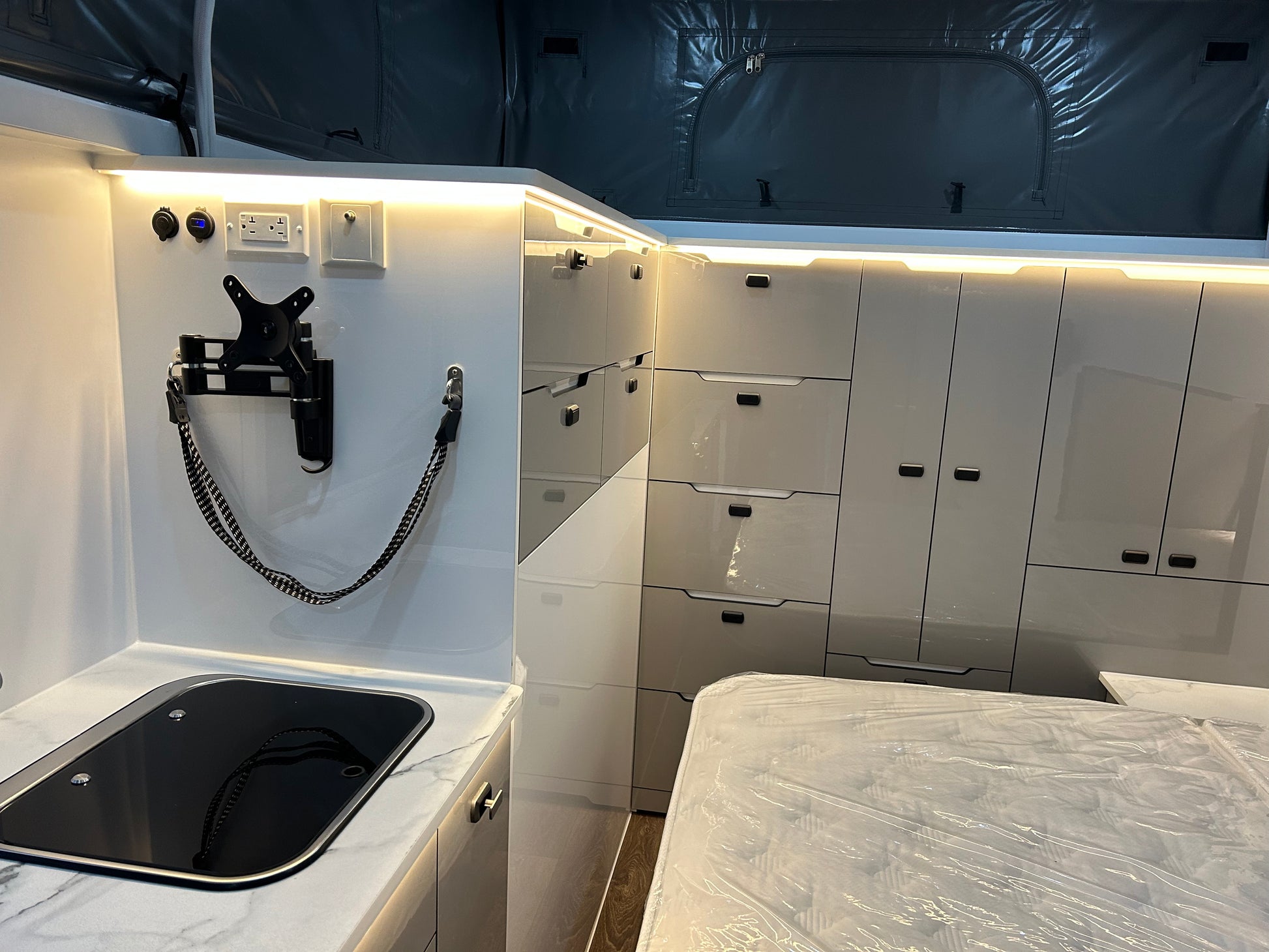

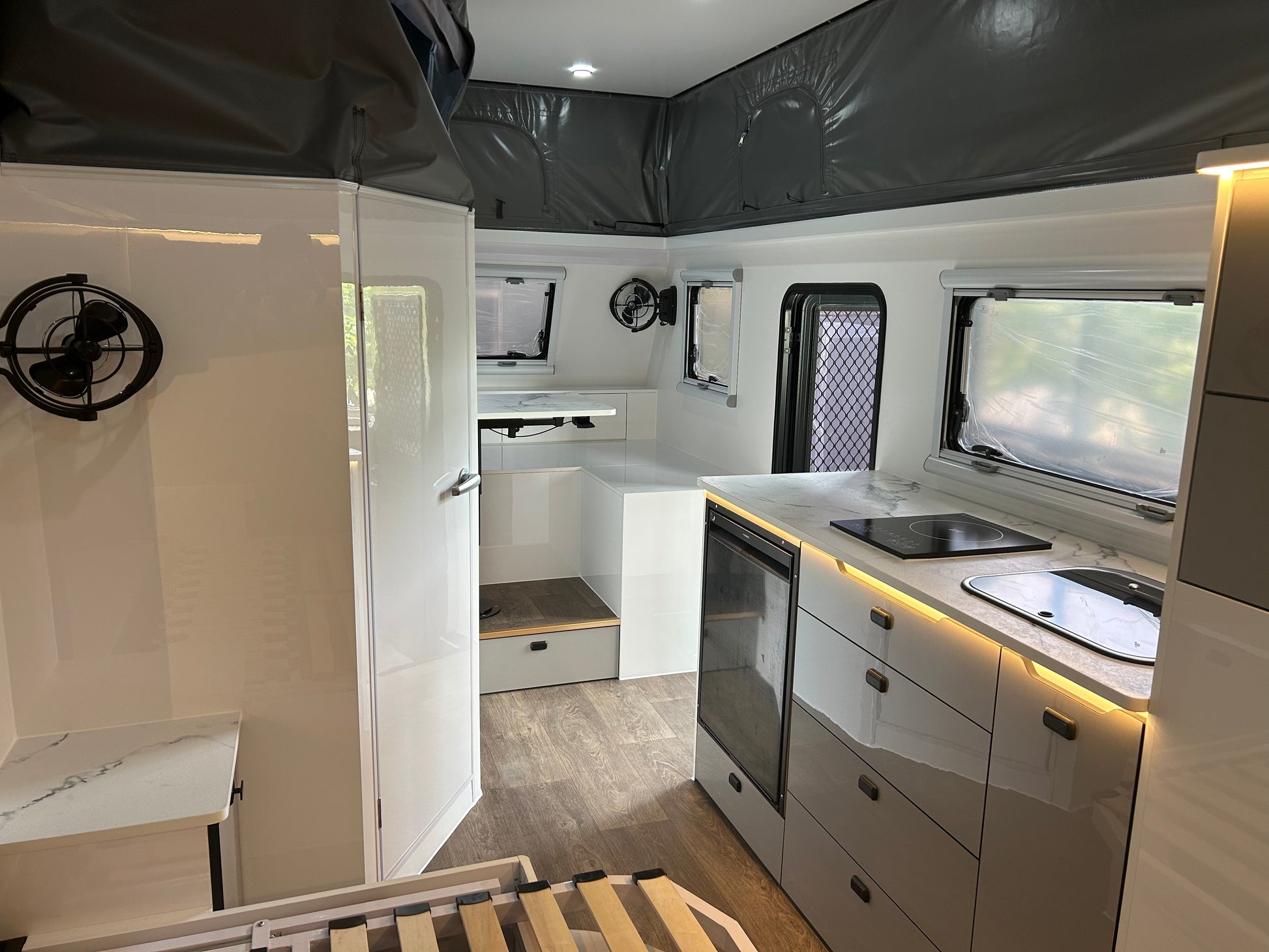

Interior & Comfort

• Electric lift-top roof

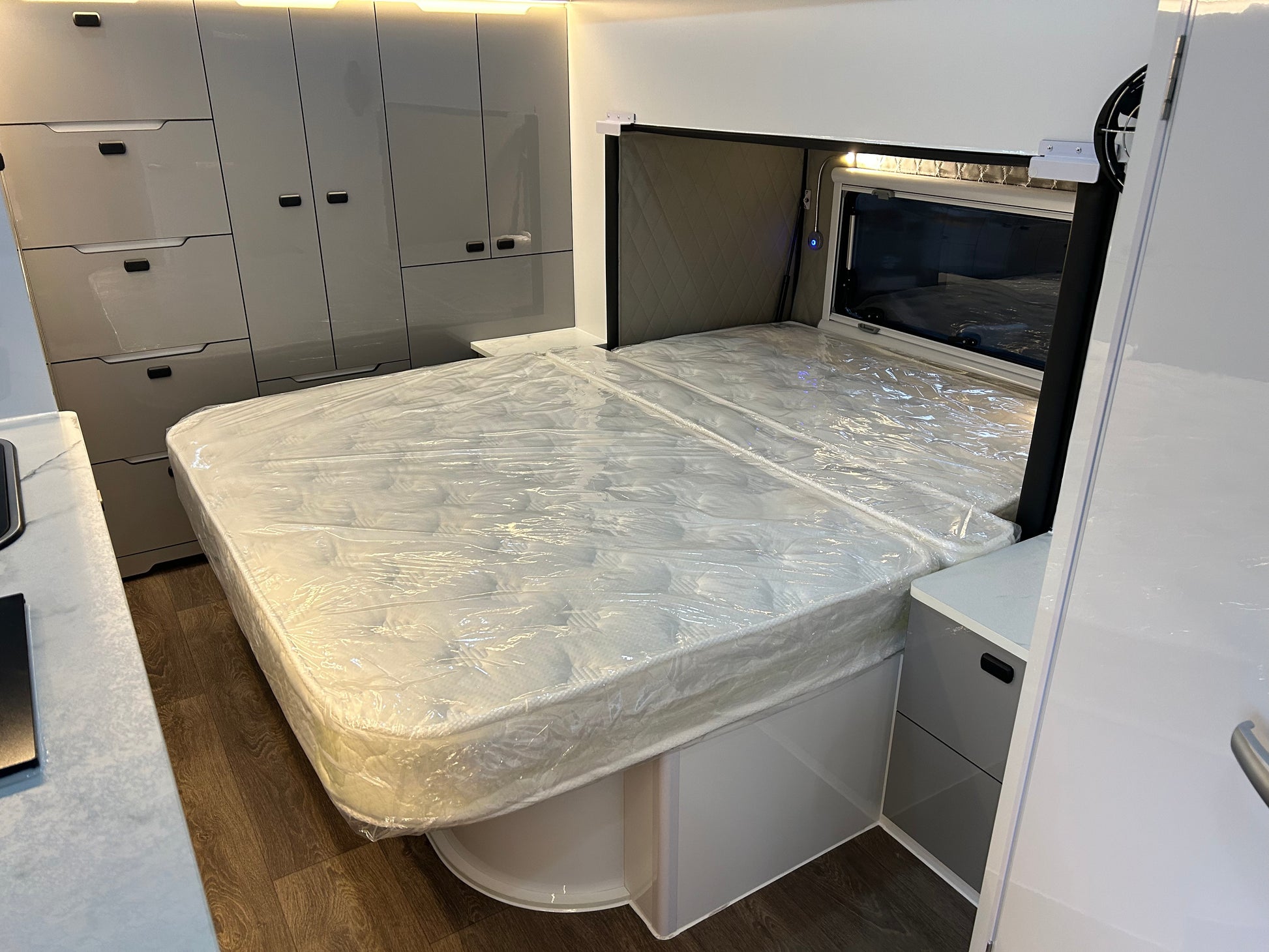

• King-size inner spring mattress

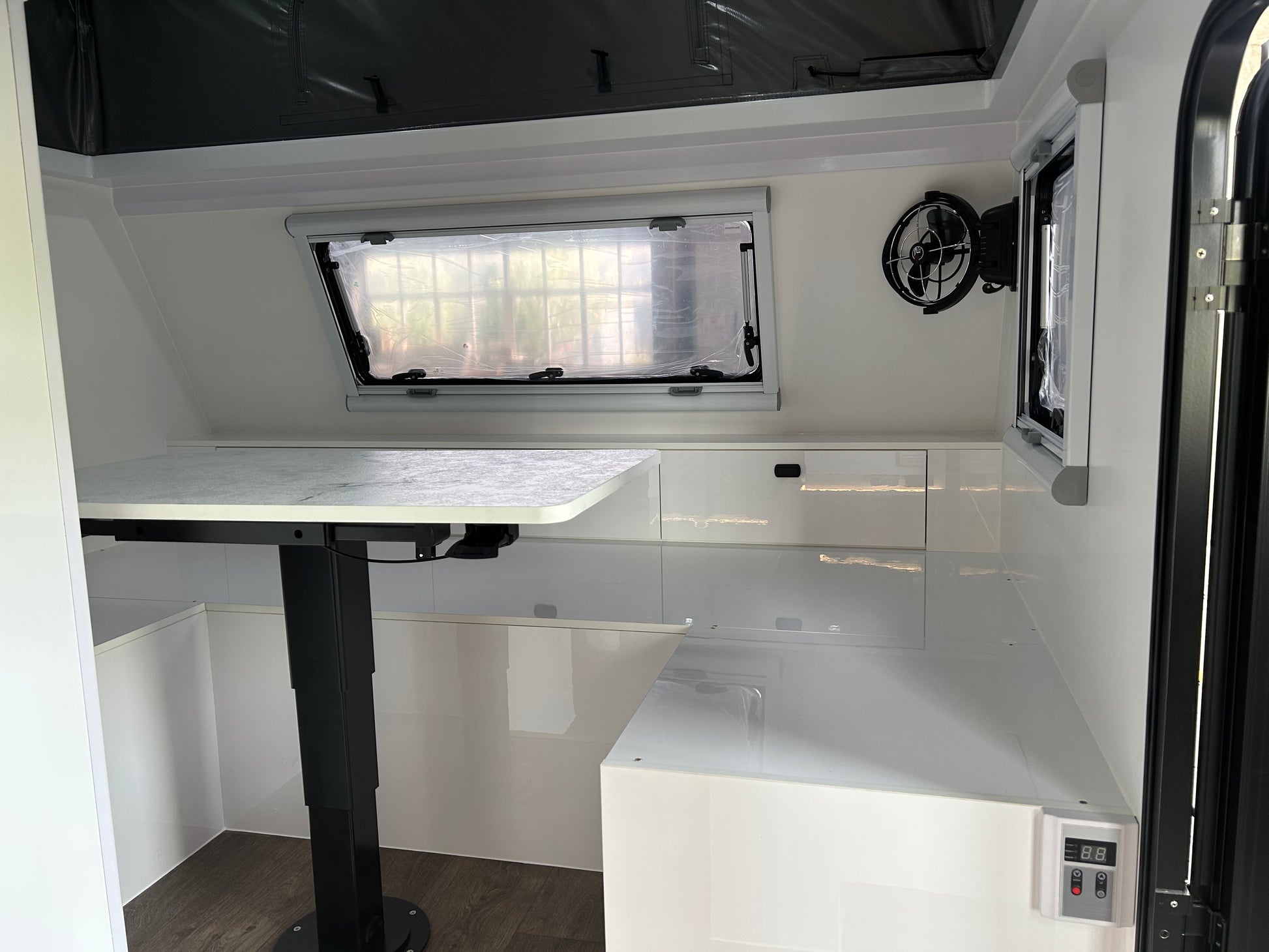

• U-shaped front lounge

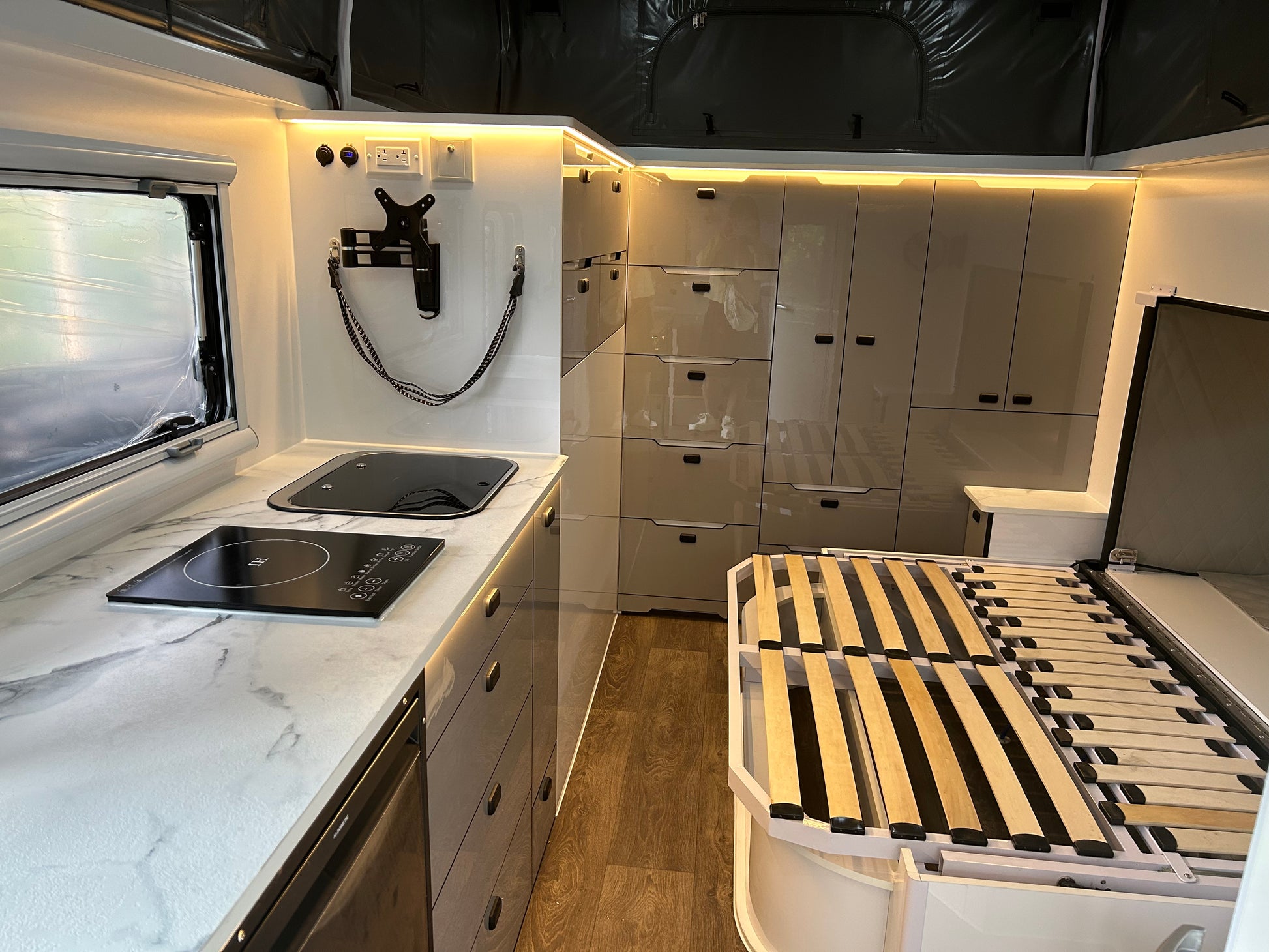

• Internal cupboards and storage
• Internal bathroom with Thetford toilet & shower
• Optional internal sink and 2-burner stove

External Features

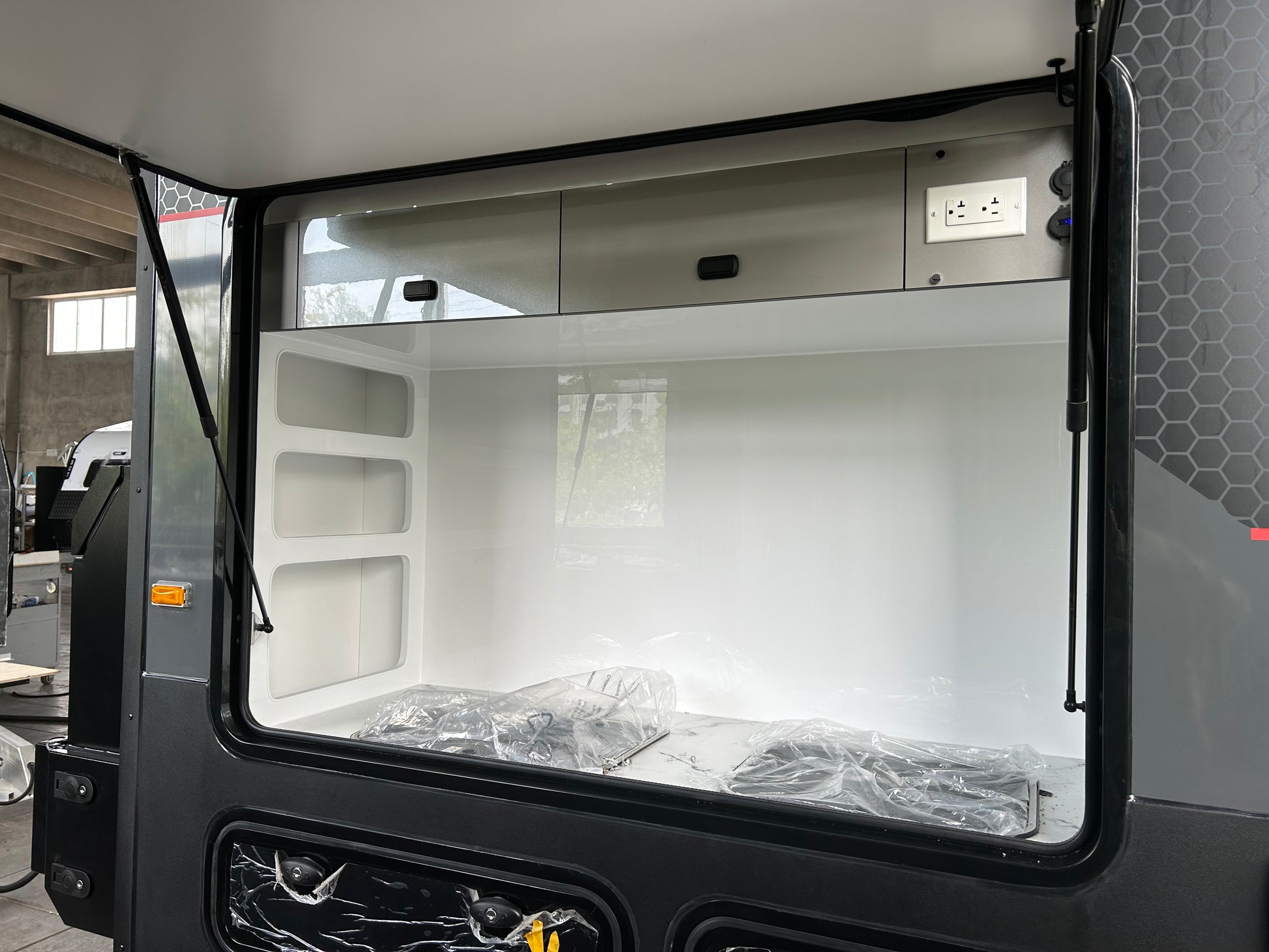

• External kitchen unit
• Sink, prep bench & 2-burner gas stove
• Wind deflector
• Slide-out fridge compartment
• External pantry/storage

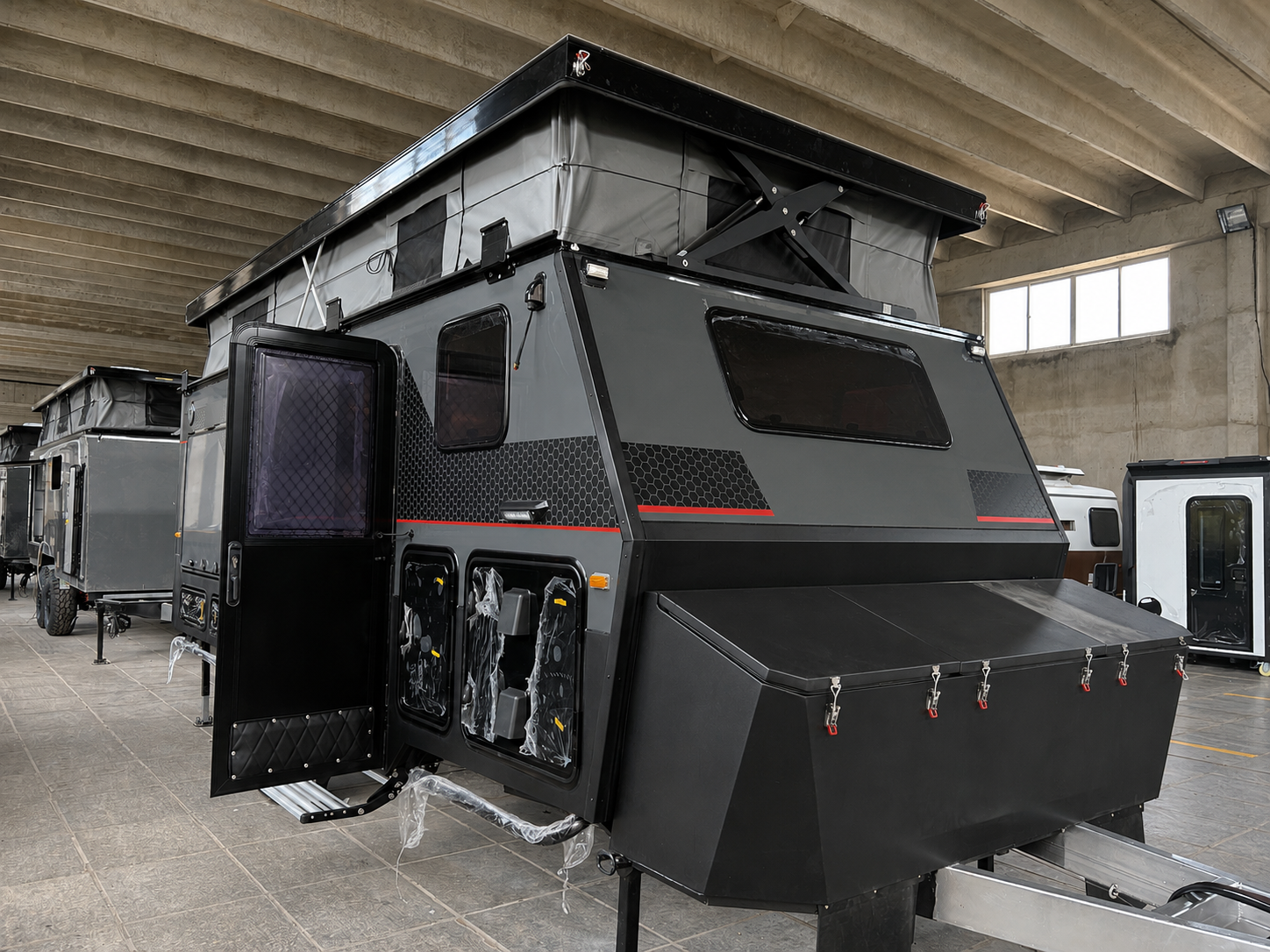

• Large front boot

Awning & Setup

• 4.3m × 2m roll-out sunshade
• Pop-top roof with additional shade coverage
• Full 3-side annex (15oz canvas) with door and windows
