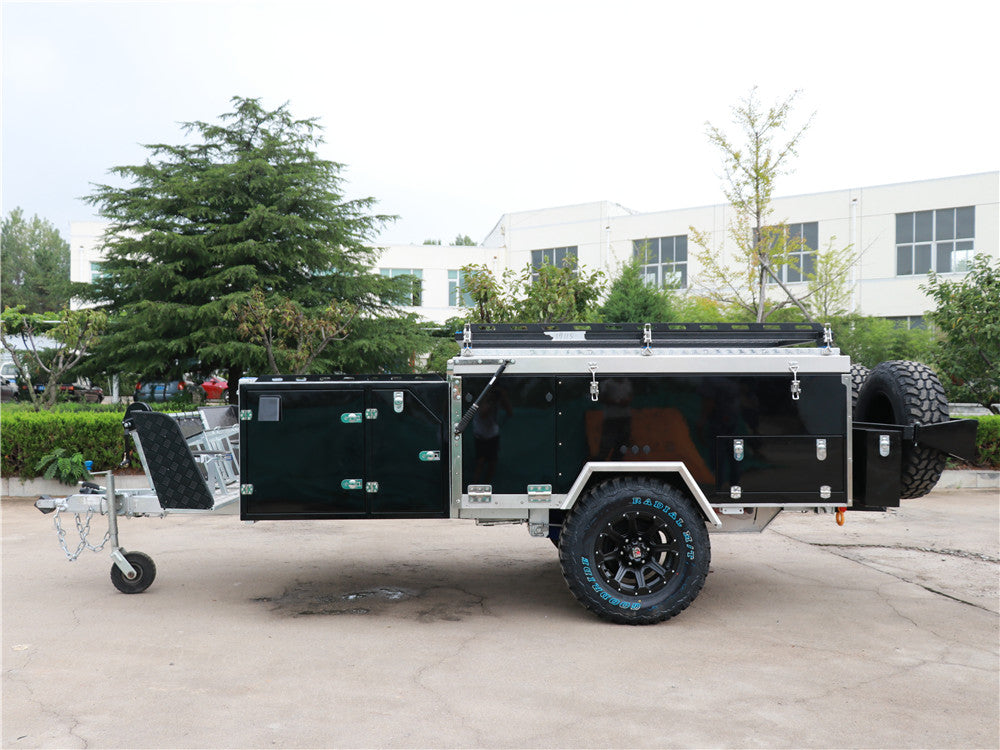

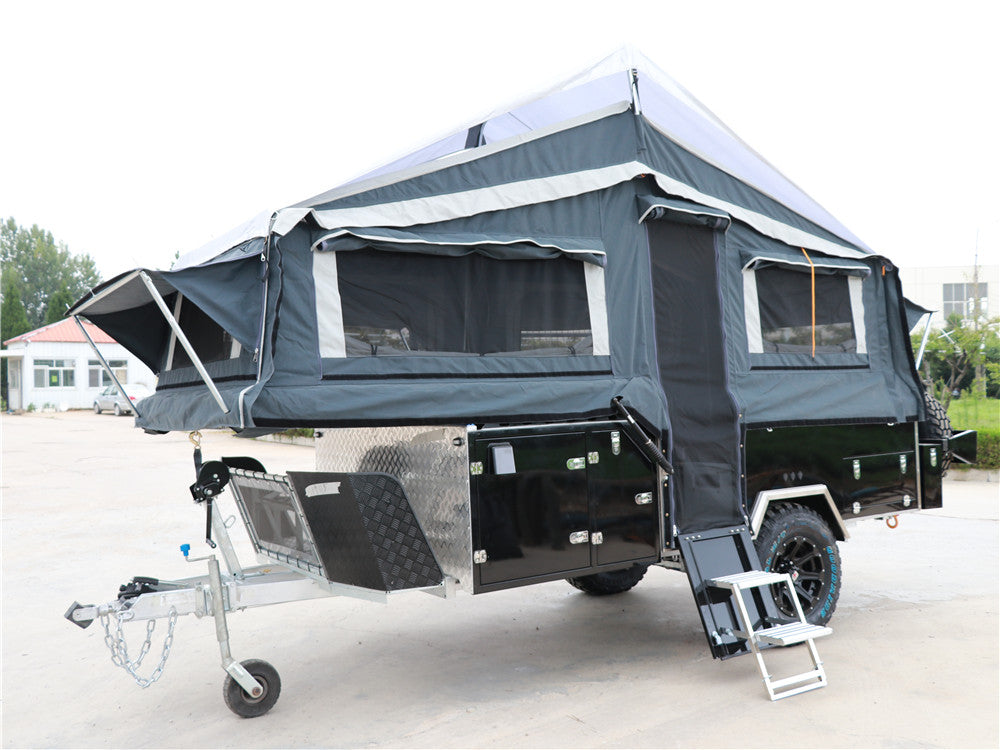

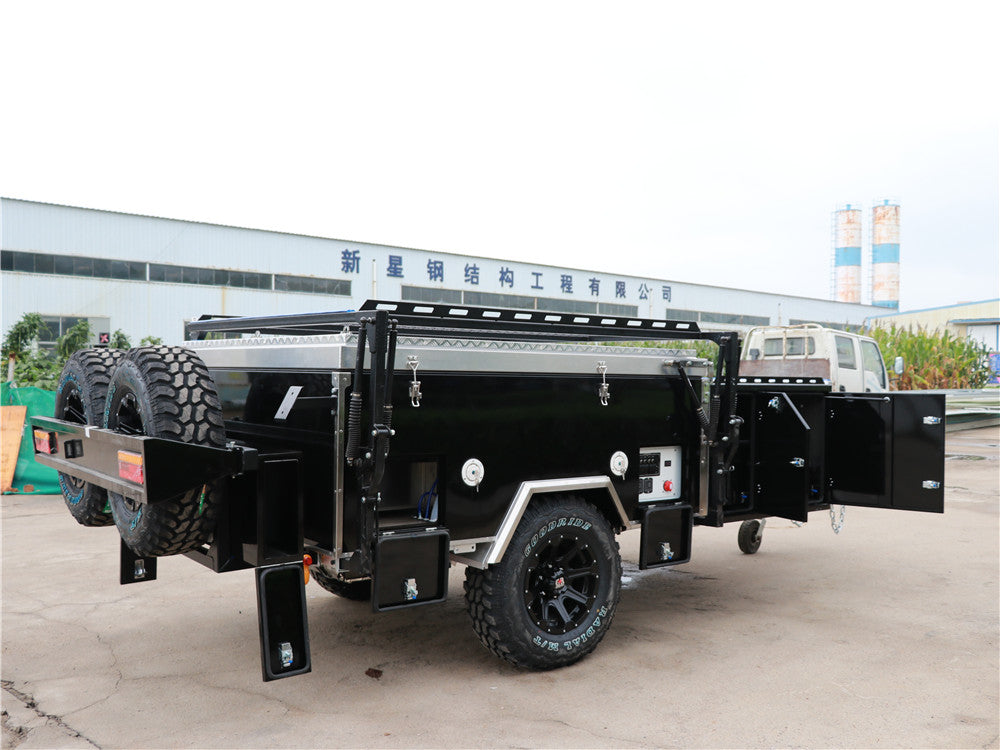

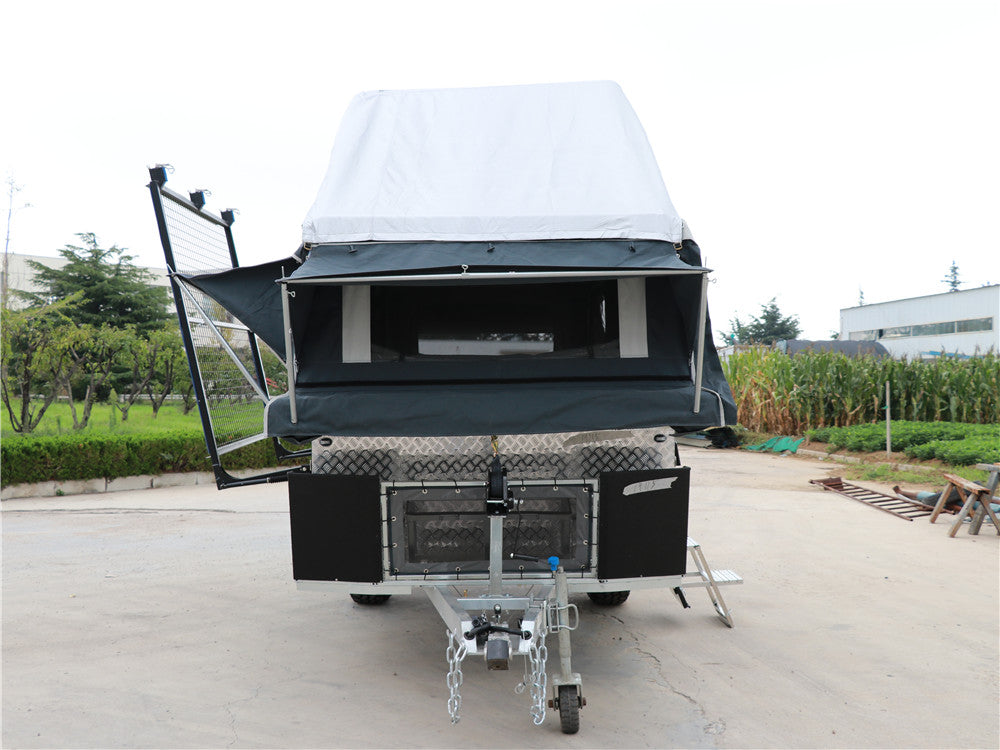

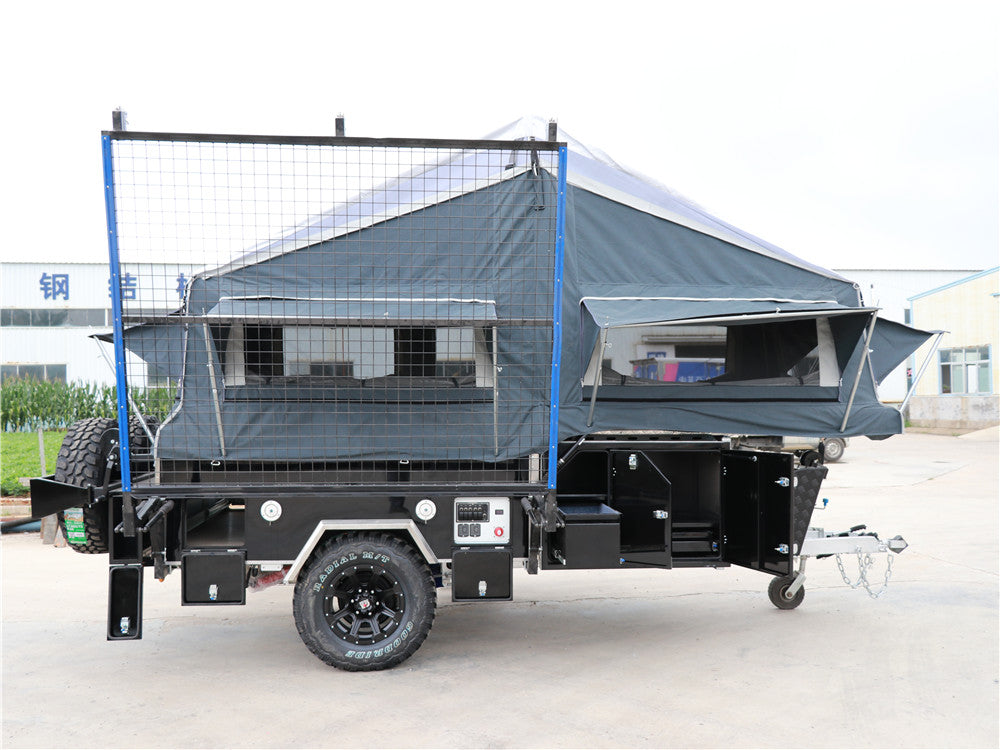

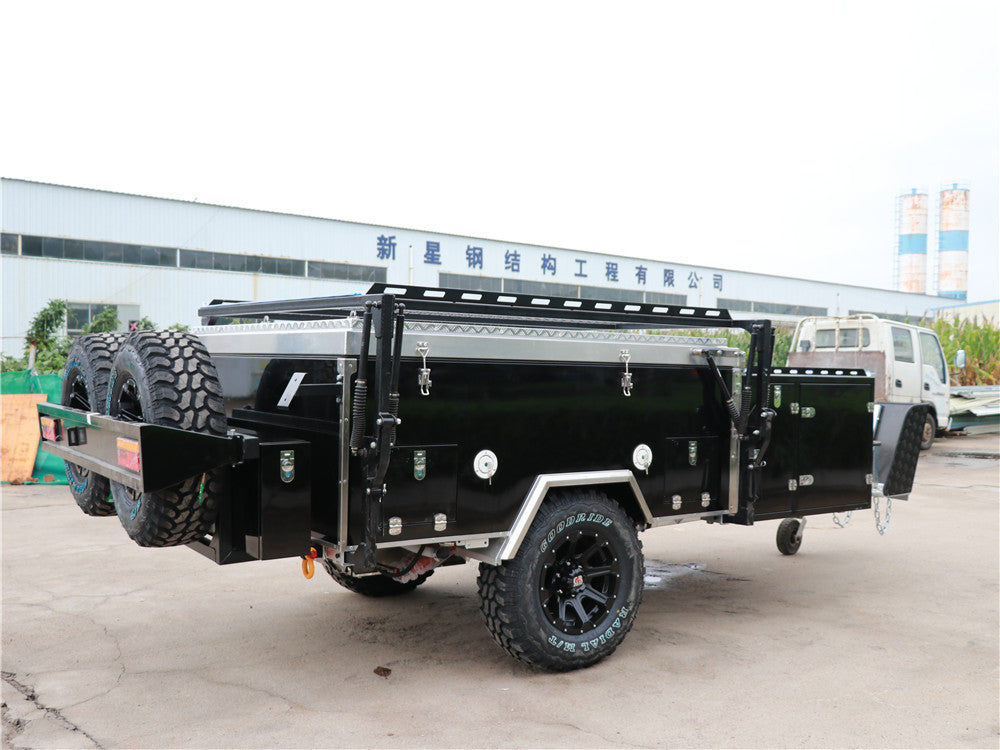

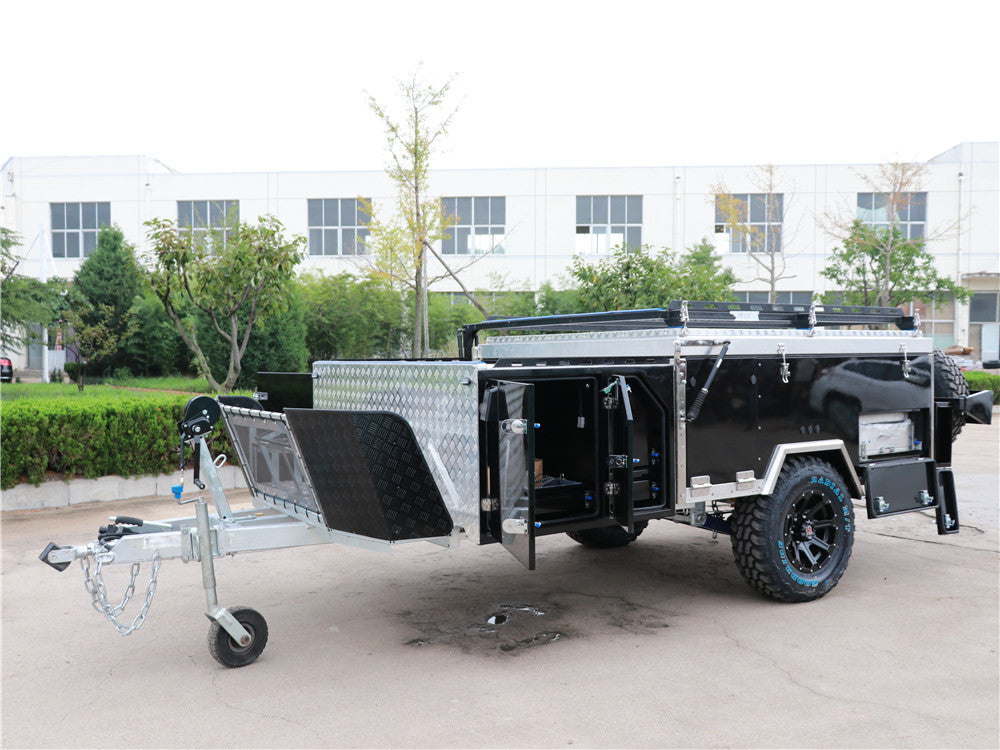

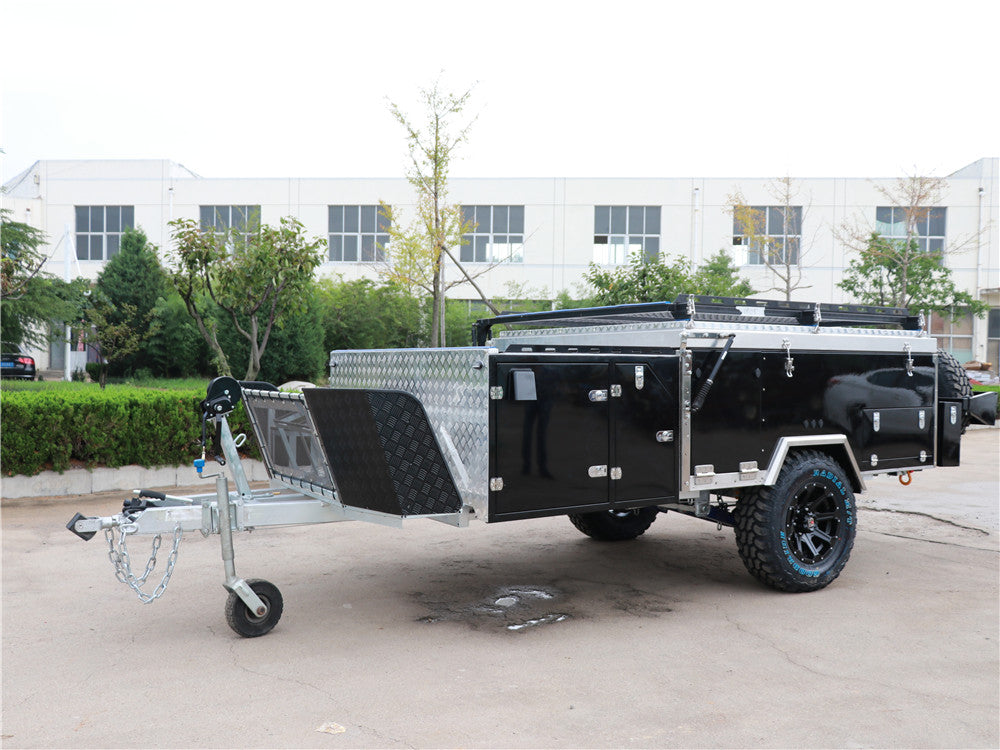

EX-S1 Forward fold camper trailer

Dimensions & Weight

• Length (Hitch to Spare Tyre Holder): 5300mm

• Closed Trailer Size (L × W × H): 2100mm × 1800mm × 725mm

• Opened Trailer Size (L × W × H): 4150mm × 1800mm × 2250mm

• Tare Weight: 1350kg

• GTM (Gross Trailer Mass): 2000kg

• Ball Weight: 80kg

Chassis & Construction

• Drawbar: Hot-dipped galvanised, designed for easy cornering and improved stopping

• Chassis: Hot-dip galvanised with checker plate stone guard wings

• Lid Construction: Aluminium panel + checker plate top + inner tube frame

• Surface Finish Options: Royal Silver / Audi Black / Custom

• Internal Finish: Fully carpeted with Korean wood-pattern leather flooring

Suspension, Wheels & Coupling

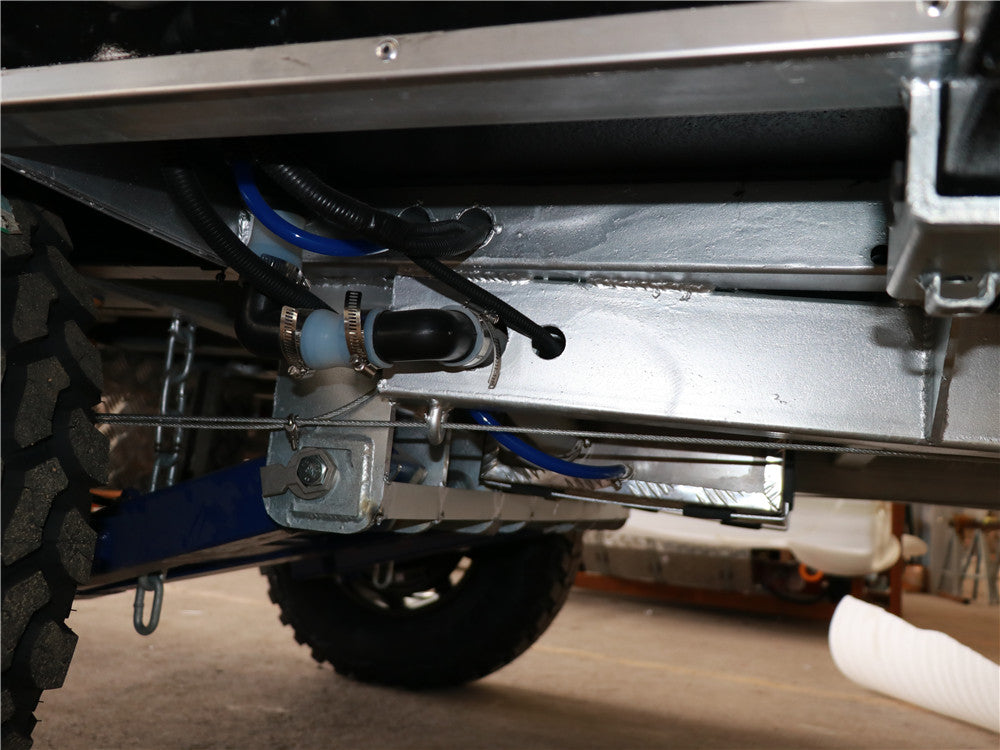

• Suspension: Independent arm with 4x high-performance coil shock absorbers

• Wheels & Tyres:

  • 4 × Aluminium rims with Goodride tyres

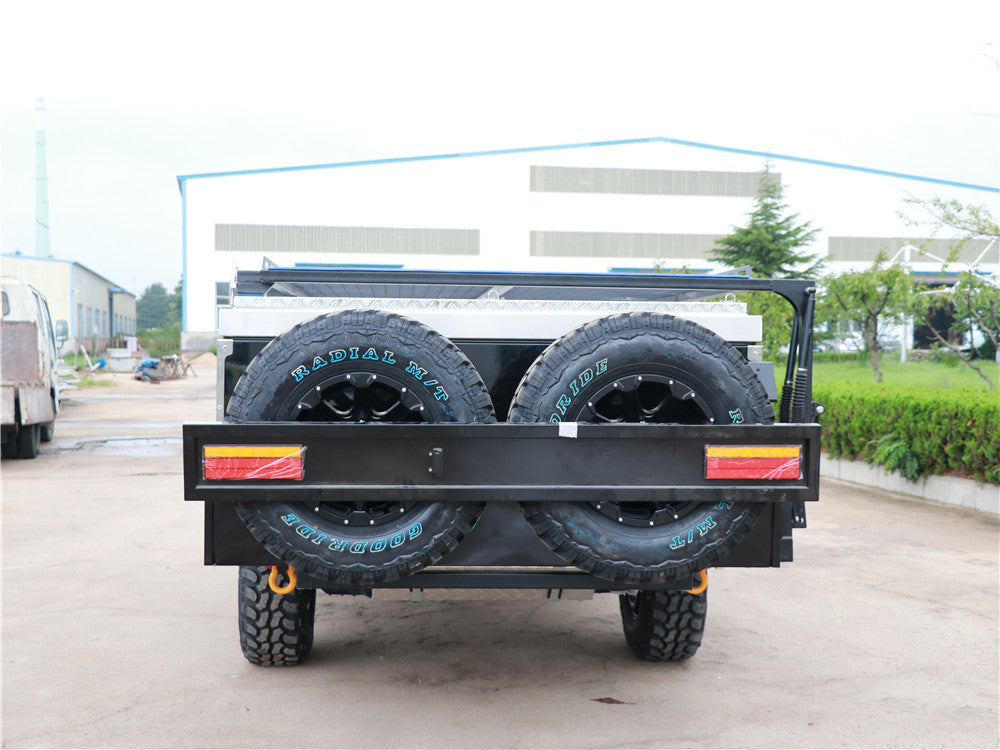

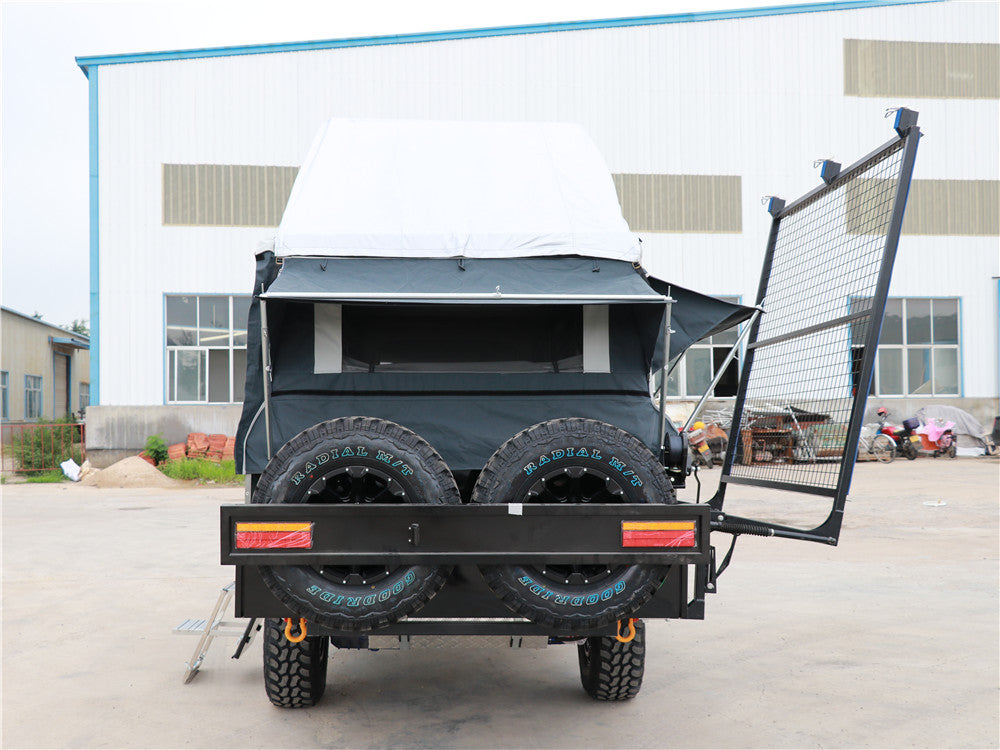

• Spare Tyre: Single spare tyre holder

• Coupling: Standard NZ coupling

Braking & Stabilisation

• Brakes: 12" Electric brakes with hand brake

• Jockey Wheel: 10" swing-up high-quality

• Stabiliser Legs: 4 × heavy-duty stabiliser legs

• Safety Chains: Double safety chains

Water & Gas Systems

• Water Tank: 120L stainless steel

• Water Delivery: Marine-grade 12V electric pump

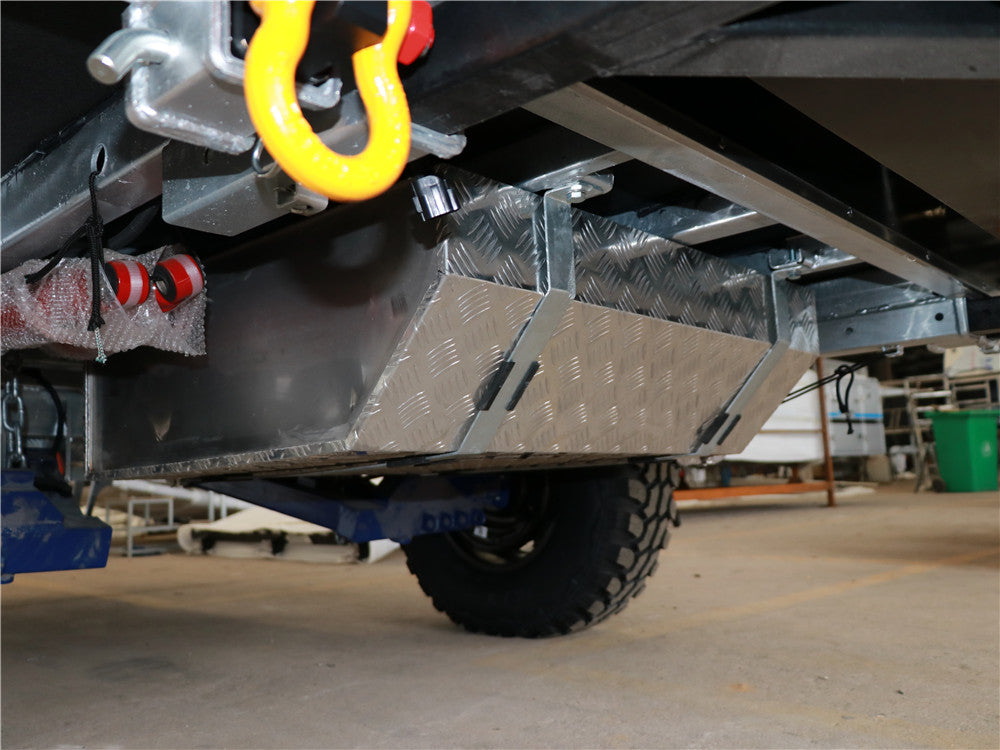

• Tank Protection: Checker plate protector

• Tap: 1x water tap

• Gas System:

  • 2 × 9kg gas bottle holders

  • Copper piping, fully assembled

• Jerry Can Holders: 2 × 20L

Exterior Features

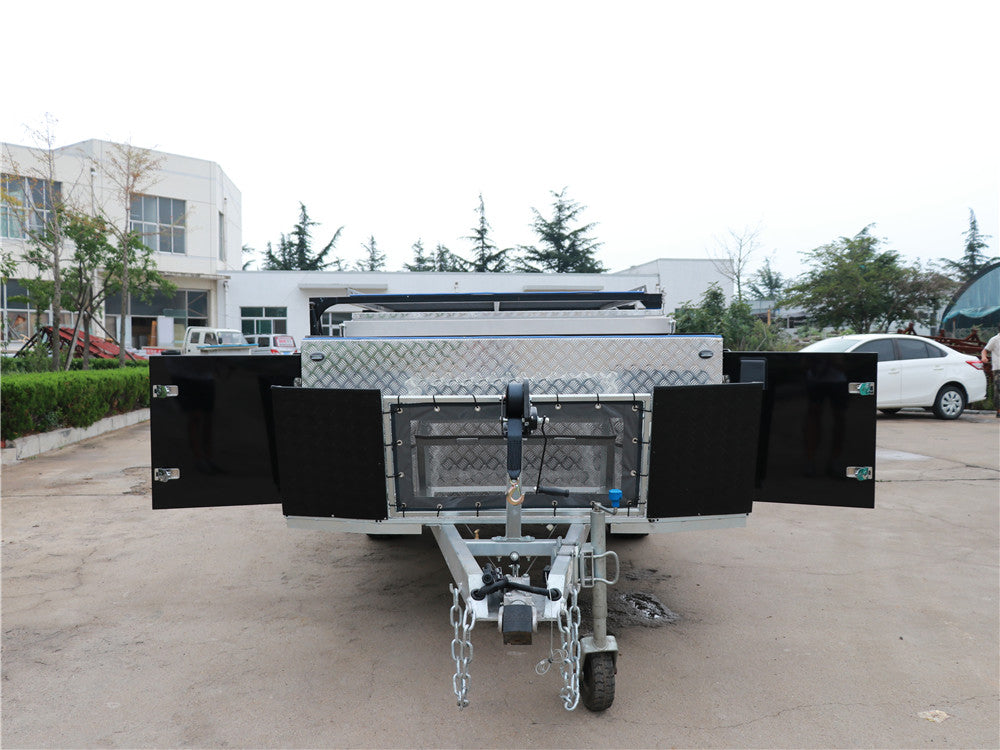

• Toolbox: Front checker plate aluminium toolbox

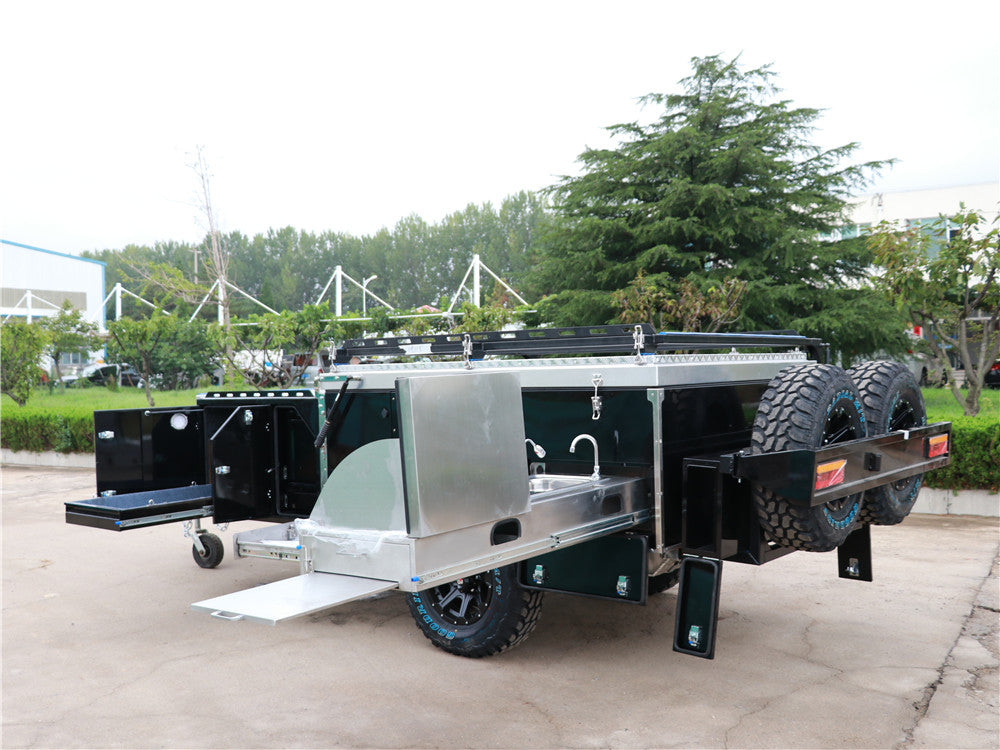

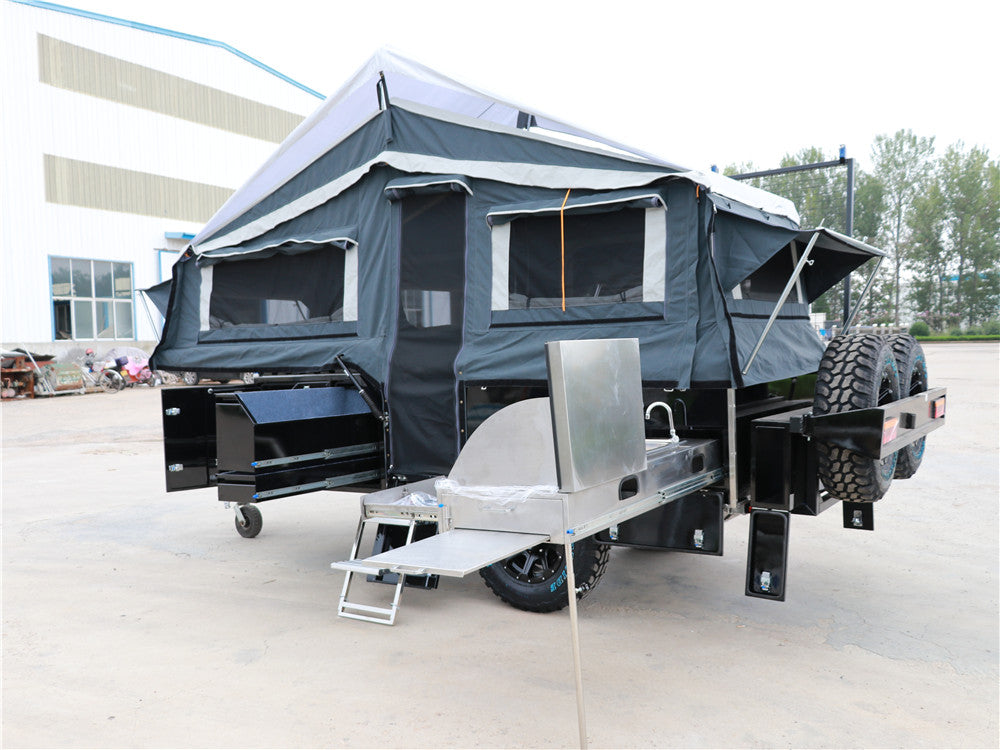

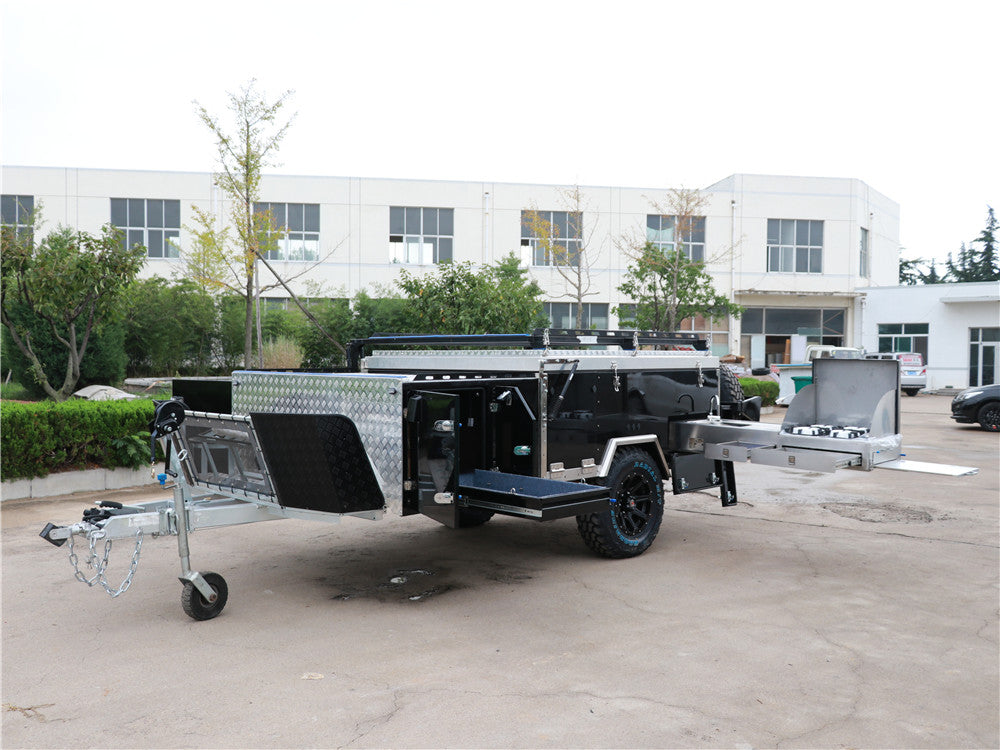

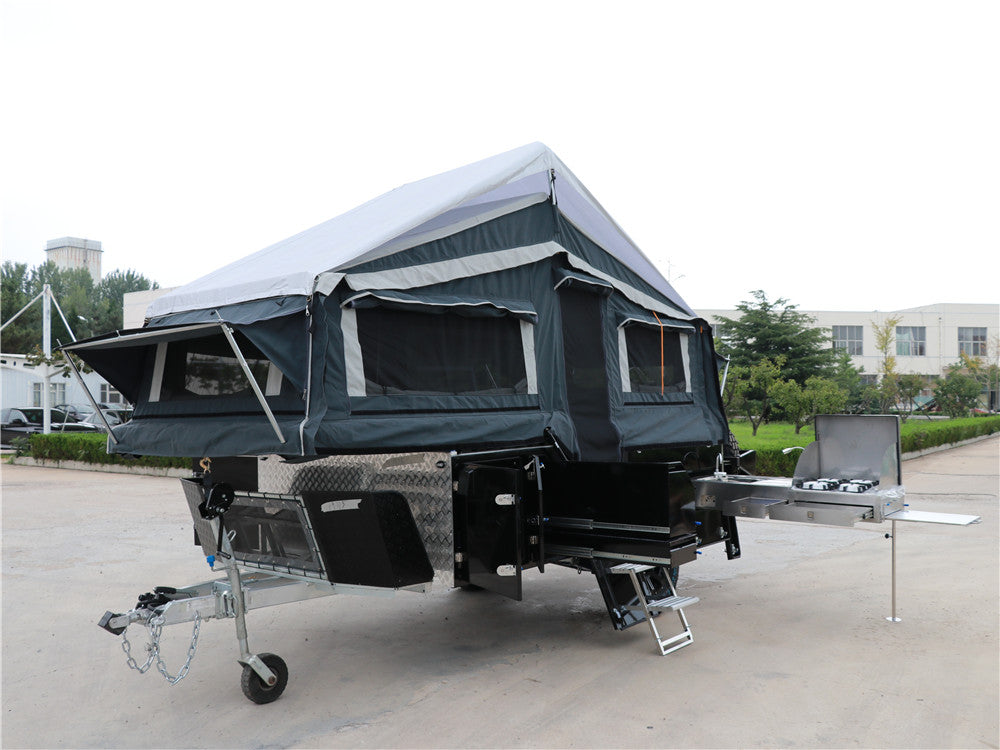

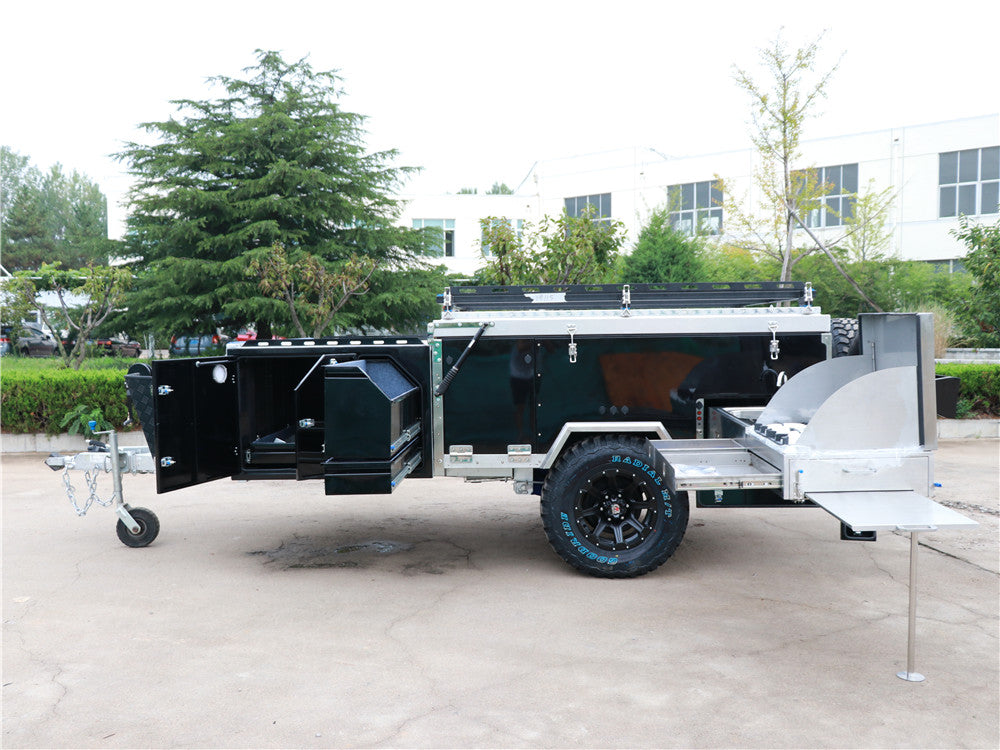

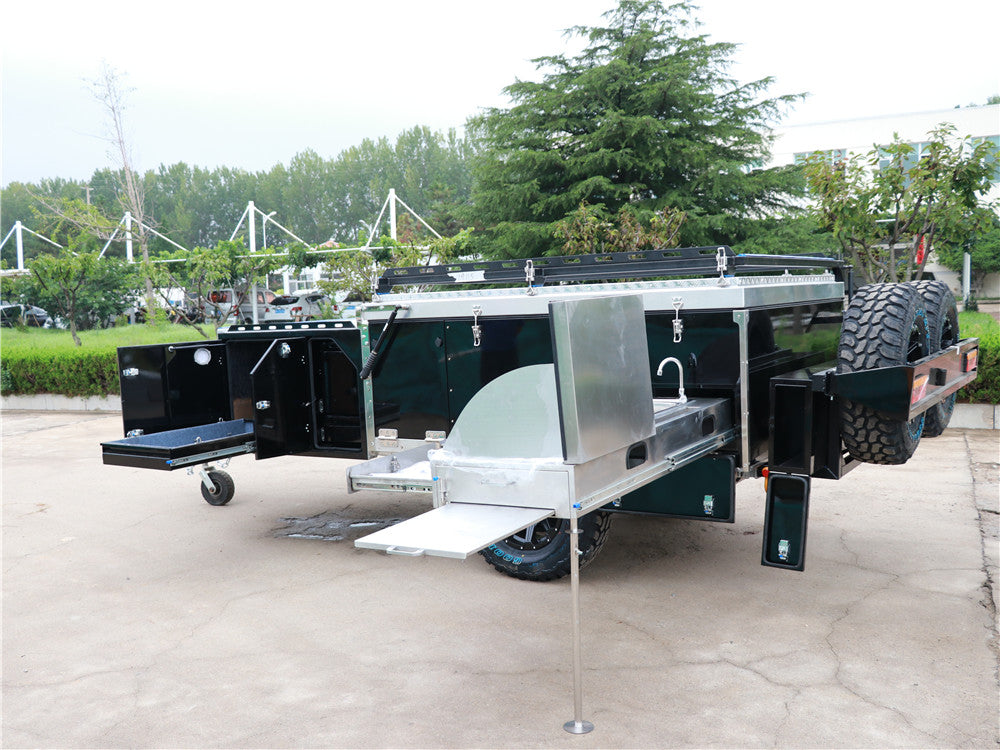

• Kitchen: Stainless steel external kitchen with sink

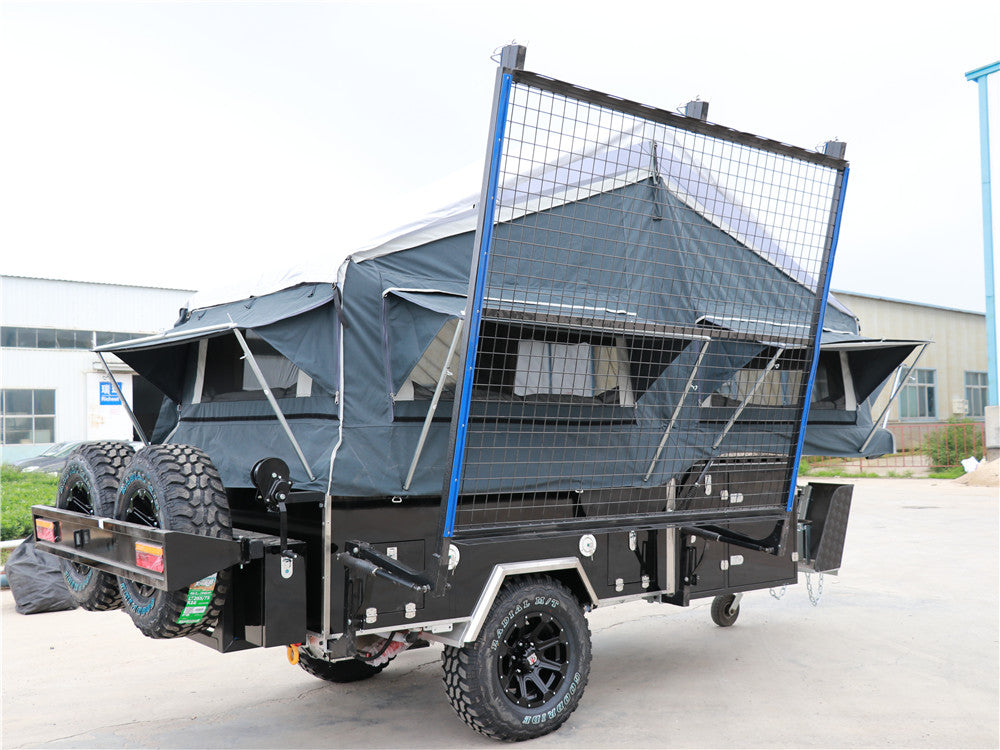

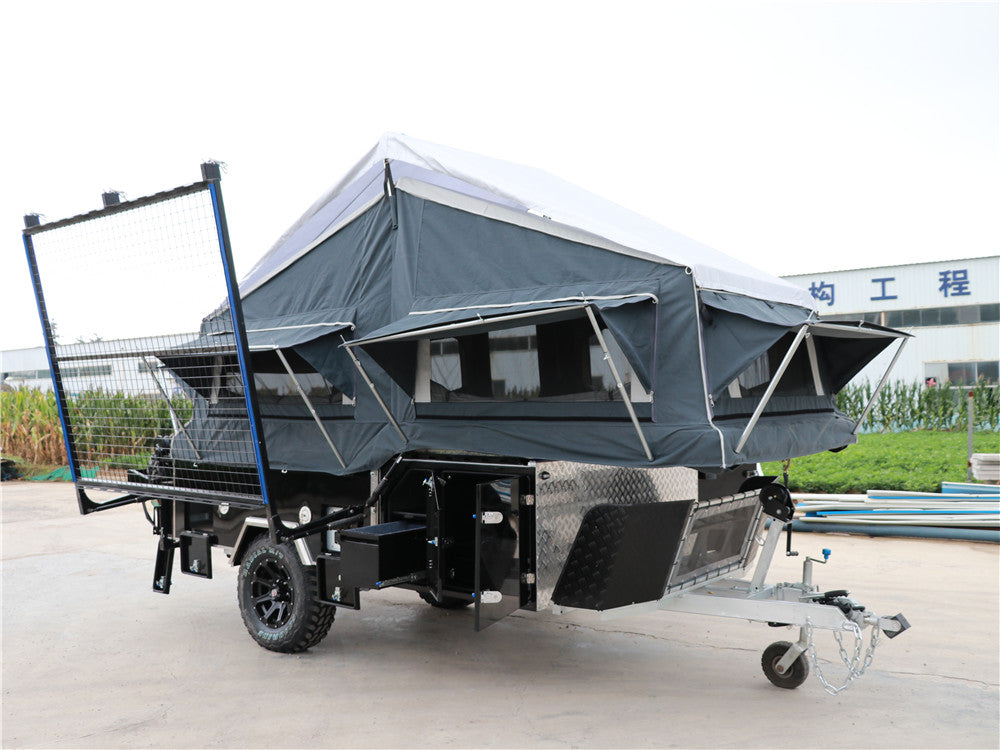

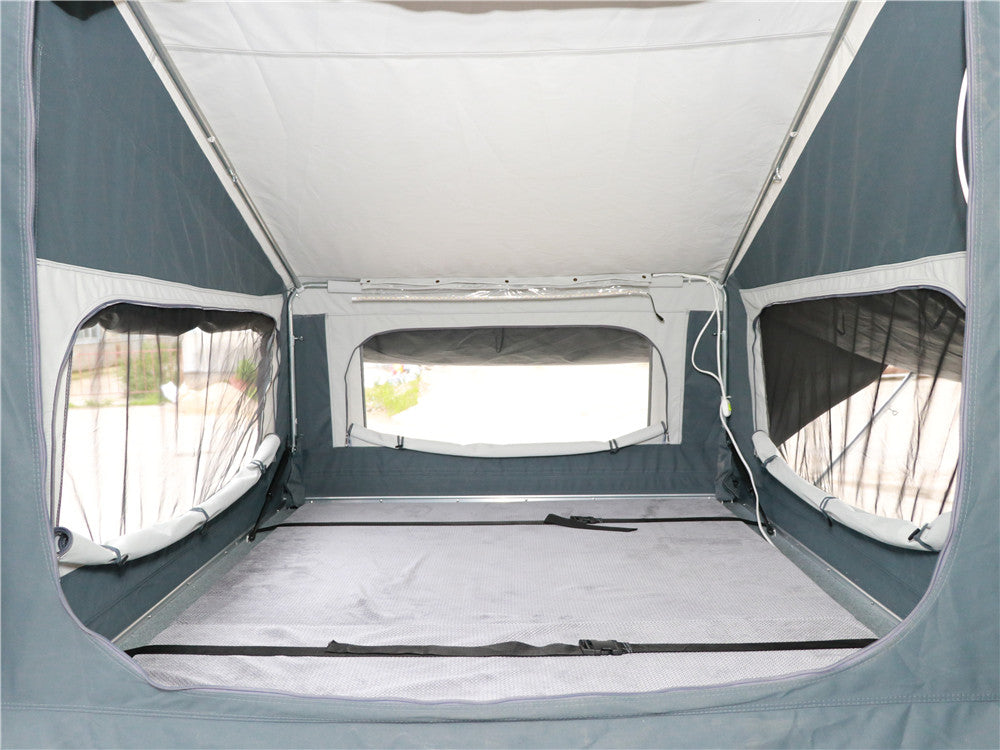

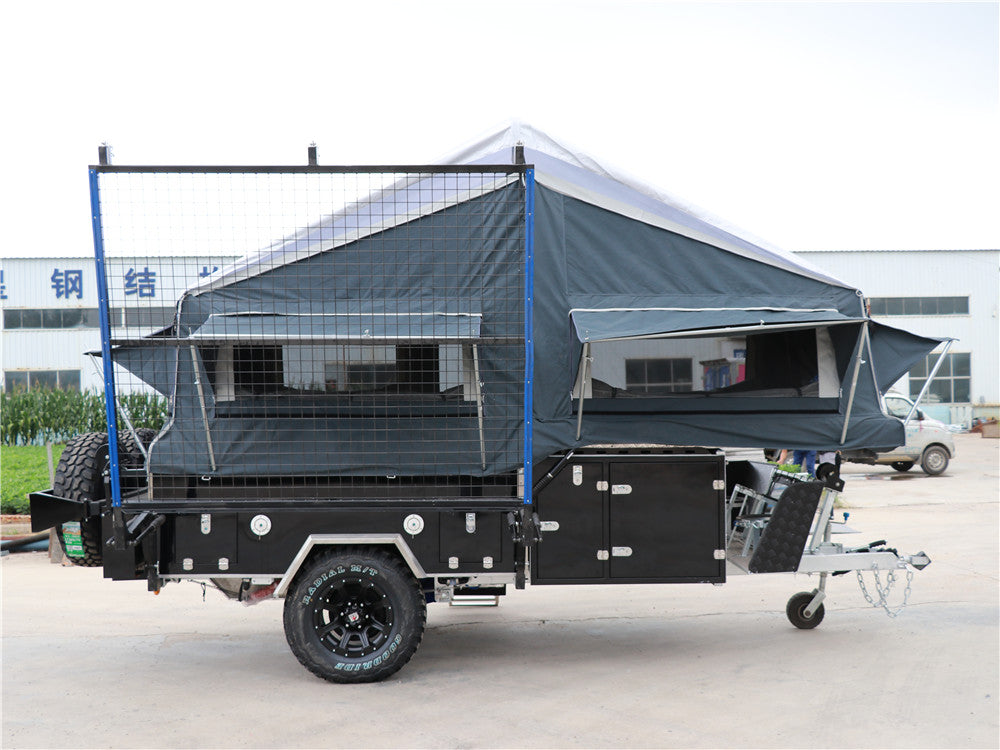

• Tent: High-quality fabric with anti-mosquito mesh

• Shower Tent: Included

• Stone Guard: Black powder-coated with mesh

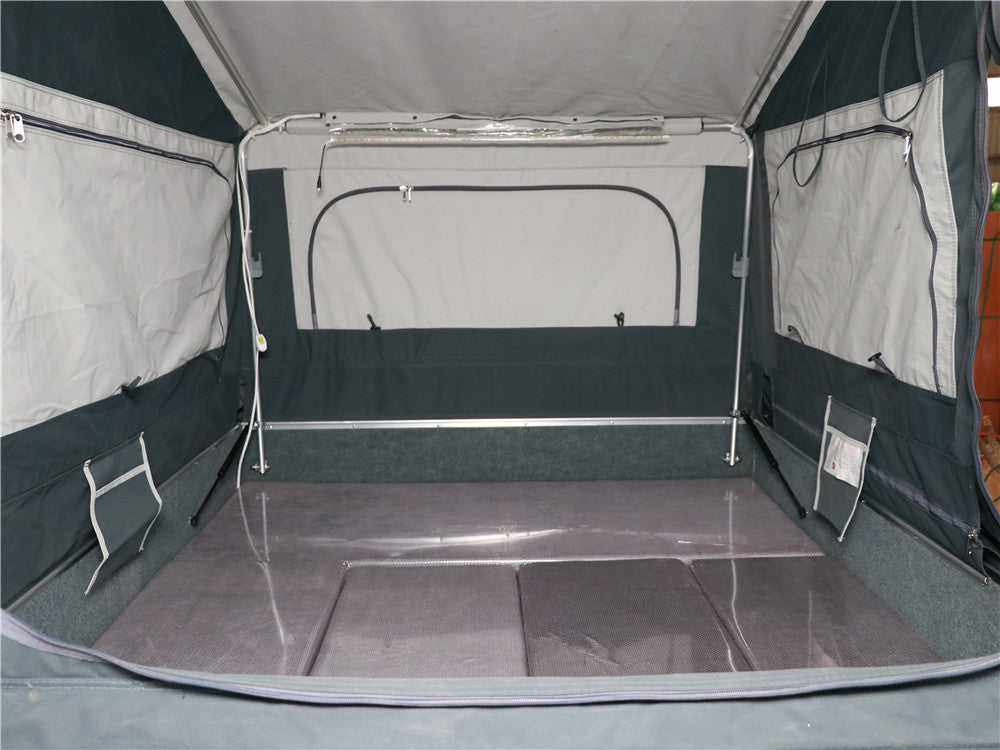

Interior Features

• Mattress: Queen-size foam

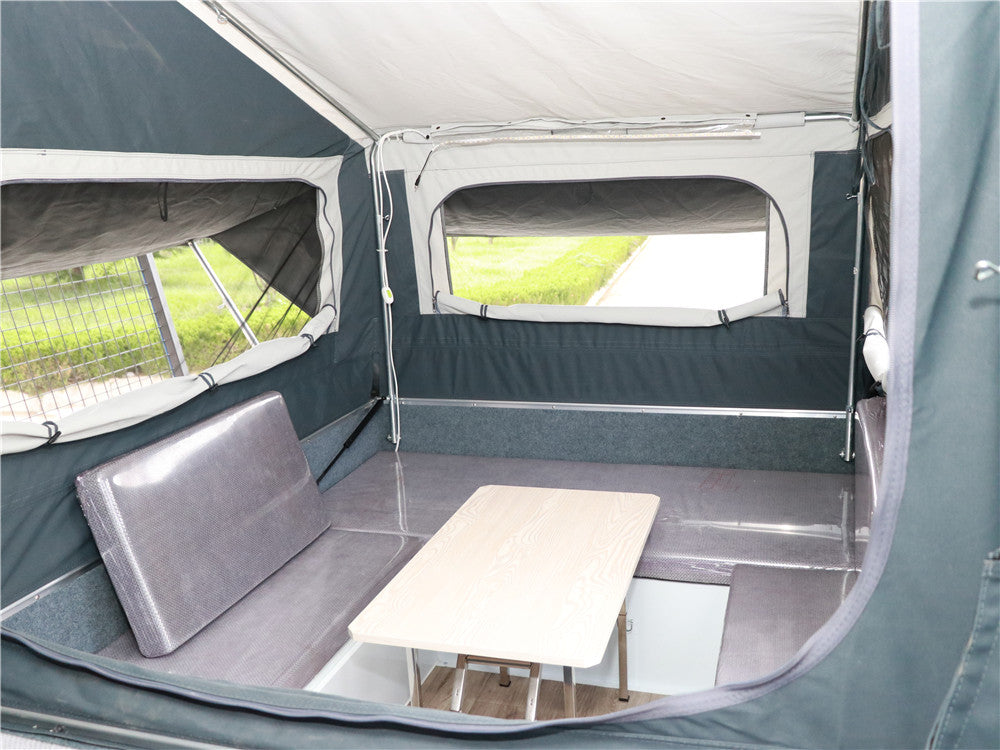

• Sofa: High-quality foam sofa

• Table: Foldable table

• Chair: Inner iron panel chair

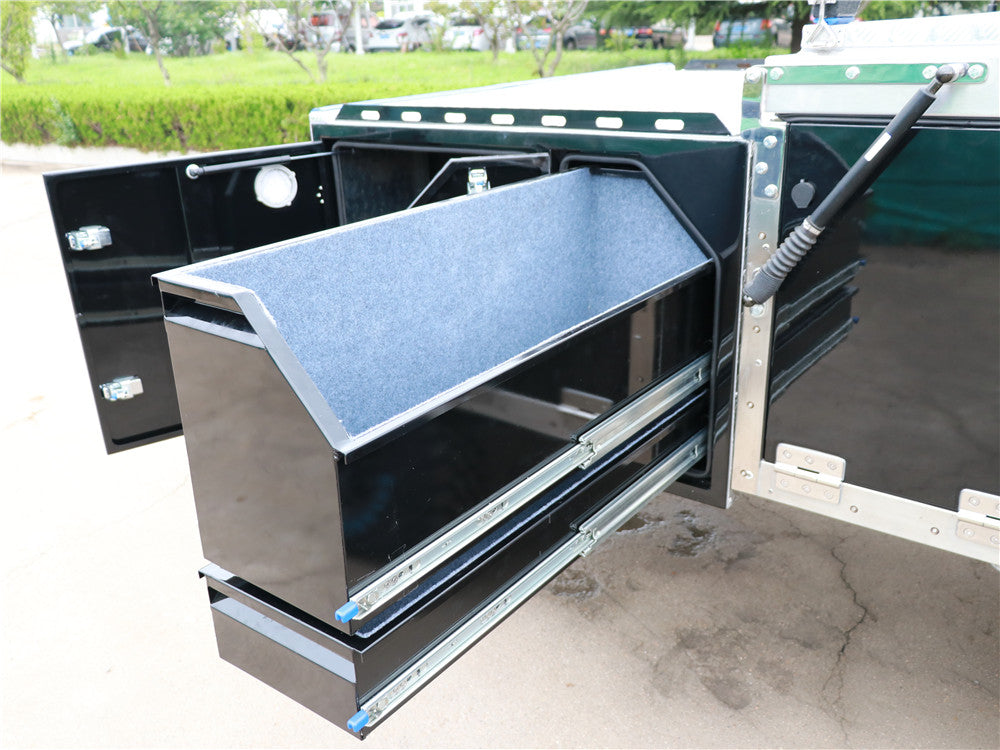

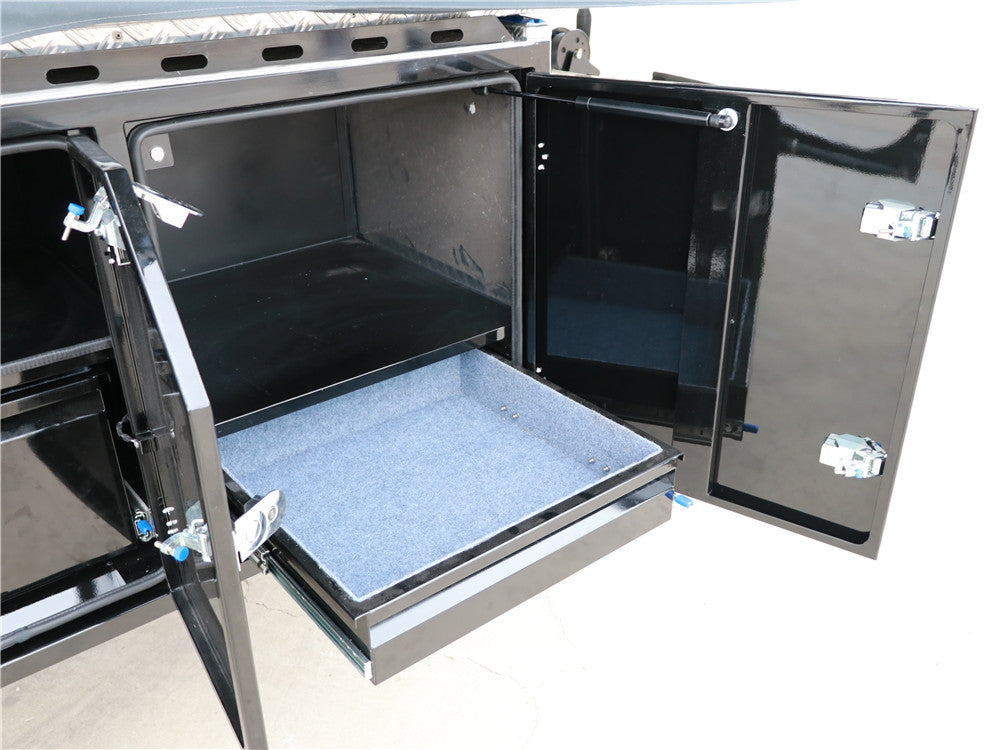

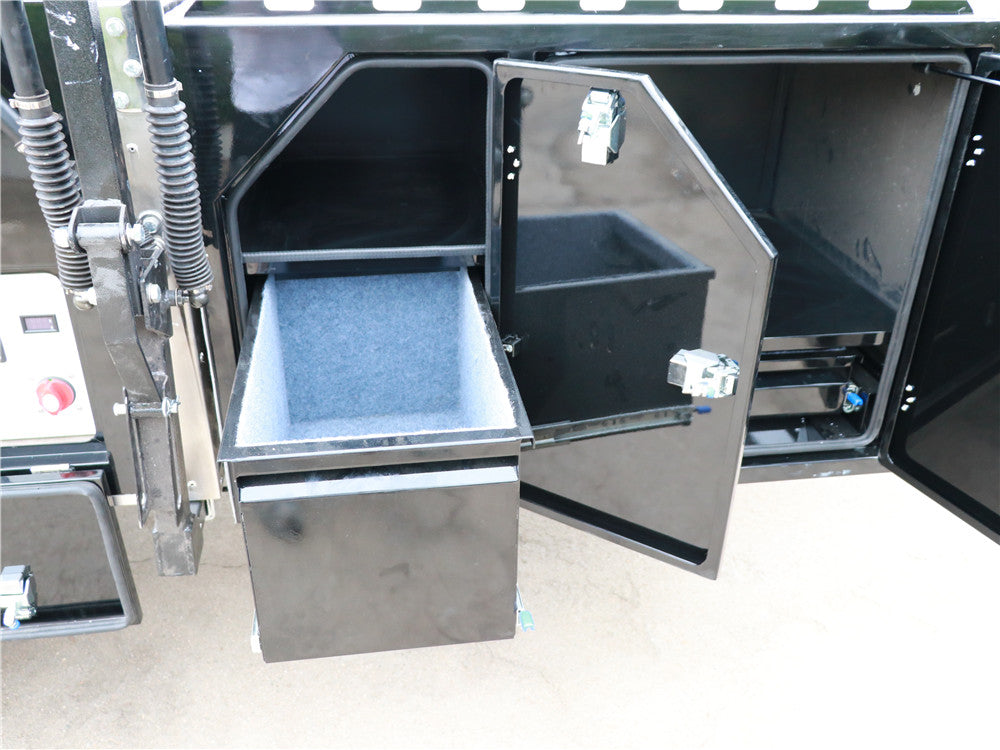

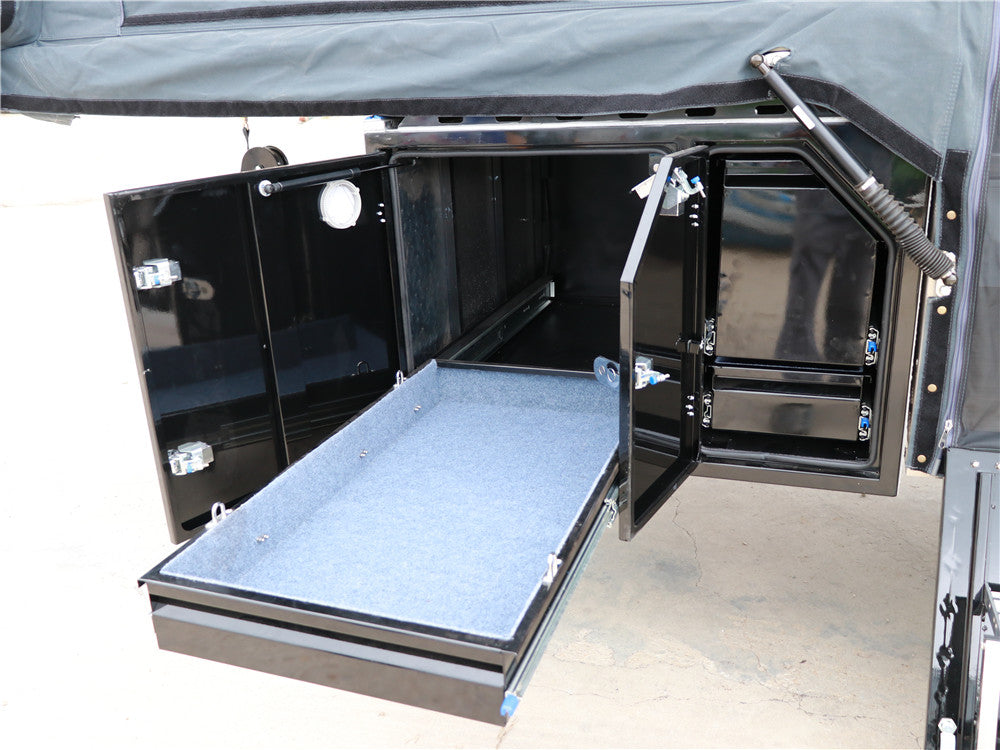

• Flooring: Carpeted throughout (including inner drawers)

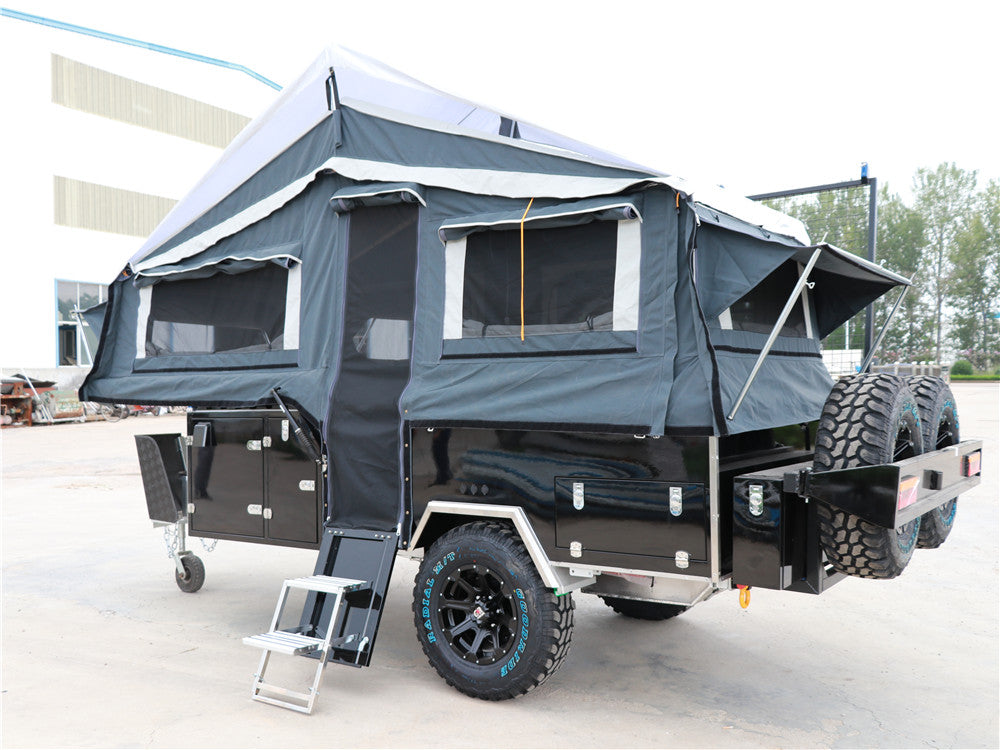

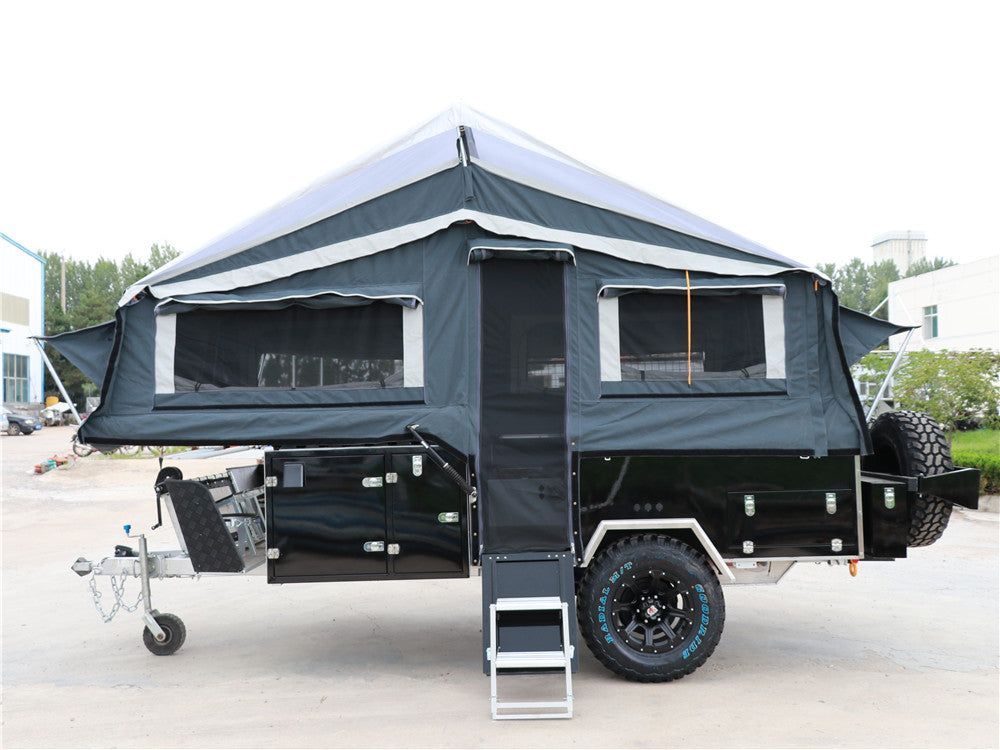

• Step: Aluminium stepper on entry door

• Water Sink: Stainless steel kitchen sink

• Windows/Doors: Stainless steel hinges, sealed on both sides

• Locks: Waterproof locks throughout

Electrical System

• Power: Fully wired 12V and 240V systems

• Control Panel: Amp & voltmeter display

• Sockets: Multiple 12V sockets and switches throughout

• Cigarette Lighter: 1 × 12V

• 240V Outlet: 1 pc (customer to supply in Australia)

• Anderson Plug: 1 pc

• 7-Pin Plug: Flat shape

• Battery Ventilation: 1 × air vent

• Water Metering: Water gauge + meter

• Water Filler: Round marine-grade filler (wastewater tank)
