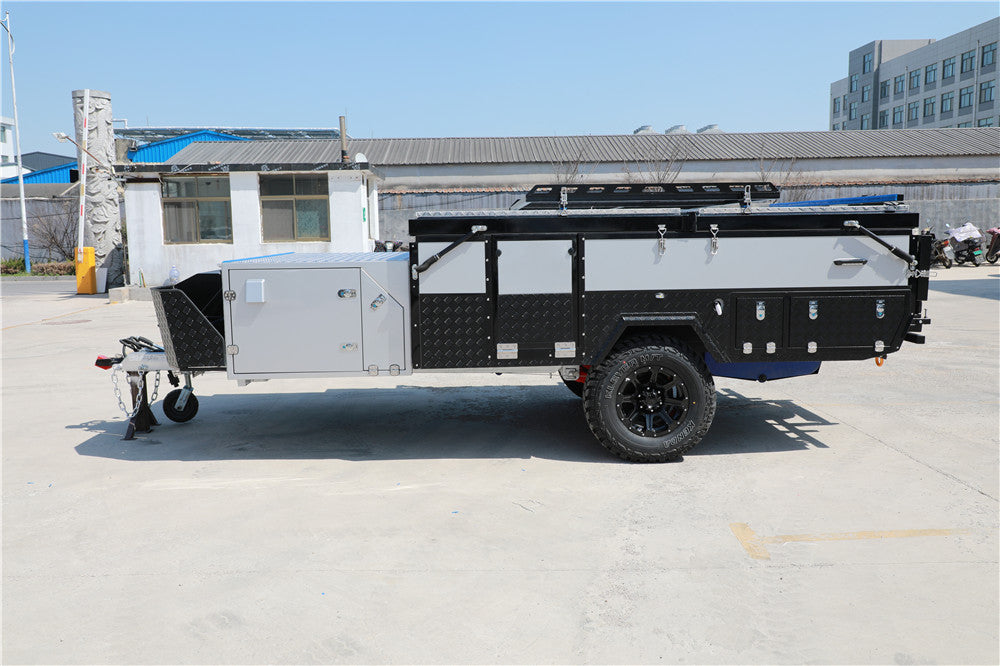

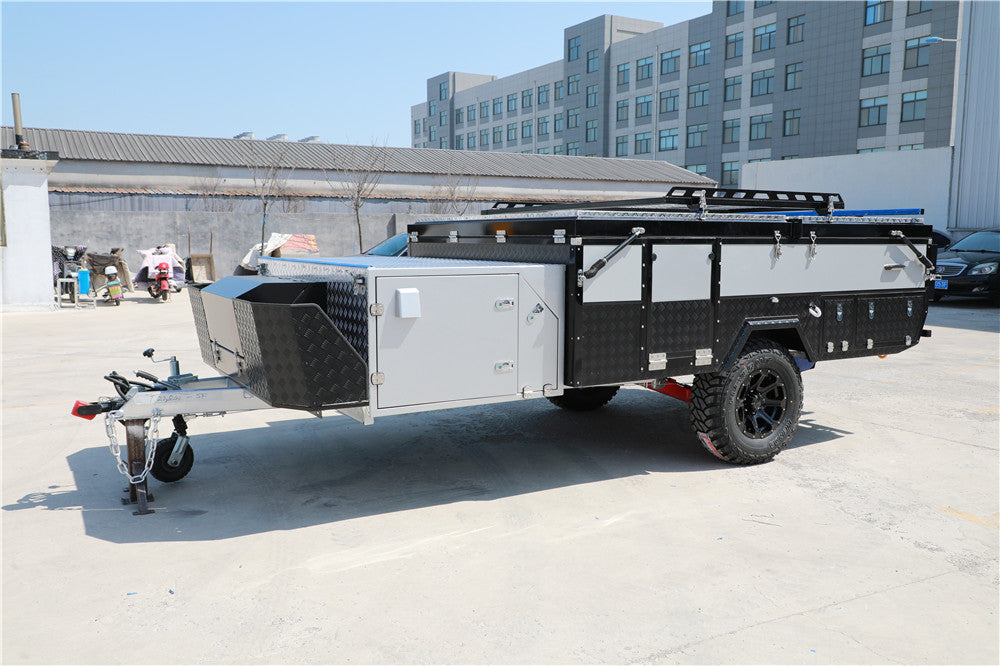

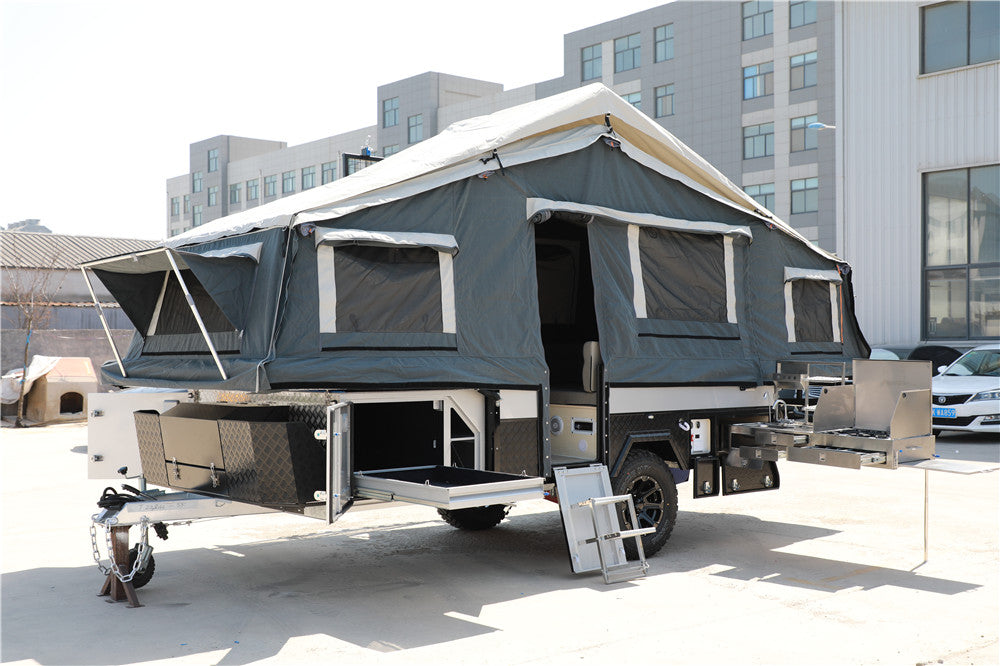

EX-S1 Family camper trailer

Dimensions & Weight

• Overall Length (Hitch to Spare Tyre Holder): 5700mm

• Opened Trailer Size (L × W × H): 5700mm × 2100mm × 1720mm

• Tare Weight: 1350kg

• ATM (Aggregate Trailer Mass): 2000kg

• Ball Weight: 108kg

Chassis & Frame

• Chassis: 100mm × 50mm × 3mm RHS cross beams

• Drawbar: 3000mm extended RHS 120mm × 50mm × 3mm, hot-dipped galvanised

• Frame: Aluminium tube, aluminium panel, and aluminium toolbox

• Lid Construction: Aluminium panel with top checker plate and internal tube frame

• Surface Finish: Aluminium composite panel + black powder-coated aluminium checker plate

• Inner Finish: Fully carpeted interior with Korean wood-pattern leather flooring

• Stone Guard: Hot-dip galvanised frame with mesh + powder-coated checker plate wings

Suspension, Wheels & Coupling

• Suspension: Independent arm with 4x reinforced auto-kick-back shock absorbers and high-performance coil springs

• Wheels & Tyres:

  • 4 × Kenda Mud Terrain 265/75 R16

  • Iron 16" aluminium alloy rims

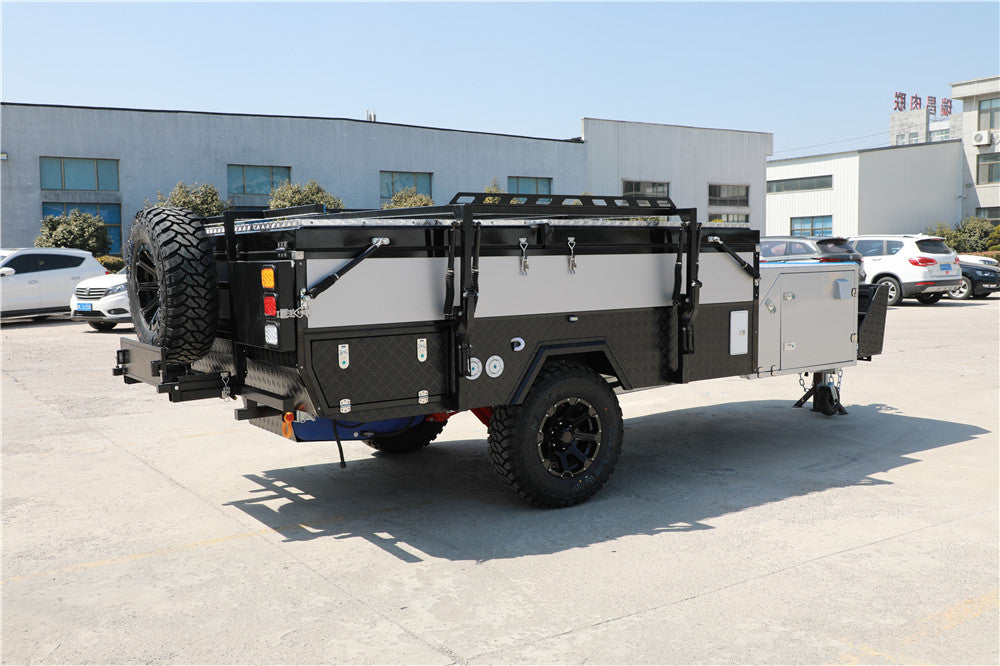

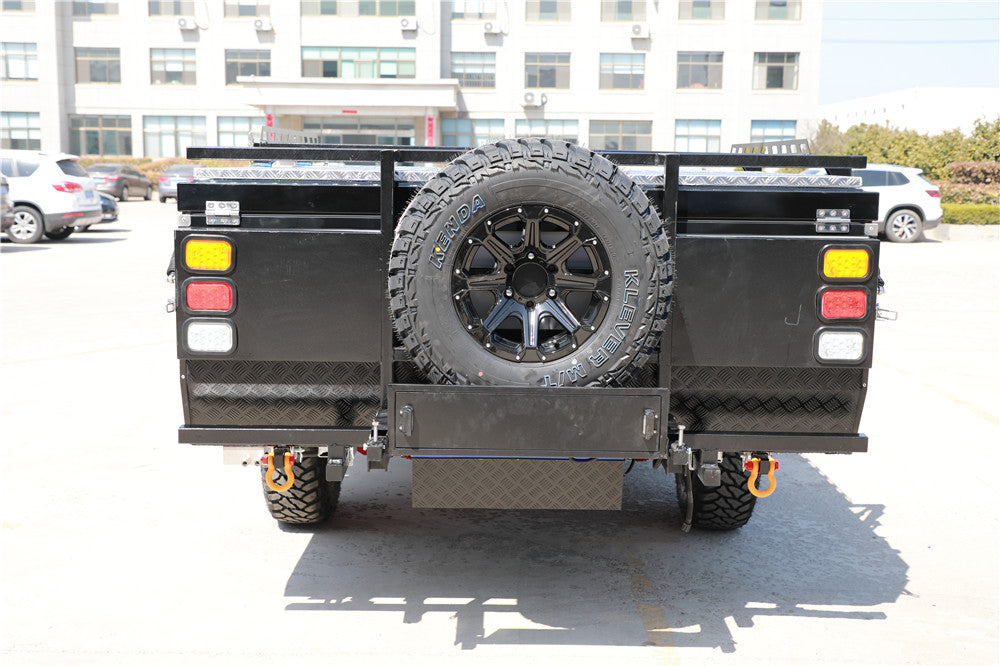

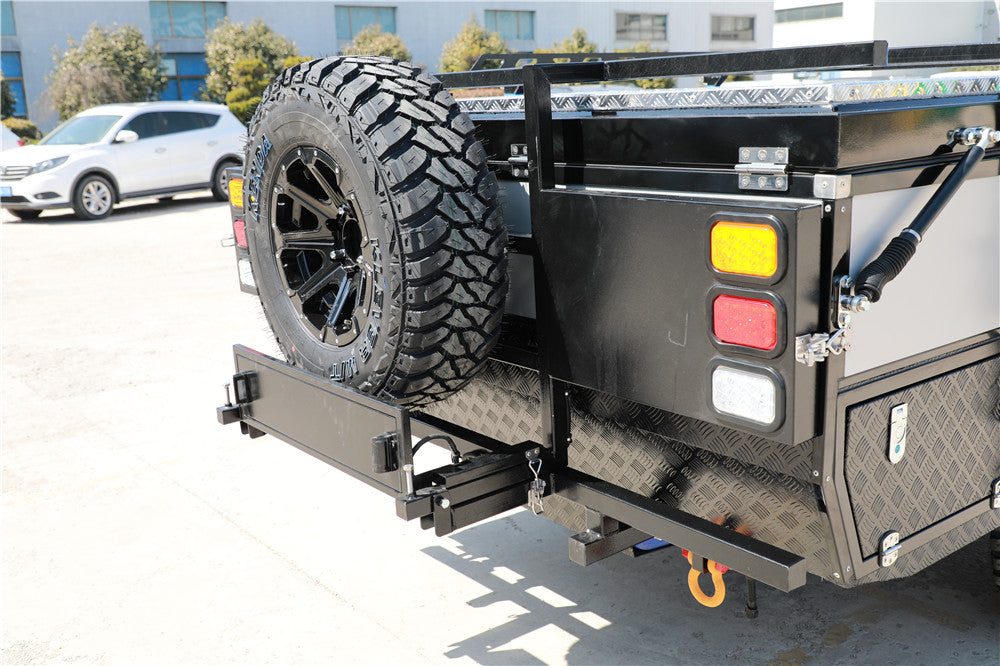

• Spare Tyres: Double holder with 4× spare Kenda tyres on alloy rims

• Coupling Options:

  • 360° off-road poly block

  • Standard NZ coupling

Braking & Stabilisation

• Brakes: 4WD 12" electric with hand brake

• Stabiliser Legs: 4 × super-long heavy-duty lockable and adjustable drop-down legs

• Jockey Wheel: 10" swing-up high-quality jockey wheel

• Safety Chains: Included

Water System

• Tanks:

  • 110L + 90L stainless steel water tanks

• Protection: Aluminium checker plate water tank guards

• Delivery: Marine-grade 12V electric pump

• Tap: Hot and cold water tap

• Water Management:

  • Amp & Volt meter with control panel

  • Water tank gauge and water meter

  • Marine-grade round water filler

Gas & Utilities

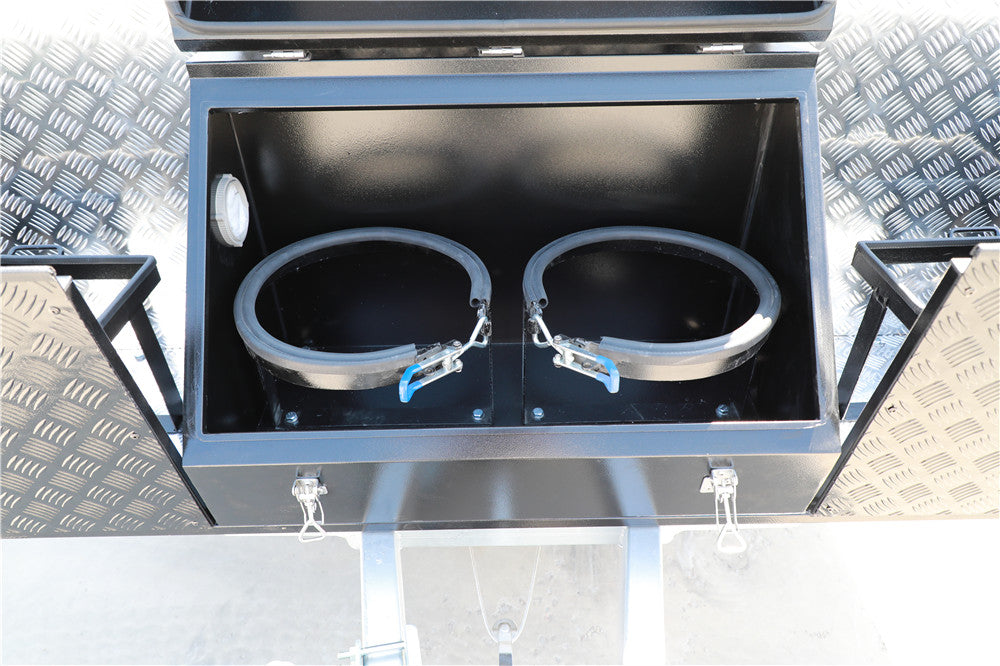

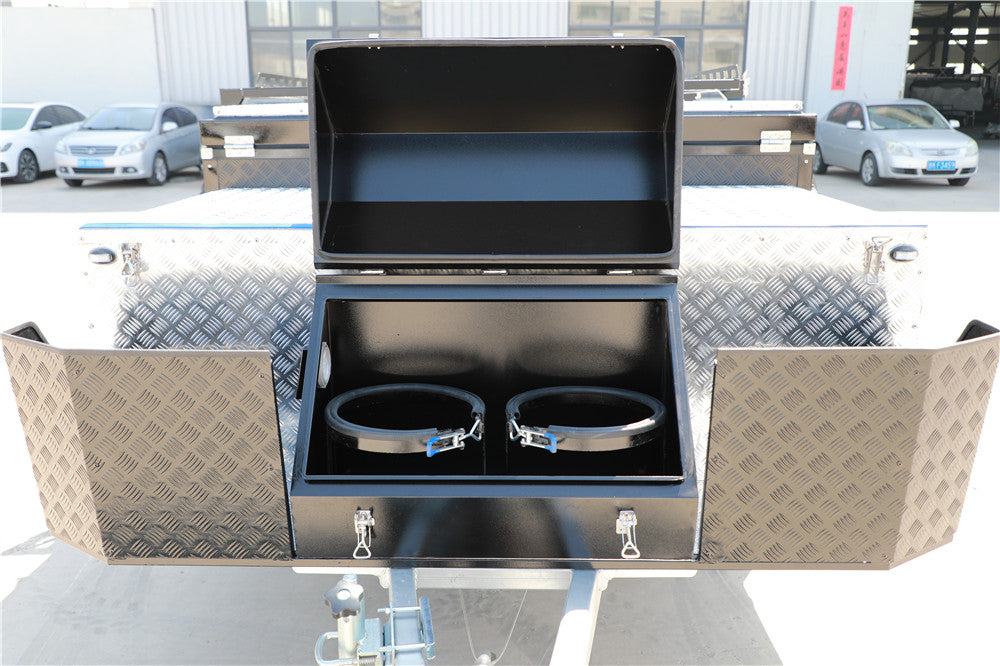

• Gas Holders: 2 × 9kg

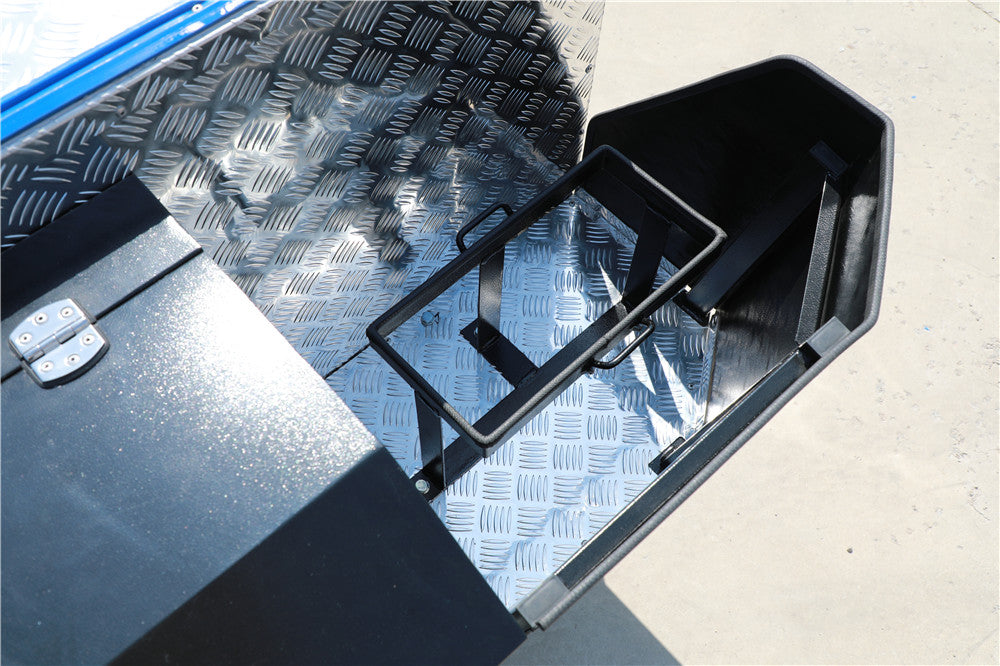

• Jerry Can Holders: 2 × 20L

• Gas Pipe: Fully assembled copper pipe

• Water Pipe: Fully assembled

External Features

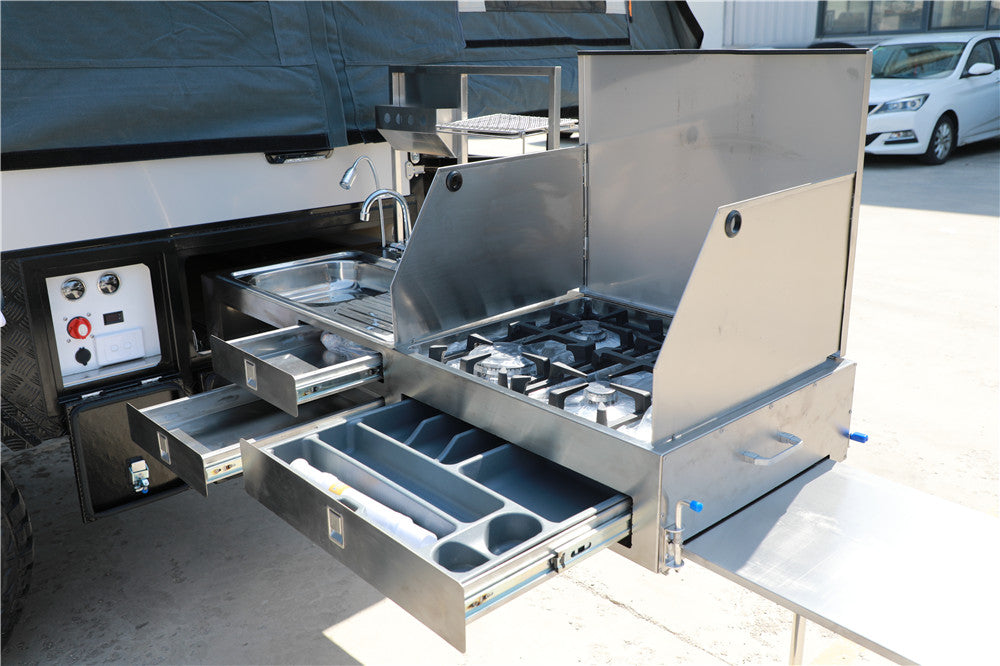

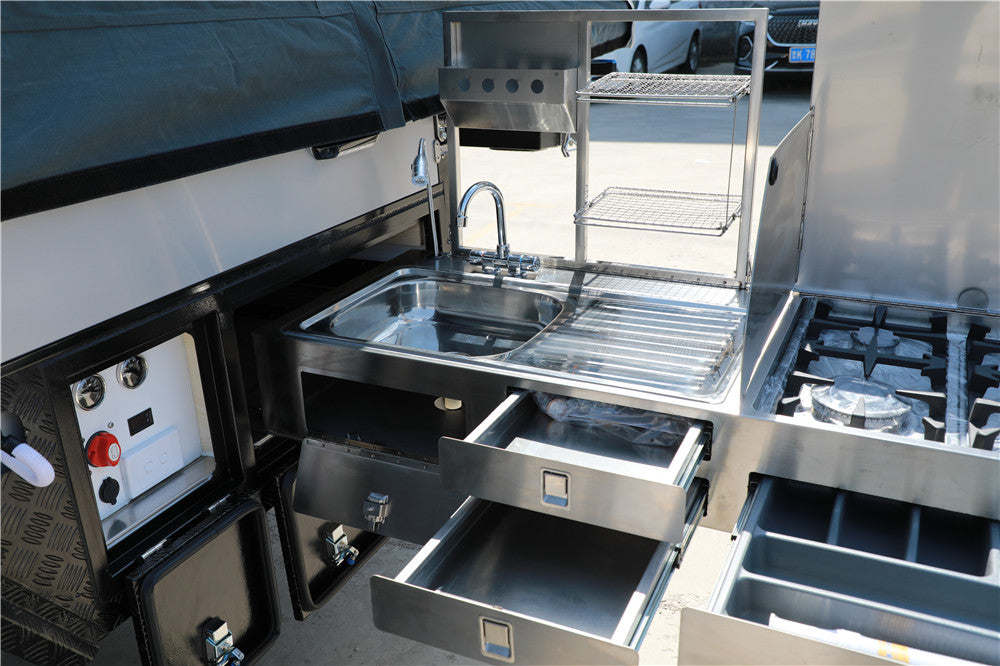

• Kitchen:

  • External 304 grade stainless steel kitchen

  • Stainless steel sink with water tap

• Shower Tent: Outdoor shower tent

• Shower Box: 1 unit with shower head

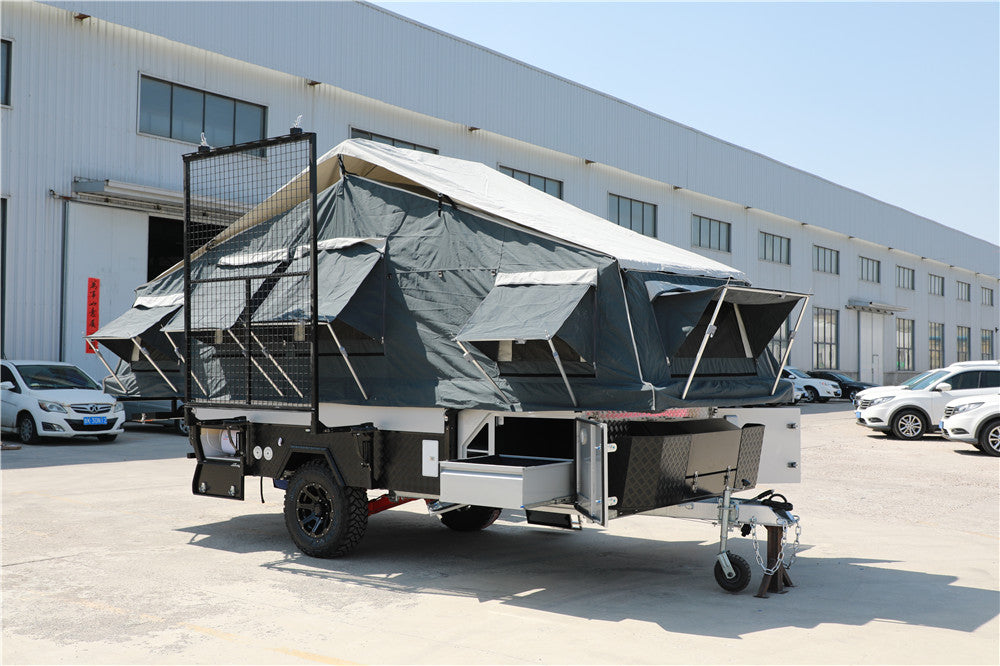

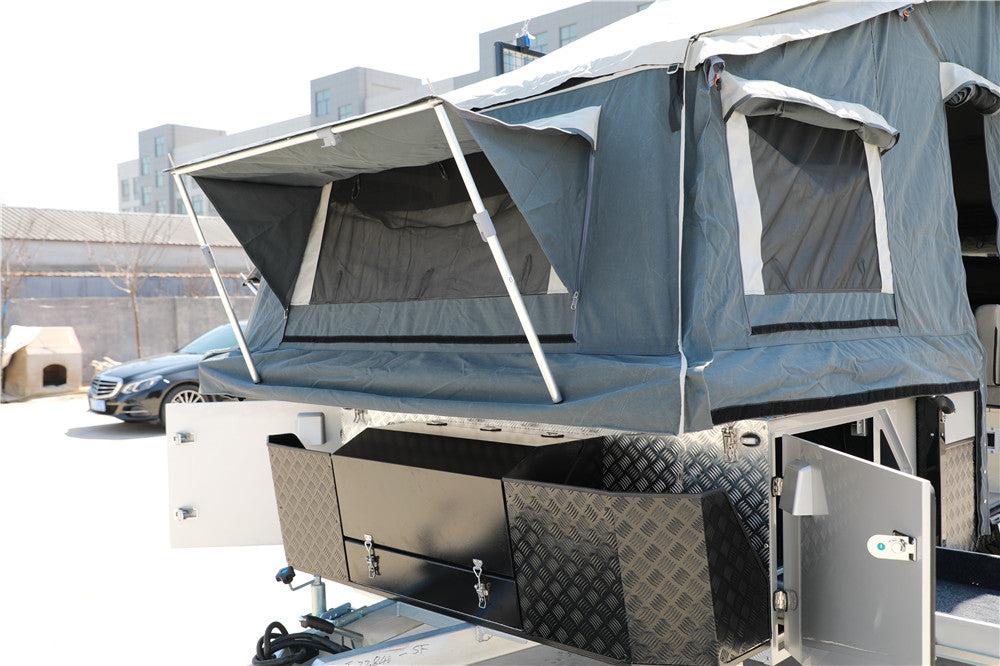

• Awning/Tent:

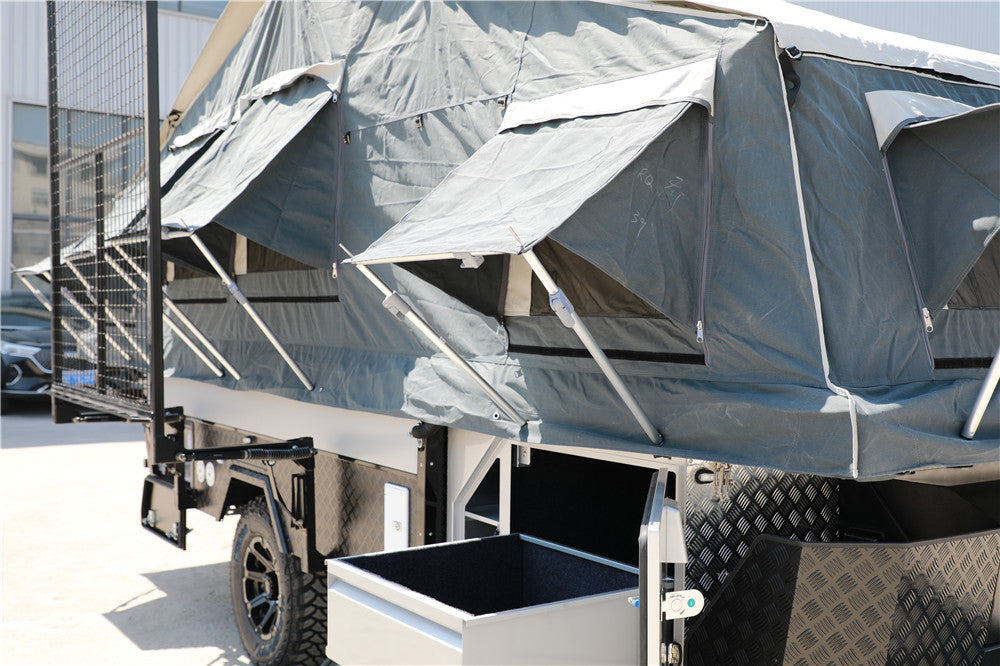

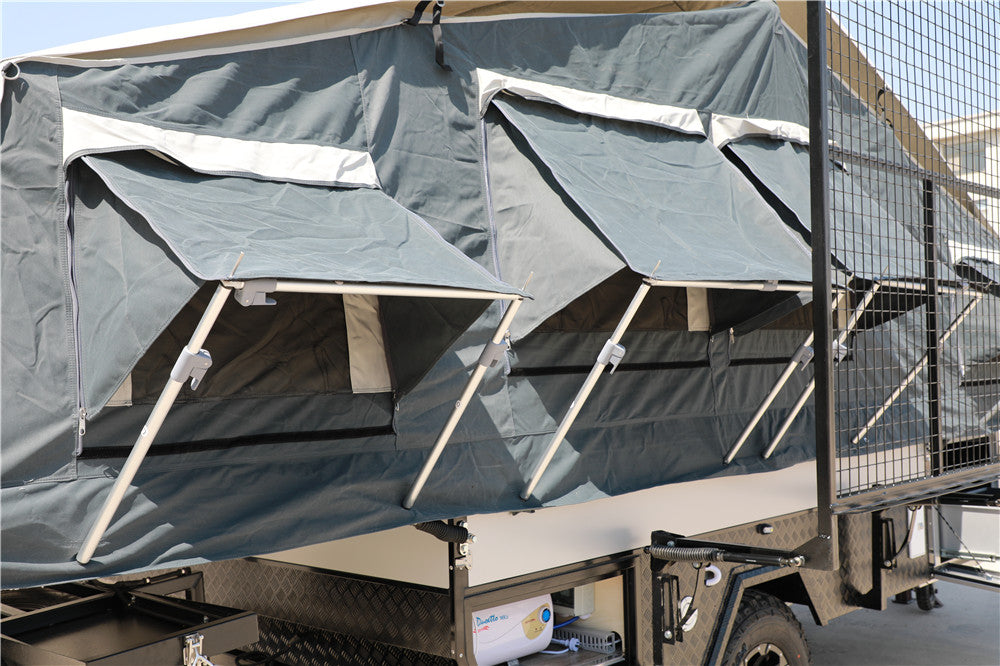

  • TC close-weave tent with anti-mosquito mesh + SBS zipper

• Step: Aluminium step at entry

• Boat Rack: Included

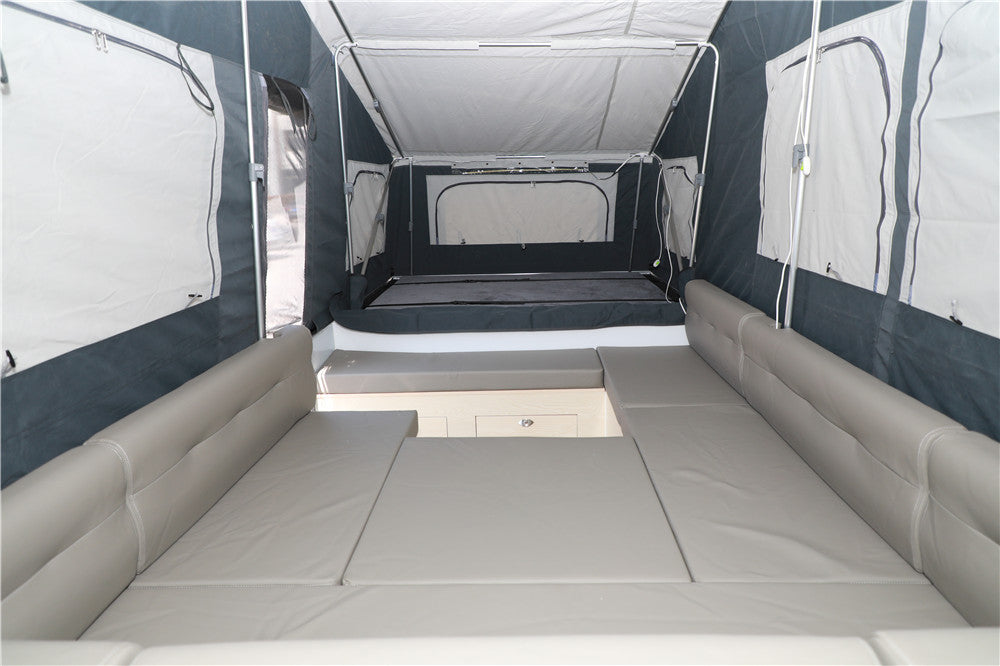

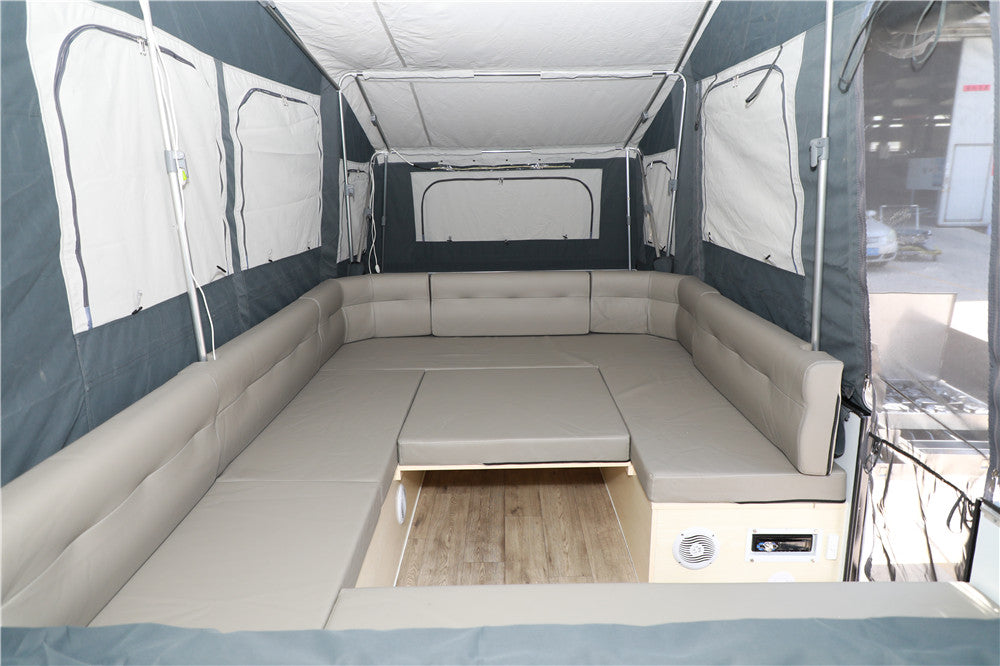

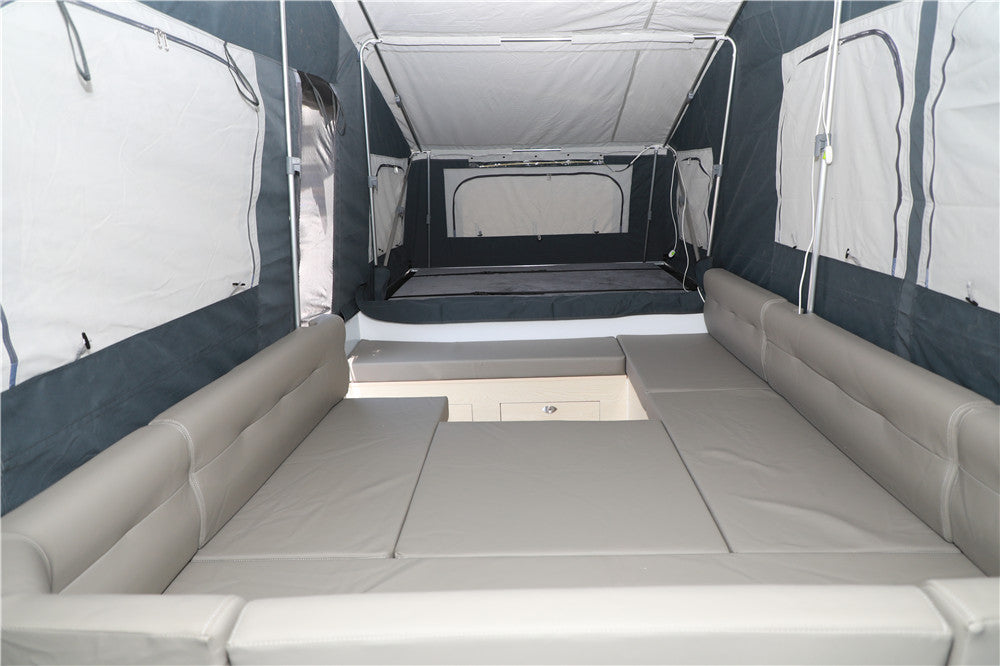

Internal Features

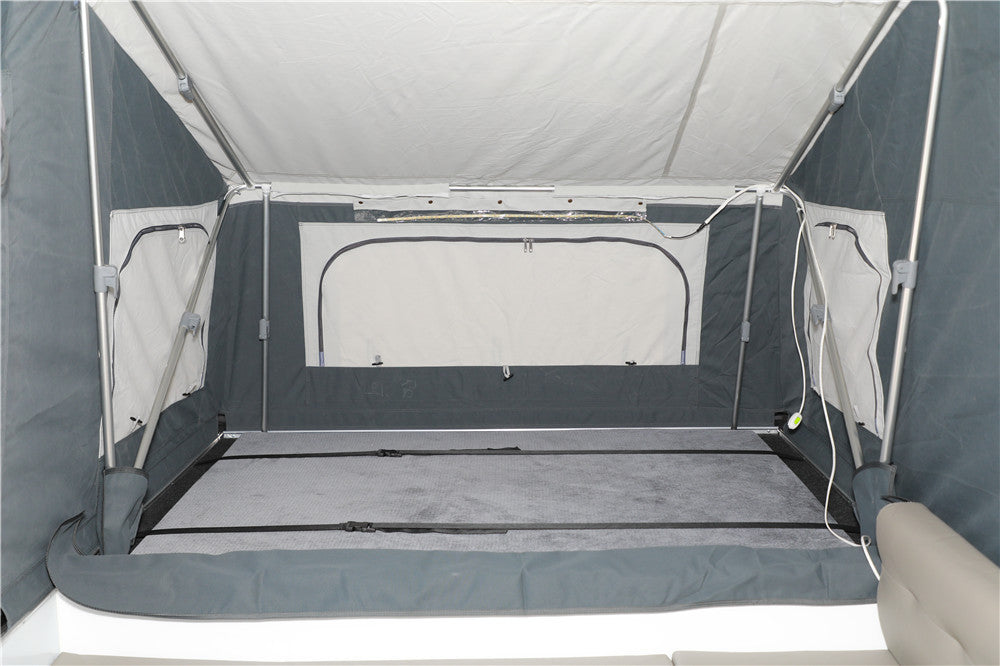

• Mattress: Custom queen foam mattress (2 pieces – front & rear)

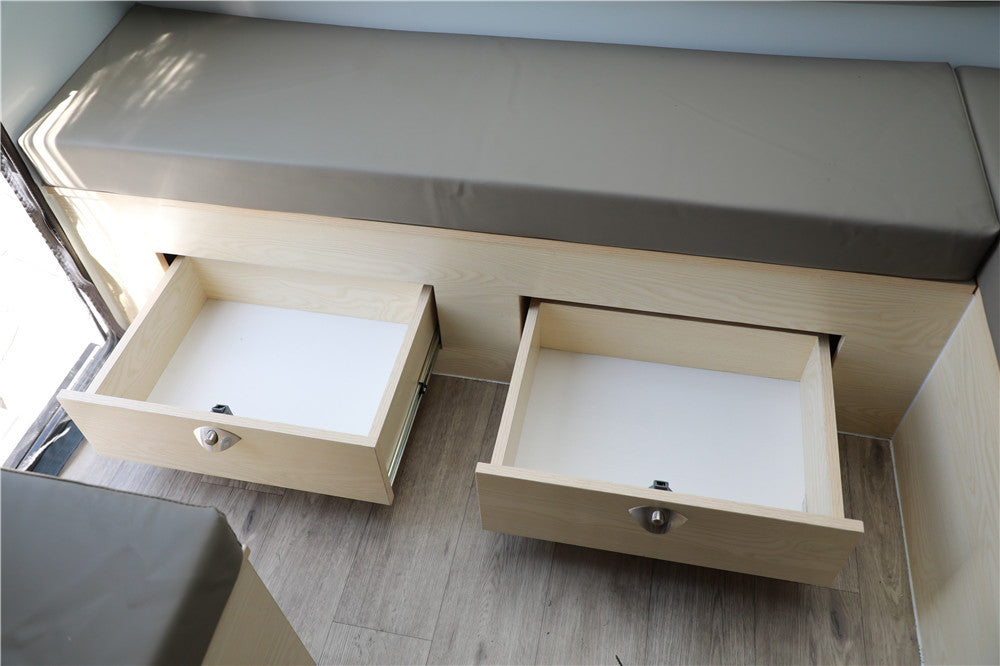

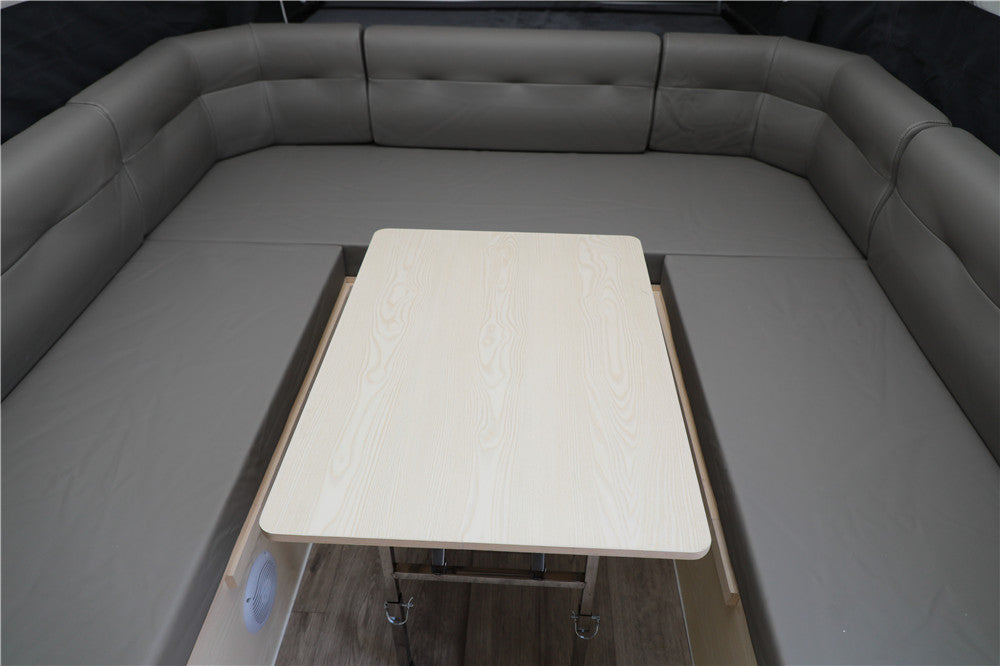

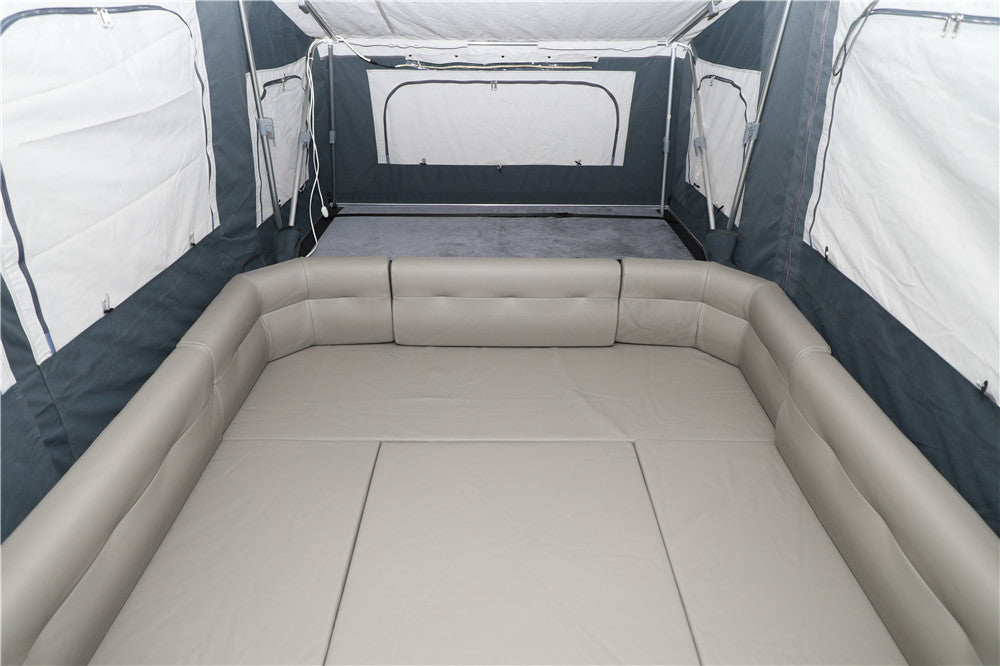

• Sofa: 1 high-quality leather sofa

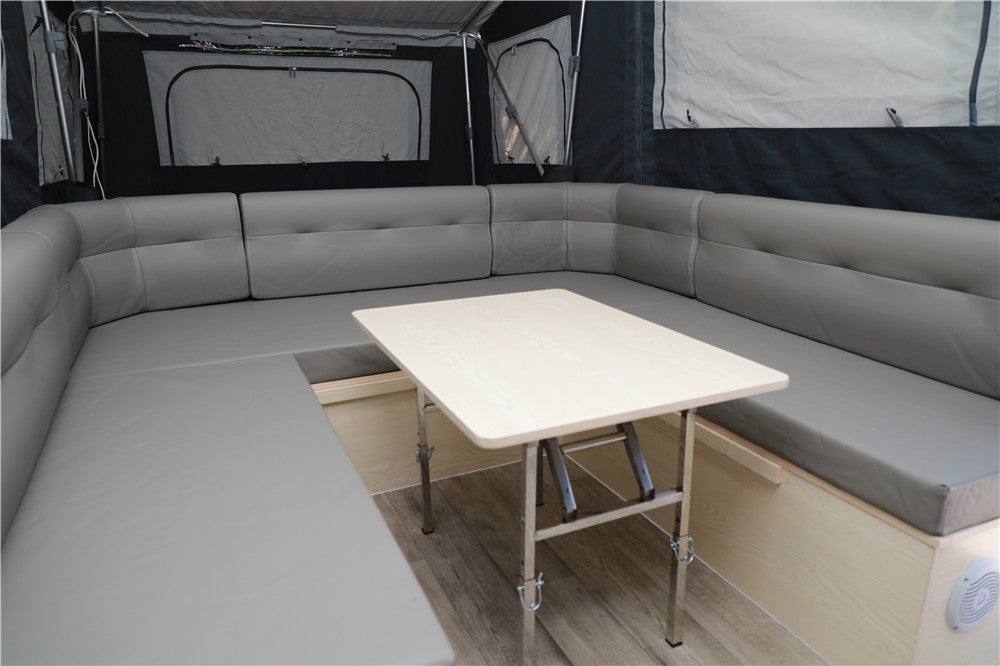

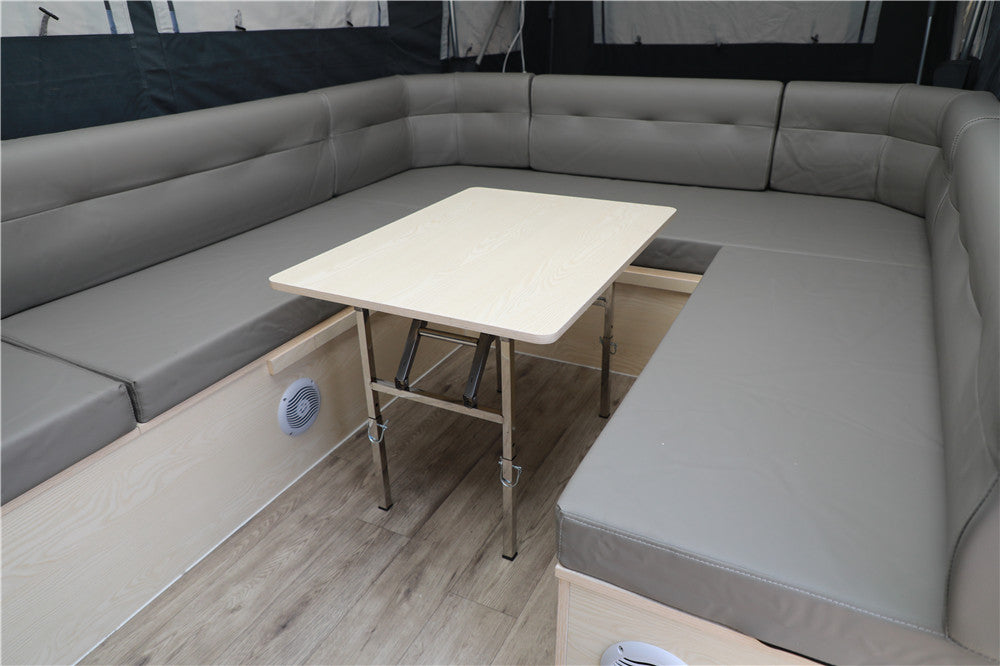

• Table: Foldable table (can convert to bed)

• Interior:

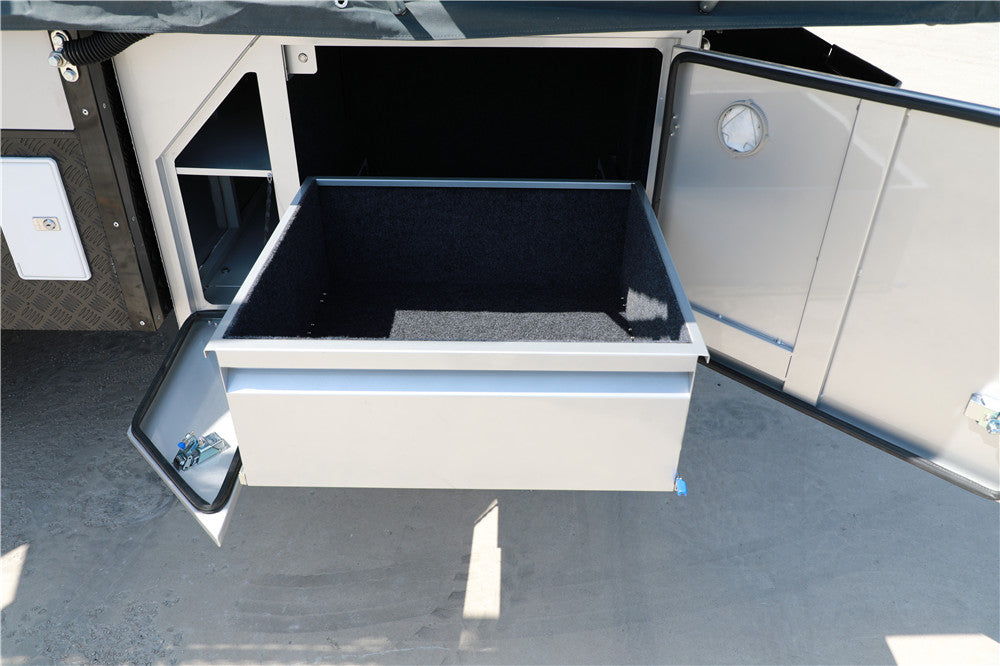

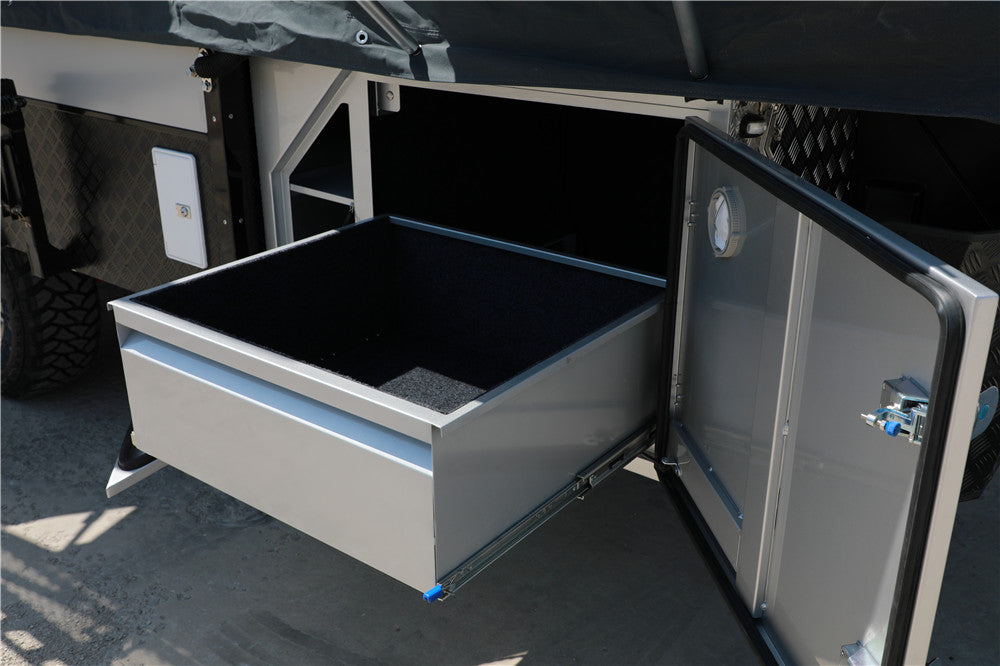

  • Fully carpeted floors and drawer interiors

  • Fold-out tailgate and front section

• Windows/Doors: Stainless steel 304 custom hinges with sealed design

• Locks: Waterproof locks throughout

Electrical System

• Battery: 2 × batteries

• Wiring: Fully wired

• Electric Panel: User-friendly and secure professional design

• Outlets & Switches:

  • Multiple sockets and switches throughout

  • 240V outlet (hole provided; to be customer-installed per Australian regulations)

  • 12V cigarette lighter

  • 7-pin plug (flat or round available)

• Extras:

  • Anderson plug (1 pc)

  • Battery area ventilation (1 vent)

  • Charger (240V):

  • Inverter:

  • Media Unit with High-Pitch Loudspeaker:

  • Cooktop / AGA Stove:
